TDPLD910-15: DescriptionUV PLD, 18ns, PAL-Type, CMOS, CDIP40, CERDIP-40; CategoryProgrammable logic devices Programmable logic; File Size51KB，1 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

TDPLD910-15 Overview

UV PLD, 18ns, PAL-Type, CMOS, CDIP40, CERDIP-40

TDPLD910-15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
Parts packaging code	DIP
package instruction	DIP, DIP40,.6
Contacts	40
Reach Compliance Code	compliant
Other features	PAL WITH MACROCELLS; 24 MACROCELLS; 2 EXTERNAL CLOCKS; ASYNCHRONOUS CLOCKS
Architecture	PAL-TYPE
maximum clock frequency	45.4 MHz
JESD-30 code	R-GDIP-T40
JESD-609 code	e0
length	52.325 mm
Dedicated input times	12
Number of I/O lines	24
Number of entries	36
Output times	24
Number of product terms	240
Number of terminals	40
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	12 DEDICATED INPUTS, 24 I/O
Output function	MACROCELL
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programmable logic type	UV PLD
propagation delay	18 ns
Certification status	Not Qualified
Maximum seat height	5.72 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

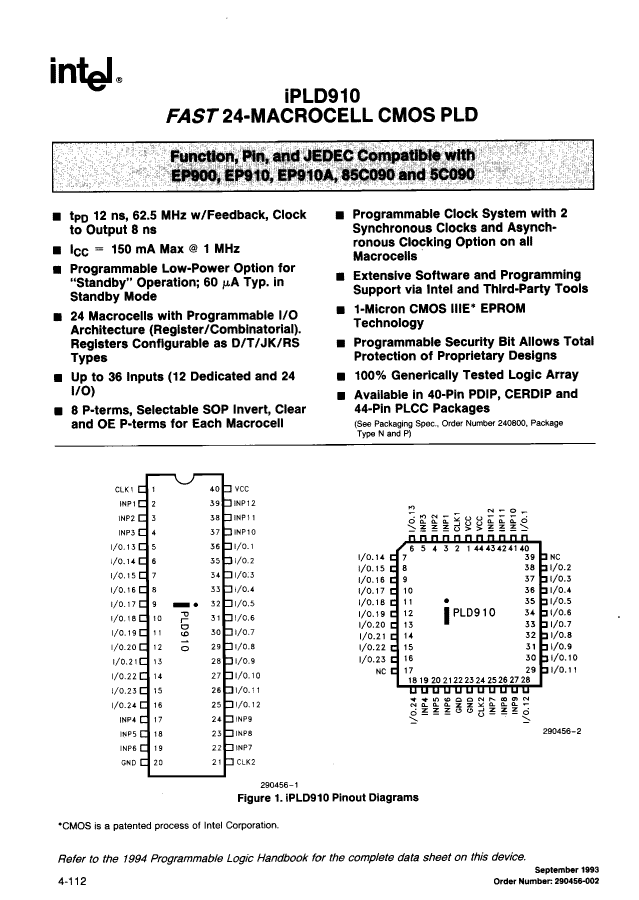

TDPLD910-15 Preview
