FST3306MTCX_NL

Description
Bus Driver, CBT/FST/QS/5C/B Series, 1-Func, 2-Bit, True Output, CMOS, PDSO8, 4.40 MM, MO-153, TSSOP-8
Categorylogic    logic
File Size224KB，5 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Environmental Compliance
Download Datasheet Parametric View All

FST3306MTCX_NL Overview

Bus Driver, CBT/FST/QS/5C/B Series, 1-Func, 2-Bit, True Output, CMOS, PDSO8, 4.40 MM, MO-153, TSSOP-8

FST3306MTCX_NL Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerFairchild
Parts packaging codeTSSOP
package instructionTSSOP, TSSOP8,.25
Contacts8
Reach Compliance Codecompliant
seriesCBT/FST/QS/5C/B
JESD-30 codeR-PDSO-G8
JESD-609 codee3
length4.4 mm
Logic integrated circuit typeBUS DRIVER
Humidity sensitivity level1
Number of digits2
Number of functions1
Number of ports2
Number of terminals8
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialPLASTIC/EPOXY
encapsulated codeTSSOP
Encapsulate equivalent codeTSSOP8,.25
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)260
power supply5 V
propagation delay (tpd)0.25 ns
Certification statusNot Qualified
Maximum seat height1.2 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4 V
Nominal supply voltage (Vsup)4.5 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal pitch0.65 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width3 mm

FST3306MTCX_NL Preview

FST3306 2-Bit Low Power Bus Switch
February 2001
Revised February 2001
FST3306
2-Bit Low Power Bus Switch
General Description
The FST3306 is a 2-bit ultra high-speed CMOS FET bus
switch with TTL-compatible active LOW control inputs. The
low on resistance of the switch allows inputs to be con-
nected to outputs with minimal propagation delay and with-
out generating additional ground bounce noise. The device
is organized as a 2-bit switch with independent bus enable
(BE) controls. When BE is LOW, the switch is ON and
Port A is connected to Port B. When BE is HIGH, the
switch is OPEN and a high-impedance state exists
between the two ports. Control inputs tolerate voltages up
to 5.5V independent of V
CC
.
Features
s
Typical 3
Ω
switch resistance at 5.0V V
CC
s
Minimal propagation delay through the switch
s
Power down high impedance input/output
s
Zero bounce in flow through mode.
s
TTL compatible active LOW control inputs
s
Control inputs are overvoltage tolerant
Ordering Code:
Order Number
FST3306MTC
Package Number
MTC08
Package Description
8-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Logic Symbol
Connection Diagram
(Top View)
Pin Descriptions
Pin Name
A
B
BE
Description
Bus A
Bus B
Bus Enable Input
Function Table
Bus Enable Input BE
L
H
H
=
HIGH Logic Level
L
=
LOW Logic Level
Function
B Connected to A
Disconnected
© 2001 Fairchild Semiconductor Corporation
DS500479
www.fairchildsemi.com
FST3306
Absolute Maximum Ratings
(Note 1)
Supply Voltage (V
CC
)
DC Switch Voltage (VS)
DC Output Voltage (V
IN
) (Note 2)
DC Input Diode Current
(I
IK
) V
IN
<
0V
DC Output (I
OUT
) Current
DC V
CC
or Ground Current (I
CC
/GND)
Storage Temperature Range (T
STG
)
Junction Lead Temperature under Bias (T
J
)
Lead Temperature (T
L
)
(Soldering, 10 seconds)
Power Dissipation (P
D
) @
+
85
°
C
−
0.5V to
+
7.0V
−
0.5V to
+
7.0V
−
0.5V to
+
7.0V
−
50 mA
128 mA
Recommended Operating
Conditions
(Note 3)
Supply Operating (V
CC
)
Control Input Voltage (V
IN
)
Switch Input Voltage (V
IN
)
Output Voltage (V
OUT
)
Operating Temperature (T
A
)
Input Rise and Fall Time (t
r
, t
f
)
Control Input
Switch I/O
Thermal Resistance (
θ
JA
)
0 ns/V to 5 ns/V
0 ns/V to DC
250
°
C/W
4.0V to 5.5V
0V to 5.5V
0V to 5.5V
0V to 5.5V
−
40
°
C to
+
85
°
C
±
100 mA
−
65
°
C to
+
150
°
C
+
150
°
C
+
260
°
C
250 mW
Note 1:
The “Absolute Maximum Ratings” are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommended Operating Conditions” table will define the conditions
for actual device operation.
Note 2:
The input and output negative voltage ratings may be exceeded if
the input and output diode current ratings are observed.
Note 3:
Unused logic inputs must be held HIGH or LOW. They may not
float.
DC Electrical Characteristics
Symbol
V
IK
V
IH
V
IL
V
OH
I
IN
I
OFF
R
ON
Parameter
Clamp Diode Voltage
HIGH Level Input Voltage
LOW Level Input Voltage
HIGH Level Output Voltage
Input Leakage Current
Switch OFF Leakage Current
Switch On Resistance
(Note 4)
V
CC
(V)
4.5
4.0–5.5
4.0–5.5
4.5–5.5
5.5
5.5
4.5
4.5
4.5
4.0
I
CC
∆I
CC
Quiescent Supply Current
Increase in I
CC
per Input
(Note 5)
5.5
5.5
1
3
3
6
10
see Figure 3
±1.0
±1.0
7
7
15
20
3
2.5
µA
mA
Ω
2.0
0.8
Min
T
A
= −40°C
to
+85°C
Typ
Max
−1.2
Units
V
V
V
V
µA
µA
V
IN
=
V
CC
0
≤
V
IN
≤
5.5V
0
≤
A, B,
≤
V
CC
V
IN
=
0V, I
IN
=
64 mA
V
IN
=
0V, I
IN
=
30 mA
V
IN
=
2.4V, I
IN
=
15 mA
V
IN
=
2.4V, I
IN
=
15 mA
V
IN
=
V
CC
or GND,
I
OUT
=
0
V
IN
=
3.4V, I
O
=
0,
Control Input Only
Conditions
I
IN
= −18
mA
Note 4:
Measured by the voltage drop between A and B pins at the indicated current through the switch. On resistance is determined by the lower of the volt-
ages on the two (A or B) pins.
Note 5:
Per TTL driven input (V
IN
=
3.4V, control input only). A and B pins do not contribute to I
CC.
www.fairchildsemi.com
2
FST3306
AC Electrical Characteristics
T
A
= −40°C
to
+85°C
Symbol
t
PHL
,
t
PLH
t
PZL
,
t
PZH
t
PLZ
,
t
PHZ
Output Disable Time
Parameter
Prop Delay Bus to Bus
(Note 6)
Output Enable Time
4.5–5.5
4.0
4.5–5.5
4.0
0.8
0.8
0.8
0.8
2.5
3.0
3.1
2.9
4.2
4.6
4.8
4.4
ns
ns
V
I
=
7V for t
PZL
V
I
=
0V for t
PZH
V
I
=
7V for t
PLZ
V
I
=
0V for t
PHZ
V
CC
(V)
4.0–5.5
C
L
=
50 pF, RU
=
RD
=
500Ω
Min
Typ
Max
0.25
ns
V
I
=
OPEN
Figures
1, 2
Figures
1, 2
Figures
1, 2
Units
Conditions
Figure
Number
Note 6:
This parameter is guaranteed. The bus switch contributes no propagation delay other than the RC delay of the typical On resistance of the switch
and the 50 pF load capacitance, when driven by an ideal voltage source (zero output impedance). The specified limit is calculated on this basis.
Capacitance
Symbol
C
IN
C
I/O
(OFF)
C
I/O
(ON)
Parameter
Control Pin Input Capacitance
Port OFF Capacitance
Switch ON Capacitance
Typ
2.5
6
12
Max
Units
pF
pF
pF
V
CC
=
0V
V
CC
=
5.0V
=
BE
V
CC
=
5.0V, BE
=
0V
Conditions
AC Loading and Waveforms
Input driven by 50Ω source terminated in 50Ω.
C
L
includes load and stray capacitance.
Input PRR
=
1.0 MHz t
w
=
500 ns.
FIGURE 1. AC Test Circuit
FIGURE 2. AC Waveforms
3
www.fairchildsemi.com
FST3306
DC Characteristics

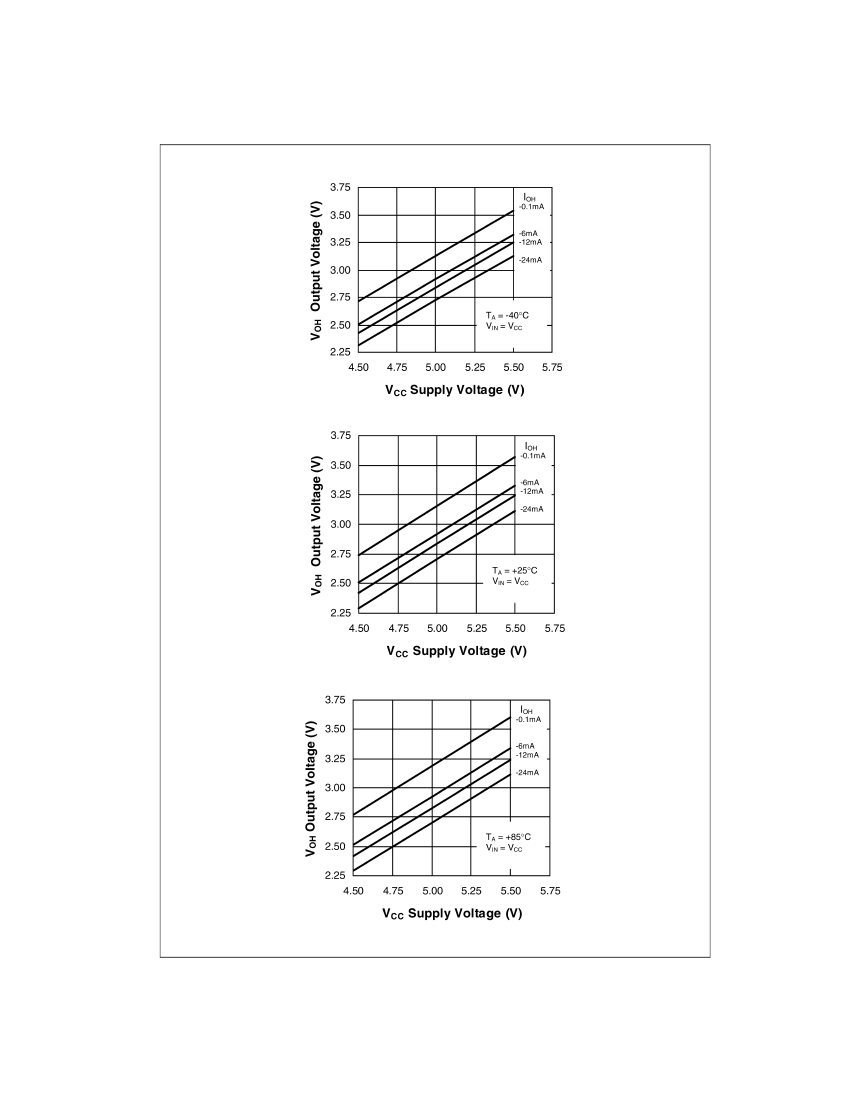

FIGURE 3. Typical High Level Output Voltage vs. Supply Voltage
www.fairchildsemi.com
4
FST3306 2-Bit Low Power Bus Switch

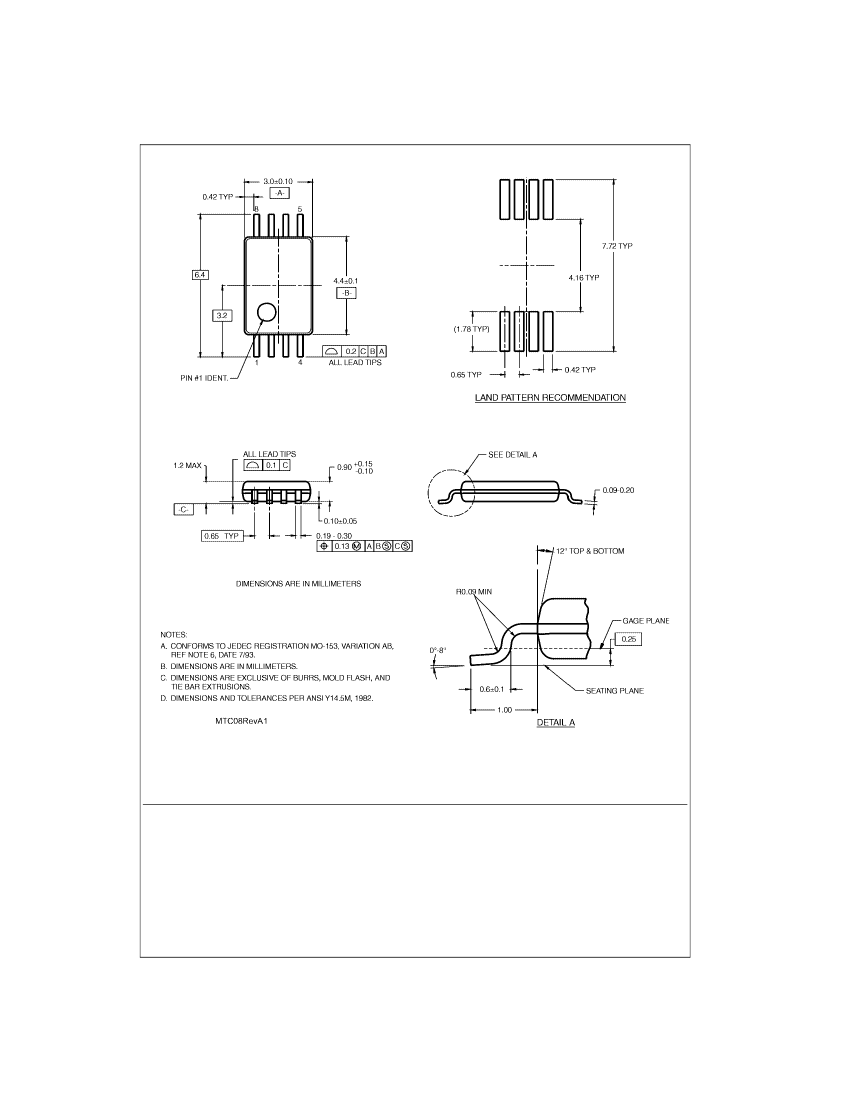

Physical Dimensions
inches (millimeters) unless otherwise noted
8-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
Package Number MTC08
Fairchild does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and
Fairchild reserves the right at any time without notice to change said circuitry and specifications.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure
to perform when properly used in accordance with
instructions for use provided in the labeling, can be rea-
sonably expected to result in a significant injury to the
user.
5
2. A critical component in any component of a life support
device or system whose failure to perform can be rea-
sonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
www.fairchildsemi.com
www.fairchildsemi.com
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Micro DC motor steady speed control circuit a

Photoelectric automatic alarm circuit

AAST-5 color display power supply circuit diagram

Equivalent circuit of constant current charging and regulated power supply_2

Broadband voltage-frequency conversion circuit

Sixteen-way wireless remote control

When activating dll in DM, error code 2404 appears. What does it mean?
How can I find out the meaning of different error codes?...
northplain Embedded System
[Top Ten Moderators Voting] I am canvassing for votes
I won't vote this year, I won't vote:) If I want to vote, I'll vote for [color=red][url=https://bbs.eeworld.com.cn/poll_moderator.php][color=red]open82977352[/color][/url]:lol [/color][url=https://bbs...
open82977352 Talking
STM32 uses interrupt mode to realize multi-channel and continuous conversion of ADC
When learning about stm32f103, I found that most of the online methods use DMA to achieve multi-channel and continuous conversion. Now I want to use interrupts to achieve ADC multi-channel and continu...
506977544 stm32/stm8
Automatic street light control circuit
Automatic street light control circuit This device can automatically turn on the street lights at dusk and automatically turn off the street lights at dawn, achieving automatic control of street light...
fighting Analog electronics
Passive Components Basics
Basic knowledge of inductance, capacitance and electromagnetic compatibility....
lzcqust Analog electronics
stm8s collects AD problems in interrupts
I use timer 4 to count in timer 1 interrupt, sample AD channel 6 once in timer 4 interrupt, and sample AD channel 5 again when the program runs to timer 1 interrupt. At this time, the program will be ...
eeacc stm32/stm8
Shortcut:   L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components

  1. EM620FT16AT-45L
  2. RN55E1201BRSL
  3. MTU1S1205MC-R
  4. SSB6FM30060311NN
  5. 1200FGG500JF2JB
  6. CF294CG6-48V/15-B/PL/W6
  7. E203J3V8ME32
  8. ECS-024-10-1X-RL
  9. 1SMA4736_R2_10001
  10. ZMM55-B56_R2_10001
  11. P4KE62_R2_10001
  12. A2541WR-24P-C343D343E775-G15

Popular Articles

  1. What do you think of the soft-pack route led by LG?
  2. Apple's App Store policy changes are criticized as insignificant and do not affect core products
  3. Well-known institutions released the global ADAS LiDAR rankings, Huawei and other Chinese players were on the list
  4. Wuling strikes again! Self-developed chip debuts in public for the first time
  5. Dry lint tester is also called twist tester. Its principle analysis
  6. What is the noise floor of the ZDS2022 oscilloscope like?
  7. Overview of the instruction set of ARM microprocessors (I) - Detailed notes on ARM application system development
  8. Automatic Measurement of Digital Oscilloscope
  9. EMC countermeasure products: TDK provides miniaturized common mode filters for automotive high-speed differential transmission
  10. SPI communication protocol basics

Technical ResourceMore

  1. Radio Diagram Recognition and Circuit Fault Analysis PDF eBook
  2. 270 Examples of Quick Radio Repairs
  3. DC Chopper Circuit Electronic Teaching Plan
  4. Korean QSI brand full range of red light, near infrared laser diode laser tube
  5. Analysis of the world\'s three major RFID standard systems
  6. Freescale Smart Car Data
  7. CMMB wireless network test parameters and methods
  8. BSC Operation and Maintenance Training Course (Ericsson)
  9. Sensor simulation data
  10. High-speed digital circuit PCB design considerations

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 634  1781  1915  2346  1026  13  36  39  48  21
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
