NM24W05UFLVN datasheet, PDF - EEWORLD Datasheet

NM24W05UFLVN: DescriptionEEPROM, 512X8, Serial, CMOS, PDIP8, PLASTIC, DIP-8; Categorystorage storage; File Size309KB，13 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

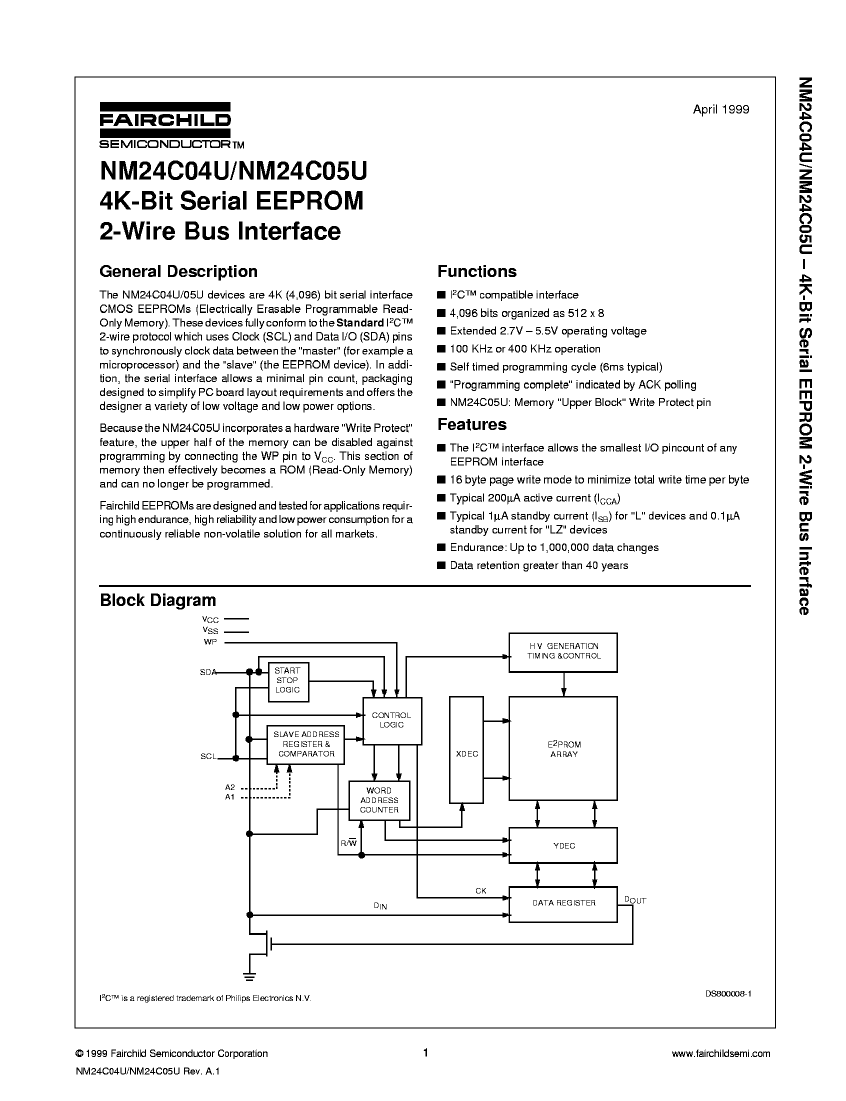

NM24W05UFLVN Overview

EEPROM, 512X8, Serial, CMOS, PDIP8, PLASTIC, DIP-8

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	DIP
package instruction	DIP,

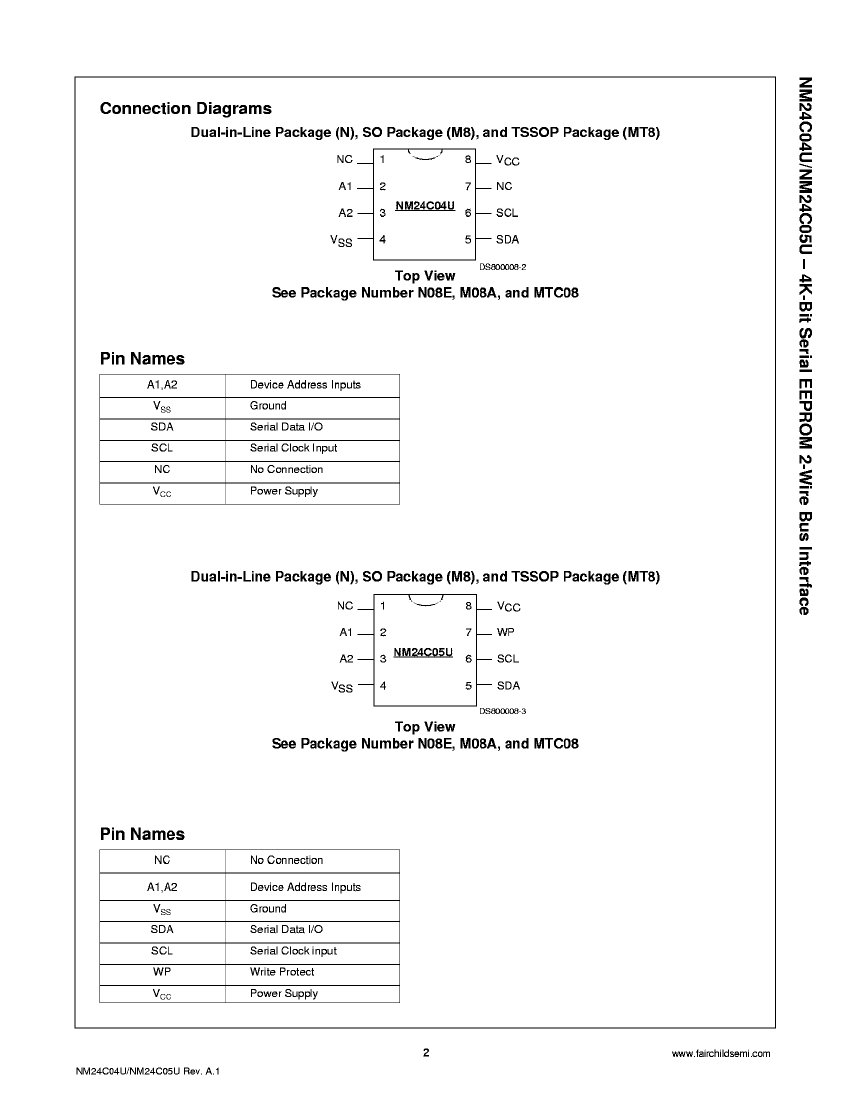

Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	DATA RETENTION > 40 YEARS; WRITE PROTECT
Maximum clock frequency (fCLK)	0.4 MHz
Data retention time - minimum	40
JESD-30 code	R-PDIP-T8
length	9.817 mm
memory density	4096 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	512 words
character code	512
Operating mode	SYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
organize	512X8
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	SERIAL
Certification status	Not Qualified
Maximum seat height	5.08 mm
Serial bus type	I2C

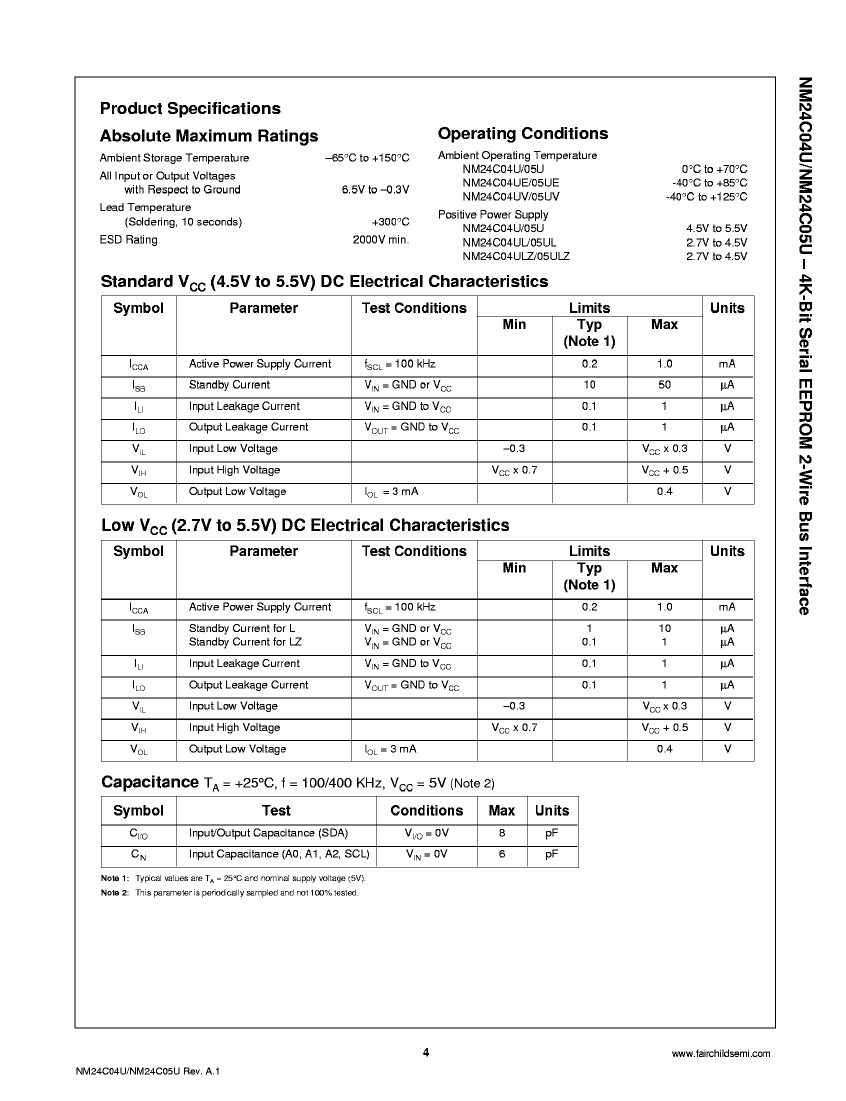

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.7 V
surface mount	NO
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

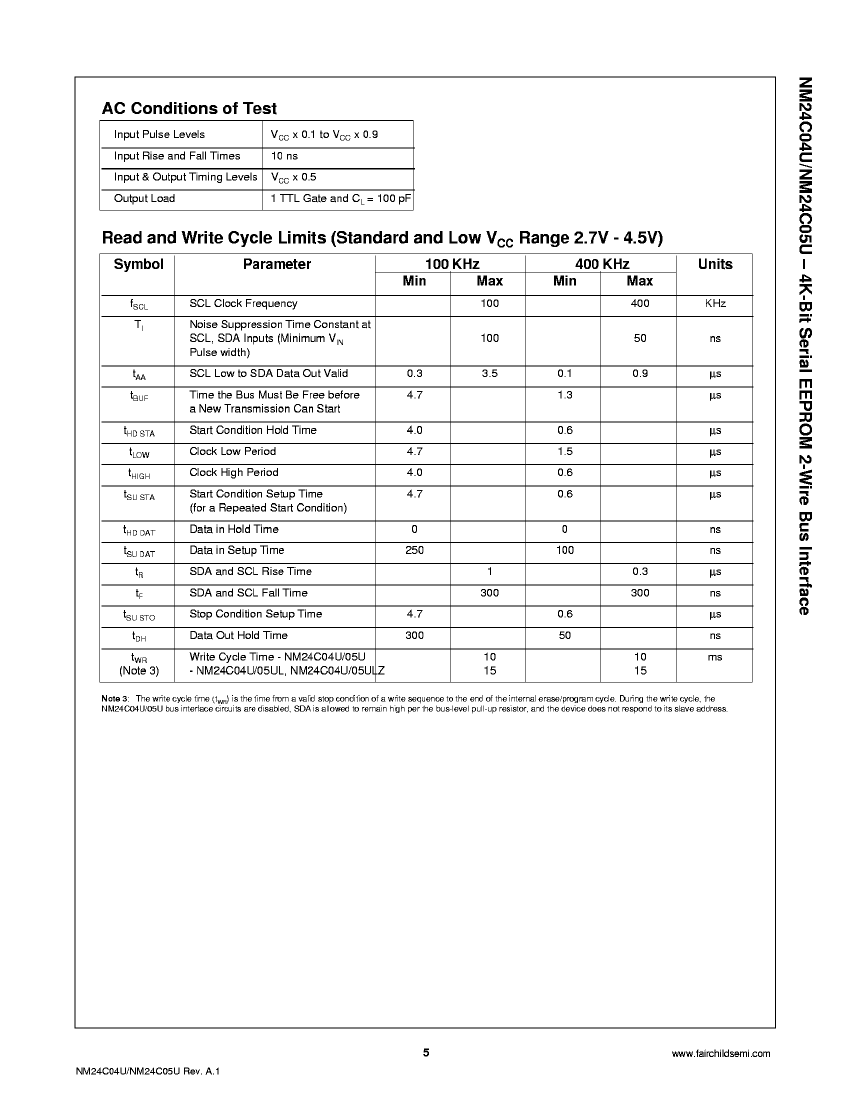

Maximum write cycle time (tWC)	15 ms
