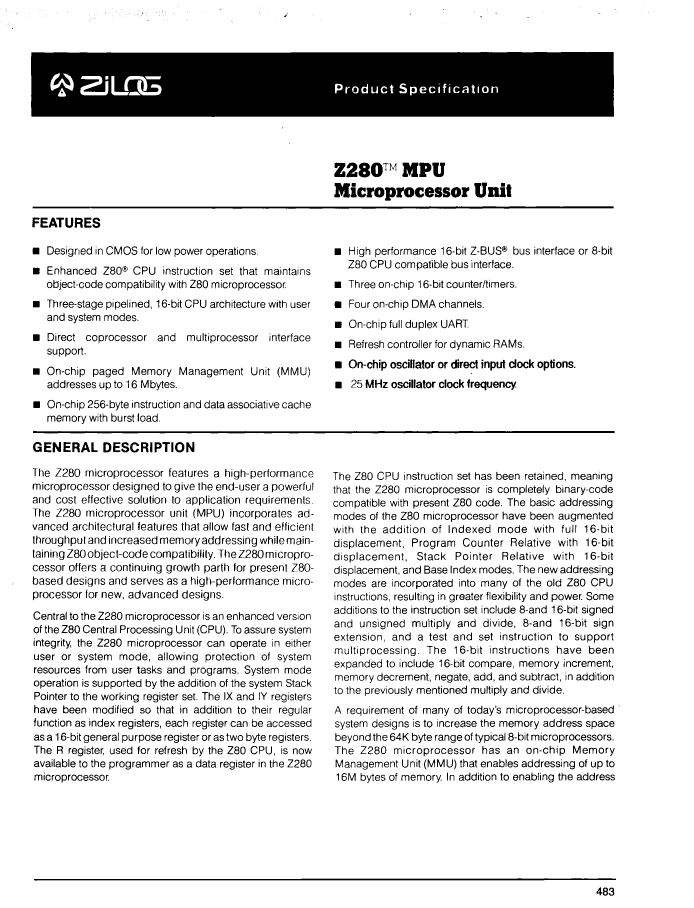

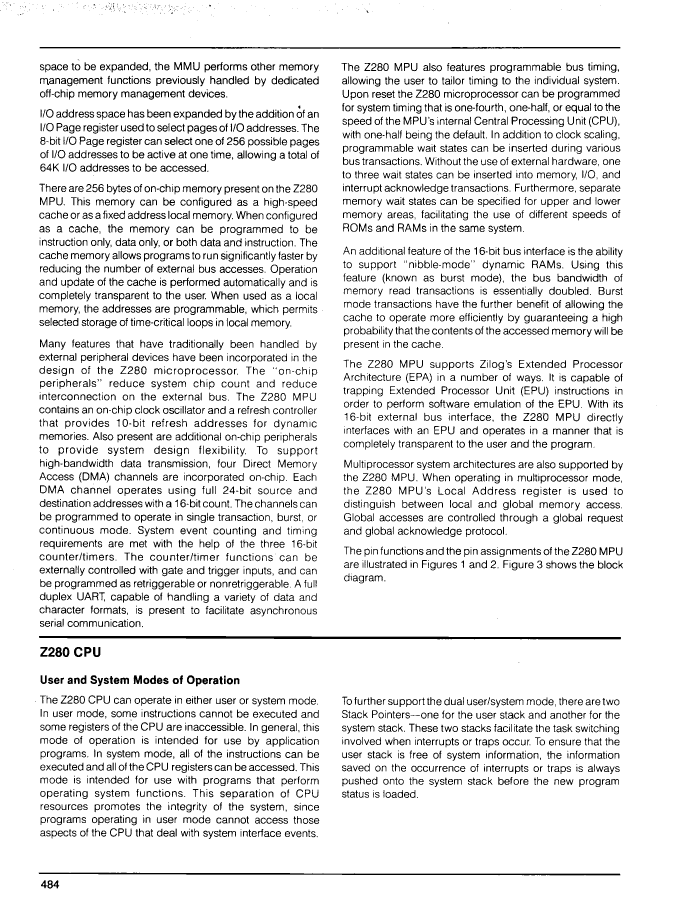

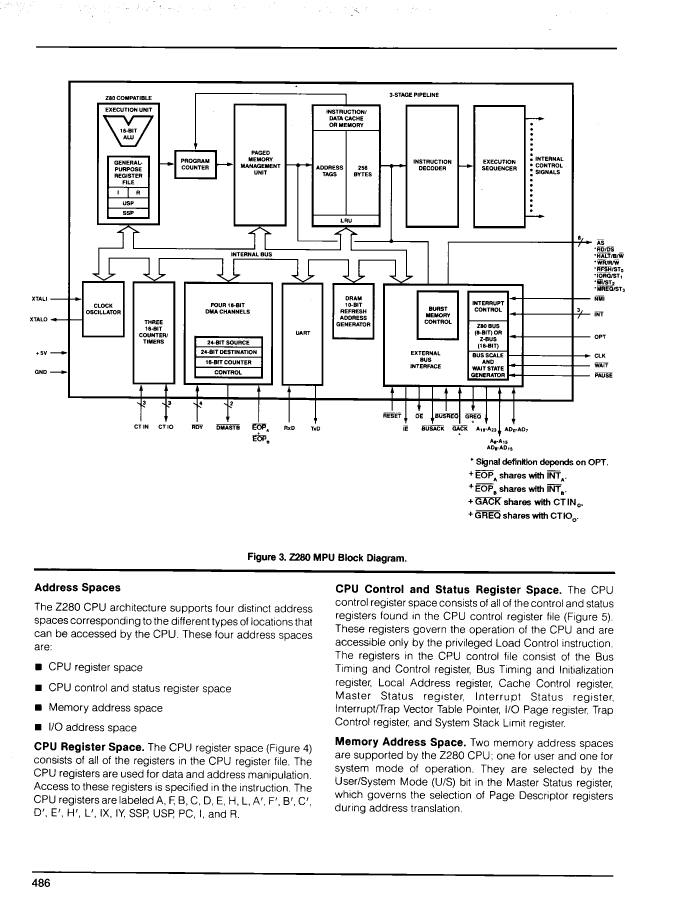

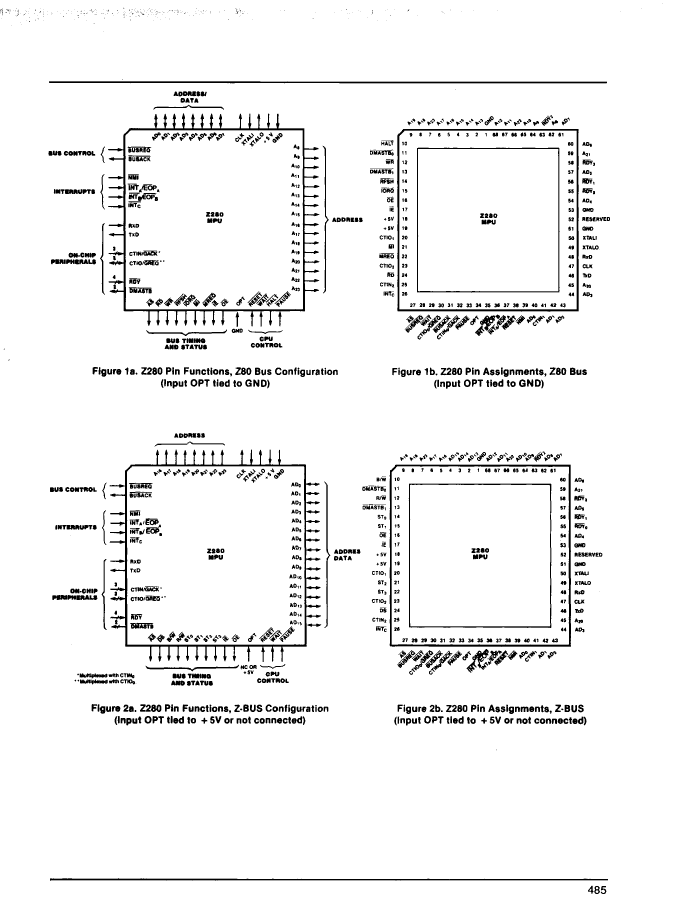

Microcontroller, 16-Bit, 12MHz, CMOS, PQCC68, PLASTIC, LCC-68
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Zilog, Inc. |
| Parts packaging code | LCC |
| package instruction | QCCJ, LDCC68,1.0SQ |
| Contacts | 68 |
| Reach Compliance Code | unknown |
| Has ADC | NO |
| Other features | DYNAMIC REFRESH CONTROL; 16M BYTE PHYSICAL MEMORY; 3 PIPELINE STAGES |
| Address bus width | 24 |
| bit size | 16 |
| boundary scan | NO |
| maximum clock frequency | 25 MHz |
| DAC channel | NO |
| DMA channel | YES |
| External data bus width | 16 |
| Format | FIXED POINT |
| Integrated cache | NO |
| JESD-30 code | S-PQCC-J68 |
| JESD-609 code | e0 |
| length | 24.2316 mm |
| low power mode | YES |
| Number of DMA channels | 4 |
| Number of external interrupt devices | 4 |
| Number of I/O lines | |
| Number of serial I/Os | 1 |
| Number of terminals | 68 |
| Number of timers | 3 |
| On-chip data RAM width | 8 |
| On-chip program ROM width | |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| PWM channel | NO |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | QCCJ |
| Encapsulate equivalent code | LDCC68,1.0SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| power supply | 5 V |
| Certification status | Not Qualified |
| RAM (number of words) | 256 |
| rom(word) | 0 |
| Maximum seat height | 4.57 mm |
| speed | 12 MHz |
| Maximum slew rate | 200 mA |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 4.5 V |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | J BEND |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| width | 24.2316 mm |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER |
| Z8028012VSC | Z8028010VSC | |
|---|---|---|
| Description | Microcontroller, 16-Bit, 12MHz, CMOS, PQCC68, PLASTIC, LCC-68 | Microcontroller, 16-Bit, 10MHz, CMOS, PQCC68, PLASTIC, LCC-68 |
| Is it Rohs certified? | incompatible | incompatible |
| Maker | Zilog, Inc. | Zilog, Inc. |
| Parts packaging code | LCC | LCC |
| package instruction | QCCJ, LDCC68,1.0SQ | QCCJ, LDCC68,1.0SQ |
| Contacts | 68 | 68 |
| Reach Compliance Code | unknown | unknown |
| Has ADC | NO | NO |
| Other features | DYNAMIC REFRESH CONTROL; 16M BYTE PHYSICAL MEMORY; 3 PIPELINE STAGES | DYNAMIC REFRESH CONTROL; 16M BYTE PHYSICAL MEMORY; 3 PIPELINE STAGES |
| Address bus width | 24 | 24 |
| bit size | 16 | 16 |
| boundary scan | NO | NO |
| maximum clock frequency | 25 MHz | 20 MHz |
| DAC channel | NO | NO |
| DMA channel | YES | YES |
| External data bus width | 16 | 16 |
| Format | FIXED POINT | FIXED POINT |
| Integrated cache | NO | NO |
| JESD-30 code | S-PQCC-J68 | S-PQCC-J68 |
| JESD-609 code | e0 | e0 |
| length | 24.2316 mm | 24.2316 mm |
| low power mode | YES | YES |
| Number of DMA channels | 4 | 4 |
| Number of external interrupt devices | 4 | 4 |
| Number of serial I/Os | 1 | 1 |
| Number of terminals | 68 | 68 |
| Number of timers | 3 | 3 |
| On-chip data RAM width | 8 | 8 |
| Maximum operating temperature | 70 °C | 70 °C |
| PWM channel | NO | NO |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | QCCJ | QCCJ |
| Encapsulate equivalent code | LDCC68,1.0SQ | LDCC68,1.0SQ |
| Package shape | SQUARE | SQUARE |
| Package form | CHIP CARRIER | CHIP CARRIER |
| power supply | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified |
| RAM (number of words) | 256 | 256 |
| Maximum seat height | 4.57 mm | 4.57 mm |
| speed | 12 MHz | 10 MHz |
| Maximum slew rate | 200 mA | 200 mA |
| Maximum supply voltage | 5.5 V | 5.5 V |
| Minimum supply voltage | 4.5 V | 4.5 V |
| Nominal supply voltage | 5 V | 5 V |
| surface mount | YES | YES |
| technology | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | J BEND | J BEND |
| Terminal pitch | 1.27 mm | 1.27 mm |
| Terminal location | QUAD | QUAD |
| width | 24.2316 mm | 24.2316 mm |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER | MICROCONTROLLER |
