GRDBAR- SERIES
ASSEMBLY INSTRUCTIONS FOR
GRDBAR - HME GROUND BAR
BUL10415
REV. A
A
B
3
2
DETAIL B
1
DETAIL A
TYP
BOTH SIDES
INSTRUCTIONS:
TYP
BOTH SIDES

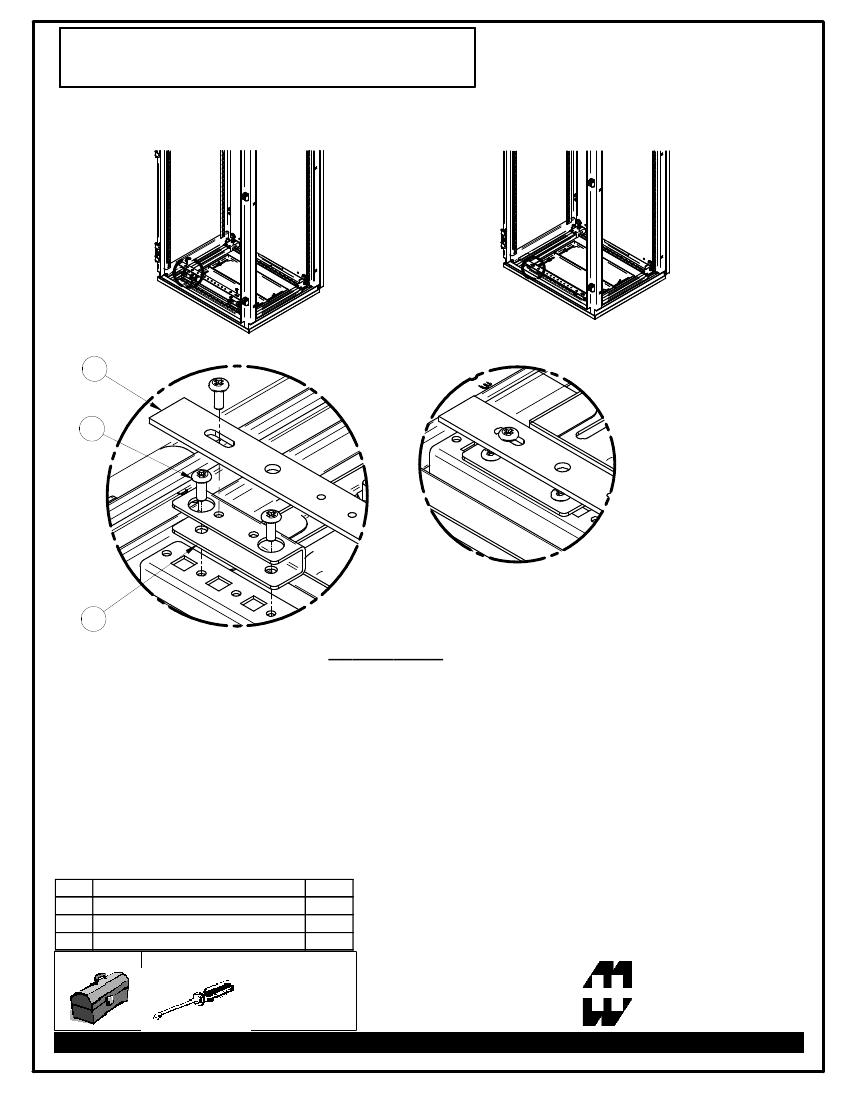

A) ALIGN SPACER BRACKETS (ITEM#1) TO ROUND HOLES IN
FRAME AS SHOWN (SECOND HOLE FROM EDGE), (SEE DETAIL A).
B) SECURE BRACKETS TO FRAME USING SCREWS (ITEM #2).
C) ALIGN HORIZONTAL GROUND BAR (ITEM#3) TO ROUND HOLES
IN SPACER BRACKET AS SHOWN AND SECURE USING SCREWS.
**NOTE: GROUND BAR CAN BE MOUNTED LEFT TO RIGHT
AT THE FRONT OR REAR OF THE FRAME**
ITEM
1
2
3
DESCRIPTION
SPACER BRACKET
SCREW #12X1/2 PAN HEAD PH
HORIZ. GROUND BAR
Phillips
Screw Driver
QTY
2
6
1
TOOL BOX
HAMMOND
MANUFACTURING
www.hammondmfg.com
TM
PAGE 1 OF 1
