160MHz SAW Filter
24MHz Bandwidth
Part Number: LBN16055
LBN16055
SIPAT Co., Ltd.
www.sipatsaw.com
Features
½
½
½
½
½
For IF SAW filter
Single-ended operation
Ceramic Surface Mount Package
Small size
RoHS compliant (2002/95/EC), Pb-free
Specifications
Parameter
Center Frequency
Insertion Loss
1.2dB Bandwidth
3dB Bandwidth
35dB Bandwidth
Phase Linearity(f0±12MHz)
Passband Variation(f0±12MHz)
Absolute Delay
Group Delay (f0±12MHz)
Ultimate Rejection(f0±20MHz)
Material Temperature coefficient
Substrate Material
Ambient Temperature
Operating Temperature Range
Storage Temperature Range
Input Power
ESD Class
Package Size
Notes:
1.
2.
All specifications are based on the test circuit shown;
In production, all specifications are measured by Agilent Network analyzer and full 2 port calibration at room
temperature;
3.
Electrical margin has been built into the design to account for the variations due to temperature drift and
manufacturing tolerances;
4.
This is the optimum impedance in order to achieve the performance show.
Unit
MHz
dB
MHz
MHz
MHz
-
dB
us
nsec
dB
KHz/°C
-
°C
°C
°C
dBm
-
Minimum
159.75
Typical
160
10.2
Maximum
160.25
15
23
24
24.23
25.41
30
8
1.0
0.93
150
31
10
1.2
1.0
200
35
45
-15.04
YZ-LN
25
-25
-45
-
-
-
1A
+85
+105
10
SMD1365C
SIPAT Co., Ltd.
( CETC No.26 Research Institute )
#14 Nanping Huayuan Road,
Chongqing, China, 400060
Tel: +86-23-62808818
Phone: +86-23-62920684
Part Number
Rev. Date
Ver.
LBN16055
2012-11-26
1.0
Page
1/3
Fax: +86-23-62808382
Fax: +86-23-62805284
www.sipatsaw.com / sales@sipat.com
www.sipatsaw.com / sawmkt@sipat.com
China Electronics Technology Group Corporation
No.26 Research Institute
160MHz SAW Filter
24MHz Bandwidth
Part Number: LBN16055
LBN16055
SIPAT Co., Ltd.
www.sipatsaw.com

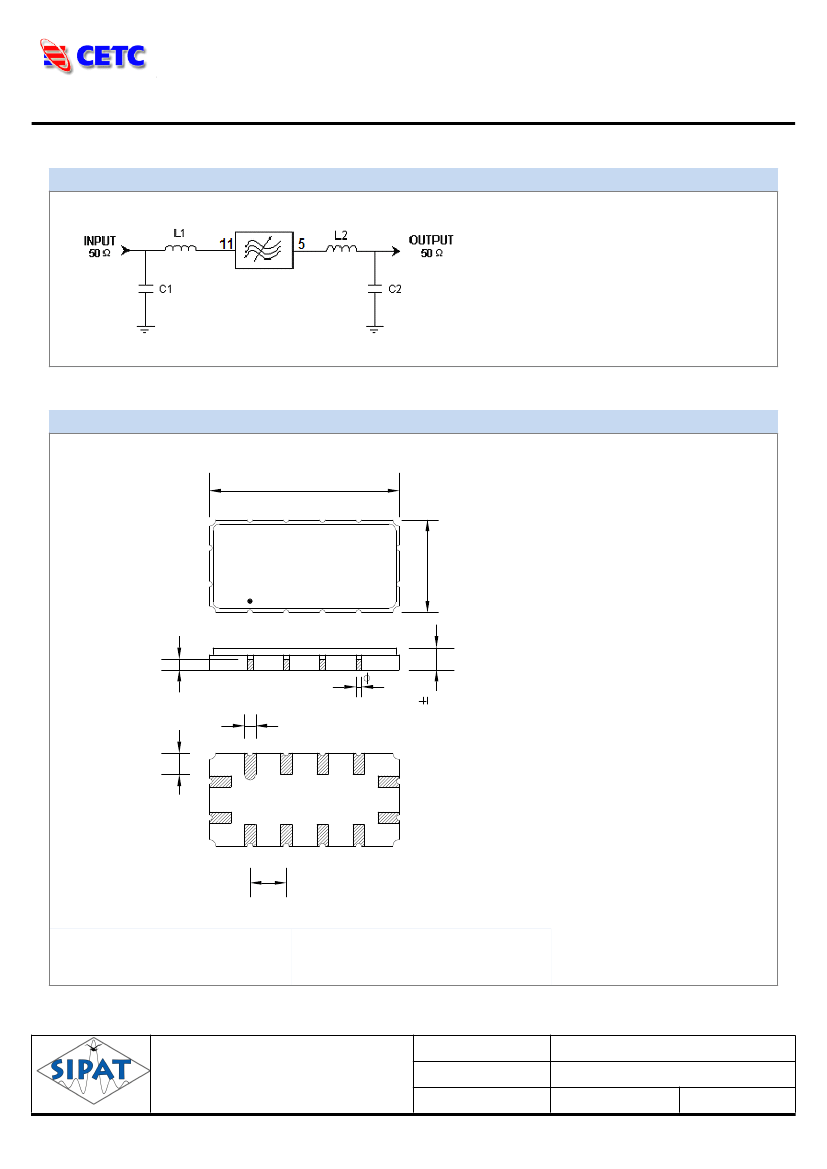

Matching Configuration
手动测试座
L1=18nH
C1=56pf
L2=33nH
C2=36pf
Source/Load Impedance=50 ohm
Notes - Component values may change depending
on board layout.
Package Dimension
13.3±0.2
Pad Configuration:
Configuration:
7
6.5±0.2
10
11
12
1
9
8
Input:
Output:
6
5
11
5
SIPAT
LBN16055
XXYYZZ
2
3
4
Ground: All others
Marking Configuration:
Configuration:
1) •: Pad Number 1 Index
2) SIPAT: Manufacturer Name
1.61 0.19
0.4
0.76
3) LBN16055: Part Number
4) XXYY: Date(Year/month)
5) ZZ: Identified Code
0.8
1
1.5
2
3
4
5
6
12
11
10
2.54
9
8
7
Package: SMD1365C
Unit: mm
SIPAT Co., Ltd.
( CETC No.26 Research Institute )
#14 Nanping Huayuan Road,
Chongqing, China, 400060
Tel: +86-23-62808818
Phone: +86-23-62920684
Part Number
Rev. Date
Ver.
LBN16055
2012-11-26
1.0
Page
2/3
Fax: +86-23-62808382
Fax: +86-23-62805284
www.sipatsaw.com / sales@sipat.com
www.sipatsaw.com / sawmkt@sipat.com
China Electronics Technology Group Corporation
No.26 Research Institute
160MHz SAW Filter
24MHz Bandwidth
Part Number: LBN16055
LBN16055

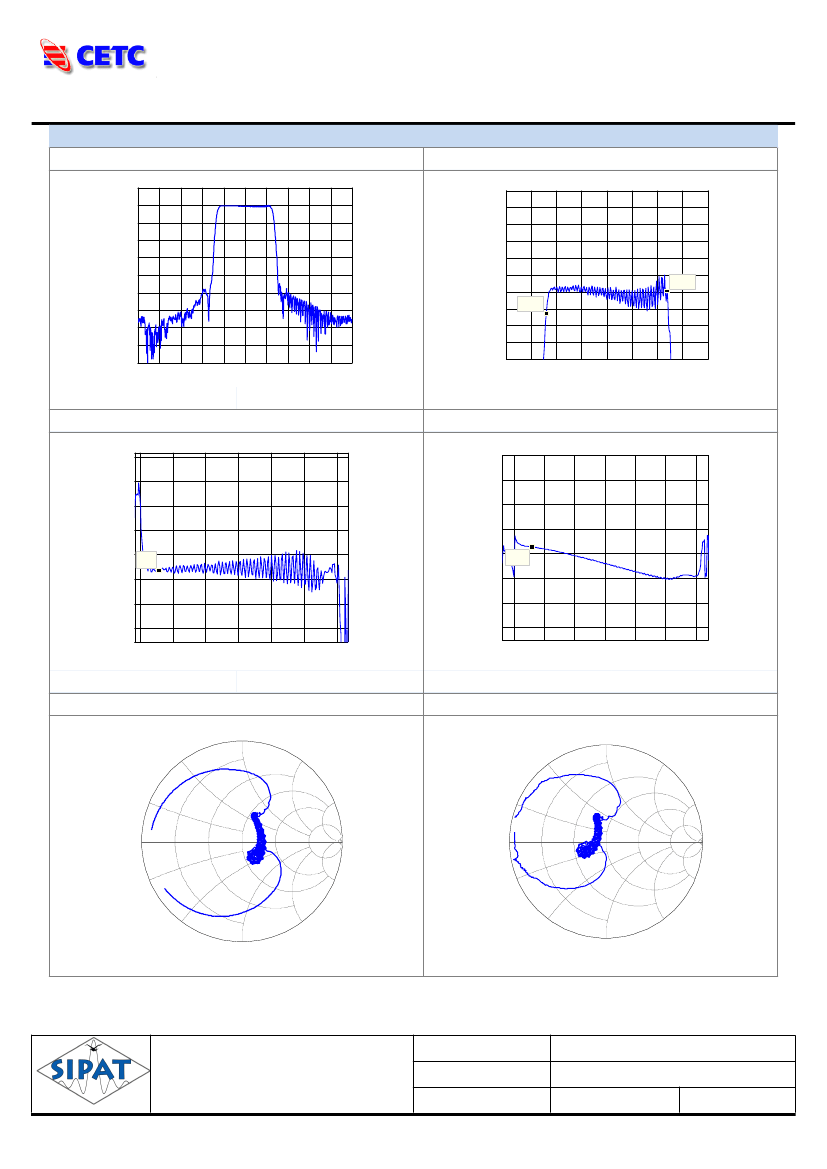

Passband Response
Ty pe P erform anc e
-7.6856
-8.1856
-8.6856
-9.1856
A m plitude ripple(dB )
-9.6856
-10.1856
-10.6856
-11.1856
-11.6856
-12.1856
-12.6856
140
X: 148
Y : -11.33
SIPAT Co., Ltd.
www.sipatsaw.com
Typical Performance
Frequency Response
Type Performance
-0.1856
-10.1856
-20.1856
-30.1856
-40.1856
Magnitude(dB)
-50.1856
-60.1856
-70.1856
-80.1856
-90.1856
-100.1856
110
X: 172
Y : -10.66
120
130
140
150
160
170
Frequency(MHz)
180
190
200
210
145
150
155
160
165
Frequenc y (M Hz )
170
175
180
Horizontal: 5MHz/Div
Vertical: 10dB/Div
Horizontal: 2MHz/Div
Vertical: 0.5dB/Div
Group Delay Variation
Type Performance
1400
500
Phase Linearity
Type Performance
1300
400
1200
Group Delay Time(ns)
300
1100
Degree(deg)
200
1000
X: 148
Y : 936
X: 172
Y : 947.4
100
X: 148
Y: 127.2
X: 172
Y: 5.146
900
0
800
-100
700
145
150
155
160
165
Frequency(MHz)
170
175
-200
145
150
155
160
165
Frequency(MHz)
170
175
Horizontal: 2MHz/Div
Vertical: 200ns/Div
Horizontal: 2MHz/Div
Vertical: 5deg/Div
S11
+j1.0
+j0.5
+j2.0
+j0.5
S22
+j1.0
+j2.0
+j0.2
+j5.0
+j0.2
+j5.0
0.2
0.5
1.0
2.0
0.2
0.5
1.0
2.0
∞
5.0
0.0
5.0
0.0
∞
-j0.2
-j5.0
-j0.2
-j5.0
-j0.5
-j1.0
-j2.0
-j0.5
-j1.0
-j2.0
SIPAT Co., Ltd.
( CETC No.26 Research Institute )
#14 Nanping Huayuan Road,
Chongqing, China, 400060
Tel: +86-23-62808818
Phone: +86-23-62920684
Part Number
Rev. Date
Ver.
LBN16055
2012-11-26
1.0
Page
3/3
Fax: +86-23-62808382
Fax: +86-23-62805284
www.sipatsaw.com / sales@sipat.com
www.sipatsaw.com / sawmkt@sipat.com
