BLM15B Series
s
Features
The chip ferrite beads BLM series is designed to
function nearly as a resistor at noise frequencies,
which greatly reduces the possibility of resonance and
leaves signal wave forms undistorted.
BLM series is effective in circuits without stable
BLM_B series can minimize attenuation of the signal
waveform due to its sharp impedance characteristics.
Various impedances are available to match signal
frequency.
Impedance
(at 100MHz/20°C)
(ohm)
5
±25%
10
±25%
22
±25%
47
±25%
75
±25%
120
±25%
220
±25%
470
±25%
600
±25%
1000
±25%
1800
±25%
Rated Current
(mA)
500
300
300
300
300
300
200
200
200
200
200
0.25±0.1
1
1.0±0.05
0.5±0.05
(in mm)
Part Number
BLM15BB050SH1
BLM15BB100SH1
BLM15BB220SH1
BLM15BB470SH1
BLM15BB750SH1
BLM15BB121SH1
BLM15BB221SH1
BLM15BD471SH1
BLM15BD601SH1
BLM15BD102SH1
BLM15BD182SH1
DC Resistance (max.)
(ohm)
0.08
0.10
0.20
0.35
0.40
0.55
0.80
0.60
0.65
0.90
1.40
Operating
Temperature Range
(°C)
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
s
Equivalent Circuit
s

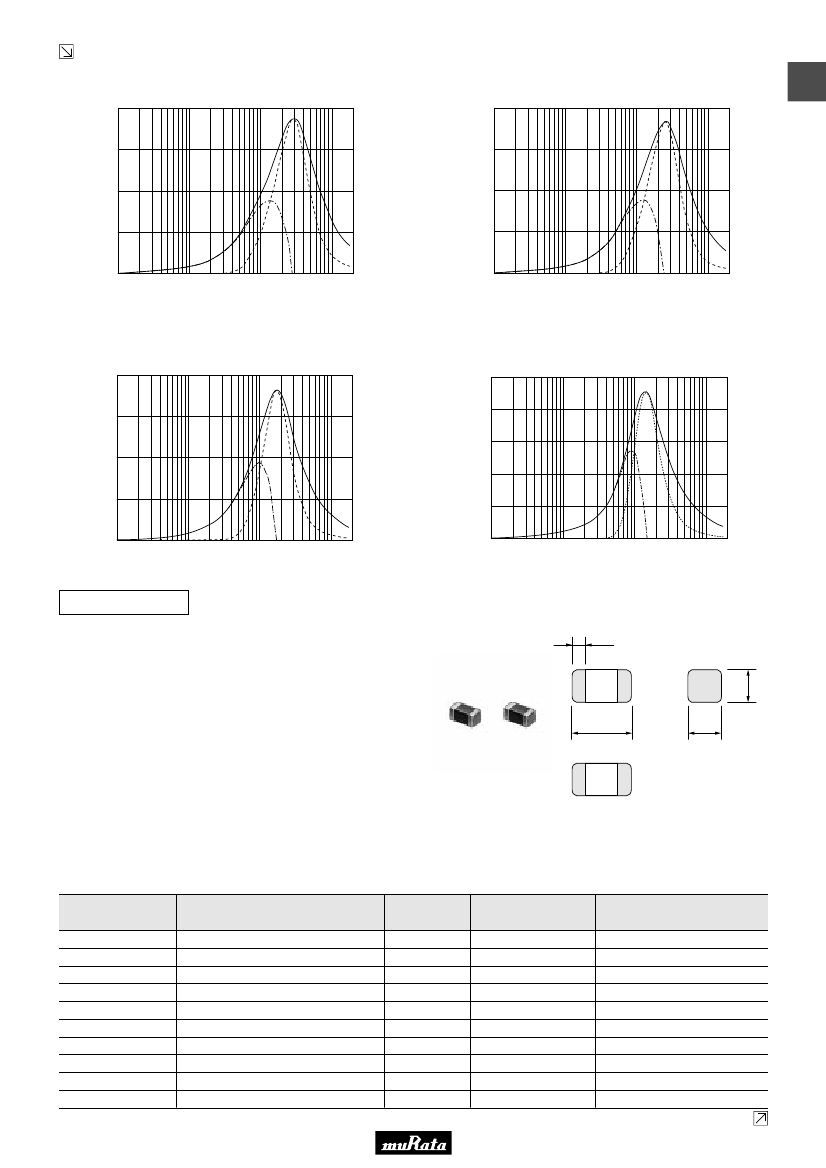

Impedance - Frequency (Typical)
BLM15BB Series
800
700
BLM15BB221SH1
600
Impedance (Ω)
500
400
300
200
100
0
1
10
100
Frequency (MHz)
1000 2000
BLM15BB121SH1
BLM15BB750SH1
BLM15BB470SH1
BLM15BB220SH1
BLM15BB100SH1
BLM15BB050SH1
(Resistance element becomes dominant
at high frequencies.)
Continued on the following page.
11
0.5±0.05
!Note
• This PDF catalog is downloadedand
!CAUTION
(forMurata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our
!Note
• Please read rating from the website of storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
sales representatives or product engineers before ordering.
• This catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
• This PDF catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
C50E.pdf
07.2.22
Continued from the preceding page.
1
s

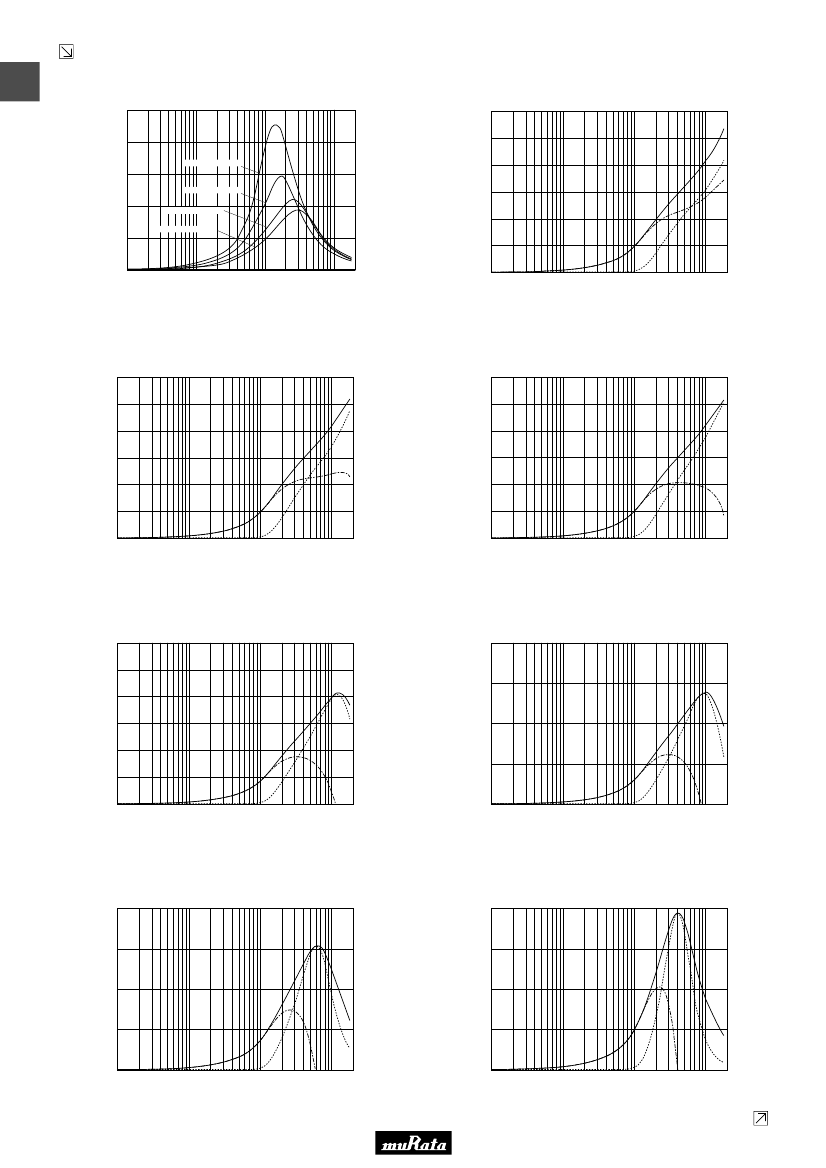

Impedance - Frequency (Typical)
BLM15BD Series
2500
s
Impedance - Frequency Characteristics
BLM15BB050SH1
30
2000
BLM15BD182SH1
Impedance (Ω)
1500
BLM15BD102SH1
1000
BLM15BD601SH1
BLM15BD471SH1
500
25
Impedance (Ω)
20
15
Z
10
X
5
R
0
1
10
100
Frequency (MHz)
1000 2000
0
1
10
100
Frequency (MHz)
1000 2000
BLM15BB100SH1
60
120
BLM15BB220SH1
50
100
Impedance (Ω)
Impedance (Ω)
40
80
30
Z
20
X
10
R
0
1
10
100
Frequency (MHz)
1000 2000
60
Z
40
X
20
R
0
1
10
100
Frequency (MHz)
1000 2000
BLM15BB470SH1
300
400
BLM15BB750SH1
250
300
Impedance (Ω)
Impedance (Ω)
200
150
Z
100
X
50
R
200
Z
X
100
R
0
1
10
100
Frequency (MHz)
1000 2000
0
1
10
100
Frequency (MHz)
1000 2000
BLM15BB121SH1
600
800
BLM15BB221SH1
450
Impedance (Ω)
Impedance (Ω)
600
Z
400
X
200
300
Z
X
150
R
R
0
1
10
100
Frequency (MHz)
1000 2000
0
1
10
100
Frequency (MHz)
1000 2000
Continued on the following page.
12
!Note
• This PDF catalog is downloadedand
!CAUTION
(forMurata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our
!Note
• Please read rating from the website of storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
sales representatives or product engineers before ordering.
• This catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
• This PDF catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
C50E.pdf
07.2.22
Continued from the preceding page.
s

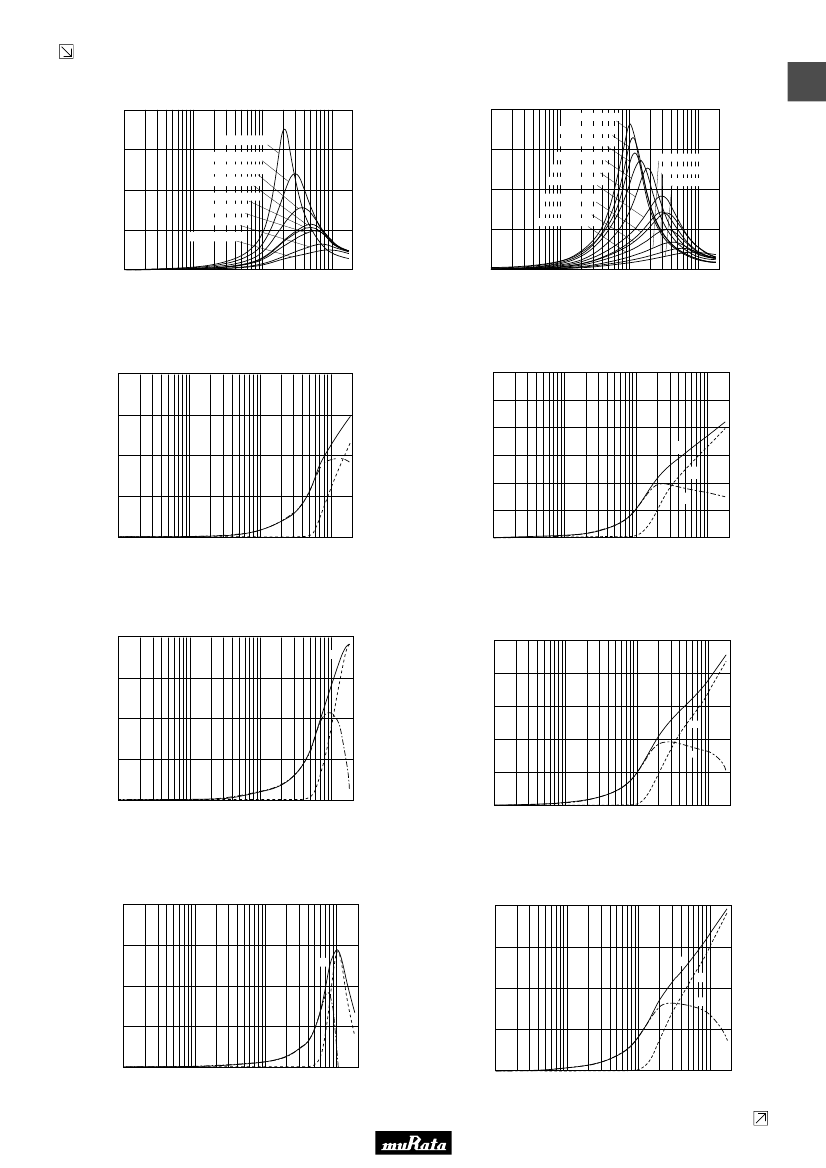

Impedance - Frequency Characteristics
BLM15BD471SH1
1000
1200
BLM15BD601SH1
1
Z
Z
750
Impedance (Ω)
Impedance (Ω)
900
500
R
600
R
X
250
300
X
0
1
10
100
Frequency (MHz)
1000 2000
0
1
10
100
Frequency (MHz)
1000 2000
BLM15BD102SH1
1600
2500
BLM15BD182SH1
Z
Z
2000
1200
R
Impedance (Ω)
Impedance (Ω)
R
800
1500
1000
X
500
X
400
0
1
10
100
Frequency (MHz)
1000 2000
0
1
10
100
Frequency (MHz)
1000 2000
BLM18B Series
s
Features
The chip ferrite beads BLM series is designed to
function nearly as a resistor at noise frequencies,
which greatly reduces the possibility of resonance and
leaves signal wave forms undistorted.
BLM series is effective in circuits without stable
BLM_B series can minimize attenuation of the signal
waveform due to its sharp impedance characteristics.
Various impedances are available to match signal
frequency.
Impedance
(at 100MHz/20°C)
(ohm)
5
±25%
5
±25%
10
±25%
10
±25%
22
±25%
22
±25%
47
±25%
47
±25%
60
±25%
75
±25%
Rated Current
(mA)
500
700
500
500
500
500
300
500
200
300
DC Resistance (max.)
(ohm)
0.20
0.10
0.25
0.15
0.35
0.25
0.55
0.30
0.35
0.70
0.4±0.2
1.6±0.15
0.8±0.15
(in mm)
Part Number
BLM18BA050SH1
BLM18BB050SH1
BLM18BA100SH1
BLM18BB100SH1
BLM18BA220SH1
BLM18BB220SH1
BLM18BA470SH1
BLM18BB470SH1
BLM18BB600SH1
BLM18BA750SH1
Operating
Temperature Range
(°C)
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
Continued on the following page.
13
0.8±0.15
!Note
• This PDF catalog is downloadedand
!CAUTION
(forMurata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our
!Note
• Please read rating from the website of storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
sales representatives or product engineers before ordering.
• This catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
• This PDF catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
C50E.pdf
07.2.22
Continued from the preceding page.
1
Part Number
BLM18BB750SH1
BLM18BA121SH1
BLM18BB121SH1
BLM18BD121SH1
BLM18BB141SH1
BLM18BB151SH1
BLM18BD151SH1
BLM18BB221SH1
BLM18BD221SH1
BLM18BB331SH1
BLM18BD331SH1
BLM18BD421SH1
BLM18BB471SH1
BLM18BD471SH1
BLM18BD601SH1
BLM18BD102SH1
BLM18BD152SH1
BLM18BD182SH1
BLM18BD222SH1
BLM18BD252SH1
Impedance
(at 100MHz/20°C)
(ohm)
75
±25%
120
±25%
120
±25%
120
±25%
140
±25%
150
±25%
150
±25%
220
±25%
220
±25%
330
±25%
330
±25%
420
±25%
470
±25%
470
±25%
600
±25%
1000
±25%
1500
±25%
1800
±25%
2200
±25%
2500
±25%
Rated Current
(mA)
200
200
200
200
200
200
200
200
200
200
200
200
50
200
200
100
50
50
50
50
DC Resistance (max.)
(ohm)
0.35
0.90
0.50
0.40
0.55
0.55
0.40
0.65
0.45
0.75
0.50
0.55
1.00
0.55
0.65
0.85
1.20
1.50
1.50
1.50
Operating
Temperature Range
(°C)
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
s
Equivalent Circuit
s
Impedance - Frequency (Typical)
