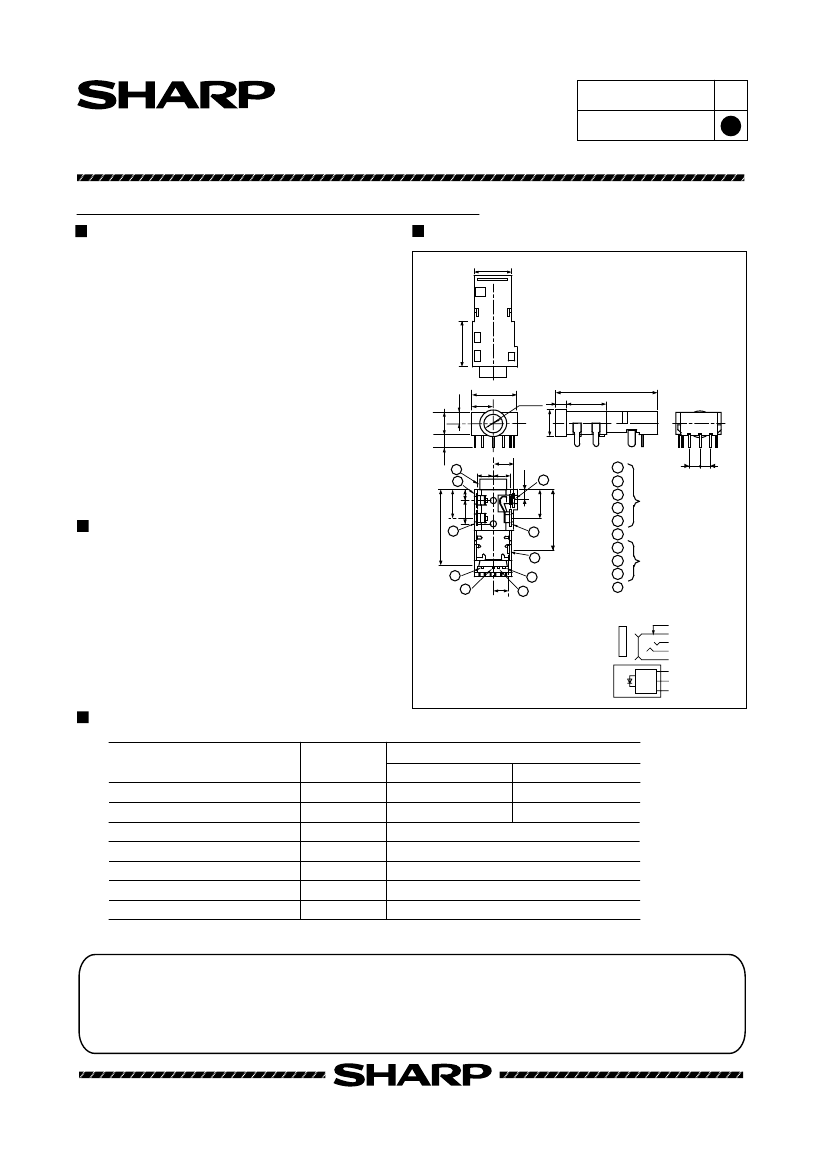

Under development
New product
GP1FD210TP/GP1FD310TP
Low voltage Operation Optical Mini-jack for Digital Audio
Features
(1) Compact (adoption of compact jack for mini
plug) JIS C 6560
(2) Optical digital signal and electric analog
signal can be discriminated and transmitted.
(3) High speed data transmission
Signal transmission speed: MAX. 8Mbps
(NRZ signal)
(4) Low voltage operation
GP1FD210TP
: Vcc=2.3 to 2.8V
GP1FD310TP
: Vcc=2.7 to 3.6 V
Fiber Optic Transmitter
(Unit: mm)
Outline Dimensions
6.9
s
7.5
4.2
2.1
7.95
3.65
17.5
φ3.6
φ5
2
7.5
2.3
6
1
5.4
4.5 2
1.8
3.85
3.2 3.4
5
5.3
Applications
(1) MD players
(2) Portable CD players
3
4
2
7
8
2.85
1
0
9
1
2
3
4
5
6
7
8
9
10
2 2
Jack terminal
(14.4)
11.3
Jack body
Device terminal
Device terminal
(Internal connection)
Jack terminal configuration
5
4
2
3
1
LED
Drive
IC
8
Vcc
7
Vin
9
GND
Specifications
(Ta=25˚C)
Paramter
Operating voltage
Dissipation current
Peak emisson wavelength
Fiber coupling light output
Operatin transfer tate
Jitter
Operating temperature
Symbol
Vcc
Icc
λp
Pc
T
∆t
j
Topr
Ratings
GP1FD210TP
GP1FD310TP
2.3 to 2.8 V
2.7 to 3.6 V
MAX. 10 mA
MAX. 12 mA
TYP. 660 nm
MIN. -21 dBm
MAX. 8 Mbps
TYP. 1 ns
-20 to +70 ˚C
As of September, 2001
(Notice)
•In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment
using any SHARP devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before
using any SHARP device.
•Specifications are subject to change without notice for improvement.
(Internet)
•Data for Sharp's optoelectronic/power devices is provided on internet. (Address http://sharp-world.com/ecg/)
1/1
E2-010603-A
