VXD1-1D4-FREQ1: DescriptionParallel - Fundamental Quartz Crystal, 7MHz Min, 16MHz Max; CategoryPassive components Crystal/resonator; File Size189KB，2 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/

Download Datasheet Parametric View All

VXD1-1D4-FREQ1 Overview

Parallel - Fundamental Quartz Crystal, 7MHz Min, 16MHz Max

VXD1-1D4-FREQ1 Parametric

Parameter Name	Attribute value
Maker	Vectron International, Inc.
Reach Compliance Code	compliant
Other features	BAGGED
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.005%
frequency tolerance	25 ppm
load capacitance	18 pF
Manufacturer's serial number	VXD1
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	16 MHz
Minimum operating frequency	7 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C

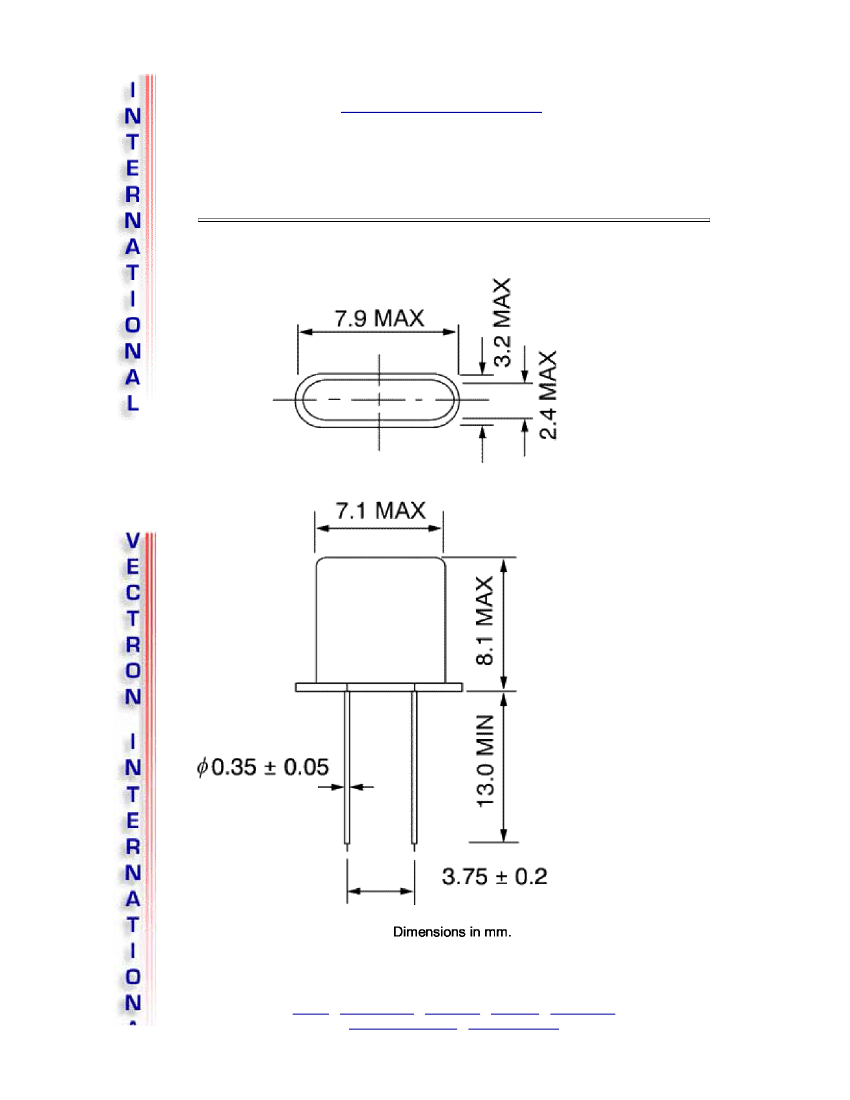

physical size	L7.9XB3.2XH8.1 (mm)/L0.311XB0.126XH0.319 (inch)
Series resistance	80 Ω
surface mount	NO

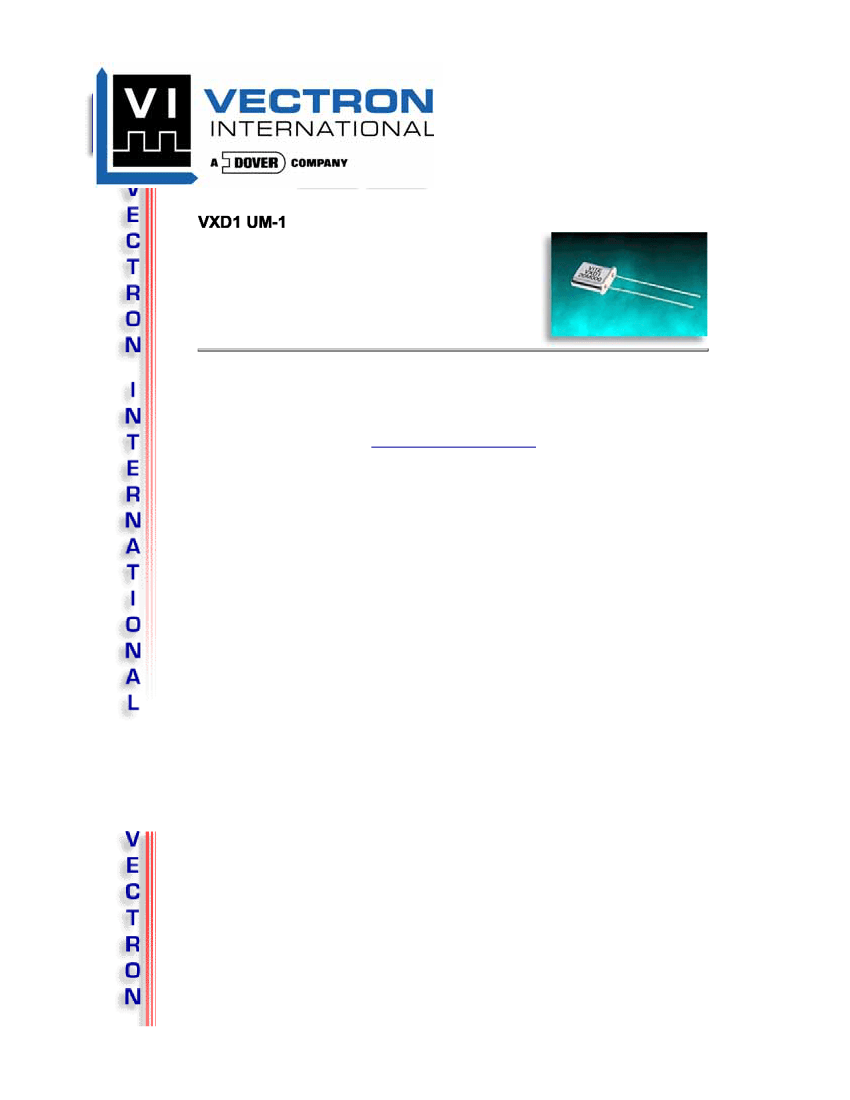

Preview

Download Datasheet

View All

Package Options

Frequency Range

Standard

Frequencies

Mode

D1

= UM-1

7.0 MHz to 200.0 MHz

See

Standard Frequency Table

1

= Fundamental (7 to 50 MHz)

3=

3

rd

Overtone (30 to 120 MHz)

5

= 5

th

Overtone (80 to 200 MHz)

A

= ±100 PPM -20°C to +70°C

B

= ±50 PPM -20°C to +70°C

C

= ±100 PPM -40°C to +85°C

D

= ±50 PPM -40°C to +85°C

E

= ±25 PPM -20°C to +70°C

G

= ±10 PPM -20°C to +70°C

0

= Series Resonant

1=16pF

2=20pF

3=32pF

4=18pF

5=10pF

6=30pF

±25 PPM at +25°C

Tolerances to ±10 PPM are available

Stability Options

Load Capacitance

STD Calibration

Tolerance

Equivalent Series

Resistance

Shunt Capacitance

Drive Level Crystal

Aging Standard

Packaging Typical

P/N

7 to 16 MHz 80Maximum 16 to

120 MHz 40Maximum 120 to 200

MHz 100Maximum

7 pF Maximum

10 to 2,000 uW

<5 ppm/1

Bagged

VXD1-3B0-80M000

st

year

D1

= UM-1 package

3

= 3

rd

Overtone

B

= ±50 PPM -20°C to +70°C
