32-bit MCUs
Qorivva MPC560xB/C/D Family
Automotive body and gateway applications
Overview
The Qorivva MPC560xB/C/D family of 32-bit MCU includes the latest Freescale
integrated devices for automotive body electronics applications. The advanced
cost-efficient host processor core leverages the many strengths of Power
Architecture
®
technology, such as processing capability, on-chip memory, analog
capabilities, timing systems and other features required to handle complex control
and diagnostic systems. In addition, these scalable devices are supported by an
enablement ecosystem that includes software drivers, operating systems and
configuration code to help you quickly implement your designs.
Applications
• Central body controllers
• Gateway controllers
• Body electronics
• Comfort controls
Qorivva MPC560xB/C/D
Key Features
Includes controller area network (CAN),
local interconnect network (LIN) and other
peripherals necessary to implement a range of
functionality in the automotive body network.
• FlexCAN module supporting both FIFO
and mailbox data storage, ideal for CAN
gateways to manage event-driven vs.
periodic bus traffic.
• LINFlex module provides fully automated
LIN message management, reducing CPU
load intervention and message latencies.
• eMIOS timer combines multiple counter
sources, including input capture, output
compare and pulse width modulation
(PWM) capabilities into one very flexible
module. PWM function supports
shifted signal output to improve
electromagnetic compatibility.
• Cross triggering unit synchronizes PWM
output signals with analog-to-digital
conversion to enable accurate diagnostic
and control capabilities.

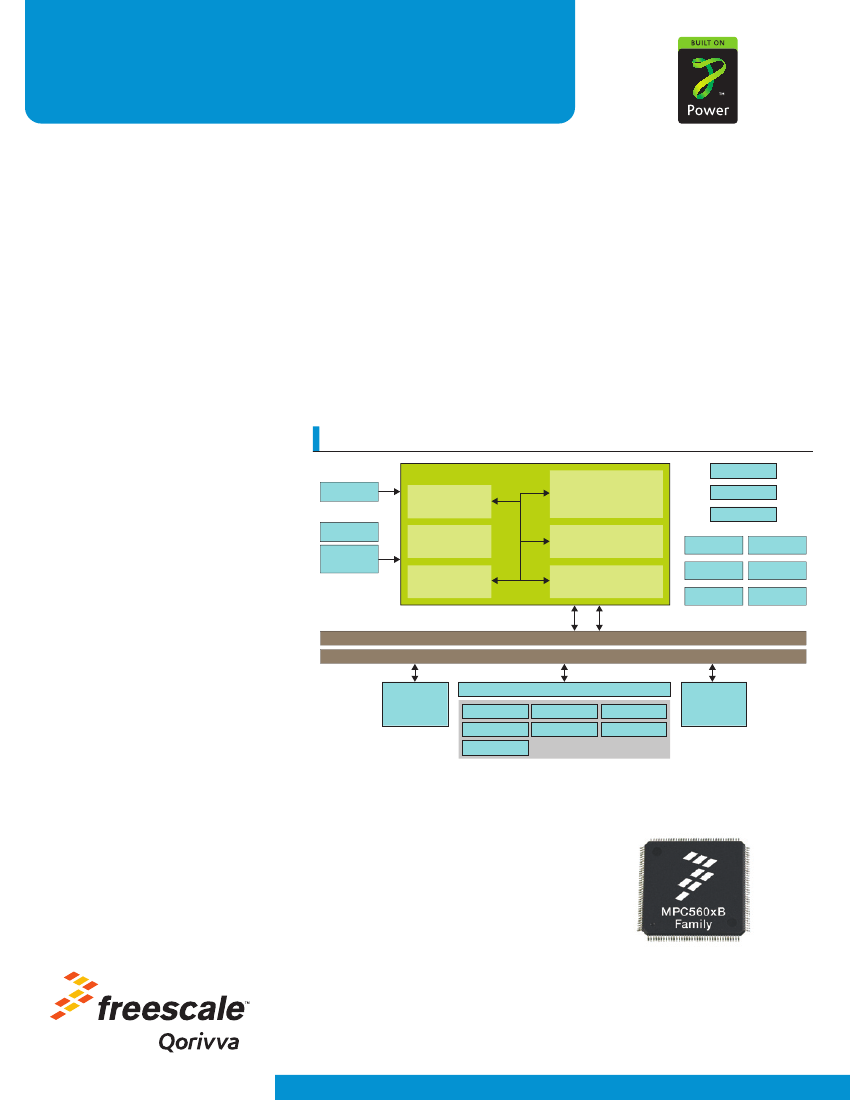

Qorivva MPC560xB/C Block Diagram
Qorivva MPC560xB/C Block Diagram
e200z0 Core
INTC
Integer
Execution Unit
Multiply Unit
Instruction
Unit VLE
Instruction Bus
FMPLL
General-Purpose
Registers
(32 x 32-bit)
Branch Unit
Load/Store
Unit
Data Bus
VREG
Oscillators
MC_ME
WKUP
BAM
Watchdog
SIU
PIT
JTAG
NDI
(optional)
Crossbar Switch (XBAR)
Memory Protection Unit (MPU)
Flash
(ECC)
Peripheral Bridge
LINFlex
ADC
eMIOS200
DSPI
I
2
C
FlexCAN
CTU
SRAM
(ECC)
• Scalable e200z0 core enables migration
toward higher performance solutions.
• Compatible family of products ensures
reuse of software and tools infrastructures.
In addition, the Qorivvva MPC5601D,
MPC5602D, MPC5605B, MPC5606B
and MPC5607B are available with direct
memory access.
Selector Guide
Product Number
MPC5607B
MPC5606B
MPC5605B
MPC5604C
MPC5604B
MPC5603C
MPC5603B
MPC5602D
MPC5602C
MPC5602B
MPC5601D
Temp. Ranges
–40 °C to +125 °C
–40 °C to +125 °C
–40 °C to +125 °C
–40 °C to +125 °C
–40 °C to +125 °C
–40 °C to +125 °C
–40 °C to +125 °C
–40 °C to +125 °C
–40 °C to +125 °C
–40 °C to +125 °C
–40 °C to +125 °C
Features
1.5 MB Flash, 6 CAN, 6 SPI, 10 LINFlex, 64 KB Data Flash, 96 KB RAM, 16-bit Timer
(64 channels), 12-bit ADC (16 channels) and 10-bit ADC (32 channels)
1 MB Flash, 6 CAN, up to 6 SPI, up to 8 LINFlex, 64 KB Data Flash, 80 KB RAM,
16-bit Timer (64 channels), 12-bit ADC (16 channels) and 10-bit ADC (up to 32 channels)
768 KB Flash, 6 CAN, up to 6 SPI, up to 8 LINFlex, 64 KB Data Flash, 64 KB RAM,
16-bit Timer (up to 64 channels), 12-bit ADC (16 channels) and 10-bit ADC (up to 32 channels)
512 KB Flash, 6 CAN, 3 SPI, 4 LINFlex, 64 KB Data Flash EEPROM, 48 KB RAM,
16-bit Timer (up to 28 channels), 10-bit ADC (up to 28 channels)
512 KB Flash, 3 CAN, 3 SPI, 4 LINFlex, 64 KB Data Flash EEPROM, 32 KB RAM,
16-bit Timer (up to 56 channels), 10-bit ADC (up to 36 channels)
384 KB Flash, 6 CAN, 3 SPI, 4 LINFlex, 64 KB Data Flash EEPROM, 40 KB RAM,
16-bit Timer (up to 28 channels), 10-bit ADC (up to 28 channels)
384 KB Flash, 2 CAN, 3 SPI, 4 LINFlex, 64 KB Data Flash EEPROM, 28 KB RAM,
16-bit Timer (up to 56 channels), 10-bit ADC (up to 36 channels)
256 KB Flash, 1 CAN, 2 SPI, 3 LINFlex, 64 KB Data Flash EEPROM, 16 KB RAM,
16-bit Timer (up to 28 channels), 12-bit ADC (up to 33 channels)
256 KB Flash, 6 CAN, 3 SPI, 4 LINFlex, 64 KB Data Flash EEPROM, 32 KB RAM,
16-bit Timer (up to 28 channels), 10-bit ADC (up to 28 channels)
256 KB Flash, 2 CAN, 2 SPI, 3 LINFlex, 64 KB Data Flash EEPROM, 24 KB RAM,
16-bit Timer (up to 56 channels), 10-bit ADC (up to 36 channels)
128 KB Flash, 1 CAN, 2 SPI, 3 LINFlex, 64 KB Data Flash EEPROM, 12 KB RAM,
16–bit Timer (up to 28 channels), 12–bit ADC (up to 33 channels)
Package
176 LQFP
144 LQFP,
176 LQFP
100 LQFP,
144 LQFP,
176 LQFP
64 LQFP,
100 LQFP
64 LQFP,
100 LQFP,
144 LQFP
64 LQFP,
100 LQFP
64 LQFP,
100 LQFP,
144 LQFP
64 LQFP,
100 LQFP
64 LQFP,
100 LQFP
64 LQFP,
100 LQFP,
144 LQFP
64 LQFP,
100 LQFP
Speed
Up to 64 MHz
Up to 64 MHz
Up to 64 MHz
Up to 64 MHz
Up to 64 MHz
Up to 64 MHz
Up to 64 MHz
Up to 48 MHz
Up to 64 MHz
Up to 64 MHz
Up to 48 MHz
Development Tools
Part Number
For MPC5605B, MPC5606B and MPC5607B
XKT560B176SB15M
XKT560B144SB15M
XKT560B100SB15M
XKT560B208SB15M
XDC560B176SB15M
XDC560B144SB15M
XDC560B100SB15M
XDC560B208SB15M
TRK-MPC5606B
XKT560B144SC512K
XKT560B100SC512K
XKT560B208SC512K
XDC560B144SC512K
XDC560B100SC512K
XDC560B208SC512K
TRK-USB-MPC5604B
MPC5602D and MPC5601D
XDC560B100SC256K
XDC560B64SC256K
For all MPC560xB/C/D
XPC56XXMB2
*Manufacturer Suggested Resale Price
JDP Motherboard
$375
100 LQFP Daughter Card
64 LQFP Daughter Card
$120
$120
Kit Includes JDP Motherboard (XPC56XXMB2), Daughter Card (XDC560B176SB15M) and P&E Wiggler
Kit Includes JDP Motherboard (XPC56XXMB2), Daughter Card (XDC560B144SB15M) and P&E Wiggler
Kit Includes JDP Motherboard (XPC56XXMB2), Daughter Card (XDC560B100SB15M) and P&E Wiggler
Kit Includes JDP Motherboard (XPC56XXMB2), Daughter Card (XDC560B208SB15M) and P&E Wiggler
176 LQFP Daughter Card
144 LQFP Daughter Card
100 LQFP Daughter Card
208 MAPBGA Daughter Card
144 LQFP StarterTRAK Board
Kit Includes JDP Motherboard (XPC56XXMB2), Daughter Card (XDC560B144SC512K) and P&E Wiggler
Kit Includes JDP Motherboard (XPC56XXMB2), Daughter Card (XDC560B100SC512K) and P&E Wiggler
Kit Includes JDP Motherboard (XPC56XXMB2), Daughter Card (XDC560B208SC512K) and P&E Wiggler
144 LQFP Daughter Card
100 LQFP Daughter Card
208 MAPBGA Daughter Card
100 LQFP StarterTRAK Mini
$497
$497
$497
$497
$120
$120
$120
$120
$99
$497
$497
$497
$120
$120
$120
$25
Description
Pricing*
For MPC5602B, MPC5602C, MPC5603B, MPC5603C, MPC5604B and MPC5604C
For more information about Qorivva MPC560xB/C/D family solutions,
please visit freescale.com/Qorivva
Freescale and the Freescale logo are trademarks of Freescale Semiconductor, Inc., Reg. U.S. Pat. & Tm. Off. Qorivva
is a trademark of Freescale Semiconductor, Inc. The Power Architecture and Power.org word marks and the Power
and Power.org logos and related marks are trademarks and service marks licensed by Power.org. All other product or
service names are the property of their respective owners. © 2005, 2010, 2011, 2012 Freescale Semiconductor, Inc.
Document Number: MPC560XBFAMFS REV 6
