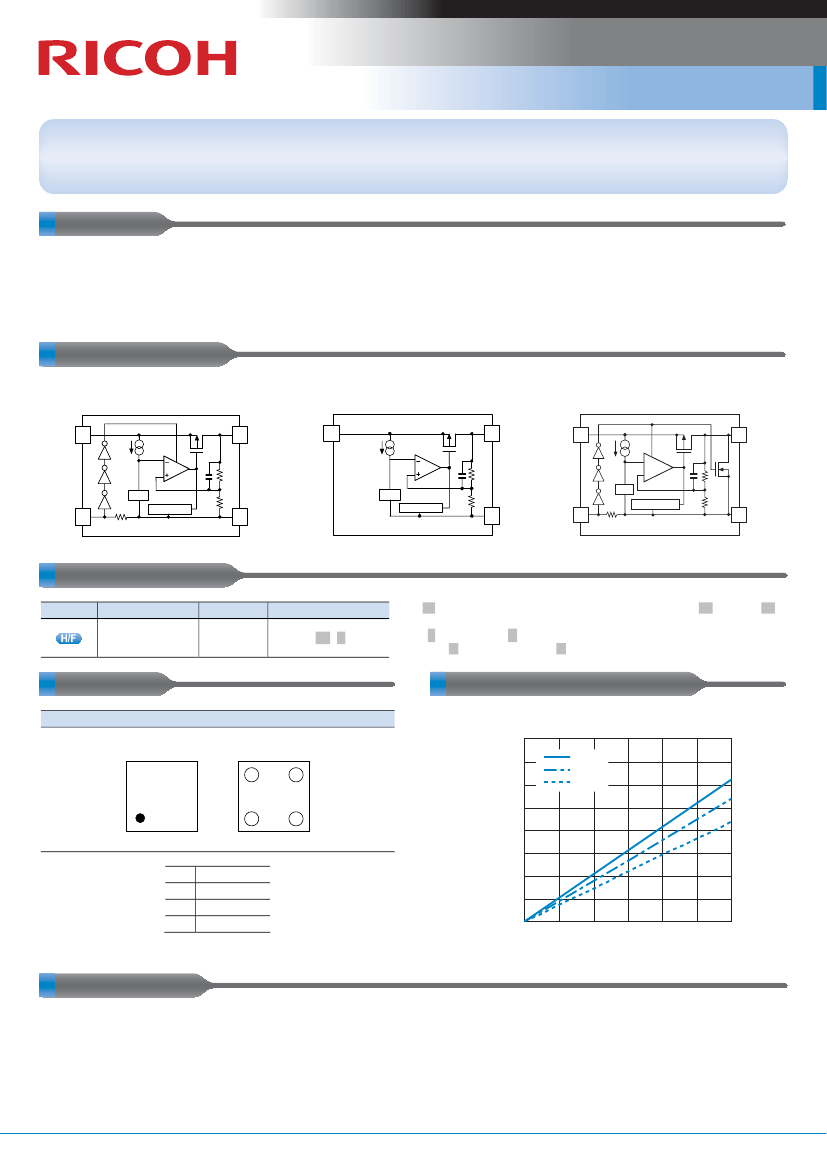

R1183Z Series
Low Supply Current WLCSP 150mA LDO
The R1183Z Series are CMOS-based LDO regulator featuring 150mA output. The R1183Z is the WLCSP Version of R1180x. The
R1183Z’s typical low supply current of 1μA makes it ideal for use in power supplies systems with the sleep mode on. The version that
reduced supply current to the lowest possible level by eliminating the CE pin is also available. Compared to R1180x, the output
voltage accuracy improved to
±1.2%.
The version with auto-discharge function is also available. Ceramic capacitors can be used.
FEATURES
•
Supply Current (I
SS
) ························ Typ. 1μA (V
IN
=V
SET
+1.0V)
•
Standby Current (I
standby
) ················· Typ. 0.1
μ
A (Same as above, CE="L", Except for C Version)
•
Dropout Voltage (V
DIF
) ···················· Typ. 0.25V (I
OUT
=150mA, V
SET
=2.8V)
•
Input Voltage Range (V
IN
) ··············· 1.7V to 6.0V
•
Output Voltage Range (V
OUT
)·········· 1.2V to 3.6V (internally fixed)
•
Output Voltage Accuracy ················± 1.2%
•
Temp. coeff. of Output Voltage ·······Typ.
±
100ppm/°C
•
Line Regulation·······························Typ. 0.05%/V
•
Fold-back Protection Circuit············Current limit Typ. 40mA
•
Auto-discharge Function·················D Version
•
Package··········································WLCSP-4-P2
•
Ceramic capacitors can be used. ···0.1
μ
F or more
BLOCK DIAGRAMS
R1183Zxx1B
(Without Auto-discharge function)
R1183Zxx1C
(Without CE pin)
V
DD
1
4 V
OUT
R1183Zxx1D
(With Auto-discharge function)
V
DD
1
-
+
V
DD
1
4
V
OUT
4 V
OUT
Vref
Current Limit
Vref
Current Limit
Vref
CE
2
3
GND
3 GND
CE 2
Current Limit
3 GND
SELECTION GUIDE
Halogen Free
Package
WLCSP-4-P2
Q'ty per Reel
Part No.
.xx.
: Specify the output voltage within the range of 1.2V (.12.) to 3.6V (.36.)
in 0.1V steps.
.∗
: Select from (.B.) without auto-discharge function,
(.C.) without CE pin or (.D.) with auto-discharge function.
5,000 pcs R1183Z.xx.1.
∗
-TR-F
PACKAGE
WLCSP-4-P2
Mark Side
4
3
TYPICAL CHARACTERISTIC
R1183Z281x
0.40
4
Dropout Voltage vs. Output Current
85°C
25°C
-40°C
Bump Side
3
Dropout Voltage V
DIF
(V)
0.35
0.30
0.25
0.20
0.15
0.10
0.05
0
0
25
1
2
2
1
1
2
3
4
V
DD
CE or NC
GND
V
OUT
50
75
100 125
Output Current I
OUT
(mA)
150
APPLICATIONS
•
Power source for hand-held communication equipment, cameras, and VCRs
•
Power source for home appliances
•
Power source for battery-powered equipment
No.EK-147-121001
CMOS LDO Regulator
1. The products and the product specifications described in this document are subject to change or
discontinuation of production without notice for reasons such as improvement. Therefore, before
deciding to use the products, please refer to Ricoh sales representatives for the latest
information thereon.
2. The materials in this document may not be copied or otherwise reproduced in whole or in part
without prior written consent of Ricoh.
3. Please be sure to take any necessary formalities under relevant laws or regulations before
exporting or otherwise taking out of your country the products or the technical information
described herein.
4. The technical information described in this document shows typical characteristics of and
example application circuits for the products. The release of such information is not to be
construed as a warranty of or a grant of license under Ricoh's or any third party's intellectual
property rights or any other rights.
5. The products listed in this document are intended and designed for use as general electronic
components in standard applications (office equipment, telecommunication equipment,
measuring instruments, consumer electronic products, amusement equipment etc.). Those
customers intending to use a product in an application requiring extreme quality and reliability,
for example, in a highly specific application where the failure or misoperation of the product
could result in human injury or death (aircraft, spacevehicle, nuclear reactor control system,
traffic control system, automotive and transportation equipment, combustion equipment, safety
devices, life support system etc.) should first contact us.
6. We are making our continuous effort to improve the quality and reliability of our products, but
semiconductor products are likely to fail with certain probability. In order to prevent any injury to
persons or damages to property resulting from such failure, customers should be careful enough
to incorporate safety measures in their design, such as redundancy feature, firecontainment
feature and fail-safe feature. We do not assume any liability or responsibility for any loss or
damage arising from misuse or inappropriate use of the products.
7. Anti-radiation design is not implemented in the products described in this document.
8. Please contact Ricoh sales representatives should you have any questions or comments
concerning the products or the technical information.
