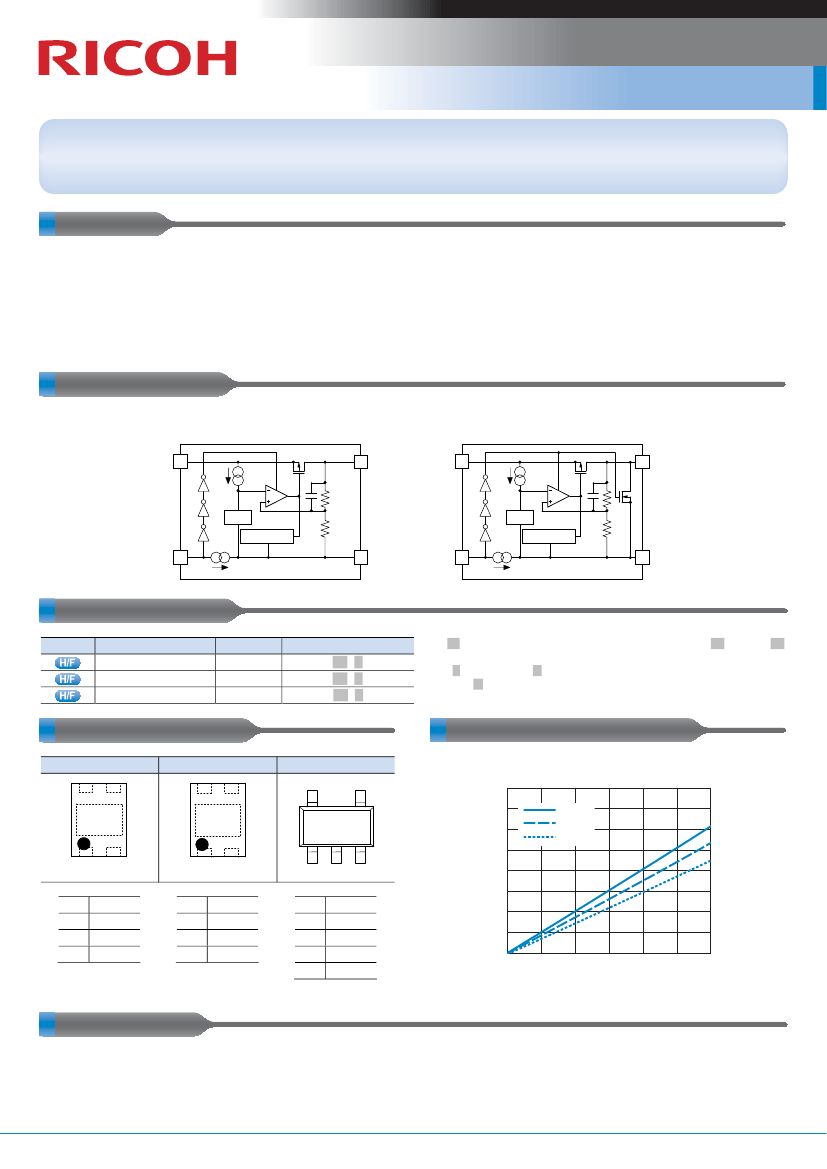

RP101x Series
Low Noise 0.6% Accuracy 300mA LDO
The RP101x Series are CMOS-based LDO regulators featuring 300mA output. RP101x has the supply current as low as 18μA, which is
far lower than current products. Due to a built-in transistor with low on-resistance of 0.87Ω (at V
SET
=2.8V) , RP101x provides a low
dropout voltage. RP101x also has an excellent line transient response, 75dB ripple rejection, and low noise. The output voltage
accuracy has been improved to
±
0.6% and the temparature drift coefficient of the output voltage is as low as
±
30ppm/°C
FEATURES
•
Supply Current (I
SS
) ························ Typ. 18μA (V
IN
=V
SET
+1.0V)
•
Standby Current (I
standby
) ················· Typ. 0.1μA (Same as above, CE="L")
•
Dropout Voltage (V
DIF
) ···················· Typ. 0.13V (I
OUT
=150mA, V
SET
=2.8V)
•
Ripple Rejection (RR)····················· Typ. 75dB (f=1kHz)
•
Input Voltage Range (V
IN
) ··············· 1.7V to 5.25V
•
Output Voltage Range (V
OUT
)·········· 1.2V to 3.3V (Internally fixed)
•
Output Voltage Accuracy·················
±
0.6%
•
Temp. coeff. of Output Voltage ·······Typ.
±
30ppm/°C
•
Line Regulation ······························· Typ. 0.02%/V
•
Fold-back Protection Circuit············Current limit Typ. 40mA
•
Auto-discharge Function······················D Version
•
Packages ········································DFN(PLP)1612-4,
•
DFN(PLP)1612-4B,
SOT-23-5
Ceramic capacitors can be used. ···1μF or more
BLOCK DIAGRAMS
RP101xxxxB
(Without Auto-discharge function)
V
DD
V
OUT
V
DD
RP101xxxxD
(With Auto-discharge function)
V
OUT
Vref
Current Limit
Vref
Current Limit
CE
GND
CE
GND
SELECTION GUIDES
Halogen Free
Package
DFN(PLP)1612-4
DFN(PLP)1612-4B
SOT-23-5
Q'ty per Reel
Part No.
5,000 pcs RP101K.xx.1.
∗
-TR
5,000 pcs RP101K.xx.2.
∗
-TR
3,000 pcs RP101N.xx.1.
∗
-TR-FE
.xx.
: Specify the output voltage within the range of 1.2V (.12.) to 3.3V (.33.)
in 0.1V steps
.∗
: Select from (.B.) without auto-discharge function or
(.D.) with auto-discharge function.
PACKAGES (Top View)
DFN(PLP)1612-4
4
3
TYPICAL CHARACTERISTIC
SOT-23-5
5
4
DFN(PLP)1612-4B
4
3
RP101x28xx
400
Dropout Voltage V
DIF
(mV)
Dropout Voltage vs. Output Current
85°C
25°C
-40°C
∗
∗
350
300
250
200
150
100
50
0
0
1
2
1
2
t=0.6mm Max.
1
2
3
4
V
OUT
GND
CE
V
DD
t=0.4mm Max.
1
2
3
4
V
OUT
GND
CE
V
DD
1
2
3
∗
) The tab is substrate level (GND).
1
2
3
4
5
V
DD
GND
CE
NC
V
OUT
50
100 150 200 250
Output Current I
OUT
(mA)
300
APPLICATIONS
•
Power source for hand-held communication equipment, cameras, and VCRs
•
Power source for home appliances
•
Power source for battery-powered equipment
No.EK-167-121001
CMOS LDO Regulator
RP101x Series
Low Noise 0.6% Accuracy 300mA LDO
CMOS LDO Regulator

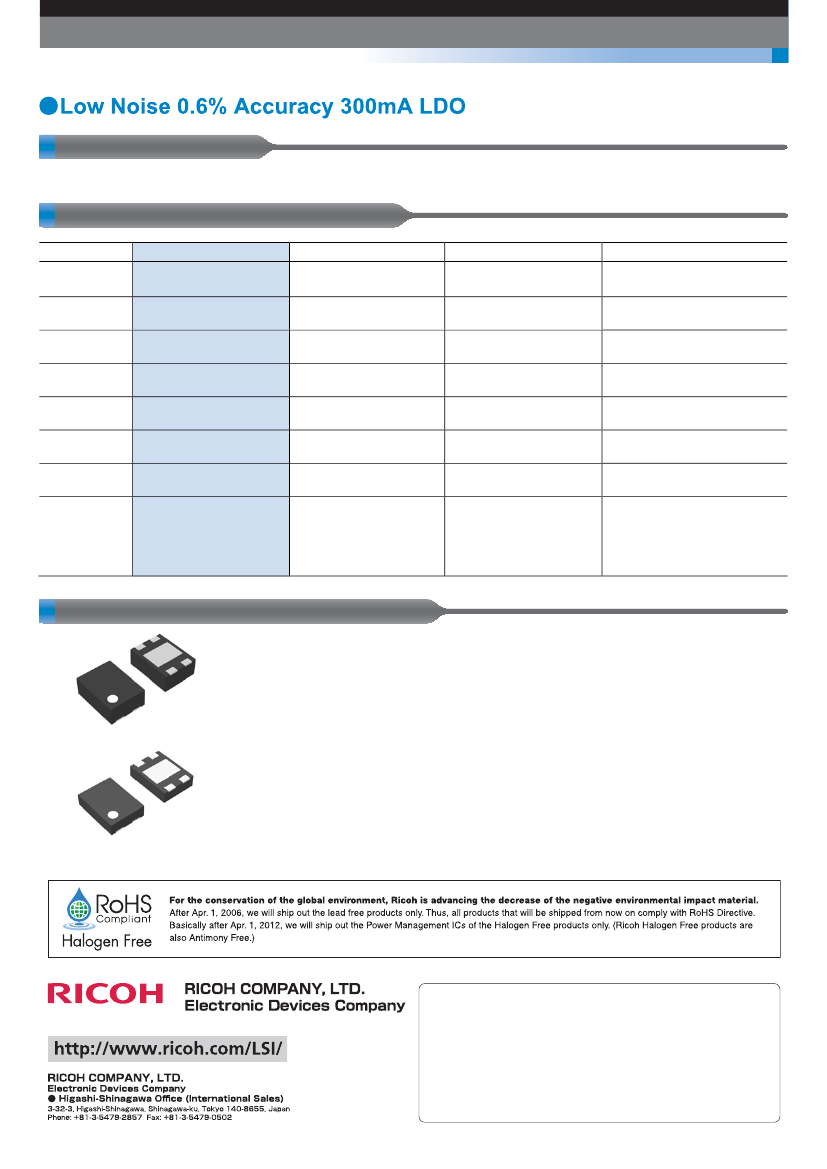

WHAT ARE RP SERIES
The new Ricoh IC series perform better due to a newly applied manufacturing process, compared to the current products
300mA LDO REGULATOR COMPARISON
RP101x Series
Supply Current Typ. 18μA
Input Voltage
Range
1.7V~5.25V
RP102x Series
Typ. 50μA
1.7V~5.25V
1.2V~3.3V
Typ. 0.12V (I
OUT
=300mA)
80dB
±0.8%
±20ppm/°C
R1130H Series
Typ. 50μA
2.5V~8.0V
1.5V~5.0V,
External adjustable
Typ. 0.25V (I
OUT
=100mA)
60dB
±2%
±100ppm/°C
R1161N Series
Typ. 60μA (Fast Transient Mode)
Typ. 4.5μA (Low Power Mode)
1.4V~6.0V
0.8V~3.3V
Typ. 0.23V (I
OUT
=300mA)
(Fast Transient Mode)
65dB (Fast Transient Mode)
±2%
(Fast Transient Mode)
±100ppm/°C
Output Voltage
1.2V~3.3V
Range
Dropout Voltage
(V
SET
=2.8V)
Typ. 0.13V (I
OUT
=150mA)
Ripple Rejection
75dB
(f=1kHz)
Output Voltage
±0.6%
Accuracy
Temp. coeff. of
±30ppm/°C
Output Voltage
DFN(PLP)1612-4
DFN(PLP)1612-4B
(1.6mm×1.2mm)
SOT-23-5
(2.9mm×2.8mm)
Packages
WLCSP-4-P2
(0.79mm×0.79mm)
DFN(PLP)1820-6
SOT-89-5 (4.5mm×4.5mm) SOT-23-5 (2.9mm×2.8mm)
(1.8mm×2.0mm)
SOT-23-5(2.9mm×2.8mm)
WHAT IS DFN(PLP)1612-4/DFN(PLP)1612-4B?
The DFN(PLP)package is a leadless package using an electroforming sheet in place of lead frame.
This extremely compact package features increased power dissipation and conversion to thinner type.
The name is representing a combination of the body size and the number of pins, i.e., DFN(PLP)1612-4
stands for the body size of 1.6mm×1.2mm and 4 pins.
DFN(PLP)1612-4 is 0.6mm thick while the thickness of DFN(PLP)1612-4B was reduced to 0.4 mm.
An environment-friendly, leadfree package with gold plated contacts complies with the RoHS Directive.
DFN(PLP)1612-4
DFN(PLP)1612-4B
The currently available information as of October 2012 is provided in this New Product News.
EK-167-121001
