FR151SA1G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> FR151SA1G

FR151SA1G: DescriptionRectifier Diode, 1 Phase, 1 Element, 1.5A, 50V V(RRM), Silicon, DO-41,; CategoryDiscrete semiconductor diode; File Size418KB，4 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/; Environmental Compliance

Download Datasheet Parametric View All

FR151SA1G Overview

Rectifier Diode, 1 Phase, 1 Element, 1.5A, 50V V(RRM), Silicon, DO-41,

FR151SA1G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Taiwan Semiconductor
package instruction	O-PALF-W2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY, LOW POWER LOSS
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
JEDEC-95 code	DO-41
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	50 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.15 µs
surface mount	NO
Terminal surface	Pure Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

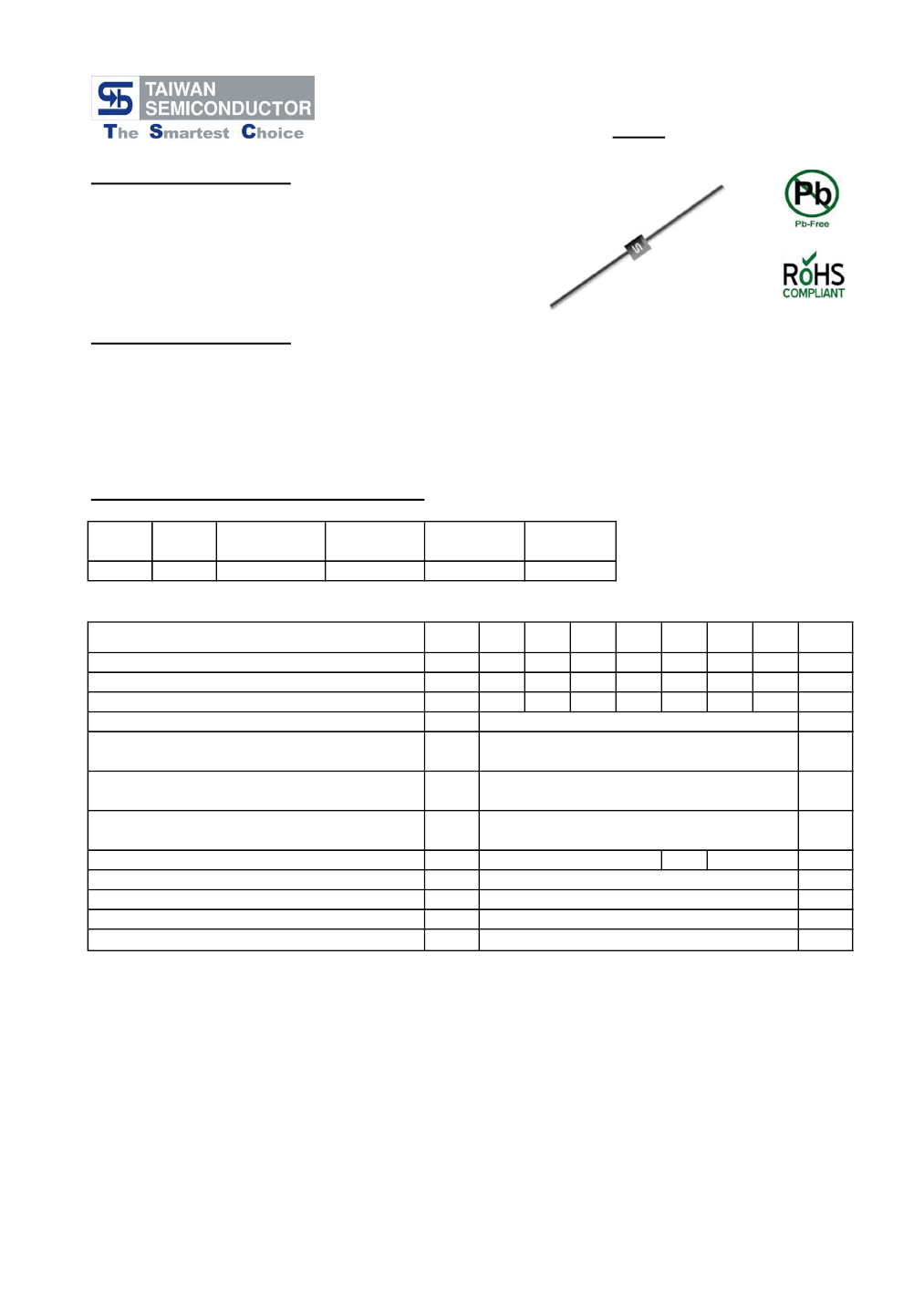

FR151S - FR157S

1.5AMPS Fast Recovery Rectifiers

DO-41

Features

High efficiency, Low VF

High current capability

High reliability

High surge current capability

Low power loss

Green compound with suffix "G" on packing

code & prefix "G" on datecode

Mechanical Data

Cases: Molded plastic

Epoxy: UL 94V-0 rate flame retardant

Lead: Pure tin plated, lead free, solderable per

MIL-STD-202, Method 208 guaranteed

Polarity: Color band denotes cathode end

High temperature soldering guaranteed: 260℃/10s

Weight: 0.32 grams

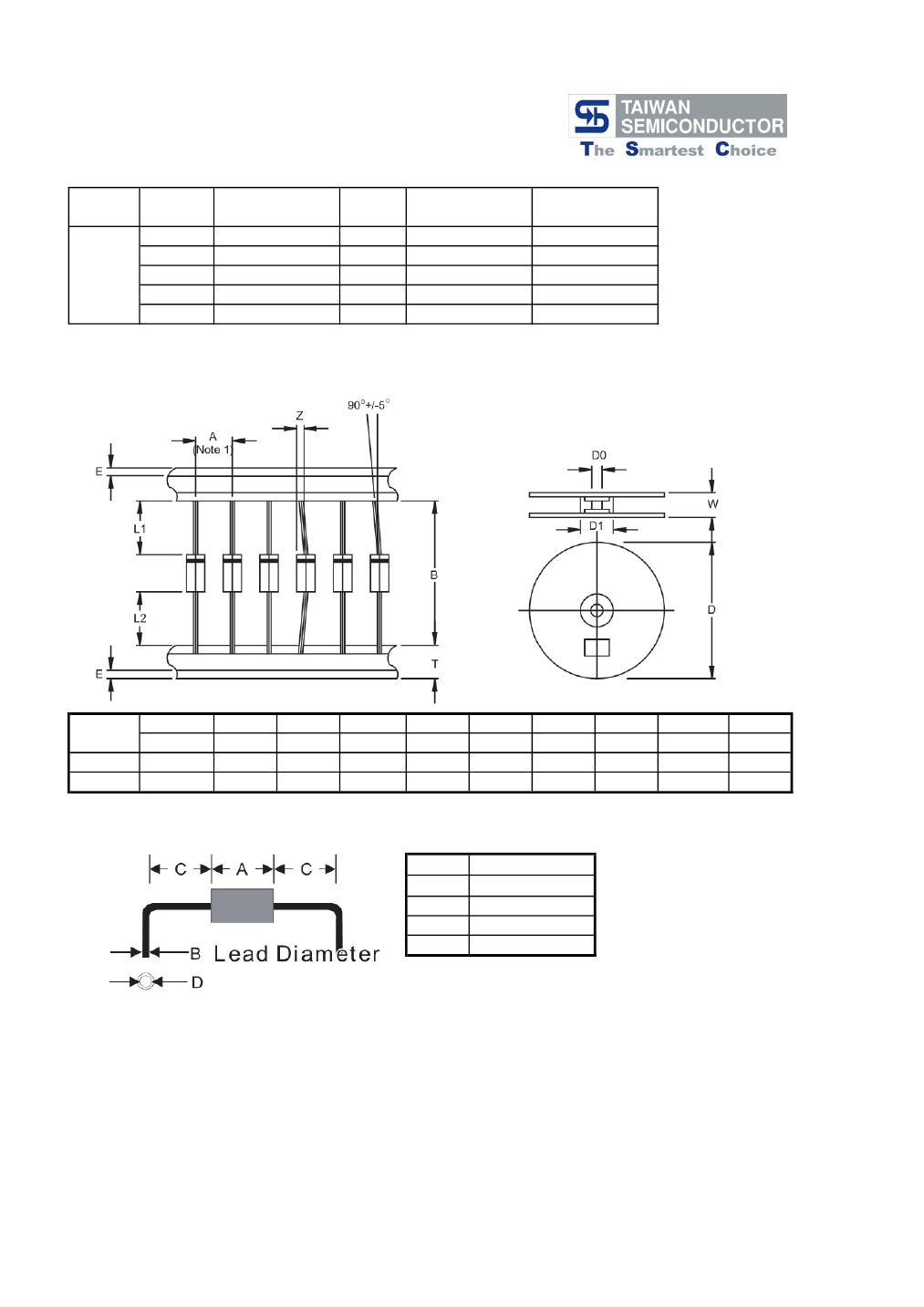

Ordering Information (example)

Part No.

FR151S

Package

DO-41

Packing

3K / AMMO box

INNER

TAPE

52mm

Packing code

(Green)

A0G

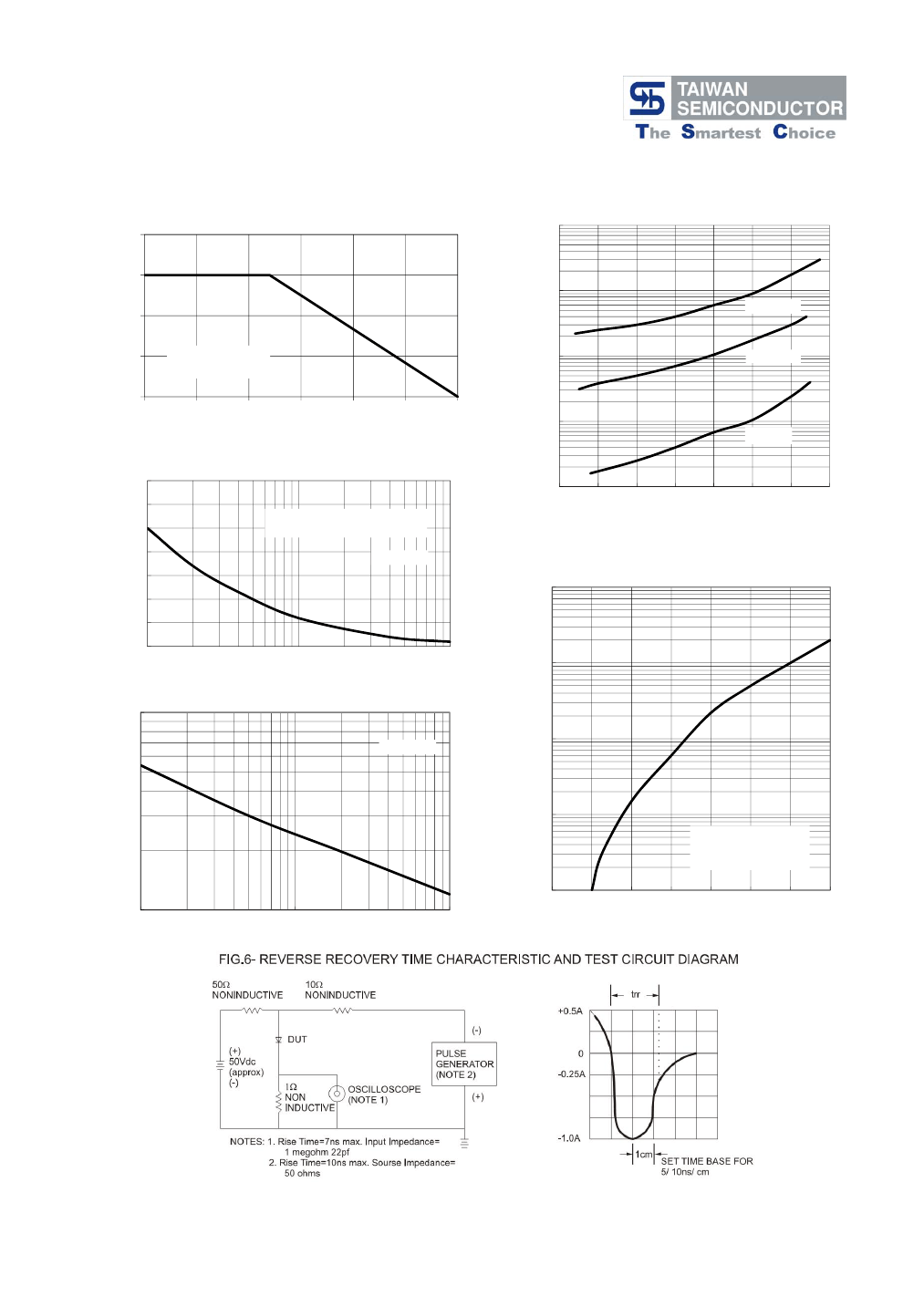

Maximum Ratings and Electrical Characteristics

Rating at 25

℃

ambient temperature unless otherwise specified.

Parameter

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Current

Peak Forward Surge Current, 8.3 ms Single Half Sine-

wave Superimposed on Rated Load (JEDEC method)

Maximum Instantaneous Forward Voltage (Note 1)

@ 1.5A

Maximum DC Reverse Current at

Rated DC Blocking Voltage

Typical Junction Capacitance (Note 3)

Typical Thermal Resistance (Note 4)

Operating Temperature Range T

Storage Temperature Range T

STG

Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle

@ T

=25

℃

@ T

=125

℃

Symbol

RRM

RMS

F(AV)

FSM

Trr

θJA

STG

151S

152S

100

153S

200

140

200

154S

400

280

400

1.5

1.2

150

155S

600

420

600

156S

800

560

800

157S

1000

700

1000

Units

Maximum Reverse Recovery Time (Note 2)

150

250

500

C/W

- 55 to + 150

Note 2: Reverse Recovery Test Conditions: I

=0.5A, I

=1.0A, I

=0.25A

Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.

Version:F13
