QS3383H datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> QS3383H

Preview

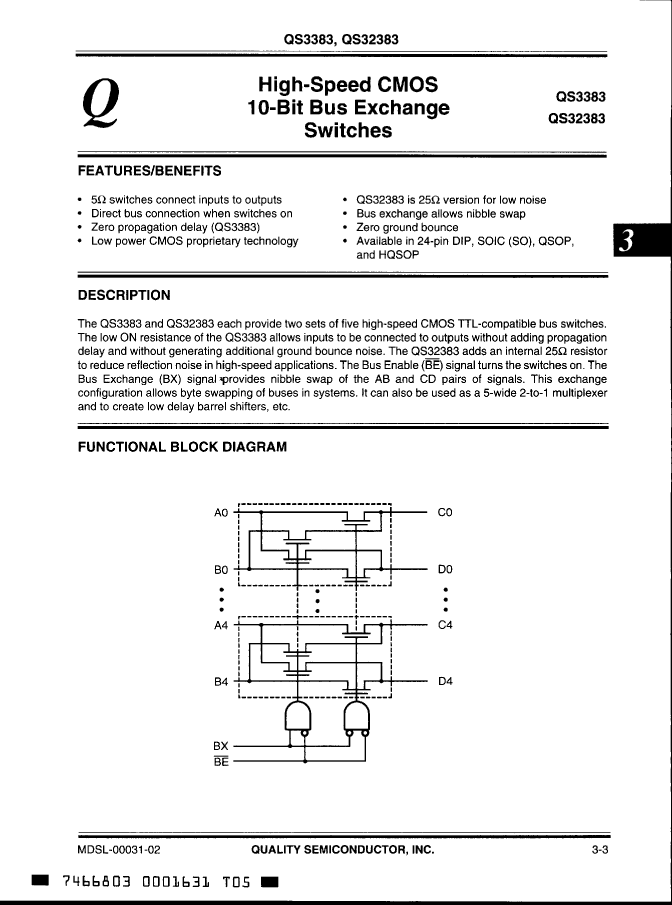

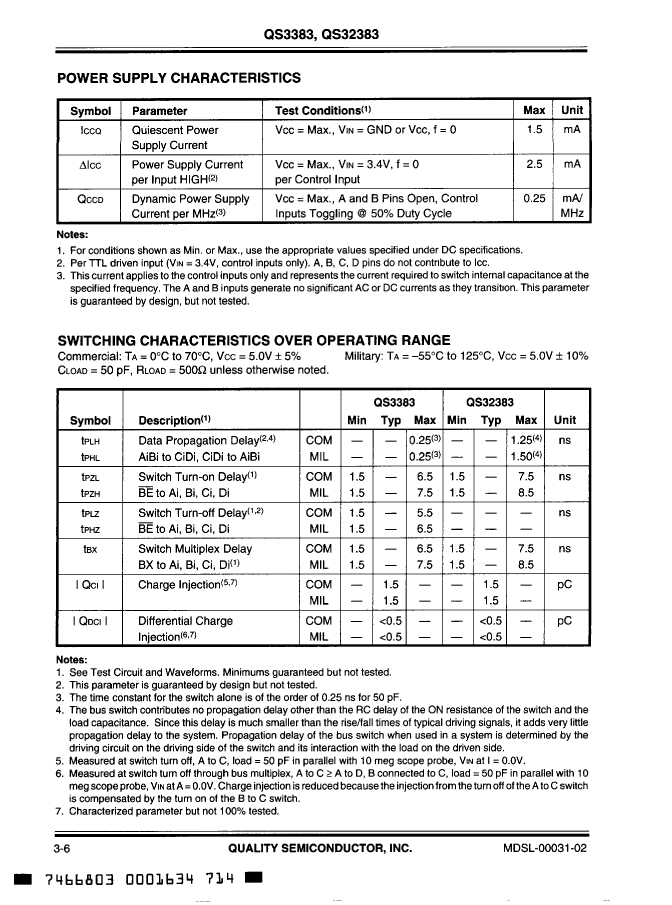

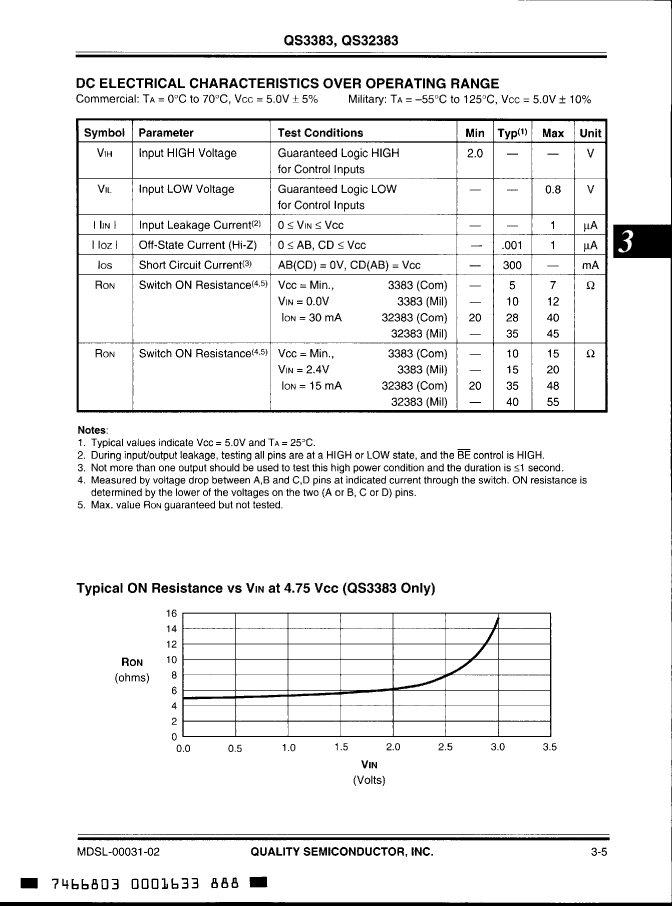

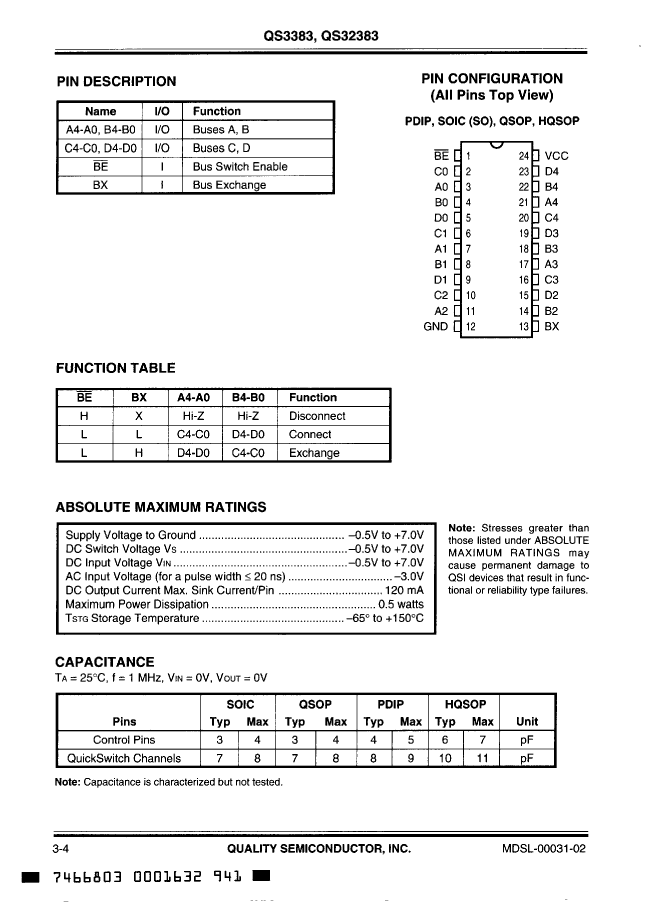

QS3383H: DescriptionBus Exchanger, 3383 Series, 1-Func, 10-Bit, True Output, CMOS, CDSO24,; Categorylogic logic; File Size222KB，4 Pages; ManufacturerQuality Semiconductor Inc

Download Datasheet Parametric Compare View All

QS3383H Overview

Bus Exchanger, 3383 Series, 1-Func, 10-Bit, True Output, CMOS, CDSO24,

QS3383H Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Quality Semiconductor Inc
package instruction	SSOP, SSOP24,.24
Reach Compliance Code	unknown
Other features	TTL COMPATIBLE BUS SWITCH
series	3383
JESD-30 code	R-CDSO-G24
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS EXCHANGER
Number of digits	10
Number of functions	1
Number of ports	4
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	SSOP
Encapsulate equivalent code	SSOP24,.24
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
propagation delay (tpd)	0.25 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

QS3383H Related Products

	QS3383H	QS3L383P	QS3383P	QS3L383H
Description	Bus Exchanger, 3383 Series, 1-Func, 10-Bit, True Output, CMOS, CDSO24,	Bus Exchanger, 1-Func, 10-Bit, True Output, CMOS, PDIP24,	Bus Exchanger, 1-Func, 10-Bit, True Output, CMOS, PDIP24,	Bus Exchanger, 3L Series, 1-Func, 10-Bit, True Output, CMOS, CDSO24,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Quality Semiconductor Inc	Quality Semiconductor Inc	Quality Semiconductor Inc	Quality Semiconductor Inc
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	TTL COMPATIBLE BUS SWITCH	TTL COMPATIBLE BUS SWITCH	TTL COMPATIBLE BUS SWITCH	TTL COMPATIBLE BUS SWITCH
JESD-30 code	R-CDSO-G24	R-PDIP-T24	R-PDIP-T24	R-CDSO-G24
JESD-609 code	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS EXCHANGER	BUS EXCHANGER	BUS EXCHANGER	BUS EXCHANGER
Number of digits	10	10	10	10
Number of functions	1	1	1	1
Number of ports	4	4	4	4
Number of terminals	24	24	24	24
Maximum operating temperature	85 °C	70 °C	70 °C	85 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	SSOP	DIP	DIP	SSOP
Encapsulate equivalent code	SSOP24,.24	DIP24,.3	DIP24,.3	SSOP24,.24
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V
propagation delay (tpd)	0.25 ns	0.25 ns	0.25 ns	0.25 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	0.635 mm	2.54 mm	2.54 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
