PD-96024A
IRF7707PbF
HEXFET
®
Power MOSFET
l
l
l
l
l
l
Ultra Low On-Resistance
P-Channel MOSFET
Very Small SOIC Package
Low Profile (< 1.2mm)
Available in Tape & Reel
Lead-Free
V
DSS
-20V
R
DS(on)
max
22mΩ@V
GS
= -4.5V
33mΩ@V
GS
= -2.5V
I
D
-
7.0A
-
6.0A
Description
HEXFET
®
Power MOSFETs from International Rectifier
utilize advanced processing techniques to achieve ex-
tremely low on-resistance per silicon area. This benefit,
combined with the ruggedized device design, that Inter-
national Rectifier is well known for,
provides thedesigner
9
!
"
#
Ã2Ã9
!Ã2ÃT
"Ã2ÃT
#Ã2ÃB
'
&
%
$
'Ã2Ã9
&Ã2ÃT
%Ã2ÃT
$Ã2Ã9
B
T
with an extremely efficient and reliable device for
battery and load management.
The TSSOP-8 package has 45% less footprint area than
the standard SO-8. This makes the TSSOP-8 an ideal
device for applications where printed circuit board space
is at a premium. The low profile (<1.2mm) allows it to fit
easily into extremely thin environments such as portable
electronics and PCMCIA cards.
TSSOP-8
Absolute Maximum Ratings
Parameter
V
DS
I
D
@ T
A
= 25°C
I
D
@ T
A
= 70°C
I
DM
P
D
@T
A
= 25°C
P
D
@T
A
= 70°C
V
GS
T
J
, T
STG
Drain-Source Voltage
Continuous Drain Current, V
GS
@ -4.5V
Continuous Drain Current, V
GS
@ -4.5V
Pulsed Drain Current
Maximum Power Dissipation
Maximum Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Junction and Storage Temperature Range
Max.
-20
-7.0
-5.7
-28
1.5
1.0
0.01
±12
-55 to +150
Units
V
A
W
W
W/°C
V
°C
Thermal Resistance
Parameter
R
θJA
Maximum Junction-to-Ambient
Max.
83
Units
°C/W
www.irf.com
05/14/09
1
IRF7707PbF
Electrical Characteristics @ T
J
= 25°C (unless otherwise specified)
V
(BR)DSS
∆V
(BR)DSS
/∆T
J
Parameter
Drain-to-Source Breakdown Voltage
Breakdown Voltage Temp. Coefficient
Static Drain-to-Source On-Resistance
Gate Threshold Voltage
Forward Transconductance
Drain-to-Source Leakage Current
Gate-to-Source Forward Leakage
Gate-to-Source Reverse Leakage
Total Gate Charge
Gate-to-Source Charge
Gate-to-Drain ("Miller") Charge
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
R
DS(on)
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
C
iss
C
oss
C
rss
Min.
-20
–––
–––
-0.45
15
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
Typ.
–––
0.012
14.3
18.9
–––
–––
–––
–––
–––
–––
31
6.4
10
11
54
134
138
2361
512
323
Max. Units
Conditions
–––
V
V
GS
= 0V, I
D
= -250µA
––– V/°C Reference to 25°C, I
D
= -1mA
22
V
GS
= -4.5V, I
D
= -7.0A
mΩ
33
V
GS
= -2.5V, I
D
= -6.0A
-1.2
V
V
DS
= V
GS
, I
D
= -250µA
–––
S
V
DS
= -10V, I
D
= -7.0A
-1.0
V
DS
= -16V, V
GS
= 0V
µA
-25
V
DS
= -16V, V
GS
= 0V, T
J
= 70°C
-100
V
GS
= -12V
nA
100
V
GS
= 12V
47
I
D
= -7.0A
–––
nC
V
DS
= -16V
–––
V
GS
= -4.5V
17
V
DD
= -10V
81
I
D
= -1.0A
ns
201
R
G
= 6.0Ω
207
V
GS
= -4.5V
–––
V
GS
= 0V
–––
pF
V
DS
= -15V
–––
ƒ = 1.0MHz
Source-Drain Ratings and Characteristics
I
S
I
SM
V
SD
t
rr
Q
rr
Parameter
Continuous Source Current
(Body Diode)
Pulsed Source Current
(Body Diode)
Diode Forward Voltage
Reverse Recovery Time
Reverse Recovery Charge
Min. Typ. Max. Units
–––
–––
–––
–––
142
147
-1.5
A
-28
-1.2
213
221
V
ns
nC
Conditions
MOSFET symbol
showing the
G
integral reverse
p-n junction diode.
T
J
= 25°C, I
S
= -1.5A, V
GS
= 0V
T
J
= 25°C, I
F
= -1.5A
di/dt = -100A/µs
D
S
Notes:
Repetitive rating; pulse width limited by
max. junction temperature.
When mounted on 1 inch square copper board,
t
<
10sec.
Pulse width
≤
300µs; duty cycle
≤
2%.
2
www.irf.com
IRF7707PbF
100
VGS
TOP
-7.5V
-4.5V
-3.5V
-3.0V
-2.5V
-2.0V
-1.75V
BOTTOM -1.5V
100
-ID, Drain-to-Source Current (A)
-ID, Drain-to-Source Current (A)
10
10
VGS
-7.5V
-4.5V
-3.5V
-3.0V
-2.5V
-2.0V
-1.75V
BOTTOM -1.5V
TOP
-1.5V
1
1
-1.5V
20µs PULSE WIDTH
Tj = 25°C
0.1
0.1
1
10
100
20µs PULSE WIDTH
Tj = 150°C
0.1
0.1
1
10
100
-VDS, Drain-to-Source Voltage (V)
-VDS, Drain-to-Source Voltage (V)

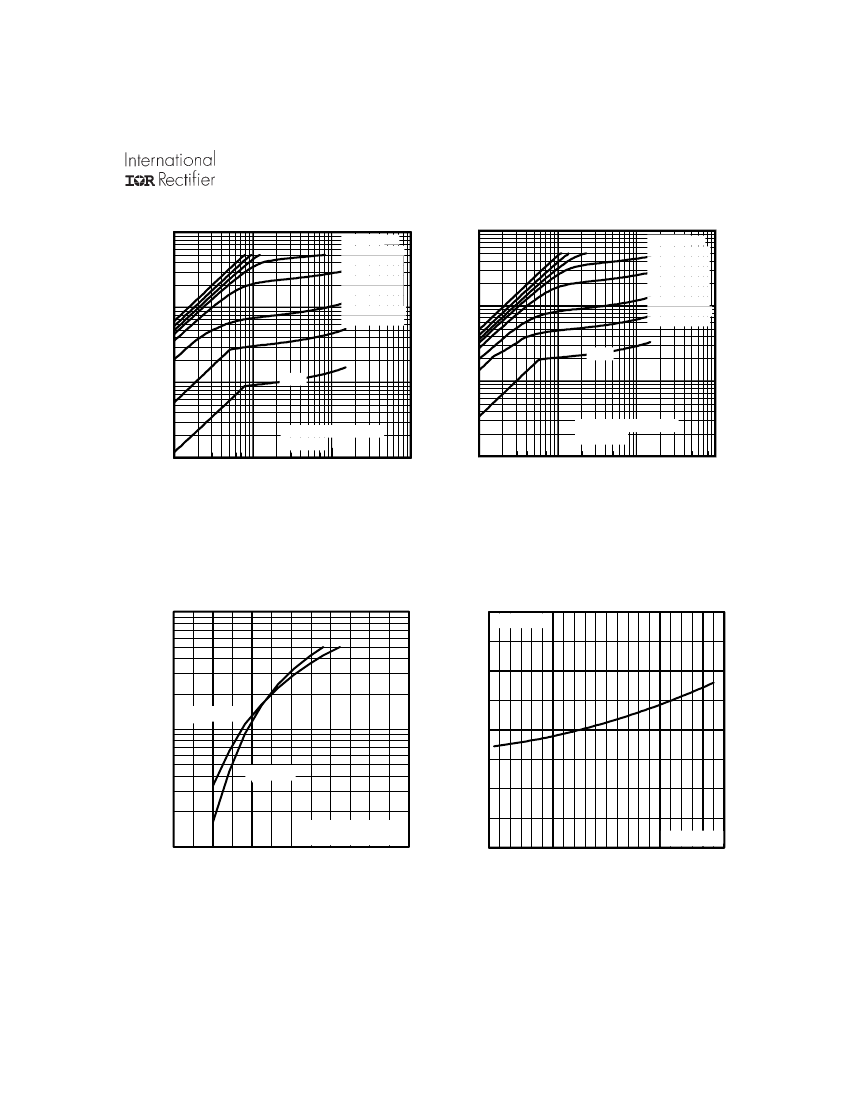

Fig 1.
Typical Output Characteristics
Fig 2.
Typical Output Characteristics
R
DS(on)
, Drain-to-Source On Resistance
(Normalized)
100
2.0
I
D
= -7.0A
-I
D
, Drain-to-Source Current (A)
1.5
T
J
= 150
°
C
10
1.0
T
J
= 25
°
C
0.5
1
1.0
V DS= -15V
20µs PULSE WIDTH
1.5
2.0
2.5
3.0
3.5
4.0
0.0
-60 -40 -20
V
GS
= -4.5V
0
20 40 60 80 100 120 140 160
-V
GS
, Gate-to-Source Voltage (V)
T
J
, Junction Temperature (
°
C)
Fig 3.
Typical Transfer Characteristics
Fig 4.
Normalized On-Resistance
Vs. Temperature
www.irf.com
3
IRF7707PbF
3500
2800
-V
GS
, Gate-to-Source Voltage (V)
V
GS
= 0V,
f = 1MHz
C
iss
= C
gs
+ C
gd ,
C
ds
SHORTED
C
rss
= C
gd
C
oss
= C
ds
+ C
gd
10
I
D
=
-7.0A
V
DS
=-16V
8
C, Capacitance (pF)
Ciss
2100
6
1400
4
700
Coss
Crss
2
0
1
10
100
0
0
10
20
30
40
50
60
-V
DS
, Drain-to-Source Voltage (V)
Q
G
, Total Gate Charge (nC)
Fig 5.
Typical Capacitance Vs.
Drain-to-Source Voltage
Fig 6.
Typical Gate Charge Vs.
Gate-to-Source Voltage
100
100
-I
SD
, Reverse Drain Current (A)
OPERATION IN THIS AREA LIMITED
BY R
DS(on)
T
J
= 150
°
C
10
-I
D
, Drain Current (A)
I
100us
10
1ms
T
J
= 25
°
C
1
0.1
0.2
V
GS
= 0 V
0.4
0.6
0.8
1.0
1.2
1.4
1.6
-V
SD
,Source-to-Drain Voltage (V)
1
0.1
T
C
= 25 °C
T
J
= 150 °C
Single Pulse
1
10
10ms
100
-V
DS
, Drain-to-Source Voltage (V)
Fig 7.
Typical Source-Drain Diode
Forward Voltage
Fig 8.
Maximum Safe Operating Area
4
www.irf.com
IRF7707PbF
8.0
V
DS
V
GS
R
D
-I
D
, Drain Current (A)
6.0
4.0
V
GS
Pulse Width
≤ 1
µs
Duty Factor
≤ 0.1 %

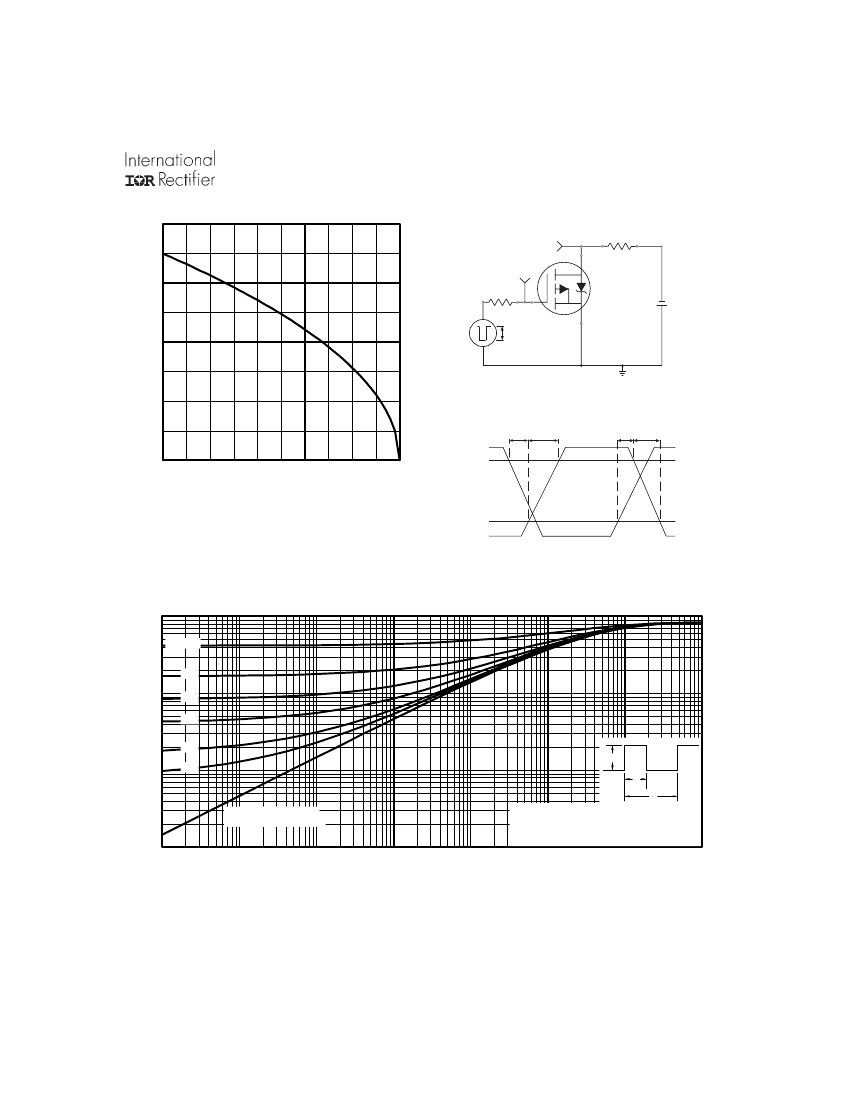

Fig 10a.
Switching Time Test Circuit
2.0
t
d(on)
t
r
t
d(off)
t
f
V
GS
0.0
25
50
T
C
, Case Temperature ( ° C)
75
100
125
150
10%
Fig 9.
Maximum Drain Current Vs.
Case Temperature
90%
V
DS
Fig 10b.
Switching Time Waveforms
100
D = 0.50
Thermal Response (Z
thJA
)
0.20
10
0.10
0.05
0.02
1
0.01
P
DM
t
1
t
2
SINGLE PULSE
(THERMAL RESPONSE)
Notes:
1. Duty factor D = t
1
/ t
2
2. Peak T
J
= P
DM
x Z
thJA
+ T
A
0.01
0.1
1
10
100
0.1
0.00001
0.0001
0.001
t
1
, Rectangular Pulse Duration (sec)
Fig 11.
Maximum Effective Transient Thermal Impedance, Junction-to-Ambient
www.irf.com
+
-
R
G
D.U.T.
V
DD
5
