SAB8259A-2P datasheet, PDF - EEWORLD Datasheet

SAB8259A-2P: DescriptionInterrupt Controller, 8086; 8088; 80186; 80188; 80286 Compatible, NMOS, PDIP28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size239KB，10 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

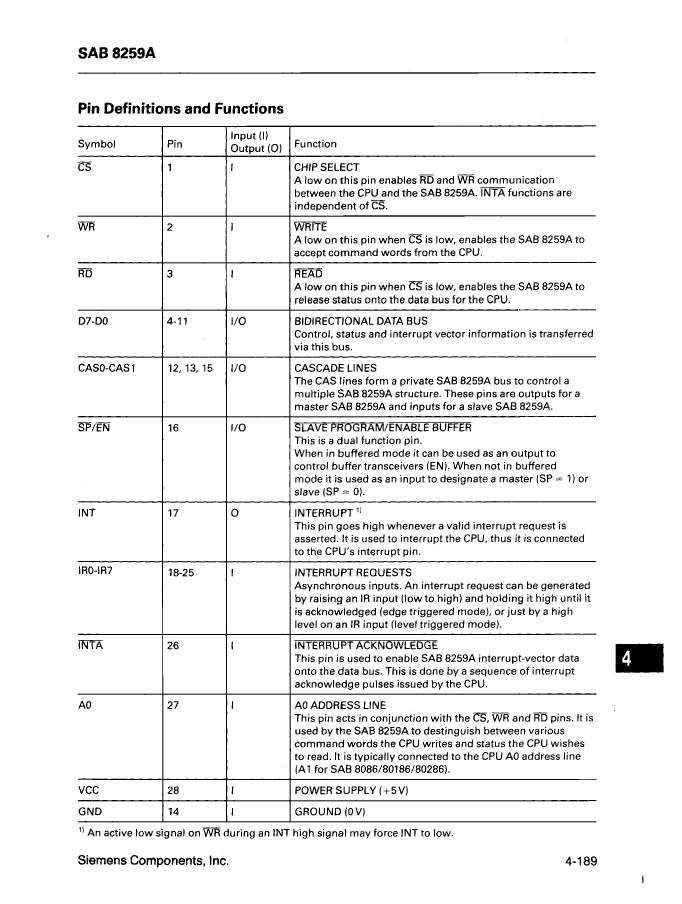

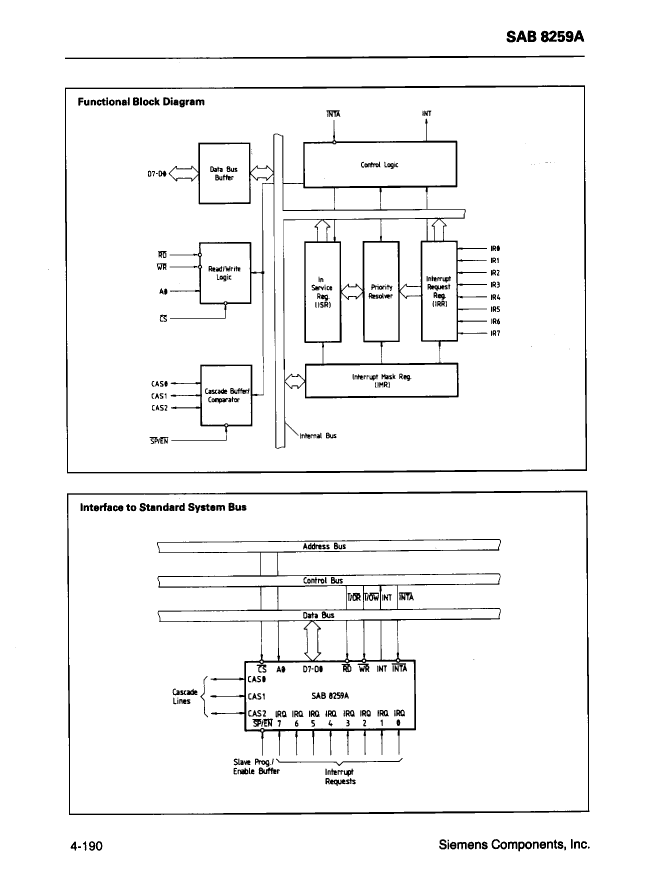

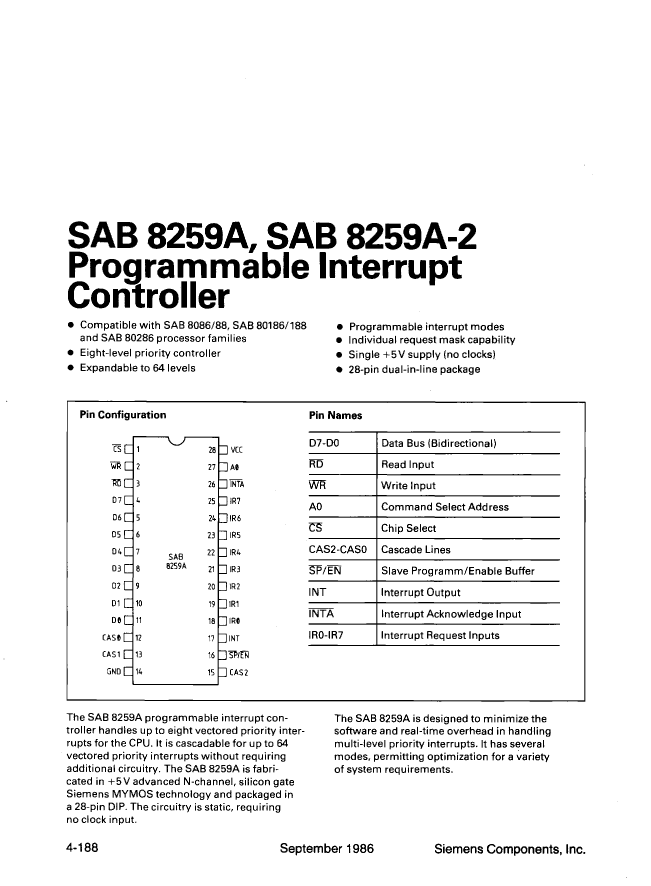

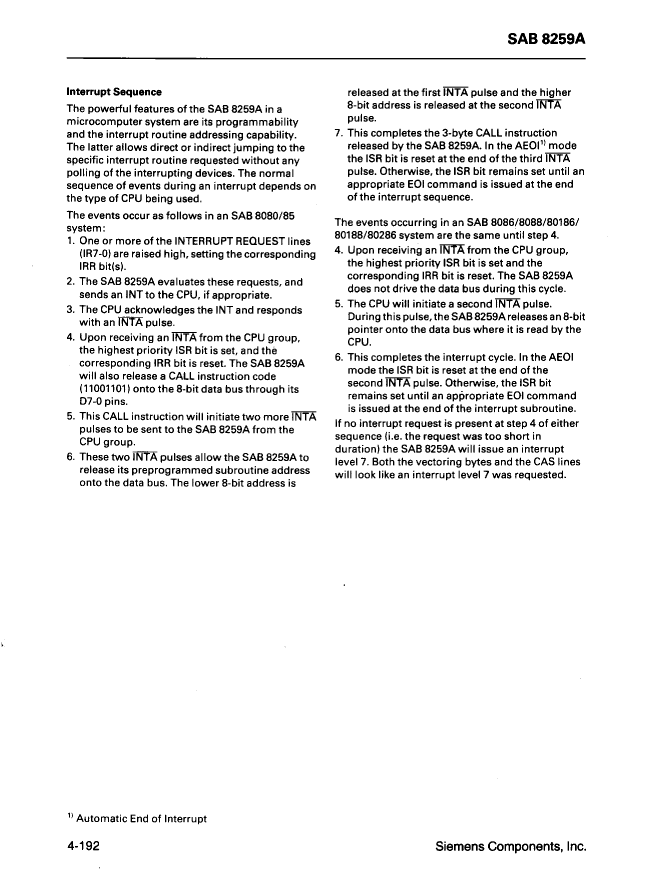

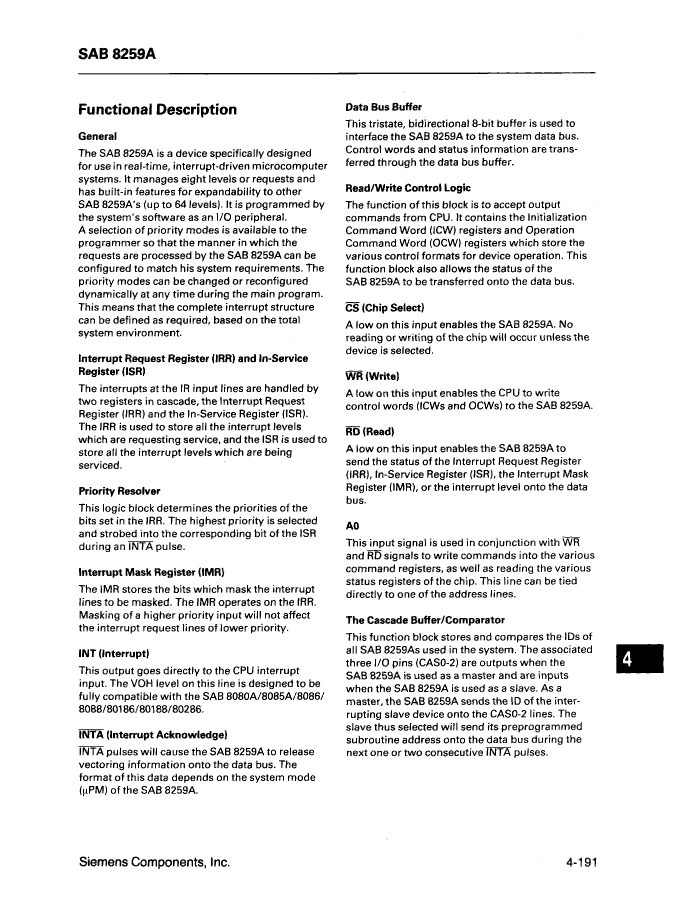

SAB8259A-2P Overview

Interrupt Controller, 8086; 8088; 80186; 80188; 80286 Compatible, NMOS, PDIP28

Parameter Name	Attribute value
Maker	SIEMENS
package instruction	,
Reach Compliance Code	unknown
Bus compatibility	8086; 8088; 80186; 80188; 80286
External data bus width	8
JESD-30 code	R-PDIP-T28
Number of external interrupt devices	8
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum slew rate	85 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	INTERRUPT CONTROLLER

	SAB8259A-2P	SAB8259A-P
Description	Interrupt Controller, 8086; 8088; 80186; 80188; 80286 Compatible, NMOS, PDIP28	Interrupt Controller, 8086; 8088; 80186; 80188; 80286 Compatible, NMOS, PDIP28
Maker	SIEMENS	SIEMENS
Reach Compliance Code	unknown	unknown
Bus compatibility	8086; 8088; 80186; 80188; 80286	8086; 8088; 80186; 80188; 80286
External data bus width	8	8
JESD-30 code	R-PDIP-T28	R-PDIP-T28
Number of external interrupt devices	8	8
Number of terminals	28	28
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum slew rate	85 mA	85 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	NMOS	NMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	INTERRUPT CONTROLLER	INTERRUPT CONTROLLER
