S-2840R01 datasheet, PDF - EEWORLD Datasheet

S-2840R01: DescriptionEEPROM, 2KX8, 200ns, Parallel, CMOS, PDIP24, PLASTIC, DIP-24; Categorystorage storage; File Size220KB，11 Pages; ManufacturerABLIC

Download Datasheet Parametric Compare View All

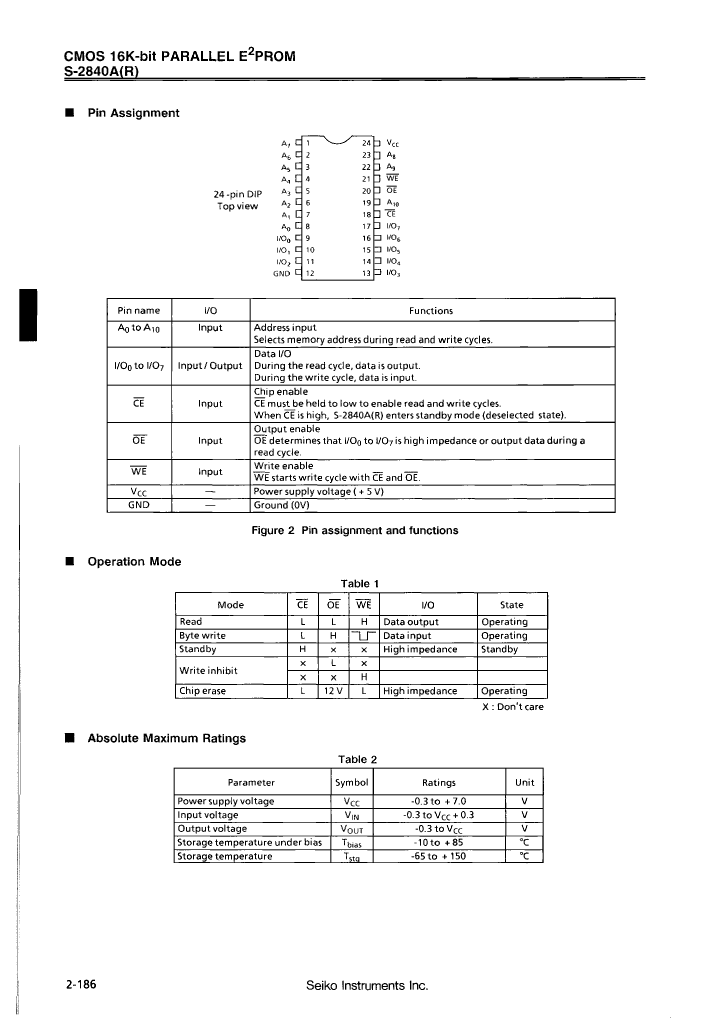

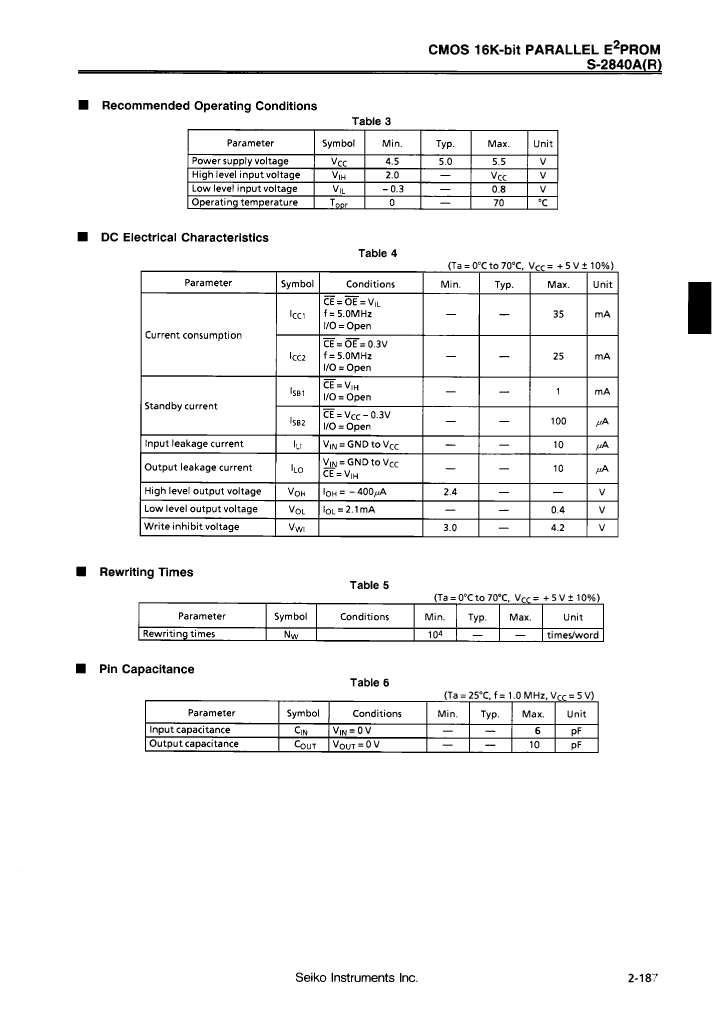

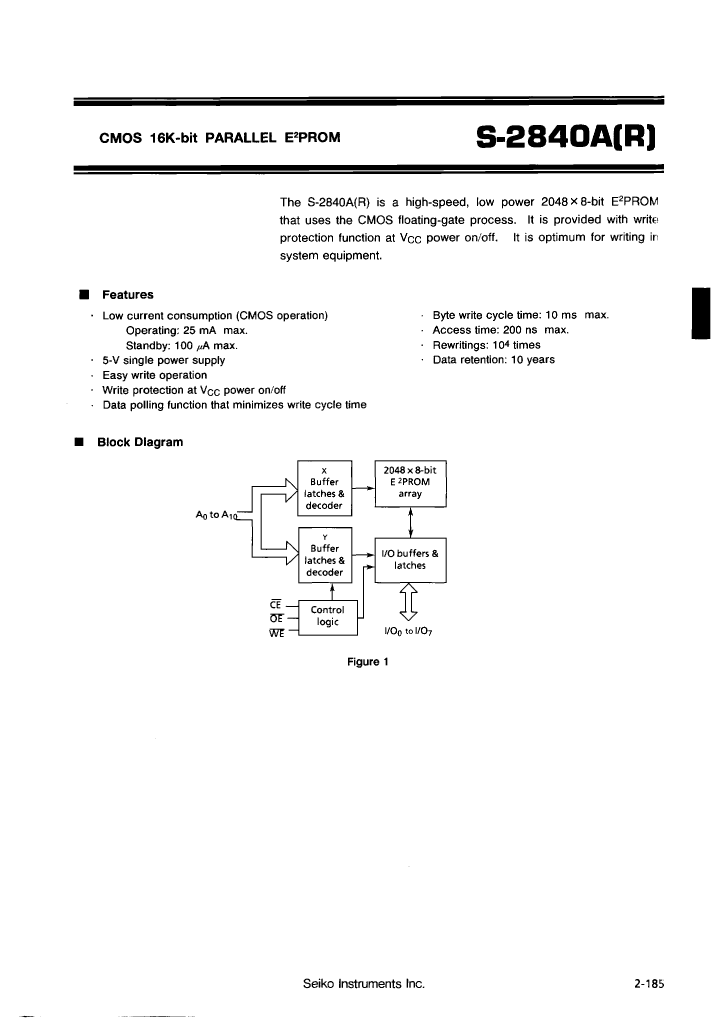

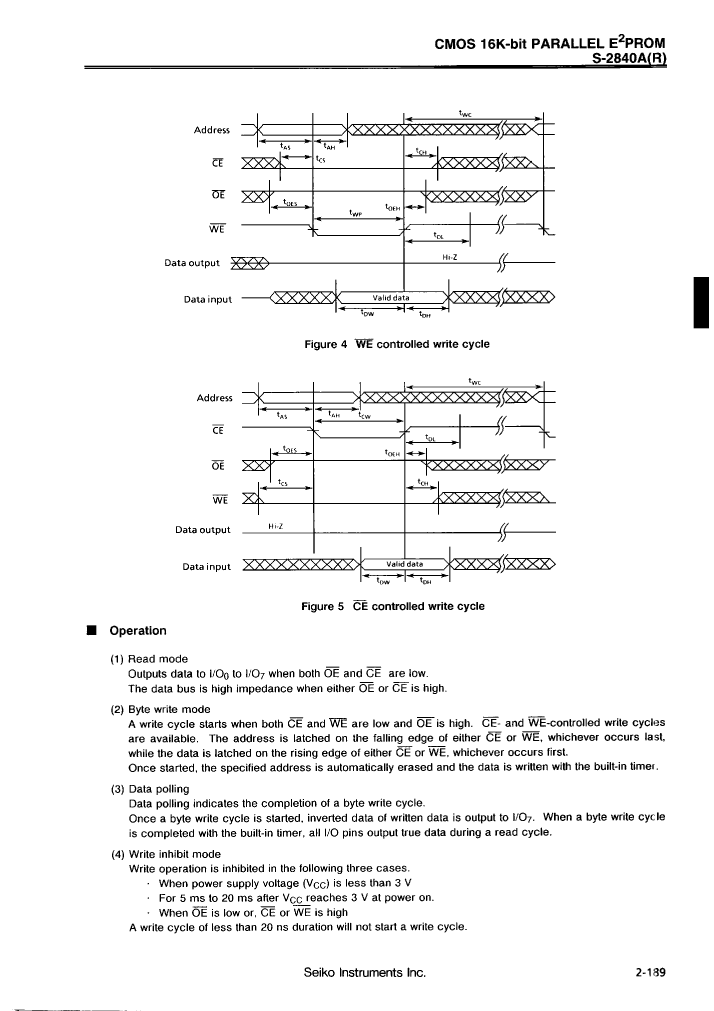

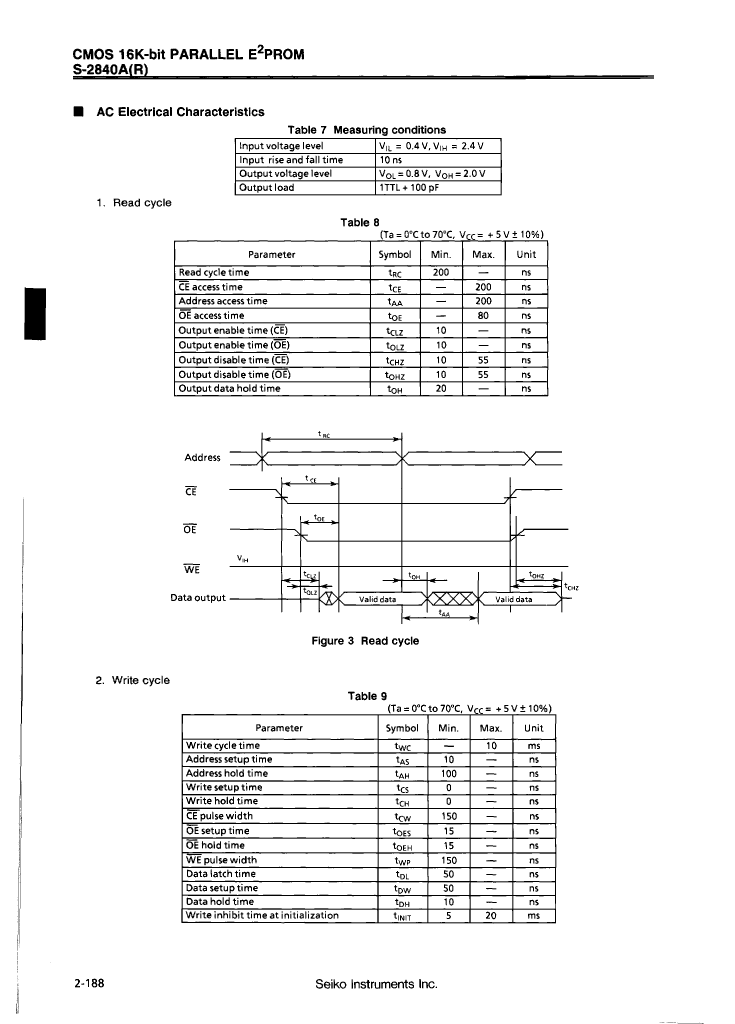

S-2840R01 Overview

EEPROM, 2KX8, 200ns, Parallel, CMOS, PDIP24, PLASTIC, DIP-24

Parameter Name	Attribute value
Maker	ABLIC
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum access time	200 ns
Other features	DATA RETENTION = 10 YEARS; 10000 ERASE/WRITE CYCLES
Data retention time - minimum	10
JESD-30 code	R-PDIP-T24
length	31 mm
memory density	16384 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	24
word count	2048 words
character code	2000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Programming voltage	5 V
Certification status	Not Qualified
Maximum seat height	5.3 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm

	S-2840R01	S-2840A01
Description	EEPROM, 2KX8, 200ns, Parallel, CMOS, PDIP24, PLASTIC, DIP-24	EEPROM, 2KX8, 200ns, Parallel, CMOS, PDIP24, PLASTIC, DIP-24
Maker	ABLIC	ABLIC
Parts packaging code	DIP	DIP
package instruction	DIP,	DIP,
Contacts	24	24
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Maximum access time	200 ns	200 ns
Other features	DATA RETENTION = 10 YEARS; 10000 ERASE/WRITE CYCLES	DATA RETENTION = 10 YEARS; 10000 ERASE/WRITE CYCLES
Data retention time - minimum	10	10
JESD-30 code	R-PDIP-T24	R-PDIP-T24
length	31 mm	31 mm
memory density	16384 bit	16384 bit
Memory IC Type	EEPROM	EEPROM
memory width	8	8
Number of functions	1	1
Number of terminals	24	24
word count	2048 words	2048 words
character code	2000	2000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	2KX8	2KX8
Output characteristics	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL
Programming voltage	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.3 mm	5.3 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	15.24 mm	15.24 mm
