LCD104-102A: DescriptionGeneral Purpose Inductor, 1000uH, 20%, 1 Element, SMD, CHIP, 5136; CategoryPassive components inductor; File Size60KB，1 Pages; ManufacturerDelta Electronics

Download Datasheet Parametric Compare View All

LCD104-102A Overview

General Purpose Inductor, 1000uH, 20%, 1 Element, SMD, CHIP, 5136

LCD104-102A Parametric

Parameter Name	Attribute value
Maker	Delta Electronics
package instruction	CHIP, 5136
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	3 Ω
Nominal inductance(L)	1000 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	LCD104A
Number of functions	1
Number of terminals	2
Maximum rated current	0.3 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%

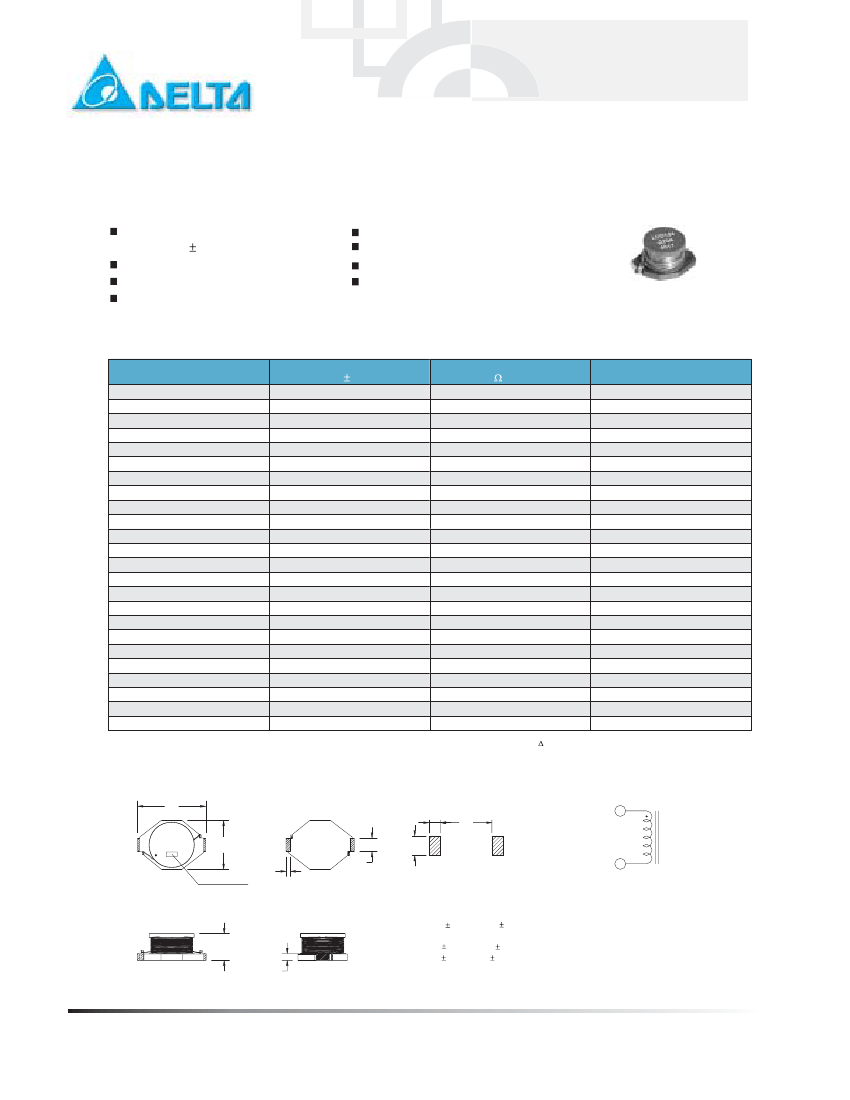

LCD104-102A Preview

Power Inductor

LCD104A TYPE

FEATURES

Tolerance of inductance

0.3~1000uH 20%

Low profile

Low cost

Suitable for the large current application

SMD TYPE

APPLICATIONS

Notebook computers

Battery powered equipment

DC/DC converters

Scanners, CD-ROMs & DVDs

AT 25

o

C: 100KHz, 0.1V

PART NO.

LCD104-0R3A

LCD104-0R6A

LCD104-1R0A

LCD104-1R5A

LCD104-2R2A

LCD104-3R3A

LCD104-4R7A

LCD104-6R8A

LCD104-100A

LCD104-150A

LCD104-220A

LCD104-250A

LCD104-330A

LCD104-470A

LCD104-680A

LCD104-820A

LCD104-101A

LCD104-151A

LCD104-181A

LCD104-221A

LCD104-331A

LCD104-471A

LCD104-681A

LCD104-102A

Inductance

(uH 20%)

0.3

0.68

1.0

1.5

2.2

3.3

4.7

6.8

10

15

22

25

33

47

68

82

100

150

180

220

330

470

680

1000

DCR

( ) MAX

0.003

0.004

0.009

0.010

0.012

0.015

0.018

0.027

0.038

0.046

0.085

0.072

0.10

0.14

0.20

0.25

0.28

0.40

0.55

0.61

1.02

1.27

2.02

3.00

Isat

(Amperes)

16

15

9.0

8.0

7.0

6.4

5.4

4.6

3.8

3.0

2.6

2.4

2.0

1.6

1.4

1.0

1.2

1.0

0.8

0.6

0.5

0.4

0.3

T=45

O

C, depending on whichever is lower.

Note: Isat indicates the value of current when the inductance is 10% lower than its initial value or temperature rising

MECHANICAL CONSTRUCTION

A

1.9

9.6

SCHEMATICS

1

LCD104

-***A

B

D

F

3.2

SUGGESTED PCB LAYOUT

BOTTOM VIEW

2

DATE CODE

C

E

UNIT : mm / inch

A = 13.10 / 0.516 (MAX)

B = 9.254 0.254 / 0.364 0.010

C = 5.50 / 0.216 (MAX)

D = 2.50 0.254 / 0.098 0.010

E = 1.20 0.30 / 0.047 0.012

F = 0.80 / 0.032 (REF)

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

252, SHANG YING ROAD, KUEI SAN, TAOYUAN HSIEN 333, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

http://www.deltaww.com/products/networking/power.htm
