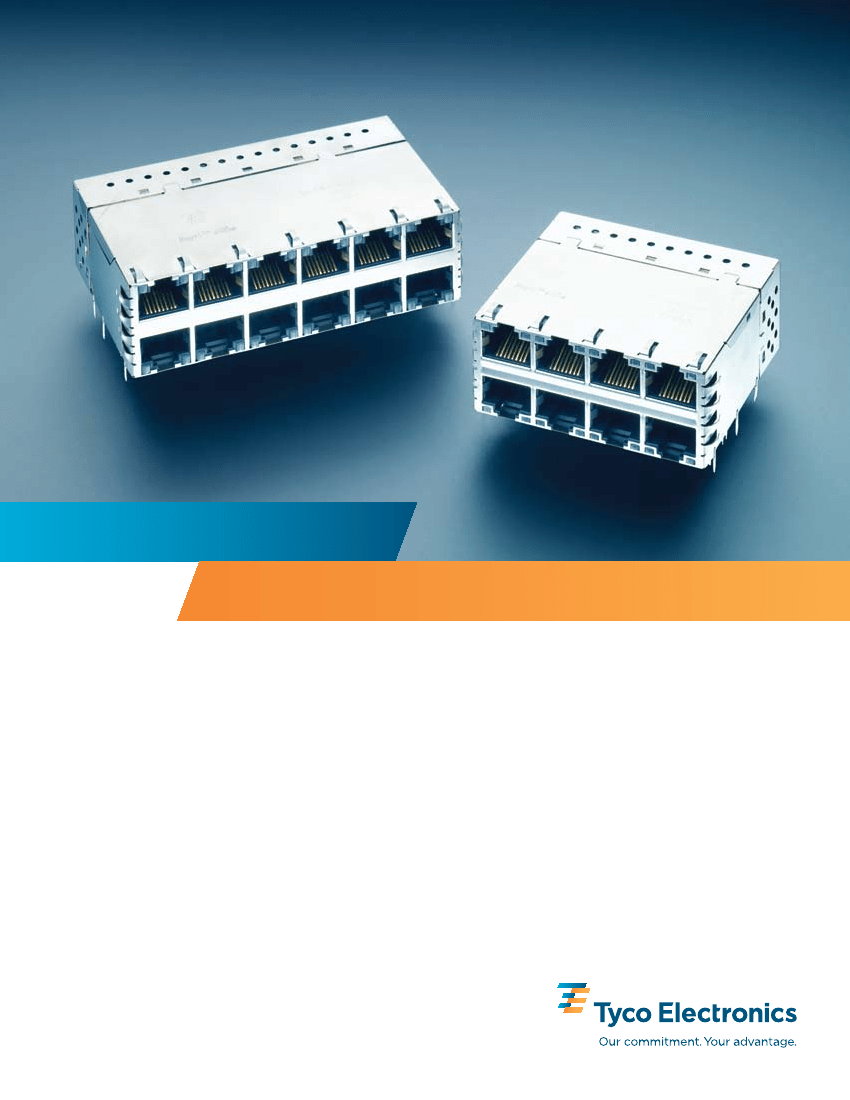

Mag45 Power Over Ethernet Connector Plus PSE-ICM
Tyco Electronics Mag45 PoE Plus connectors provide enhanced power over Ethernet through
standard CAT5 Ethernet cabling. The enhanced power of the Mag45 PoE Plus connector allows
products to be powered over existing Cat5 Ethernet infrastructure. The complete product line
offers fully integrated solutions, PoE Plus enabled solutions, and standard 10/100/1000 solutions
in compatible footprints.
Mag45 Power Over
Ethernet Connector
Plus PSE-ICM
APPLICATIONS
•
Switches, routers, hubs
•
Wireless access points
•
Network cameras
•
Video/IP telephones
•
Point of sale terminals
•
Thin client computers
ELECTRICAL
•
Magnetic product performs for 10/100/1000BASE-T applications
•
Insertion Loss -1.29 dB maximum at 100 MHz
•
Return Loss -10 dB minimum at 100 MHz
•
Crosstalk -20.5 dB minimum at 100MHz
•
Dielectric Withstand Voltage 2250 VDC
APPLICATION AND SPECIFICATION
•
IEE 802.3 at
•
IEE 802.3 af
•
PoETec compliant available
KEY FEATURES
•
UL E141081
•
IEC 60950-1
•
FCC Class B compliant
• Current carried supported
to current 802.3at
specification. (600mA)
• 80V tolerant, surge
protected system with
single voltage feeding.
(51-56V)
• 0.25
Ω
total channel
resistance
• EMI optimized design
• Compact design
PRODUCT OFFERING
Base PN
1840251
1840269
1840329
1840369
1840926
1840257
1840333
1840353
1840267
Magnetics
10/100/1000
10/100/1000
10/100/1000
10/100/1000
10/100/1000
10/100/1000
10/100/1000
10/100/1000
10/100/1000
Description
2X6 Mag45 GIG INTGRTD PoE+ S9HG48 W/ LED, LTC Chip
2X4 Mag45 GIG INTGRTD PoE+ S9HG48 W/ LED, LTC Chip
2X6 Mag45 GIG PoE+ Enabled S9HG02 W/O LED 840mA
2X6 Mag45 S9HG56 GIG PoE+ Enabled
2X8 Mag45 GIG PoE+ Enabled S9HG43 Circuit W/O LED
2X6 Mag45 GIG S8G16 AUTO-WELD MOD W/ LED Non PoE
2X6 Mag45 GIG INTGRTD PoE+ S9HG48 W/ LED, MS Chip
2X6 Mag45 GIG INTGRTD PoE+ S9HG48 W/ LED, BCM Chip,
DC Disconnect
2X6 Mag45 GIG PoE+ Enabled S9HG49 Circuit
Footprint
Through Hole
Through Hole
Through Hole
Through Hole
Through Hole
Through Hole
Through Hole
Through Hole
Through Hole
Ports
2x6
2x4
2x6
2x6
2x8
2x6
2x6
2x6
2x6

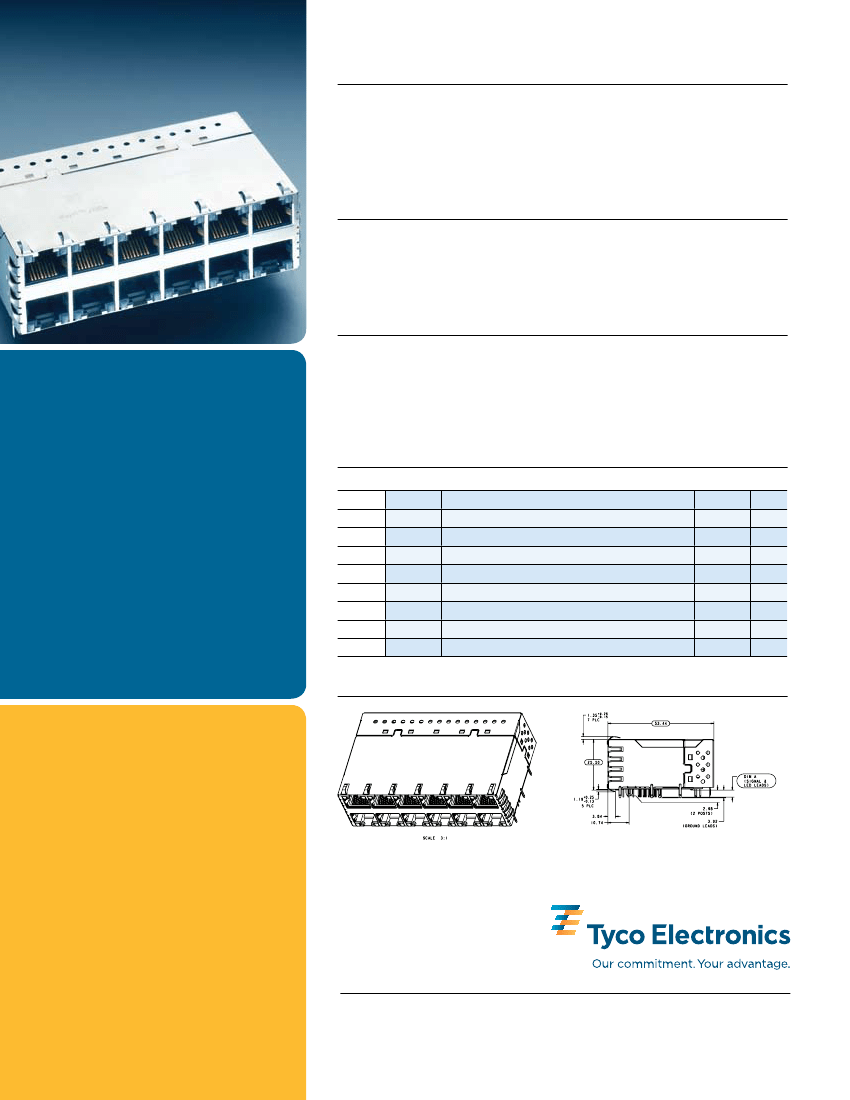

PRODUCT DIMENSIONS
Tyco Electronics
Technical Support Center
USA:
Canada:
Central America
& Mexico
South America:
Germany:
UK:
France:
Netherlands:
China:
+1 (800) 522-6752
+1 (905) 470-4425
+52 (0) 55-1106-0814
+55 (0) 11-2103-6000
+49 (0) 6251-133-1999
+44 (0) 800-267666
+33 (0) 1-3420-8686
+31 (0) 73-6246-999
+86 (0) 400-820-6015
Tyco Electronics Corporation
Harrisburg, PA
www.tycoelectronics.com
© 2010 Tyco Electronics Corporation. All Rights Reserved.
3-1773457-7 CIS 3M FP 04/2010
Mag45, TE (logo) and Tyco Electronics are trademarks of the
Tyco Electronics group of companies and its licensors.
Other products, logos, and Company names mentioned
herein may be trademarks of their respective owners.
