SG324J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> SG324J

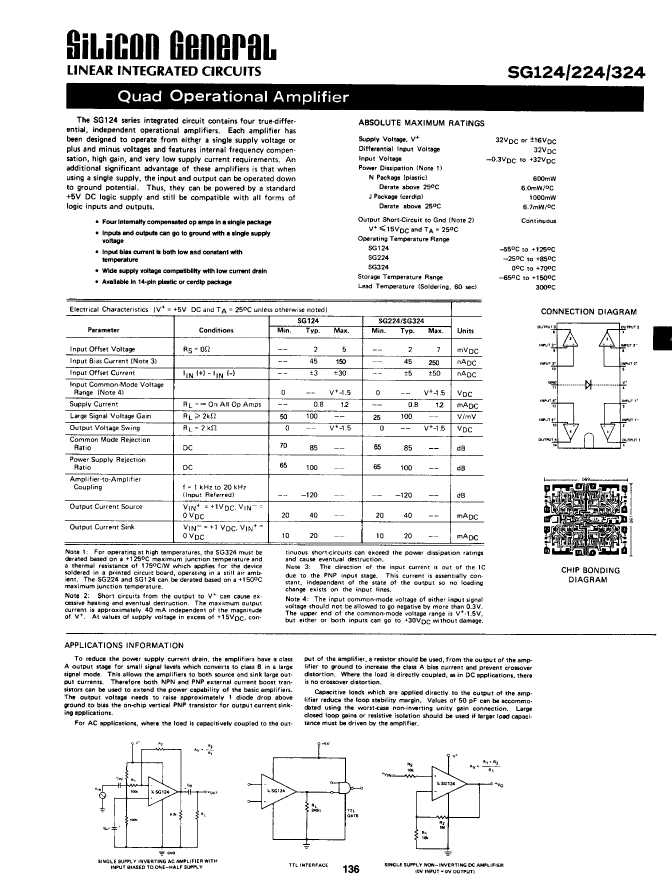

SG324J: DescriptionOperational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, CDIP14,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size89KB，1 Pages; ManufacturerLinfinity Microelectronics

Download Datasheet Parametric Compare View All

SG324J Overview

Operational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, CDIP14,

SG324J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linfinity Microelectronics
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
frequency compensation	YES
Maximum input offset voltage	7000 µV
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
low-dissonance	NO
micropower	YES
Number of functions	4
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

SG324J Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

SG324J Related Products

	SG324J	SG124J	SG324N	SG224J	SG224N	SG124J/883C
Description	Operational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, CDIP14,	Operational Amplifier, 4 Func, 5000uV Offset-Max, BIPolar, CDIP14,	Operational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, PDIP14,	Operational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, CDIP14,	Operational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, PDIP14,	Operational Amplifier, 4 Func, 5000uV Offset-Max, BIPolar, CDIP14,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
frequency compensation	YES	YES	YES	YES	YES	YES
Maximum input offset voltage	7000 µV	5000 µV	7000 µV	7000 µV	7000 µV	5000 µV
JESD-30 code	R-XDIP-T14	R-XDIP-T14	R-PDIP-T14	R-XDIP-T14	R-PDIP-T14	R-XDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0
low-dissonance	NO	NO	NO	NO	NO	NO
micropower	YES	YES	YES	YES	YES	YES
Number of functions	4	4	4	4	4	4
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	70 °C	125 °C	70 °C	85 °C	85 °C	125 °C
Minimum operating temperature	-	-55 °C	-	-25 °C	-25 °C	-55 °C
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	OTHER	OTHER	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
