F1T4GTR

Description
Rectifier Diode, 1 Element, 1A, 400V V(RRM), Silicon, DO-41,
CategoryDiscrete semiconductor    diode
File Size286KB,4 Pages
ManufacturerFagor Electrónica
Download Datasheet Parametric Compare View All

F1T4GTR Overview

Rectifier Diode, 1 Element, 1A, 400V V(RRM), Silicon, DO-41,

F1T4GTR Parametric

Parameter NameAttribute value
MakerFagor Electrónica
package instructionO-PALF-W2
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresFREE WHEELING DIODE, LOW POWER LOSS
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JEDEC-95 codeDO-41
JESD-30 codeO-PALF-W2
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Maximum output current1 A
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formLONG FORM
GuidelineAEC-Q101
Maximum repetitive peak reverse voltage400 V
Maximum reverse recovery time0.15 µs
surface mountNO
Terminal formWIRE
Terminal locationAXIAL

F1T4GTR Preview

F1T3G ........ F1T7G
1.0 Amp. Glass Passivated Fast Recovery Rectifier
Voltage
200V to 1000V
Current
1.0 A
R
DO-41 Mini
FEATURES
• Low profile package
• Low power losses, high efficiency
• High surge current capability
• Cavity-free glass-passivated junction
• Low forward voltage drop
• Solder dip 260ºC, 10s
• AEC-Q101 qualified
• Fast switching for high efficiency
• Component in accordance to RoHS 2011/65/EU
and WEEE 2002/96/EC
• Meets MSL level 1, per J-STD-020, LF maximum
peak of 260º C
MECHANICAL DATA
• Case
:
DO-41 Mini. Epoxy meets UL 94V-0
flammability rating.
• Polarity
:
Color band denotes cathode end.
• Terminals
:
Matte tin plated leads, solderable per
MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102.
Consumer grade, meets JESD 201 class 1A whisker test
TYPICAL APPLICATIONS
For use in fast switching rectification of power supply,
inverters, converters, and freewheeling diodes for consumer,
and telecommunication.
Maximun Ratings and Electrical Characteristics at 25 °C
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
T
rr
C
j
T
j
T
stg
Maximum Recurrent Peak Reverse Voltage (V)
Maximum RMS Voltage (V)
Maximum DC Blocking Voltage (V)
Maximum Average Forward Rectified Current
9.5mm Lead Length @ T
A
= 55 °C
Peak Forward Surge Current, 8.3 ms Single
Half Sine-wave Superimposed on Rated Load
(JEDEC Method)
F1T
3G
200
140
200
F1T
4G
400
280
400
F1T
5G
600
420
600
1.0 A
30 A
F1T
6G
800
560
800
F1T
7G
1000
700
1000
Maximum Reverse Recovery Time from
I
F
= 0.5A; I
R
= 1A; I
RR
= 0.25A
Typical Junction Capacitance at 1 MHz
and reverse voltage of 4V
DC
Operating Temperature Range
Storage Temperature Range
150 ns
250 ns
15 pF
-65 to +150 °C
-65 to +150 °C
500 ns
Electrical Characteristics at Tamb = 25 °C
V
F
I
R
R
th (j-a)
Maximum Instantaneous Forward Voltage @ = 1.0 A
Maximum DC Reverse Current @ Ta = 25 °C
at Rated DC Blocking Voltage @ Ta =125°C
Typical Thermal Resistance
(See note)
1.3 V
5 µA
150 µA
90 °C/W
NOTE: Mounted on Cu-Pad size 5mm x 5mm on P.C.B.
www.fagorelectronica.com
Document Name: f1tg
Revision: 1
Version: Dec-16
Page Number: 1/4
F1T3G ........ F1T7G
1.0 Amp. Glass Passivated Fast Recovery Rectifier
Ordering information
PREFERRED P/N
F1T4G AMP
F1T4G TR
PACKAGE CODE
AMP
TR
DELIVERY MODE
AMMO BOX
13" diameter tape and reel
BASE QUANTITY
3,000
5,000
UNIT WEIGHT (g)
0.20
0.20
Package Outline Dimensions: (mm) DO-41 Mini
2.7
2.0
DIA.
25.4 MIN
3.3
3.0
0.64
0.53
DIA.
25.4 MIN
www.fagorelectronica.com
Document Name: f1tg
Revision: 1
Version: Dec-16
Page Number: 2/4
F1T3G ........ F1T7G
1.0 Amp. Glass Passivated Fast Recovery Rectifier
Ratings and Characteristics
(Ta 25 ºC unless otherwise noted)
I
F

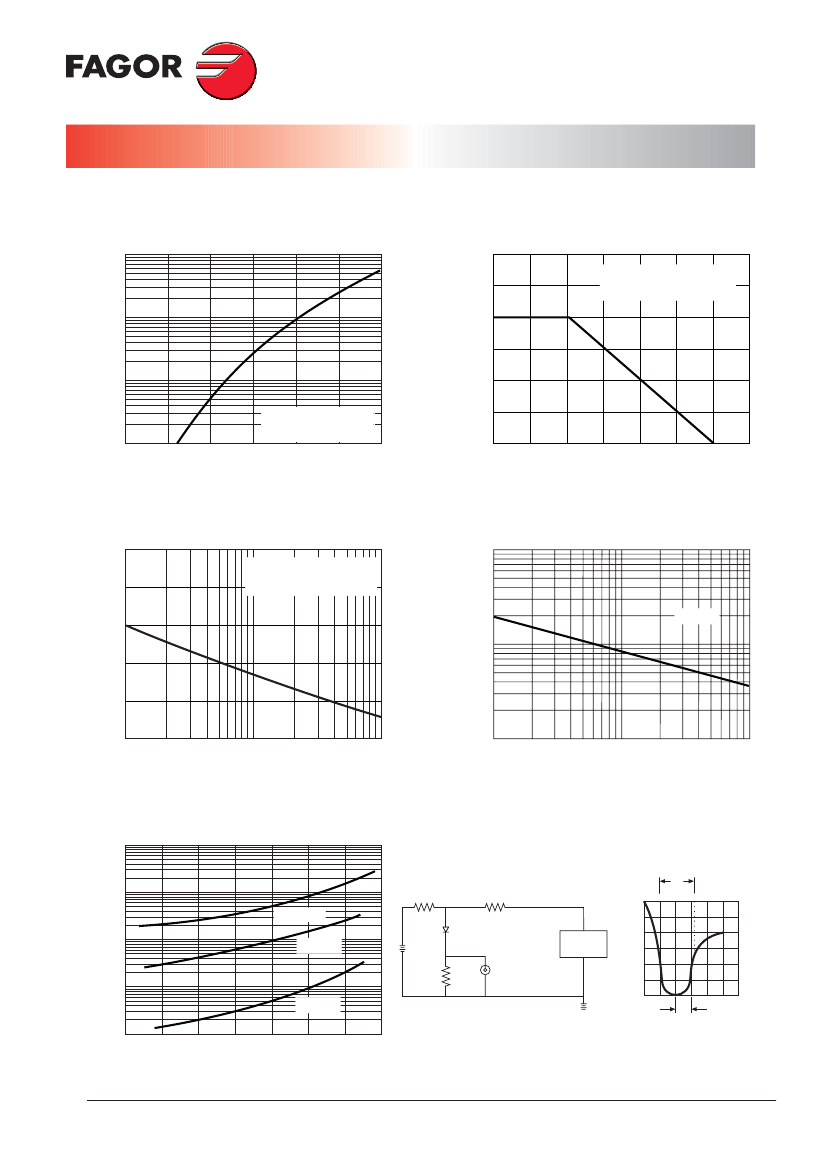

, instantaneous forward current (A)
TYPICAL FORWARD CHARACTERISTICS
MAXIMUM FORWARD CURRENT DERATING
CURVE
I
F(AV)
, average forward current (A)
10
1.50
1.25
1.00
0.75
0.50
0.25
0
0
25
50
75
100
125
150
175
Single Phase Half Wave 60Hz
Resistive or inductive load
9.5mm Lead Length
1
0.1
T
j
= 25 °C
PULSE WIDTH = 300 µs
1% DUTY CYCLE
0.01
0.4
0.6
V
F
, forward voltage (V)
0.8
1.0
1.2
1.4
1.6
Tamb, ambient temperature (°C)
I
FSM
, peak forward surge current (A)
MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
T
j
= 25 °C
8.3ms Single Half Sine Wawe
JEDEC Method
TYPICAL JUNCTION CAPACITANCE
40
30
20
10
0
Cj, junction capacitance (pF)
50
100
T
j
= 25 °C
10
1
2
4
Number of cycles at 60 Hz
6 8 10
20
40 60 100
1
1
V
R
, reverse voltage (V)
10
100
TYPICAL REVERSE CHARACTERISTICS
PER LEG
1000
I
R
, Instantaneous reverse
current (µA)
REVERSE RECOVERY TIME CHARACTERISTIC AND TEST CIRCUIT DIAGRAM
50W
NON INDUCTIVE
10W
NON INDUCTIVE
+0.5A
trr
100
T
j
= 125 °C
10
T
j
= 75 °C
(+)
50vDC
(APPROX)
(-)
DUT
(-)
PULSE
GENERATOR
(NOTE 2)
(+)
0
-0.25A
1.0
T
j
= 25 °C
1W
NON
INDUCTIVE
OSCILLOSCOPE
(NOTE 1)
-1.0A
NOTES: 1. Rise Time = 7ns max. Input Impedance =
1 megohm 22 pf
2. Rise Time = 10 ns max. Sourse Impedance =
50 ohms
1cm
SET TIME BASE FOR
5/ 10ns/ cm
0.1
0
20
40
60
80
100
120
140
Percent of rated peak reverse voltage (%)
www.fagorelectronica.com
Document Name: f1tg
Revision: 1
Version: Dec-16
Page Number: 3/4
F1T3G ........ F1T7G
1.0 Amp. Glass Passivated Fast Recovery Rectifier
Revision History
Date
10-May-2008
06-Dec-2016
Revision
0
1
Original Data Sheet
Format update
Description of Changes
Disclaimer
All product, product specifications and data are subject to change without notice to improve reliability,
function or design or otherwise.
Fagor Electrónica, S.Coop., its affiliates, agents, and employees, and all persons acting on its or their
behalf (collectively, "Fagor"), disclaim any and all liability for any errors, inaccuracies or incompleteness contained
in any datasheet or in any other disclosure relating to any product.
Fagor makes no warranty, representation or guarantee regarding the suitability of the products for any particular
purpose or the continuing production of any product. To the maximum extent permitted by applicable law,
Fagor disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all
liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied
warranties, including warranties of fitness for particular purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Fagor's knowledge
of typical requirements that are often placed on Fagor products in generic applications. Such statements are not
binding statements about the suitability of products for a particular application. It is the customer's responsibility
to validate that a particular product with the properties described in the product specification is suitable for use in a
particular application. Parameters provided in datasheets and/or specifications may vary in different applications
and performance may vary over time. All operating parameters, including typical parameters, must be validated
for each customer application by the customer's technical experts. Product specifications do not expand or
otherwise modify Fagor's terms and conditions of purchase, including but nos limited to the warranty expressed
therein.
Except as expressly indicated in writing. Fagor products are not designed for use in medical, life-saving, or
life-sustaining applications or for any other application in which the failure of the Fagor product could result in
personal injury or death. Customers using or selling Fagor products not expressly indicated for use in such
applications do so at their own risk and agree to fully indemnify and hold Fagor and its distributors harmless from
and against any and all claims, liabilities, expenses and damages arising or resulting in connection with such use
or sale, including attomeys fees, even if such claim alleges that Fagor or its distributor was negligent regarding
the design or manufacture of the part. Please contact authorized Fagor personnel to obtain written terms and
conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this
document or by any conduct of Fagor, Product names and markings noted herein may be trademarks of their
respective owners.
www.fagorelectronica.com
Document Name: f1tg
Revision: 1
Version: Dec-16
Page Number: 4/4

F1T4GTR Related Products

F1T4GTR F1T4GAMP F1T3GAMP F1T5GTR F1T5GAMP F1T6GAMP F1T6GTR F1T7GTR
Description Rectifier Diode, 1 Element, 1A, 400V V(RRM), Silicon, DO-41, Rectifier Diode, 1 Element, 1A, 400V V(RRM), Silicon, DO-41, Rectifier Diode, 1 Element, 1A, 200V V(RRM), Silicon, DO-41, Rectifier Diode, 1 Element, 1A, 600V V(RRM), Silicon, DO-41, Rectifier Diode, 1 Element, 1A, 600V V(RRM), Silicon, DO-41, Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-41, Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-41, Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41,
Maker Fagor Electrónica Fagor Electrónica Fagor Electrónica Fagor Electrónica Fagor Electrónica Fagor Electrónica Fagor Electrónica Fagor Electrónica
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features FREE WHEELING DIODE, LOW POWER LOSS FREE WHEELING DIODE, LOW POWER LOSS FREE WHEELING DIODE, LOW POWER LOSS FREE WHEELING DIODE, LOW POWER LOSS FREE WHEELING DIODE, LOW POWER LOSS FREE WHEELING DIODE, LOW POWER LOSS FREE WHEELING DIODE, LOW POWER LOSS FREE WHEELING DIODE, LOW POWER LOSS
Shell connection ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Diode component materials SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
JEDEC-95 code DO-41 DO-41 DO-41 DO-41 DO-41 DO-41 DO-41 DO-41
JESD-30 code O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2
Number of components 1 1 1 1 1 1 1 1
Number of terminals 2 2 2 2 2 2 2 2
Maximum operating temperature 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C
Minimum operating temperature -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C
Maximum output current 1 A 1 A 1 A 1 A 1 A 1 A 1 A 1 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape ROUND ROUND ROUND ROUND ROUND ROUND ROUND ROUND
Package form LONG FORM LONG FORM LONG FORM LONG FORM LONG FORM LONG FORM LONG FORM LONG FORM
Guideline AEC-Q101 AEC-Q101 AEC-Q101 AEC-Q101 AEC-Q101 AEC-Q101 AEC-Q101 AEC-Q101
Maximum repetitive peak reverse voltage 400 V 400 V 200 V 600 V 600 V 800 V 800 V 1000 V
Maximum reverse recovery time 0.15 µs 0.15 µs 0.15 µs 0.25 µs 0.25 µs 0.5 µs 0.5 µs 0.5 µs
surface mount NO NO NO NO NO NO NO NO
Terminal form WIRE WIRE WIRE WIRE WIRE WIRE WIRE WIRE
Terminal location AXIAL AXIAL AXIAL AXIAL AXIAL AXIAL AXIAL AXIAL
This compresses the coordinates of the X curve
When drawing graphics, sometimes I need to compress the X axis but keep the Y axis unchanged. I draw the graphics on the device first and then copy it to the drawing control. Can an expert tell me how...
147802802 Embedded System
Do engineers in coastal areas have a hard time?
I heard that engineers in coastal areas stay up late every day, work overtime, etc. I would like to ask, I know that being an engineer consumes a lot of brain cells, but do they suffer so much physica...
海绵宝宝22 Recruitment
A brief discussion on the "disadvantages and advantages" of PCB copper plating
[align=left][size=10.5pt]Copper plating is an important part of PCB design. Both domestic Qingyuefeng PCB design software and some foreign Protel and PowerPCB provide intelligent copper plating functi...
tsingyue PCB Design
How to solve the problem that the dll driver is unloaded immediately after loading in wince
wince startup information: Loaded symbols for 'E:\WINCE420\PUBLIC\DIRVERTEST\RELDIR\EMULATOR_X86DEBUG\SCANDLL.DLL' Unloaded symbols for 'E:\WINCE420\PUBLIC\DIRVERTEST\RELDIR\EMULATOR_X86DEBUG\SCANDLL....
zxd10000 Embedded System
winavr C library function reference manual with bookmarks
Chinese version of winavr gcc C library function reference manual, easy to query...
xujibicool Microchip MCU
ISA bus programming problem
The topic I want to do is to control a PPGA board on the PC104 bus, read and write registers to control FPGA, I don't know how to write it, is there any expert who can help me? Thank you...
robertlce Embedded System

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 176  2466  56  1855  1354  4  50  2  38  28
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
