256Kx16 Bit High Speed Static RAM(3.3V Operating).
Operated at Commercial and Industrial Temperature Ranges.
CMOS SRAM
Revision History
Rev No.
Rev. 0.0
Rev. 1.0
History
Initial release with Preliminary.
1.1 Removed Low power Version.
1.2 Removed Data Retention Characteristics.
1.3 Changed I
SB1
to 20mA
Relax D.C parameters.
Item
I
CC
12ns
15ns
20ns
Previous
180mA
175mA
170mA
Current
200mA
195mA
190mA
Draft Data
Feb. 12. 1999
Mar. 29. 1999
Remark
Preliminary
Preliminary
Rev. 2.0
Aug. 19. 1999
Preliminary
Rev. 3.0
3.1 Delete Preliminary
3.2 Update D.C parameters and 10ns part.
I
CC
-
200mA
195mA
190mA
Previous
I
sb
70mA
I
sb1
20mA
I
CC
160mA
150mA
140mA
130mA
Current
I
sb
60mA
I
sb1
10mA
Mar. 27. 2000
Final
10ns
12ns
15ns
20ns
Rev. 4.0
Add Low Power-Ver.
Apr. 24. 2000
Final
The attached data sheets are prepared and approved by SAMSUNG Electronics. SAMSUNG Electronics CO., LTD. reserve the right to change the
specifications. SAMSUNG Electronics will evaluate and reply to your requests and questions on the parameters of this device. If you have any ques-
tions, please contact the SAMSUNG branch office near your office, call or contact Headquarters.
-1-
Rev 4.0
April 2000
PRELIMPreliminaryPPPPPPPPPINARY
KM616V4002C/CL, KM616V4002CI/CLI
256K x 16 Bit High-Speed CMOS Static RAM
FEATURES
• Fast Access Time 10,12,15,20ns(Max.)
• Low Power Dissipation
Standby (TTL)
: 60mA(Max.)
(CMOS) : 10mA(Max.)
1.2mA(Max.) L-Ver. only
Operating KM616V4002C/CL-10 : 160mA(Max.)
KM616V4002C/CL-12 : 150mA(Max.)
KM616V4002C/CL-15 : 140mA(Max.)
KM616V4002C/CL-20 : 130mA(Max.)
• Single 3.3
±0.3V
Power Supply
• TTL Compatible Inputs and Outputs
• Fully Static Operation
- No Clock or Refresh required
• Three State Outputs
• 2V Minimum Data Retention ; L-Ver. only
• Center Power/Ground Pin Configuration
• Data Byte Control : LB : I/O1~ I/O8, UB : I/O9~ I/O16
• Standard Pin Configuration
KM616V4002CJ : 44-SOJ-400
KM616V4002CT : 44-TSOP2-400BF
KM616V4002CF : 48-Fine pitch BGA with 0.75 Ball pitch
CMOS SRAM
GENERAL DESCRIPTION
The KM616V4002C is a 4,194,304-bit high-speed Static Ran-
dom Access Memory organized as 262,144 words by 16 bits.
The KM616V4002C uses 16 common input and output lines
and has an output enable pin which operates faster than
address access time at read cycle. Also it allows that lower and
upper byte access by data byte control(UB, LB). The device is
fabricated using SAMSUNG′s advanced CMOS process and
designed for high-speed circuit technology. It is particularly well
suited for use in high-density high-speed system applications.
The KM616V4002C is packaged in a 400mil 44-pin plastic SOJ
or TSOP(II) forward or 48 Fine pitch BGA.
FUNCTIONAL BLOCK DIAGRAM
Clk Gen.
A
0
A
1
A
2
A
3
A
4
A
5
A
6
A
7
A
8
A
9
I/O
1
~I/O
8
I/O
9
~I/O
16
ORDERING INFORMATION
KM616V4002C/CL-10/12/15/20
Commercial Temp.
Industrial Temp.
KM616V4002CI/CLI-10/12/15/20
Pre-Charge Circuit
Row Select
Memory Array
1024 Rows
256 x 16 Columns
Data
Cont.
Data
Cont.
Gen.
CLK
I/O Circuit &
Column Select
A
10
A
11
A
12
A
13
A
14
A
15
A
16
A
17
WE
OE
UB
LB
CS
-2-
Rev 4.0
April 2000
PRELIMPreliminaryPPPPPPPPPINARY
KM616V4002C/CL, KM616V4002CI/CLI

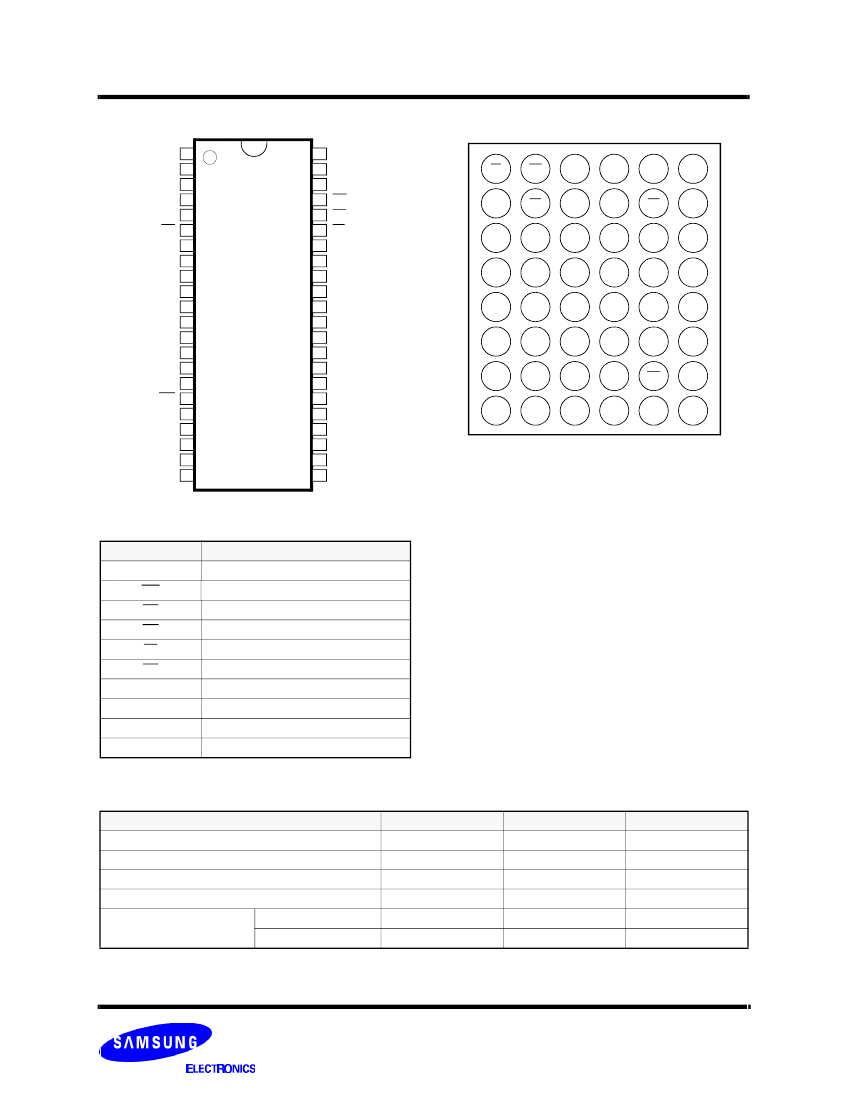

PIN CONFIGURATION
(Top View)
1
2
3
4
5
6
CMOS SRAM
A
0
A
1
A
2
A
3
A
4
CS
I/O
1
I/O
2
I/O
3
1
2
3
4
5
6
7
8
9
44 A
17
43 A
16
42 A
15
41 OE
40 UB
39 LB
38 I/O
16
37 I/O
15
36 I/O
14
D
Vss
I/O4
A17
A7
I/O12
Vcc
C
I/O2
I/O3
A5
A6
I/O11
I/O10
B
I/O1
UB
A3
A4
CS
I/O9
A
LB
OE
A0
A1
A2
N.C
I/O
4
10
Vcc 11
Vss 12
I/O
5
13
I/O
6
14
I/O
7
15
I/O
8
16
WE 17
A
5
18
A
6
19
A
7
20
A
8
21
A
9
22
SOJ/
TSOP2
35 I/O
13
34 Vss
33 Vcc
32 I/O
12
31 I/O
11
30 I/O
10
29 I/O
9
28 N.C
27 A
14
26 A
13
25 A
12
24 A
11
23 A
10
H
N.C
A8
A9
A10
A11
N.C
G
I/O8
N.C
A12
A13
WE
I/O16
F
I/O7
I/O6
A14
A15
I/O14
I/O15
E
Vcc
I/O5
N.C
A16
I/O13
Vss
48-CSP
PIN FUNCTION
Pin Name
A
0
- A
17
WE
CS
OE
LB
UB
I/O
1
~ I/O
16
V
CC
V
SS
N.C
Pin Function
Address Inputs
Write Enable
Chip Select
Output Enable
Lower-byte Control(I/O
1
~I/O
8
)
Upper-byte Control(I/O
9
~I/O
16
)
Data Inputs/Outputs
Power(+3.3V)
Ground
No Connection
ABSOLUTE MAXIMUM RATINGS*
Parameter
Voltage on Any Pin Relative to V
SS
Voltage on V
CC
Supply Relative to V
SS
Power Dissipation
Storage Temperature
Operating Temperature
Commercial
Industrial
Symbol
V
IN
, V
OUT
V
CC
P
D
T
STG
T
A
T
A
Rating
-0.5 to 4.6
-0.5 to 4.6
1.0
-65 to 150
0 to 70
-40 to 85
Unit
V
V
W
°C
°C
°C
*
Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and
functional operation of the device at these or any other conditions above those indicated in the operating sections of this specification is not implied.
Exposure to absolute maximum rating conditions for extended periods may affect reliability.
-3-
Rev 4.0
April 2000
PRELIMPreliminaryPPPPPPPPPINARY
KM616V4002C/CL, KM616V4002CI/CLI
RECOMMENDED DC OPERATING CONDITIONS*
(T
A
=0 to 70°C)
Parameter
Supply Voltage
Ground
Input High Voltage
Input Low Voltage
Symbol
V
CC
V
SS
V
IH
V
IL
Min
3.0
0
2.0
-0.3**
Typ
3.3
0
-
-
Max
3.6
0
V
CC
+0.3***
0.8
Unit
V
V
V
V
CMOS SRAM
* The above parameters are also guaranteed at industrial temperature range.
** V
IL
(Min) = -2.0V a.c(Pulse Width
≤
8ns) for I
≤
20mA
.
*** V
IH
(Max) = V
CC
+ 2.0V a.c (Pulse Width
≤
8ns) for I
≤
20mA.
DC AND OPERATING CHARACTERISTICS*
(T
A
=0 to 70°C, Vcc= 3.3±0.3V, unless otherwise specified)
Parameter
Input Leakage Current
Output Leakage Current
Operating Current
Symbol
I
LI
I
LO
I
CC
V
IN
=V
SS
to V
CC
CS=V
IH
or OE=V
IH
or WE=V
IL
V
OUT
= V
SS
to V
CC
Min. Cycle, 100% Duty
CS=V
IL,
V
IN
=V
IH
or V
IL,
I
OUT
=0mA
Com.
10ns
12ns
15ns
20ns
Ind.
10ns
12ns
15ns
20ns
Standby Current
I
SB
I
SB1
Min. Cycle, CS=V
IH
f=0MHz, CS≥V
CC
-0.2V,
V
IN
≥V
CC
-0.2V or V
IN
≤0.2V
I
OL
=8mA
I
OH
=-4mA
Normal
L-ver
Test Conditions
Min
-2
-2
-
-
-
-
-
-
-
-
-
-
-
-
2.4
Max
2
2
160
150
140
130
175
165
155
145
60
10
1.2
0.4
-
V
V
mA
Unit
µA
µA
mA
Output Low Voltage Level
Output High Voltage Level
V
OL
V
OH
* The above parameters are also guaranteed at industrial temperature range.
CAPACITANCE*
(T
A
=25°C, f=1.0MHz)
Item
Input/Output Capacitance
Input Capacitance
* Capacitance is sampled and not 100% tested.
Symbol
C
I/O
C
IN
Test Conditions
V
I/O
=0V
V
IN
=0V
MIN
-
-
Max
8
7
Unit
pF
pF
-4-
Rev 4.0
April 2000
PRELIMPreliminaryPPPPPPPPPINARY
KM616V4002C/CL, KM616V4002CI/CLI
AC CHARACTERISTICS
(T
A
=0 to 70°C, V
CC
=3.3±0.3V, unless otherwise noted.)
TEST CONDITIONS*
Parameter
Input Pulse Levels
Input Rise and Fall Times
Input and Output timing Reference Levels
Output Loads
* The above test conditions are also applied at industrial temperature range.
CMOS SRAM
Value
0V to 3V
3ns
1.5V
See below
Output Loads(A)
Output Loads(B)
for t
HZ
, t
LZ
, t
WHZ
, t
OW
, t
OLZ
& t
OHZ
+3.3V
R
L
= 50Ω
D
OUT
V
L
= 1.5V
Z
O
= 50Ω
30pF*
319Ω
D
OUT
353Ω
5pF*
* Capacitive Load consists of all components of the
test environment.
* Including Scope and Jig Capacitance
READ CYCLE*
KM616V4002C-10
KM616V4002C-12
KM616V4002C-15
KM616V4002C-20
Parameter
Read Cycle Time
Address Access Time
Chip Select to Output
Output Enable to Valid Output
UB, LB Access Time
Chip Enable to Low-Z Output
Output Enable to Low-Z Output
UB, LB Enable to Low-Z Output
Chip Disable to High-Z Output
Output Disable to High-Z Output
UB, LB Disable to High-Z Output
Output Hold from Address
Symbol
t
RC
t
AA
t
CO
t
OE
t
BA
t
LZ
t
OLZ
t
BLZ
t
HZ
t
OHZ
t
BHZ
t
OH
Min
10
-
-
-
-
3
0
0
0
0
0
3
Max
-
10
10
5
5
-
-
-
5
5
5
-
Min
12
-
-
-
-
3
0
0
0
0
0
3
Max
-
12
12
6
6
-
-
-
6
6
6
-
Min
15
-
-
-
-
3
0
0
0
0
0
3
Max
-
15
15
7
7
-
-
-
7
7
7
-
Min
20
-
-
-
-
3
0
0
0
0
0
3
Max
-
20
20
9
9
-
-
-
9
9
9
-
Unit
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
* The above parameters are also guaranteed at industrial temperature range.
Everyone, I would like to ask you something. I am making PCB boards in the laboratory. It can only be single-sided boards. Because I use chip resistors, some traces cannot be too thick. What I want to...
How many "roaring brothers" are there in this society? Everyone, please report the Internet celebrities that we are all familiar with, such as "roaring brother", who has quietly entered our daily life...
There seems to be something wrong with the configuration of the library function, because I am not the only one who has experienced this problem!See the post "How to configure TIM1_CH1 as an output co...
Power Semiconductor Devices : https://training.eeworld.com.cn/course/67742Power semiconductor devices are an important branch of semiconductor devices. Like microelectronic chips (integrated circuit c...
High efficiency and low standby power consumption are two major challenges in today's switching power supply design. Resonant topology or LLC topology is becoming increasingly popular because it ca...[Details]
With the rapid development of science and technology, especially the widespread application of digital technology and various ultra-large-scale integrated circuits, electronic equipment, especially...[Details]
In recent years, the market for mobile/portable devices such as smartphones and laptops has continued to grow rapidly. While these products continue to integrate more new features to enhance the ...[Details]
1. Introduction
Light control circuit plays a vital role in urban street lamps or corridor lighting. With light control circuit, the lights can be automatically turned on and off according to ...[Details]
With the development and widespread application of computer technology, especially in the field of industrial control, computer communication is particularly important. Although serial communication g...[Details]
As a simple and practical input device, buttons have been used in various microcontroller application systems and are ubiquitous. However, the buttons used in different practical occasions are also...[Details]
introduction
MAX6636 is a multi-channel precision temperature monitor that can not only monitor local temperature, but also connect up to 6 diodes externally. Each channel has a programmable...[Details]
LED guardrail lights use fluorescent tubes or LEDs as light sources and continuous guardrails as carriers to form an approximately linear guardrail light strip. This article mainly introduces...[Details]
0 Introduction
High-precision current source can provide high-precision current supply for precision instruments, and is suitable for automatic measurement tasks of various resistors in semico...[Details]
This article discusses the six design steps of LED lighting system design in detail: (1) determine the lighting requirements; (2) determine the design goals and estimate the optics; (3) the efficie...[Details]
Leakage current is generated by parasitic resistance paths between the measurement circuit and a nearby voltage source. This current can significantly reduce the accuracy of low current measurement...[Details]
Direct digital frequency synthesis (DDS) has fast frequency switching and modulation capabilities and is widely used. However, when low power consumption and low cost are the main considerations, D...[Details]
0 Introduction
In the design and construction of communication systems,
communication power supply
is called the heart of the communication system. The power supply system will dire...[Details]
Applying fieldbus technology on new beer production lines is the first choice for large beer companies with strong management level and technical strength. Guangzhou Zhujiang Beer Group Co., Ltd. i...[Details]
TMC428 is a stepper motor motion controller from TRINAMIC. It can reduce the workload of motor control software design and development costs. The 3-axis stepper motor drive control system based on ...[Details]
PCB Design
京公网安备 11010802033920号
EEWORLD
