ATT-0481-27-SMA-07 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ATT-0481-27-SMA-07

ATT-0481-27-SMA-07: DescriptionFixed Attenuator, 0MHz Min, 2000MHz Max; CategoryWireless rf/communication Radio frequency and microwave; File Size172KB，4 Pages; ManufacturerVertiv

Download Datasheet Parametric View All

ATT-0481-27-SMA-07 Overview

Fixed Attenuator, 0MHz Min, 2000MHz Max

ATT-0481-27-SMA-07 Parametric

Parameter Name	Attribute value
Maker	Vertiv
Reach Compliance Code	unknown
Other features	SMA-F; SMA-M, I/P POWER-MAX(PEAK)=200W
Nominal attenuation	27 dB
structure	COAXIAL
Maximum input power (CW)	36.99 dBm
Maximum operating frequency	2000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.25

Preview

Download Datasheet

View All

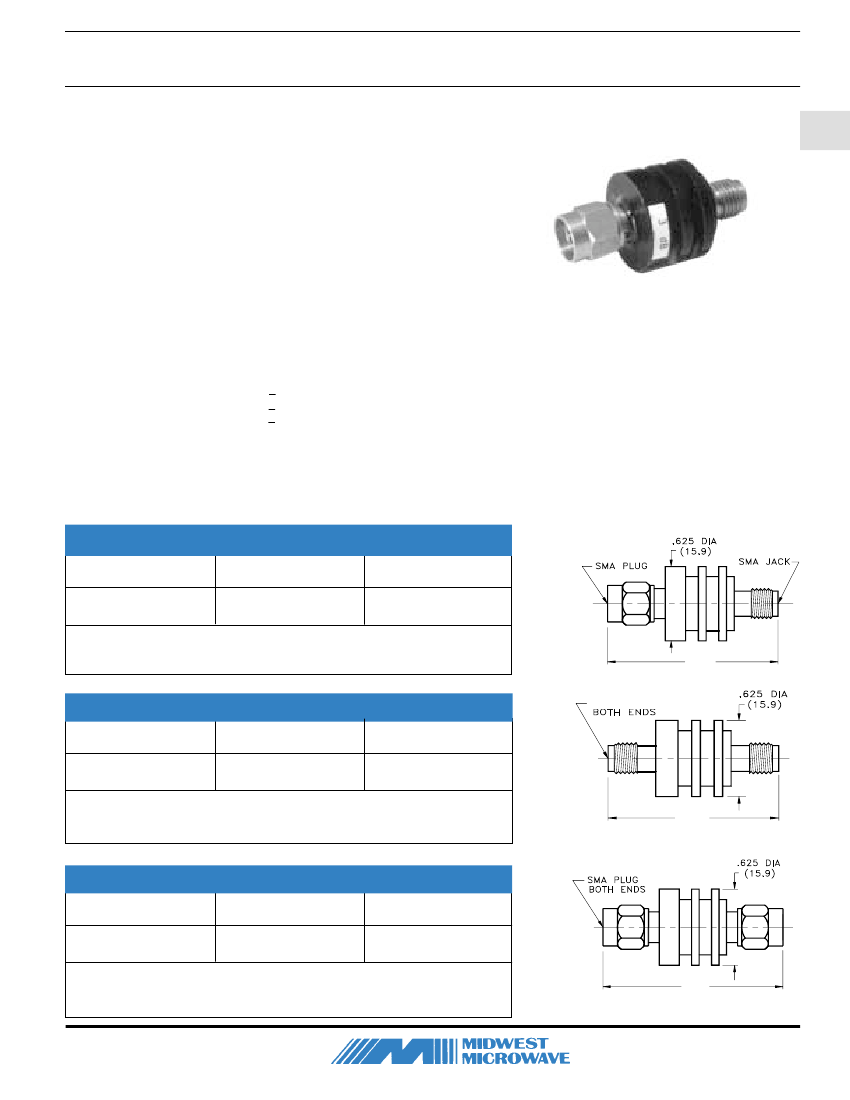

Wireless - Cellular Products

5 Watts Power - Wireless System Performance

•

5 Watt Power Performance

DC - 2.0, DC - 6.0 & DC - 12.4 GHz Model selection

Rugged Stainless Steel Interface Construction

Low VSWR - High Performance.

Attenuators

Midwest Microwave's SMA series of medium power fixed coaxial

attenuators provide temperature stable, ruggedly built, precision perfor-

mance in light weight reasonably sized packages. Attenuation values

range through 40 dB in 1 dB increments and are available with any

combination of female or male SMA connectors

5 Watts Power

Frequency:

DC - 2.0, DC-6.0, and DC-12.4 GHz units available

Attenuation Values:

1 thru 20 dB in 1 dB Increments

Attenuation Accuracy:

1- 6 dB + 0.3dB

VSWR:

Power:

5 Watts Average @ +40C derated linearly to 0.5 Watts @ +125C

Peak Power:

200 Watts

Operating Temperature Range:

-54C to +125C

Finish:

Black Anodized Aluminum and Stainless Steel Connectors

DC - 2.0 GHz

Male/Female

ATT-0481-XX-SMA-07

7-10 dB + 0.5 dB

11-20 dB + 0.7 dB

1.25 max. @ DC - 6.0 GHz, 1.30 max. @ 6 - 12.4 GHz, and 1.40 max. @ 12.4 - 18.0 GHz

481 Series

Female/Female

ATT-481F-XX-SMA-07

Model Numbers

Male/Male

ATT-481M-XX-SMA-07

XX = Attenuation Value: Select 01-20dB in 1dB increments

5 WATTS

DC - 6.0 GHz

Male/Female

ATT-0475-XX-SMA-07

Wireless System Performance

475 Series

Female/Female

ATT-475F-XX-SMA-07

1.20

Model Numbers

Male/Male

ATT-475M-XX-SMA-07

SMA JACK

XX = Attenuation Value: Select 01-20dB in 1dB increments

1.07

5 WATTS

DC - 12.4 GHz

Male/Female

ATT-0474-XX-SMA-07

Wireless System Performance

474 Series

Female/Female

ATT-474F-XX-SMA-07

Model Numbers

Male/Male

ATT-474M-XX-SMA-07

1.33

XX = Attenuation Value: Select 01-20dB in 1dB increments

5 WATTS

Wireless System Performance
