BZX79C2V0-BZX79C75
500mW,5% Tolerance Zener Diode
Small Signal Diode
DO-35 Axial Lead
HERMETICALLY SEALED GLASS
Features
Wide zener voltage range selection:2.0V to 75V
Vz Tolerance Selection of ±5%
Designed for through-Hole Device Type Mounting
Hermetically Sealed Glass
Pb free version and RoHS compliant
High reliability glass passivation insuring parameter
stability and protection against junction contamination
A
D
C
B
Mechanical Data
Case :DO-35 package (SOD-27)
Lead:Axial leads,solderable per
MIL-STD-202,Method 2025
High temperature soldering guaranteed: 260°C/10s
Polarity:Indicated by cathode band
Weight : 109±4 mg
Dimensions
A
B
C
D
Unit (mm)
Min
0.45
3.05
1.53
Max
Unit (inch)
Min
Max
0.55 0.018 0.022
5.08 0.120 0.201
2.28 0.060 0.090
25.40 38.10 1.000 1.500
Ordering Information
Part No.
BZX79C2V0-75
BZX79C2V0-75
Package code
A0
R0
Package
DO-35
DO-35
Packing
5Kpcs / Ammo
10Kpcs / 14" Reel
Maximum Ratings and Electrical Characteristics
Rating at 25°C ambient temperature unless otherwise specified.
Maximum Ratings
Type Number
Power Dissipation
Maximum Forward Voltage @I
F
=100mA
Thermal Resistance (Junction to Ambient) (Note 1)
Storage Temperature Range
Notes:1. Valid provided that electrodes are kept at ambient temperature
Symbol
P
D
V
F
RθJA
T
J
,T
STG
Value
500
1.5
300
-65 to + 175
Units
mW
V
°C/W
°C
Zener I vs.V Characteristics
Current
I
F
V
ZM
V
Z
V
BR
V
R
I
R
I
ZK
I
ZT
V
F
Voltage
V
BR
I
ZK
Z
ZK
I
ZT
V
Z
Z
ZT
Forward Region
: Voltage at I
ZK
: Test current for voltage V
BR
: Dynamic impedance at I
ZK
: Test current for voltage V
Z
: Voltage at current I
ZT
: Dynamic impedance at I
ZT
: Maximum steady state current
: Voltage at I
ZM
I
ZM
BreakdownRegion
Leakage Region
I
ZM
V
ZM
Version : C11
BZX79C2V0-BZX79C75
500mW,5% Tolerance Zener Diode
Small Signal Diode
Electrical Characteristics
Ta = 25°C unless otherwise noted
V
F
Forward Voltage = 1.5V Maximum @ I
F
= 100 mA for all part numbers
Part Number
BZX79C2V0
BZX79C2V2
BZX79C2V4
BZX79C2V7
BZX79C3V0
BZX79C3V3
BZX79C3V6
BZX79C3V9
BZX79C4V3
BZX79C4V7
BZX79C5V1
BZX79C5V6
BZX79C6V2
BZX79C6V8
BZX79C7V5
BZX79C8V2
BZX79C9V1
BZX79C10
BZX79C11
BZX79C12
BZX79C13
BZX79C15
BZX79C16
BZX79C18
BZX79C20
BZX79C22
BZX79C24
BZX79C27
BZX79C30
BZX79C33
BZX79C36
BZX79C39
BZX79C43
BZX79C47
BZX79C51
BZX79C56
BZX79C62
BZX79C68
BZX79C75
Notes:
1. The Zener Voltage (V
Z
) is tested under pulse condition of 10ms
2. The device numbers listed have a standard tolerance on the nominal zener voltage of
±5%.
3. For detailed information on price, availability and delivery of nominal zener voltages between the voltages shown and tighter voltage tolerances,
contact your nearest
Taiwan semiconductor
representative.
4. The zener impedance is derived from the 60-cycle ac voltage, which results when an ac current having an rms value equal to 10% of the DC zener
current
Marking
Code
BZX79C2V0
BZX79C2V2
BZX79C2V4
BZX79C2V7
BZX79C3V0
BZX79C3V3
BZX79C3V6
BZX79C3V9
BZX79C4V3
BZX79C4V7
BZX79C5V1
BZX79C5V6
BZX79C6V2
BZX79C6V8
BZX79C7V5
BZX79C8V2
BZX79C9V1
BZX79C10
BZX79C11
BZX79C12
BZX79C13
BZX79C15
BZX79C16
BZX79C18
BZX79C20
BZX79C22
BZX79C24
BZX79C27
BZX79C30
BZX79C33
BZX79C36
BZX79C39
BZX79C43
BZX79C47
BZX79C51
BZX79C56
BZX79C62
BZX79C68
BZX79C75
V
Z
@ I
ZT
(Volt)
Min
1.9
2.1
2.3
2.6
2.9
3.1
3.4
3.7
4.1
4.5
4.8
5.3
5.9
6.5
7.1
7.8
8.6
9.5
10.5
11.4
12.4
14.3
15.2
17.1
19.0
20.9
22.8
25.7
28.5
31.4
34.2
37.1
40.9
44.7
48.5
53.2
58.9
64.6
71.3
Nom
2.0
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
Max
2.1
2.3
2.5
2.8
3.2
3.5
3.8
4.1
4.5
4.9
5.4
5.9
6.5
7.1
7.9
8.6
9.6
10.5
11.6
12.6
13.7
15.8
16.8
18.9
21.0
23.1
25.2
28.4
31.5
34.7
37.8
41.0
45.2
49.4
53.6
58.8
65.1
71.4
78.8
I
ZT
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
2
2
2
2
2
2
2
2
2
2.5
2.5
2.5
Z
ZT
@ I
ZT
(Ω)
Max
100
100
100
100
95
95
90
90
90
80
60
40
10
15
15
15
15
20
20
25
30
30
40
45
55
55
70
80
80
80
90
130
150
170
180
200
215
240
255
I
ZK
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
Z
ZK
@ I
ZK
(Ω) I
R
@ V
R
(μA)
Max
Max
600
600
600
600
600
600
600
600
600
500
480
400
150
80
80
80
100
150
150
150
170
200
200
225
225
250
250
300
300
325
350
350
375
375
400
425
1000
1000
1000
150
150
100
75
50
25
15
10
5
3
2
1
3
2
1
0.7
0.5
0.2
0.1
0.1
0.1
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
V
R
(V)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
2.0
2.0
4.0
4.0
5.0
5.0
6.0
7.0
8.0
8.0
8.0
10.5
11.2
12.6
14.0
15.4
16.8
18.9
21.0
23.1
25.2
27.3
30.1
32.9
35.7
39.2
43.4
47.6
52.5
Version : C11
BZX79C2V0-BZX79C75
500mW,5% Tolerance Zener Diode
Small Signal Diode

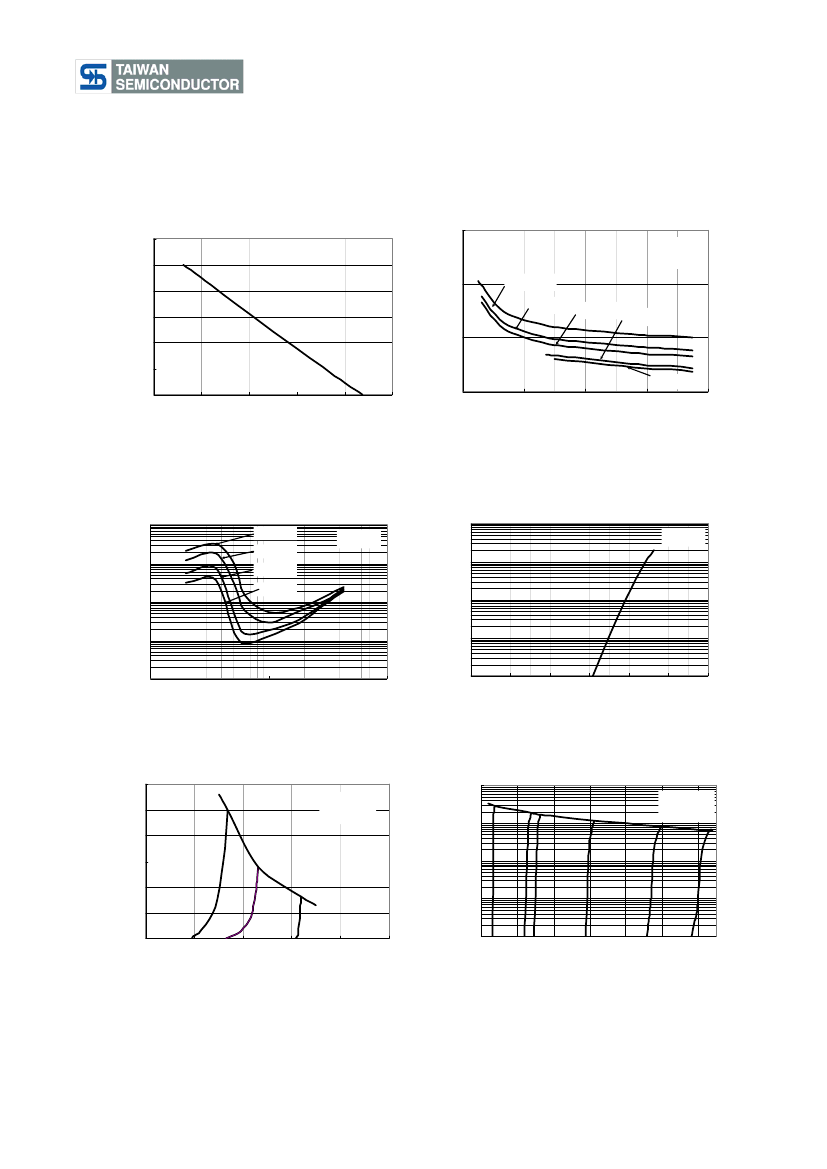

Rating and Sharacteristic Curves
600
1000
Total Capacitance [pF]
f = 1MHz
Ta = 25
℃
100
VR = 0V
VR = 2V
VR = 5V
PD-Power Passipation [mW]
500
400
300
200
100
VR = 20V
10
VR = 30V
0
0
40
1
Temperature [
℃
]
80
120
160
200
0
20
40
VZ - Reverse Voltage [V]
60
80
Figure 1. Power Dissipation vs Ambient Temperature
Valid provided leads at a distance of 0.8mm from case are kept at
ambient temperature
Figure 2. Total Capacitance
Differential Zener Impedance [Ω]
1000
Iz=1mA
Iz=2mA
Iz=5mA
Iz=10mA
1000
Ta = 25
℃
Forward Current [mA]
100
Ta = 25
℃
100
10
10
1
1
0.1
1
10
VZ - Reverse Voltage [V]
100
0.1
0
0.2
0.4
0.6
0.8
VF - Forw ard Voltage [m V]
1
1.2
Figure 3. Differential Impedance vs. Zener Voltage
Figure 4. Forward Current vs. Forward Voltage
300
250
Reverse Current [mA]
200
150
100
50
0
0
2
4
6
VZ - Reverse Voltage [V]
8
10
PD = 500mW
Ta = 25
℃
100
PD = 500mW
Ta = 25
℃
Reverse Current [mA]
10
1
0.1
0.01
15
25
35
45
55
65
VZ - Reverse Voltage [V]
75
Figure 5. Reverse Current vs. Reverse Voltage
Figure 6. Reverse Current vs. Reverse Voltage
Version :
C11
BZX79C2V0-BZX79C75
500mW,5% Tolerance Zener Diode
Small Signal Diode

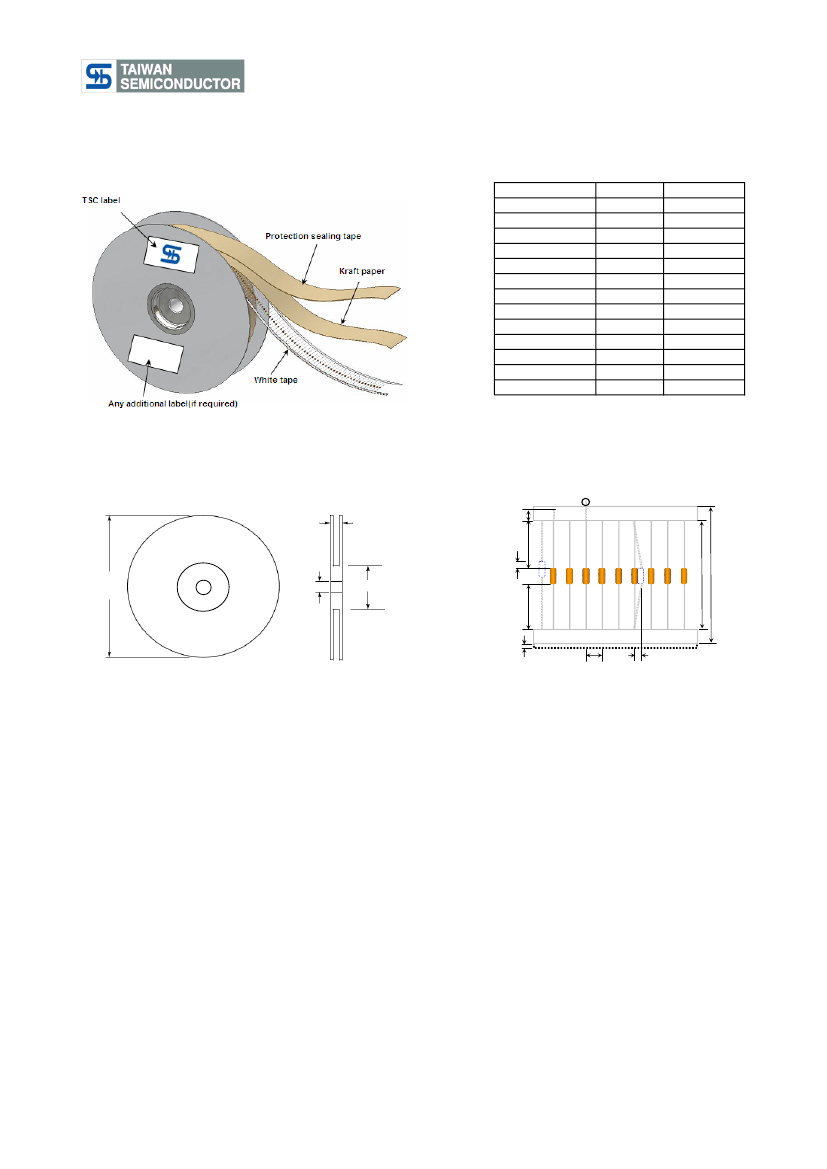

Tape & Reel specification
Item
Overall width
Tape spacing
Component Pitch
Untaped lead
Bent
Tape Mismatch
Glass offset
Taped lead
lead beyond tape
Reel outside diameter
Reel inner diameter
Feed hole width
Reel width
Symbol
A
B
C
L1-L2
K
E
F
G
H
D
D1
D2
W1
Dimension(mm)
64+1.69/-0.69
52.0+/-0.69
5.08+/-0.40
+/-0.69
1.2 Max
0.55(MAX)
0.69(MAX)
3.2Min
0
260+/-3
48+/-1
20+/-0.5
72+3/-1
H
W1
G
L1
F
D
B
D2
D1
L2
A
E
C
K
Version :
C11
