ATT-263M-80-SMA-02 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ATT-263M-80-SMA-02

ATT-263M-80-SMA-02: DescriptionFixed Attenuator, 0MHz Min, 18000MHz Max, MINIATURE PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size341KB，7 Pages; ManufacturerVertiv

Download Datasheet Parametric View All

ATT-263M-80-SMA-02 Overview

Fixed Attenuator, 0MHz Min, 18000MHz Max, MINIATURE PACKAGE

ATT-263M-80-SMA-02 Parametric

Parameter Name	Attribute value
Maker	Vertiv
Reach Compliance Code	unknown
Other features	SMA-M, I/P POWER-MAX(PEAK)=200W
Nominal attenuation	10.5 dB
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.07

Preview

Download Datasheet

View All

Attenuators

DC - 18 GHz High Performance

DC-2, DC-4, DC-8, and DC-12.4 units available

0 - 60 dB Attenuation Values

Rugged Stainless Steel Construction

Any Male/Female combination available

Low cost alternatives available

SMA Miniature Type

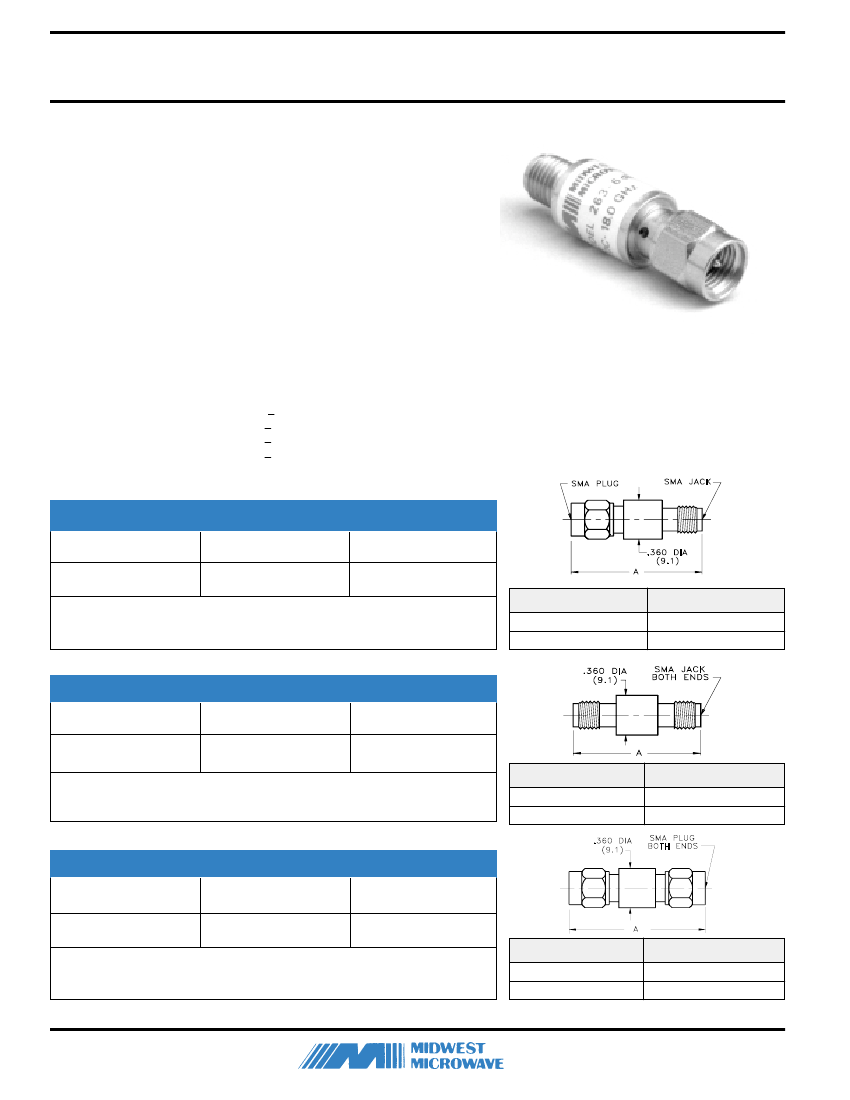

Midwest Microwave's SMA miniature series of fixed coaxial attenuators

provide temperature stable, ruggedly built, precision performance in a

small light weight package size. Attenuation values up through 60 dB in 1

dB increments are available with any of the units described and with any

combination of female or male SMA connectors.

SPECIFICATIONS - HIGH PERFORMANCE

Frequency:

DC - 18.0, DC - 12.4, DC - 8.0 GHz

Attenuation

DC - 4.0, DC - 2.0 GHz

Accuracy:

1-10 dB + 0.3 dB

11-20 dB + 0.5 dB

21-40 dB +1.0 dB

41-60 dB +1.5 dB

VSWR:

1.07+.015 (f GHz) max.

Power:

2 Watts Average @ 25C derated linearly to .5 Watts @ 125C

Peak Power:

200 Watts

Operating Temperature Range:

- 65 to + 125C

Finish:

Passivated Stainless Steel

DC - 18 GHz

Male/Female

ATT-0263-XX-SMA-02

263 Series

Female/Female

ATT-263F-XX-SMA-02

Model Numbers

Male/Male

ATT-263M-XX-SMA-02

Attenuation Value

1-20 dB

21-60 dB

Length A

1.20

1.49

XX = Attenuation Value: Select 01-60dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

DC - 12.4 GHz

Male/Female

ATT-0205-XX-SMA-02

205 Series

Female/Female

ATT-205F-XX-SMA-02

Model Numbers

Male/Male

ATT-205M-XX-SMA-02

Attenuation Value

1-20 dB

21-60 dB

Length A

1.07

1.36

HIGH PERFORMANCE

XX = Attenuation Value: Select 01-60dB in 1dB increments

(.5 dB increments available)

DC - 8.0 GHz

Male/Female

ATT-0206-XX-SMA-02

206 Series

Female/Female

ATT-206F-XX-SMA-02

Model Numbers

Male/Male

ATT-206M-XX-SMA-02

Attenuation Value

1-20 dB

21-60 dB

Length A

1.33

1.62

XX = Attenuation Value: Select 01-60dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

Note: * U.S. Patent No. 3,824,506 applies to all " Fixed Attenuators.
