ATT-472F-23-SMA-07 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ATT-472F-23-SMA-07

ATT-472F-23-SMA-07: DescriptionFixed Attenuator, 0MHz Min, 6000MHz Max, STAINLESS STEEL; CategoryWireless rf/communication Radio frequency and microwave; File Size97KB，1 Pages; ManufacturerVertiv

Download Datasheet Parametric View All

ATT-472F-23-SMA-07 Overview

Fixed Attenuator, 0MHz Min, 6000MHz Max, STAINLESS STEEL

ATT-472F-23-SMA-07 Parametric

Parameter Name	Attribute value
Maker	Vertiv
Reach Compliance Code	unknown
Other features	SMA-F, I/P POWER-MAX(PEAK)=100W
Nominal attenuation	23 dB
structure	COAXIAL
Maximum input power (CW)	40 dBm
Maximum operating frequency	6000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.4

Preview

Download Datasheet

View All

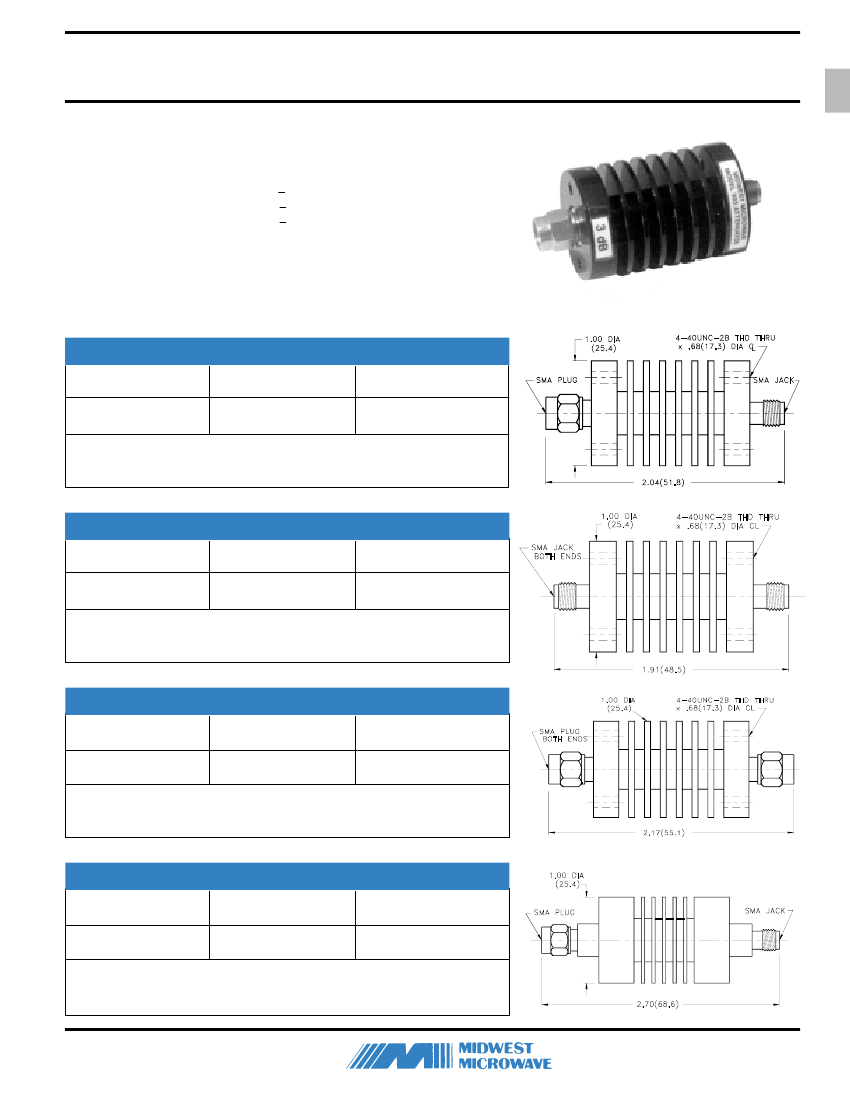

Attenuators

10 Watts - DC - 18 GHz Performance

SMA Medium Power Types

Frequency:

DC - 18.0, DC-12.4, DC-6.0, and DC-2.0 GHz units available

Attenuation Values:

1 thru 40 dB in 1 dB Increments

Attenuation Accuracy:

1- 10 dB + 0.5dB

11-20 dB + 0.7 dB

21-40 dB + 1.0dB

VSWR:

1.25 max. @ DC - 2.0 GHz, 1.40 max. @ 2 - 12.4 GHz, and

1.50 max. @ 12.4 - 18.0 GHz

Power:

10 Watts Average @ +40C derated linearly to 0.5 Watts @ +125C

Peak Power:

100 Watts except 488 Series which is 5 Kilowatts

Operating Temperature Range:

-54C to +125C

Finish:

Black Anodized Aluminum and Stainless Steel Connectors

DC - 18.0 GHz

Male/Female

ATT-0303-XX-SMA-07

303 Series

Female/Female

ATT-303F-XX-SMA-07

Model Numbers

Male/Male

ATT-303M-XX-SMA-07

XX = Attenuation Value: Select 01-40dB in 1dB increments

10 WATTS

DC - 12.4 GHz

Male/Female

ATT-0471-XX-SMA-07

471 Series

Female/Female

ATT-471F-XX-SMA-07

Model Numbers

Male/Male

ATT-471M-XX-SMA-07

XX = Attenuation Value: Select 01-40dB in 1dB increments

10 WATTS

DC - 6.0 GHz

Male/Female

ATT-0472-XX-SMA-07

472 Series

Female/Female

ATT-472F-XX-SMA-07

Model Numbers

Male/Male

ATT-472M-XX-SMA-07

XX = Attenuation Value: Select 01-40dB in 1dB increments

10 WATTS

DC - 2.0 GHz

Male/Female

ATT-0488-XX-SMA-07

488 Series

Female/Female

ATT-488F-XX-SMA-07

Model Numbers

Male/Male

ATT-488M-XX-SMA-07

XX = Attenuation Value: Select 01-40dB in 1dB increments

10 WATTS Average - 5 Kilowatts Peak
