DCM2322T72S0650M60

Description
Power Supply Module,
CategoryPower/power management    The power supply circuit
File Size3MB，31 Pages
ManufacturerVICOR
Websitehttp://www.vicorpower.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

DCM2322T72S0650M60 Online Shopping

Suppliers Part Number Price MOQ In stock
DCM2322T72S0650M60 - - View Buy Now

DCM2322T72S0650M60 Overview

Power Supply Module,

DCM2322T72S0650M60 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerVICOR
package instruction,
Reach Compliance Codecompliant

DCM2322T72S0650M60 Preview

DCM
™
DC-DC Converter
DCM2322x72S0650y6z
S
®
C
US
C
NRTL
US
Isolated, Regulated DC Converter
Features & Benefits
•
Isolated, regulated DC-DC converter
•
Up to 50 W, 10.00 A continuous
•
86.1% peak efficiency
•
222 W/in
3
Power density
•
Wide input range 14 – 72 Vdc
•
Safety Extra Low Voltage (SELV) 5.0 V Nominal Output
•
3000 Vdc isolation
•
ZVS high frequency switching
•
Dual modes of operation:
Product Ratings
V
IN
= 14 V to 72 V
V
OUT
= 5.0 V
(3.5 V to 5.5 V Trim)
P
OUT
= 50 W
I
OUT
= 10.00 A
Product Description
The DCM2322 is a lower power, isolated and regulated DC-DC
converter that operates from an unregulated, wide-range input
to generate an isolated 5.0 Vdc output. With its high-frequency
zero-voltage switching (ZVS) topology, the DCM2322 converter
consistently delivers high efficiency across the input line range.
Modular DCM converters and downstream DC-DC products
support efficient power distribution, providing superior power
system performance and connectivity from a variety of
unregulated power sources to the point-of-load.
Leveraging the thermal and density benefits of Vicor’s ChiP
packaging technology, the DCM2322 offers flexible thermal
management options with very low top and bottom side
thermal impedances. Thermally adept ChiP based power
components enable customers to quickly and predictably
achieve cost effective power system solutions.
n
Enables low-profile, high-density filtering
n
Array mode
– Up to 8 units – 400 W
– No power derating needed
– Sharing strategy permits dissimilar line voltages
across an array
n
Enhanced V
OUT
regulation mode
– Standalone: 50 W
•
Fully operational current limit
•
OV, OC, UV, short circuit and thermal protection
•
2322 through-hole ChiP™ package
n
0.978” x 0.898” x 0.284”
(24.84 mm x 22.8 mm x 7.21 mm)
Typical Applications
•
•
•
•
Rail Transportation
Defense / Aerospace
Industrial
Process Control
Part Ordering Information
Product
Function
DCM
23
Package
Size
22
Package
Type
x
Max
Input
Voltage
72
Range
Ratio
S
Max
Output
Voltage
06
Max
Output
Power
50
Temperature
Grade
y
Option
6z
60 = Array and
Enhanced V
OUT
Regultion
Modes / Analog Control
Interface Version
DCM =
DC-DC
Converter
mm
T=
Through hole
ChiPs
Internal Reference
T = -40°C to 125°C
M = -55°C to 125°C
DCM™ DC-DC Converter
Page 1 of 31
Rev 1.2
01/2020
DCM2322x72S0650y6z

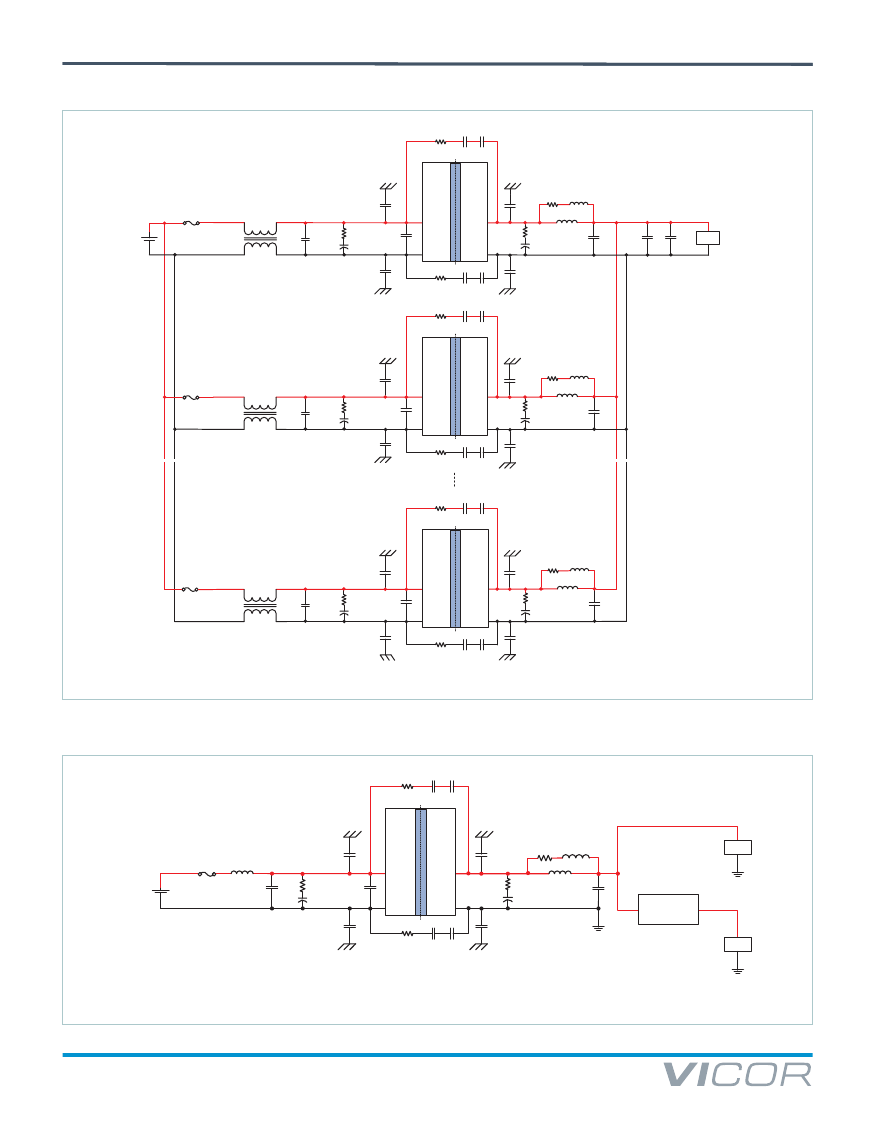

Typical Applications
R
b
C
b1
C
b2
DCM1
TR
EMI_GND
C
Y
EN
FT
R
dm_1
C
Y
L
2_1
R
COUT-EXT_1
L
b_1
F
1_1
V
IN
L
1_1
C
1_1
R
d_1
C
d_1
+IN
+OUT
C
IN
–IN
–OUT
C
OUT-EXT_1
C
Y
C
2_1
C
3
C
4
Load
C
Y
R
b
R
b
C
b1
C
b1
C
b2
C
b2
DCM2
TR
EN
FT
R
dm_2
C
Y
L
2_2
R
COUT-EXT_2
L
b_2
F
1_2
L
1_2
C
1_2
R
d_2
C
d_2
C
Y
+IN
+OUT
C
IN
–IN
–OUT
C
OUT-EXT_2
C
Y
C
2_2
≈≈
C
Y
R
b
C
b1
C
b2
≈≈
R
b
C
b1
C
b2
DCM4
TR
EN
FT
R
dm_4
C
Y
L
b_4
L
2_4
F
1_4
L
1_4
C
1_4
R
d_4
C
d_4
C
Y
+IN
+OUT
C
IN
–IN
–OUT
R
COUT-EXT_4
C
OUT-EXT_4
C
Y
R
b
C
b1
C
b2
C
2_4
C
Y
Note:
C
IN
, R
b
, C
b1
and C
b2
are required components for proper operation of the DCM. See required components table below.
DCM2322x72S0650y6z in an array of four units; applicable when DCM is operating in Array Mode
Required Components
C
IN
R
b
C
b1
, C
b2
TDK
C5750X7T2E225M250KA, 2.2 µF, 250 V
Generic
1
Ω,
1/4 W
KEMET
C1812C103KGRACTU, 10,000 pF, 2000 V
DCM™ DC-DC Converter
Page 2 of 31
Rev 1.2
01/2020
DCM2322x72S0650y6z
Typical Applications (Cont.)
R
b
C
b1
C
b2
DCM1
TR
EMI_GND
C
Y
T
1_1
C
1_1
R
d_1
C
d_1
C
Y
C
IN
EN
FT
C
Y
+IN
+OUT
R
dm_1
L
b_1
L
2_1
F
1_1
V
IN
R
COUT-EXT_1
C
OUT-EXT_1
C
Y
C
2_1
C
3
C
4
Load
–IN
–OUT
R
b
R
b
C
b2
C
b1
C
b2
C
b2
DCM2
TR
EN
FT
F
1_2
C
Y
T
1_2
C
1_2
R
d_2
C
d_2
C
Y
C
IN
–IN
–OUT
+IN
+OUT
C
Y
R
dm_2
L
b_2
L
2_2
R
COUT-EXT_2
C
OUT-EXT_2
C
Y
C
2_2
≈≈
R
b
C
b1
C
b2
≈≈
R
b
C
b1
C
b2
DCM8
TR
EN
FT
F
1_8
C
Y
T
1_8
C
1_8
R
d_8
C
d_8
C
Y
R
b
C
b1
C
b2
C
IN
–IN
–OUT
+IN
+OUT
C
Y
R
dm_8
L
b_8
L
2_8
R
COUT-EXT_8
C
OUT-EXT_8
C
Y
C
2_8
Note:
C
IN
, R
b
, C
b1
and C
b2
are required components for proper operation of the DCM. See required components table on page 2.
Parallel operation of DCMs with common mode chokes installed on the input side to suppress common mode noise; applicable when DCM
is operating in Array Mode
R
b
C
b1
C
b2
DCM
TR
EMI_GND
C
Y
EN
FT
F
1
V
IN
L
1
C
1
R
d
C
d
C
Y
+IN
+OUT
R
dm
L
2
R
COUT-EXT
L
b
Load 1
C
IN
–IN
–OUT
C
2
C
OUT-EXT
C
Y
C
Y
R
b
C
b1
C
b2
Non-isolated
Point-of-Load
Regulator
Load 2
Note:
C
IN
, R
b
, C
b1
and C
b2
are required components for proper operation of the DCM. See required components table on page 2.
Single DCM2322x72S0650y6z, to a non-isolated regulator, and direct to load
DCM™ DC-DC Converter
Page 3 of 31
Rev 1.2
01/2020
DCM2322x72S0650y6z
Pin Configuration
1
+IN
A
TOP VIEW
2
A’
+OUT
B’
–OUT
C’
+OUT
D’
–OUT
TR
B
EN
C
FT
D
–IN
E
DCM ChiP™
Pin Descriptions
Pin
Number
A1
B1
C1
D1
E1
A’2, C’2
B’2, D’2
Signal Name
+IN
TR
EN
FT
-IN
+OUT
-OUT
Type
INPUT POWER
INPUT
INPUT
OUTPUT
INPUT POWER
RETURN
OUTPUT POWER
OUTPUT POWER
RETURN
Positive input power terminal
Function
Enables and disables trim functionality. Adjusts output voltage when trim active.
Dual function:
1. Enables either Array or Enhanced V
OUT
Regulation mode
2. Enables and disables power supply
Fault monitoring
Negative input power terminal
Positive output power terminal
Negative output power terminal
DCM™ DC-DC Converter
Page 4 of 31
Rev 1.2
01/2020
DCM2322x72S0650y6z
Absolute Maximum Ratings
The absolute maximum ratings below are stress ratings only. Operation at or beyond these maximum ratings can cause permanent damage to the device.
Electrical specifications do not apply when operating beyond rated operating conditions.
Parameter
Input Voltage (+IN to –IN)
Input Voltage Slew Rate
TR to –IN
EN to –IN
FT to –IN
5
Output Voltage (+OUT to –OUT)
Dielectric withstand (input to output)
Internal Operating Temperature
M-Grade
T-Grade
Storage Temperature
M-Grade
Average Output Current
-65
125
16.0
°C
A
-55
-40
125
125
°C
°C
Basic insulation
T-Grade
-0.5
3000
-40
125
6.6
mA
V
Vdc
°C
Comments
Min
-0.5
-1
-0.3
-0.3
-0.3
Max
87.5
1
3.5
3.5
3.5
Unit
V
V/µs
V
V
V
Figure 1
—

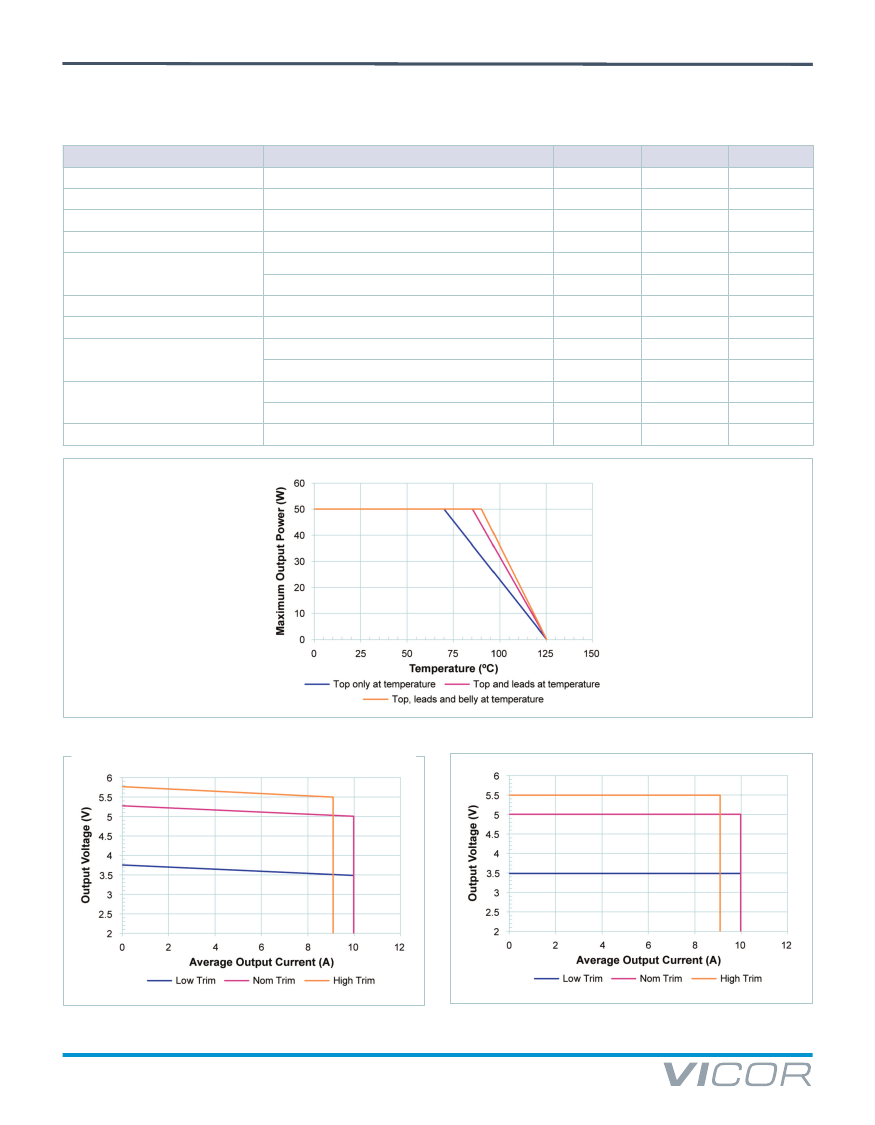

Thermal Specified Operating Area: Max Output Power vs. Case Temp, Single unit at minimum full load efficiency
Figure 2
—
Electrical Specified Operating Area: Array Mode
Figure 3
—
Electrical Specified Operating Area: Enhanced V
OUT
Regulation Mode
DCM™ DC-DC Converter
Page 5 of 31
Rev 1.2
01/2020
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

DCM2322T72S0650M60 Related Products

DCM2322T72S0650M60 DCM2322T72S0650T60
Description Power Supply Module, Power Supply Module,
Is it Rohs certified? conform to conform to
Maker VICOR VICOR
Reach Compliance Code compliant compliant

Recommended Resources

Ionization alarm circuit

Diode-Transistor NAND Gate Circuit

Flashing LED monitors remote power supply voltage

Four-code remote control dimmer switch circuit

DT950/DMM8000 digital/LCD bar graph dual display digital multimeter

Nickel metal hydride and nickel cadmium battery charger circuit using AICl783 as controller

I want a tool to convert binary files into hexadecimal files. Thanks!
I want a tool to convert binary files into hexadecimal files. Thank you! Give the download address or netsyt@sina.com...
ryg7 Embedded System
[GD32E231 DIY Contest] Part 4: Summary
Design name: Dynamic QR code displayWorks photos:Project Description: QR codes can be seen everywhere in life. They are used in various payment, collection, advertising, promotion, etc., because mobil...
muxb GD32 MCU
Sisters married father and son, a sharp turn
A female classmate and her younger sister married the father and son of a company owner in Shenzhen. The elder sister married the company owner's son, and the younger sister married the company owner....
青叶漂零 Talking
MSP430 microcontroller peripheral crystal oscillator design selection and reference solution
The MSP430 series of microcontrollers is a 16-bit ultra-low-power MSP430 microcontroller that Texas Instruments (TI) began to market in 1996. It is a mixed signal processor (Mixed Signal Processor) wi...
火辣西米秀 Microcontroller MCU
I need help with the com16550 driver!!! Please help me if you have worked on this driver!!! Thank you!!!
The BSP now uses the com16550 driver ported from the public, but I still don't understand how to use external interrupts. I read the blog of xunjingzhpu on the Internet: [b]3 It is necessary to add th...
niyongqiao Embedded System
How to customize the IME user interface
IME (Input Method Editor) kernel, including the content related to the language of user input, such as input method, Chinese character library, etc.; IME interface window includes: status window, lett...
spy183 Embedded System
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. RE60GR150
  2. M83723/75A1814Y
  3. RNR55J3830BSR36
  4. XSFP10529102B
  5. M80-4T12005F1-03-322-02-301
  6. 1SS387,H3F
  7. C1206J154K1RALTM
  8. CFKJ5E20R16MSEP
  9. BZM5248
  10. A2541WV-S-2P-A
  11. A3961WVA-13P-H-V0-G
  12. A2549WVK-N-26P-G30

Popular Articles

  1. Freescale MCU AD module brief introduction (1)
  2. The black hole mosquito killer is so black that there is nothing left!
  3. How to reduce noise radiation from explosion-proof motors
  4. The packaging and testing center will be put into production next year, and Guangku Technology's lithium niobate high-speed modulator chip project
  5. Steps and methods of stepper motor selection
  6. Nidec's electric vehicle drive hub motor is adopted by Yadea's "Battery-Swapping Beast 01"
  7. HTC Wildfire E2 Plus released in Russia, priced at 1,000 yuan
  8. After ten years of insisting on independent control, APT has become the number one player in RISC-V MCU
  9. Alps Alpine and Furuno jointly launch the UMSZ6 series of GNSS modules to achieve high-precision positioning
  10. 51 MCU Introduction - Basic Knowledge Summary

Technical ResourceMore

  1. 4-axis MEGA328 based flight controller (Bluetooth and remote control version) source code
  2. The principle of photovoltaic grid connection and the module design of power station monitoring system
  3. Direct series IGBT high voltage inverter and comparison with other topology circuits
  4. 5G Technology Papers
  5. Research on PWM photovoltaic inverter DC_DC circuit and maximum power point tracking technology
  6. Touch your map knowledge points
  7. Process Corner Simulation
  8. Toyota vehicle charging system
  9. MATLAB Case 27 Optimization calculation of genetic algorithm - modeling independent variable dimensionality reduction.rar
  10. Free full-featured STM32_TrueSTUDIO_9.0

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1781  1642  2263  874  2930  36  34  46  18  59
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
