DCM2322T72S13A0M60

Description
Power Supply Module,
CategoryPower/power management    The power supply circuit
File Size3MB，31 Pages
ManufacturerVICOR
Websitehttp://www.vicorpower.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

DCM2322T72S13A0M60 Online Shopping

Suppliers Part Number Price MOQ In stock
DCM2322T72S13A0M60 - - View Buy Now

DCM2322T72S13A0M60 Overview

Power Supply Module,

DCM2322T72S13A0M60 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerVICOR
package instruction,
Reach Compliance Codecompliant

DCM2322T72S13A0M60 Preview

DCM
™
DC-DC Converter
DCM2322x72S13A0y6z
S
®
C
US
C
NRTL
US
Isolated, Regulated DC Converter
Features & Benefits
•
Isolated, regulated DC-DC converter
•
Up to 100 W, 8.40 A continuous
•
89.6% peak efficiency
•
443 W/in
3
Power density
•
Wide input range 14 – 72 Vdc
•
Safety Extra Low Voltage (SELV) 12.0 V Nominal Output
•
3000 Vdc isolation
•
ZVS high frequency switching
•
Dual modes of operation:
Product Ratings
V
IN
= 14 V to 72 V
V
OUT
= 12.0 V
(7.2 V to 13.2 V Trim)
P
OUT
= 100 W
I
OUT
= 8.40 A
Product Description
The DCM2322 is a lower power, isolated and regulated DC-DC
converter that operates from an unregulated, wide-range input
to generate an isolated 12.0 Vdc output. With its high-frequency
zero-voltage switching (ZVS) topology, the DCM2322 converter
consistently delivers high efficiency across the input line range.
Modular DCM converters and downstream DC-DC products
support efficient power distribution, providing superior power
system performance and connectivity from a variety of
unregulated power sources to the point-of-load.
Leveraging the thermal and density benefits of Vicor’s ChiP
packaging technology, the DCM2322 offers flexible thermal
management options with very low top and bottom side
thermal impedances. Thermally adept ChiP based power
components enable customers to quickly and predictably
achieve cost effective power system solutions.
n
Enables low-profile, high-density filtering
n
Array mode
– Up to 8 units – 800 W
– No power derating needed
– Sharing strategy permits dissimilar line voltages
across an array
n
Enhanced V
OUT
regulation mode
– Standalone: 100 W
•
Fully operational current limit
•
OV, OC, UV, short circuit and thermal protection
•
2322 through-hole ChiP™ package
n
0.978” x 0.898” x 0.284”
(24.84 mm x 22.8 mm x 7.21 mm)
Typical Applications
•
•
•
•
Rail Transportation
Defense / Aerospace
Industrial
Process Control
Part Ordering Information
Product
Function
DCM
23
Package
Size
22
Package
Type
x
Max
Input
Voltage
72
Range
Ratio
S
Max
Output
Voltage
13
Max
Output
Power
A0
Temperature
Grade
y
Option
6z
60 = Array and
Enhanced V
OUT
Regultion
Modes / Analog Control
Interface Version
DCM =
DC-DC
Converter
mm
T=
Through hole
ChiPs
Internal Reference
T = -40°C to 125°C
M = -55°C to 125°C
DCM™ DC-DC Converter
Page 1 of 31
Rev 1.3
01/2020
DCM2322x72S13A0y6z

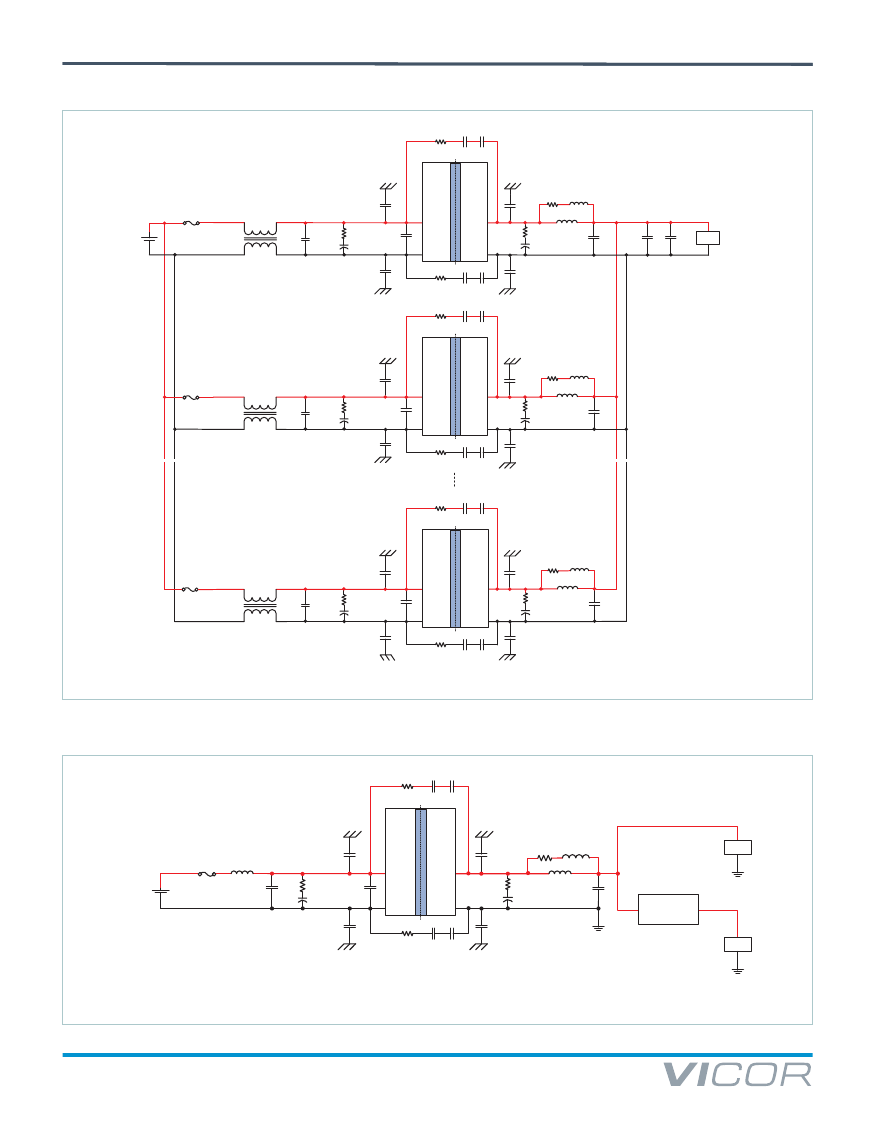

Typical Applications
R
b
C
b1
C
b2
DCM1
TR
EMI_GND
C
Y
EN
FT
R
dm_1
C
Y
L
2_1
R
COUT-EXT_1
L
b_1
F
1_1
V
IN
L
1_1
C
1_1
R
d_1
C
d_1
+IN
+OUT
C
IN
–IN
–OUT
C
OUT-EXT_1
C
Y
C
2_1
C
3
C
4
Load
C
Y
R
b
R
b
C
b1
C
b1
C
b2
C
b2
DCM2
TR
EN
FT
R
dm_2
C
Y
L
2_2
R
COUT-EXT_2
L
b_2
F
1_2
L
1_2
C
1_2
R
d_2
C
d_2
C
Y
+IN
+OUT
C
IN
–IN
–OUT
C
OUT-EXT_2
C
Y
C
2_2
≈≈
C
Y
R
b
C
b1
C
b2
≈≈
R
b
C
b1
C
b2
DCM4
TR
EN
FT
R
dm_4
C
Y
L
b_4
L
2_4
F
1_4
L
1_4
C
1_4
R
d_4
C
d_4
C
Y
+IN
+OUT
C
IN
–IN
–OUT
R
COUT-EXT_4
C
OUT-EXT_4
C
Y
R
b
C
b1
C
b2
C
2_4
C
Y
Note:
C
IN
, R
b
, C
b1
and C
b2
are required components for proper operation of the DCM. See required components table below.
DCM2322x72S13A0y6z in an array of four units; applicable when DCM is operating in Array Mode
Required Components
C
IN
R
b
C
b1
, C
b2
TDK
C5750X7T2E225M250KA, 2.2 µF, 250 V
Generic
1
Ω,
1/4 W
KEMET
C1812C103KGRACTU, 10,000 pF, 2000 V
DCM™ DC-DC Converter
Page 2 of 31
Rev 1.3
01/2020
DCM2322x72S13A0y6z
Typical Applications (Cont.)
R
b
C
b1
C
b2
DCM1
TR
EMI_GND
C
Y
T
1_1
C
1_1
R
d_1
C
d_1
C
Y
C
IN
EN
FT
C
Y
+IN
+OUT
R
dm_1
L
b_1
L
2_1
F
1_1
V
IN
R
COUT-EXT_1
C
OUT-EXT_1
C
Y
C
2_1
C
3
C
4
Load
–IN
–OUT
R
b
R
b
C
b2
C
b1
C
b2
C
b2
DCM2
TR
EN
FT
F
1_2
C
Y
T
1_2
C
1_2
R
d_2
C
d_2
C
Y
C
IN
–IN
–OUT
+IN
+OUT
C
Y
R
dm_2
L
b_2
L
2_2
R
COUT-EXT_2
C
OUT-EXT_2
C
Y
C
2_2
≈≈
R
b
C
b1
C
b2
≈≈
R
b
C
b1
C
b2
DCM8
TR
EN
FT
F
1_8
C
Y
T
1_8
C
1_8
R
d_8
C
d_8
C
Y
R
b
C
b1
C
b2
C
IN
–IN
–OUT
+IN
+OUT
C
Y
R
dm_8
L
b_8
L
2_8
R
COUT-EXT_8
C
OUT-EXT_8
C
Y
C
2_8
Note:
C
IN
, R
b
, C
b1
and C
b2
are required components for proper operation of the DCM. See required components table on page 2.
Parallel operation of DCMs with common mode chokes installed on the input side to suppress common mode noise; applicable when DCM
is operating in Array Mode
R
b
C
b1
C
b2
DCM
TR
EMI_GND
C
Y
EN
FT
F
1
V
IN
L
1
C
1
R
d
C
d
C
Y
+IN
+OUT
R
dm
L
2
R
COUT-EXT
L
b
Load 1
C
IN
–IN
–OUT
C
2
C
OUT-EXT
C
Y
C
Y
R
b
C
b1
C
b2
Non-isolated
Point-of-Load
Regulator
Load 2
Note:
C
IN
, R
b
, C
b1
and C
b2
are required components for proper operation of the DCM. See required components table on page 2.
Single DCM2322x72S13A0y6z, to a non-isolated regulator, and direct to load
DCM™ DC-DC Converter
Page 3 of 31
Rev 1.3
01/2020
DCM2322x72S13A0y6z
Pin Configuration
1
+IN
A
TOP VIEW
2
A’
+OUT
B’
–OUT
C’
+OUT
D’
–OUT
TR
B
EN
C
FT
D
–IN
E
DCM ChiP™
Pin Descriptions
Pin
Number
A1
B1
C1
D1
E1
A’2, C’2
B’2, D’2
Signal Name
+IN
TR
EN
FT
-IN
+OUT
-OUT
Type
INPUT POWER
INPUT
INPUT
OUTPUT
INPUT POWER
RETURN
OUTPUT POWER
OUTPUT POWER
RETURN
Positive input power terminal
Function
Enables and disables trim functionality. Adjusts output voltage when trim active.
Dual function:
1. Enables either Array or Enhanced V
OUT
Regulation mode
2. Enables and disables power supply
Fault monitoring
Negative input power terminal
Positive output power terminal
Negative output power terminal
DCM™ DC-DC Converter
Page 4 of 31
Rev 1.3
01/2020
DCM2322x72S13A0y6z
Absolute Maximum Ratings
The absolute maximum ratings below are stress ratings only. Operation at or beyond these maximum ratings can cause permanent damage to the device.
Electrical specifications do not apply when operating beyond rated operating conditions.
Parameter
Input Voltage (+IN to –IN)
Input Voltage Slew Rate
TR to –IN
EN to –IN
FT to –IN
5
Output Voltage (+OUT to –OUT)
Dielectric withstand (input to output)
Internal Operating Temperature
M-Grade
T-Grade
Storage Temperature
M-Grade
Average Output Current
-65
125
15.0
°C
A
-55
-40
125
125
°C
°C
Basic insulation
T-Grade
-0.5
3000
-40
125
15.8
mA
V
Vdc
°C
Comments
Min
-0.5
-1
-0.3
-0.3
-0.3
Max
87.5
1
3.5
3.5
3.5
Unit
V
V/µs
V
V
V
Figure 1
—

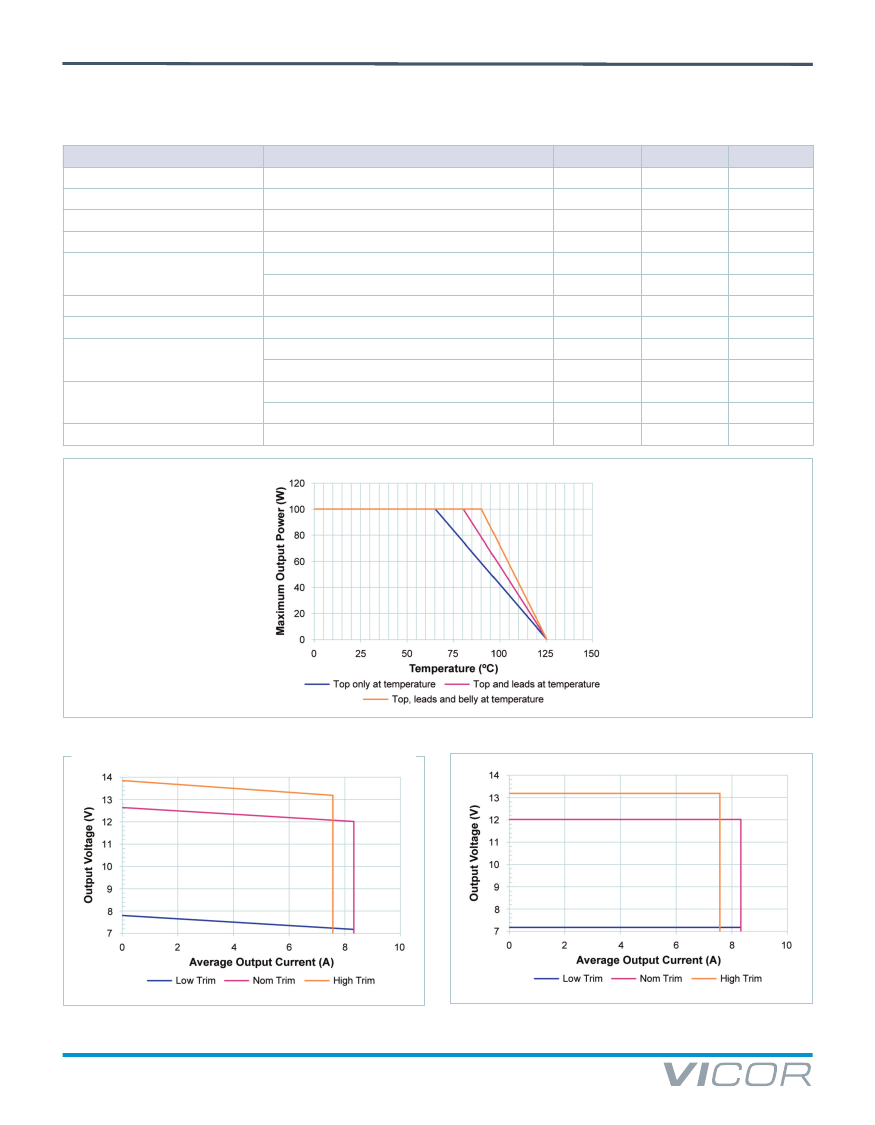

Thermal Specified Operating Area: Max Output Power vs. Case Temp, Single unit at minimum full load efficiency
Figure 2
—
Electrical Specified Operating Area: Array Mode
Figure 3
—
Electrical Specified Operating Area: Enhanced V
OUT
Regulation Mode
DCM™ DC-DC Converter
Page 5 of 31
Rev 1.3
01/2020
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

DCM2322T72S13A0M60 Related Products

DCM2322T72S13A0M60 DCM2322T72S13A0T60
Description Power Supply Module, Power Supply Module,
Is it Rohs certified? conform to conform to
Maker VICOR VICOR
Reach Compliance Code compliant compliant

Recommended Resources

Tutorial on voice control switch circuit d

Voice control tank circuit

Household DC-AC converter circuit

X63W universal lifting table milling machine electrical schematic circuit (5) circuit when the workbench is turned to the left

Little Swan Fangtai type range hood circuit diagram

Automobile fluorescent lamp converter

【Help】430 beginner!
Due to work needs, I started learning 430 half a month ago. I have two textbooks on hand. They are"Principles and Applications of MSP430 Series Ultra-Low Power 16-bit Microcontrollers" and"C Language ...
gncg Microcontroller MCU
Basic knowledge of 5G standards
[size=4][color=#000000][backcolor=white] 5G-related communication capabilities, spectrum demarcation, operator licenses and other related information are flying all over the sky, giving people a feeli...
Jacktang RF/Wirelessly
How to Reduce Waveform Noise When Measuring with an Oscilloscope
Before learning how to use an oscilloscope to reduce noise, let's first understand where the oscilloscope noise comes from. Many people who have just switched from analog oscilloscopes to digital osci...
Micsig麦科信 Integrated technical exchanges
How to understand the input sensitivity and maximum display resolution of weighing instruments
How to understand the input sensitivity and maximum display resolution of weighing instruments A 24-bit AD of a weighing instrument, input signal range 0~15mv Input sensitivity = 0.5uV/d Maximum displ...
程序会不会 Test/Measurement
Is there a cracked version of ads1.2 for Vista? Or what software do you use to develop ARM for Vista?
I installed Vista on my new laptop. Sometimes when I want to run an ARM program, I find that ads1.2 cannot be cracked on Vista. What software do you use on Vista?...
flyingdsp MCU
Please give me some advice on the development of audio driver
I have received a new task to develop a driver for wm8987. What is the audio driver related to? Please give me some advice, thank you....
standby Embedded System
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. LQP03HQ13NH02D
  2. DBAS76-61-42SN059
  3. VJ0805A121KXAMR
  4. MMSZ5238C-V-GS18
  5. PTN0402H2771BSWS
  6. PEG72DS-FIK520
  7. CCDNPO091J2A07603ALF
  8. SIP-4769-00-4221BT
  9. C3030HFWR-2x9P
  10. D2541WV-F-10P-G30
  11. A2006WVU-F-2x5P-MG
  12. 300S-16P黑色材质PA6T

Popular Articles

  1. TQ2440 Uboot USB download modification
  2. What items can be tested by the zinc oxide arrester tester?
  3. ZDS2022 Oscilloscope 100 Practical Specials 30: UART Protocol Trigger
  4. Brief discussion on the lining structure of magnetic flap level gauge
  5. The "path" for car companies to prevent battery packs from catching fire
  6. MeiG Smart exclusively won the bid for China Unicom's 5G AIoT smart module
  7. Renesas Electronics Launches Network Synchronizer and Jitter Attenuator for Optical Transmission and Wired Networks
  8. Pixel 6a aluminum model images appear, looks very similar to Pixel 6/6Pro from all angles
  9. 智能驾驶技术迈出的一大步-奔驰L3智能驾驶技术
  10. ARM Cortex-A9 (tiny 4412)

Technical ResourceMore

  1. FPGA-DDS PCB Diagram
  2. 2019 5G Summit Speech Materials
  3. Power Electronics Installation Basics
  4. Recording box source code, without gitee added
  5. WTK6900H module USB flash drive upgrade method
  6. Labview comprehensive course design
  7. Altium-Common 3D package library (Step) [Common patch] Microphone_WM52BM.rar
  8. Altium Designer schematic library IC.SCHLIB
  9. Visual Assist X v10.0.1233.0 Cracked
  10. Altium Designer schematic library BIS0001.SchLib

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 564  2135  1592  186  170  12  43  33  4  57
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
