HA-2640, HA-2645
Data Sheet
January 3, 2006
FN2904.5
4MHz, High Supply Voltage Operational
Amplifiers
HA-2640 and HA-2645 are monolithic operational amplifiers
which are designed to deliver unprecedented dynamic
specifications for a high voltage internally compensated
device. These dielectrically isolated devices offer very low
values for offset voltage and offset current coupled with
large output voltage swing and common mode input voltage.
For maximum reliability, these amplifiers offer unconditional
output overload protection through current limiting and a chip
temperature sensing circuit. This sensing device turns the
amplifier “off”, when the chip reaches a certain temperature
level.
These amplifiers deliver
±35V
common mode input voltage
range,
±35V
output voltage swing, and up to
±40V
supply
range for use in such designs as regulators, power supplies,
and industrial control systems. 4MHz gain bandwidth and
5V/µs slew rate make these devices excellent components
for high performance signal conditioning applications.
Outstanding input and output voltage swings coupled with a
low 5nA offset current make these amplifiers excitation
designs.
Features
• Output Voltage Swing . . . . . . . . . . . . . . . . . . . . . . .
±35V
• Supply Voltage . . . . . . . . . . . . . . . . . . . . . .
±10V
to
±40V
• Offset Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5nA
• Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4MHz
• Slew Rate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V/µs
• Common Mode Input Voltage Range. . . . . . . . . . . .
±35V
• Output Overload Protection
Applications
• Industrial Control Systems
• Power Supplies
• High Voltage Regulators
• Resolver Excitation
• Signal Conditioning
Ordering Information
PART
NUMBER
HA2-2640-2
HA7-2640-2
HA2-2645-5
HA7-2645-5
PART
MARKING
HA2-2640-2
HA7-2640-2
HA2-2645-5
HA7-2645-5
TEMP.
RANGE
(
o
C)
PACKAGE
PKG.
DWG.
#
-55 to 125 8 Pin Metal Can T8.C
-55 to 125 8 Ld CERDIP
0 to 75
0 to 75
F8.3A
8 Pin Metal Can T8.C
8 Ld CERDIP
F8.3A
Pinouts
HA-2640/2645
(CERDIP)
TOP VIEW
HA-2640/2645
(METAL CAN)
TOP VIEW
COMP
8
BAL
-IN
1
2
8 COMP
BAL 1
7
V+
+IN 3
V- 4
-
+
7 V+
6 OUT
5 BAL
-IN
2
-
+
3
4
V-
5
6
OUT
+IN
BAL
(TO-99 CASE VOLTAGE = FLOATING)
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
|
Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright Intersil Americas Inc. 2001, 2004, 2006. All Rights Reserved
All other trademarks mentioned are the property of their respective owners.
HA-2640, HA-2645
Absolute Maximum Ratings
Voltage Between V+ and V- Terminals . . . . . . . . . . . . . . . . . . 100V
Differential Input Voltage Range . . . . . . . . . . . . . . . . . . . . . . . . 37V
Output Current . . . . . . . . . . . . . . . . . . . . Full Short Circuit Protection
Thermal Information
Thermal Resistance (Typical, Note 1)
θ
JA
(
o
C/W)
θ
JC
(
o
C/W)
CERDIP Package. . . . . . . . . . . . . . . . .
135
50
Metal Can Package . . . . . . . . . . . . . . .
165
80
Maximum Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . .175
o
C
Maximum Storage Temperature Range . . . . . . . . . -65
o
C to 150
o
C
Maximum Lead Temperature (Soldering 10s) . . . . . . . . . . . . 300
o
C
Operating Conditions
Temperature Range
HA-2640-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -55
o
C to 125
o
C
HA-2645-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
o
C to 75
o
C
CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the
device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
NOTE:
1.
θ
JA
is measured with the component mounted on an evaluation PC board in free air.
Electrical Specifications
PARAMETER
INPUT CHARACTERISTICS
Offset Voltage
V
SUPPLY
=
±40V,
R
L
= 5kΩ, Unless Otherwise Specified
TEMP
(
o
C)
HA-2640-2
MIN
TYP
MAX
MIN
HA-2645-5
TYP
MAX
UNITS
TEST CONDITIONS
25
Full
-
2
-
4
6
-
25
50
12
35
-
-
-
-
-
-
-
-
-
40
±35
2
-
15
12
-
15
-
200
-
6
7
-
30
50
30
50
-
-
mV
mV
µV/
o
C
nA
nA
nA
nA
MΩ
V
Average Offset Voltage Drift
Bias Current
Full
25
Full
-
-
-
-
-
50
±35
15
10
-
5
-
250
-
Offset Current
25
Full
Input Resistance (Note 2)
Common Mode Range
TRANSFER CHARACTERISTICS
Large Signal Voltage Gain
V
OUT
=
±30V
V
CM
=
±20V
V
OUT
= 90mV
25
Full
25
Full
100
75
80
1
-
±35
±12
-
-
200
-
100
-
4
-
-
-
-
-
100
75
74
1
-
±35
±10
-
-
200
-
100
-
4
-
-
-
-
-
kV/V
kV/V
dB
V/V
MHz
Common Mode Rejection Ratio
Minimum Stable Gain
Unity Gain Bandwidth
OUTPUT CHARACTERISTICS
Output Voltage Swing
Output Current
Output Resistance
Full Power Bandwidth (Note 3)
Full
25
25
Full
R
L
= 1kΩ
Open Loop
V
OUT
=
±35V
V
OUT
=
±200mV
V
OUT
=
±200mV
25
25
25
-
±15
500
23
-
-
-
-
-
±12
500
23
-
-
-
-
V
mA
Ω
kHz
TRANSIENT RESPONSE
A
V
= +1, C
L
= 50pF, R
L
= 5kΩ
Rise Time
Overshoot
Slew Rate
POWER SUPPLY CHARACTERISTICS
Supply Current
Supply Voltage Range
Power Supply Rejection Ratio
NOTES:
2. This parameter is based upon design calculations.
3. Full Power Bandwidth guaranteed based upon slew rate measurement: FPBW = S.R./2
π
V
PEAK
; V
PEAK
= 35V.
V
S
=
±10V
to
±40V
25
Full
Full
-
±10
80
3.2
-
90
3.8
±40
-
-
±10
74
3.2
-
90
4.5
±40
-
mA
V
dB
25
25
25
-
-
±3
60
15
±5
135
30
-
±2.5
-
60
15
±5
135
40
-
ns
%
V/µs
2
FN2904.5
HA-2640, HA-2645

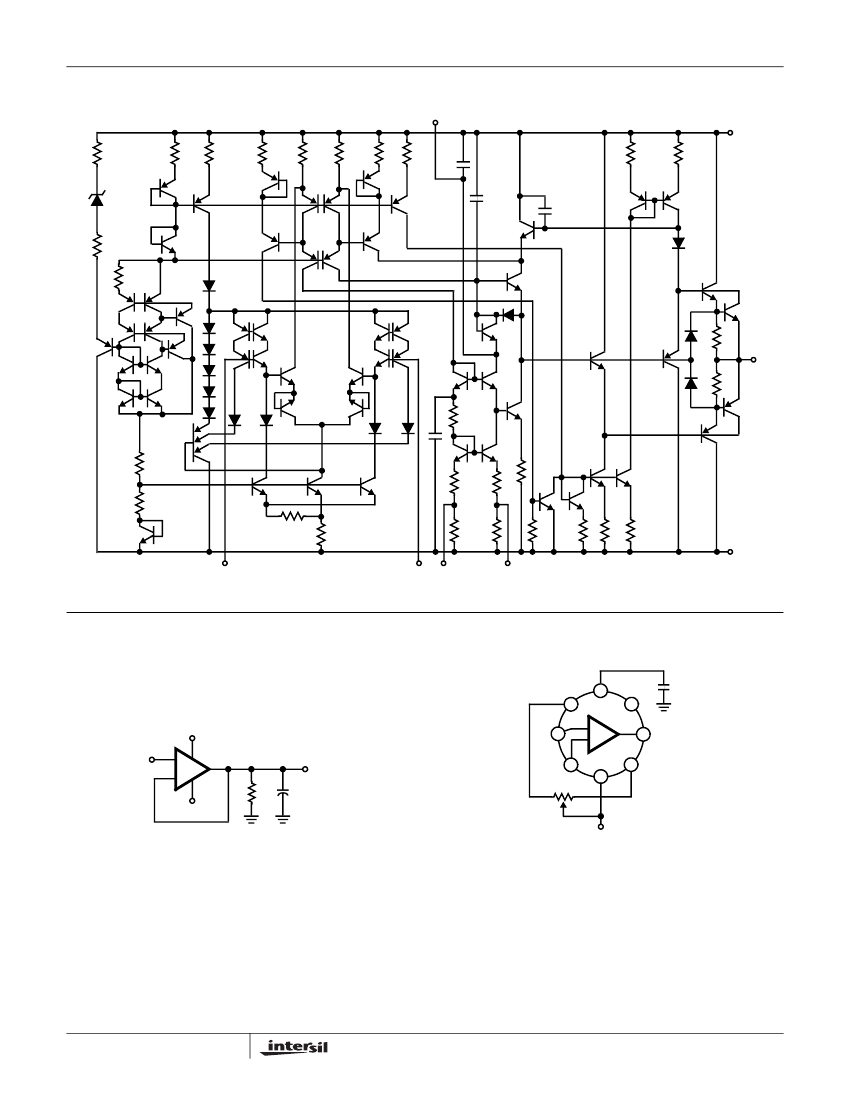

Schematic Diagram
8 COMP
R
25
R
1
Q
1
R
5
Q
17
Q
15
R
6
R
7
Q
28
Q
30
R
25
R
4
Q
3
Q
5
Q
14
Q
7
Q9
Q
8
Q
13
Q
10
Q
4
Q
6
Q
12
Q
61
Q
18
Q
29
Q
31
D
2
D
3
Q
D
4 19
D
5
D
6
D
7
D
8
D
9
R
2
Q
16
Q
25
R
3
Q
11
3 +IN
R
10
R
27
R
11
2 -IN
5
BAL
R
26
1
BAL
R
17
R
18
Q
26
Q
27
Q
20
Q
47
Q
57
Q
59
R
23
6
R
24
D
16
V
OUT
Q
35
R
8
R
9
Q
34
Q
40
C
4
C
3
Q
46
D
13
Q
53
Q
55
R
12
7
V+
C
1
R
21
R
22
D
17
Q
21
Q
22
Q
23
Q
24
Q
32
Q
33
Q
36
Q
37
Q
38
Q
39
Q
41
Q
43
D
12
Q
51
Q
56
D
15
Q
44
Q
48
D
10
D
11
C
2
Q
42
R
13
Q
60
Q
58
R
15
R
14
R
16
Q
49
Q
50
R
19
R
20
Q
52
Q
54
4
V-
Test Circuits and Waveform
COMP
CAP
7
8
1
V+
IN
2
3
10kΩ
5K
V-
V-
50pF
4
-
+
5
6
+
-
OUT
NOTE: Tested offset adjustment range is |V
OS
+1mV| minimum
referred to output. Typical range is
±20mV
with R
T
= 10kΩ.
FIGURE 1. SLEW RATE AND TRANSIENT RESPONSE TEST
CIRCUIT
FIGURE 2. SUGGESTED V
OS
ADJUSTMENT AND
COMPENSATION HOOK UP
3
FN2904.5
HA-2640, HA-2645

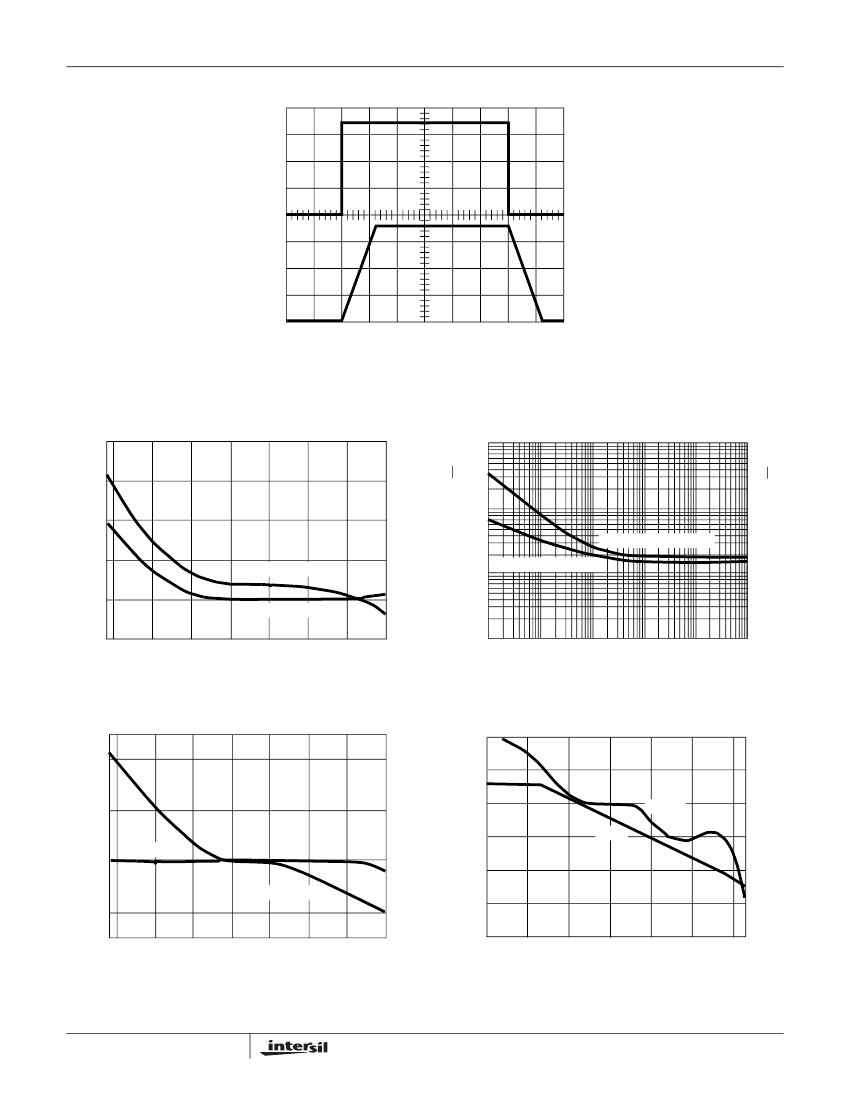

Test Circuits and Waveform
(Continued)
Vertical = 10V/Div., Horizontal = 5µs/Div.
NOTE: R
L
= 5kΩ, C
L
= 50pF, T
A
= 25
o
C, V
S
=
±40V
FIGURE 3. VOLTAGE FOLLOWER PULSE RESPONSE
Typical Performance Curves
25
V
S
=
±40V,
T
A
= 25
o
C, Unless Otherwise Specified
1000
INPUT NOISE VOLTAGE (nV/√Hz)
10
INPUT NOISE CURRENT (pA/√Hz)
PHASE ANGLE (DEGREES)
20
CURRENT (nA)
100
1
15
INPUT NOISE CURRENT
10
INPUT NOISE VOLTAGE
0.1
10
BIAS CURRENT
5
OFFSET CURRENT
0
-50
-25
0
25
50
75
100
125
1
1
10
100
1K
10K
0.01
100K
TEMPERATURE (
o
C)
FREQUENCY (Hz)
FIGURE 4. INPUT BIAS AND OFFSET CURRENT vs
TEMPERATURE
NORMALIZED VALUE REFERRED TO 25
o
C
FIGURE 5. INPUT NOISE CHARACTERISTICS
0
OPEN LOOP VOLTAGE GAIN (dB)
1.4
120
45
1.2
80
GAIN
PHASE
90
40
135
1.0
SLEW RATE
0
180
BANDWIDTH
0.8
-40
225
-50
-25
0
25
50
75
TEMPERATURE (
o
C)
100
125
10
100
1K
10K
100K
1M
10M
270
FREQUENCY (Hz)
FIGURE 6. NORMALIZED AC PARAMETERS vs TEMPERATURE
FIGURE 7. OPEN LOOP FREQUENCY RESPONSE
4
FN2904.5
HA-2640, HA-2645

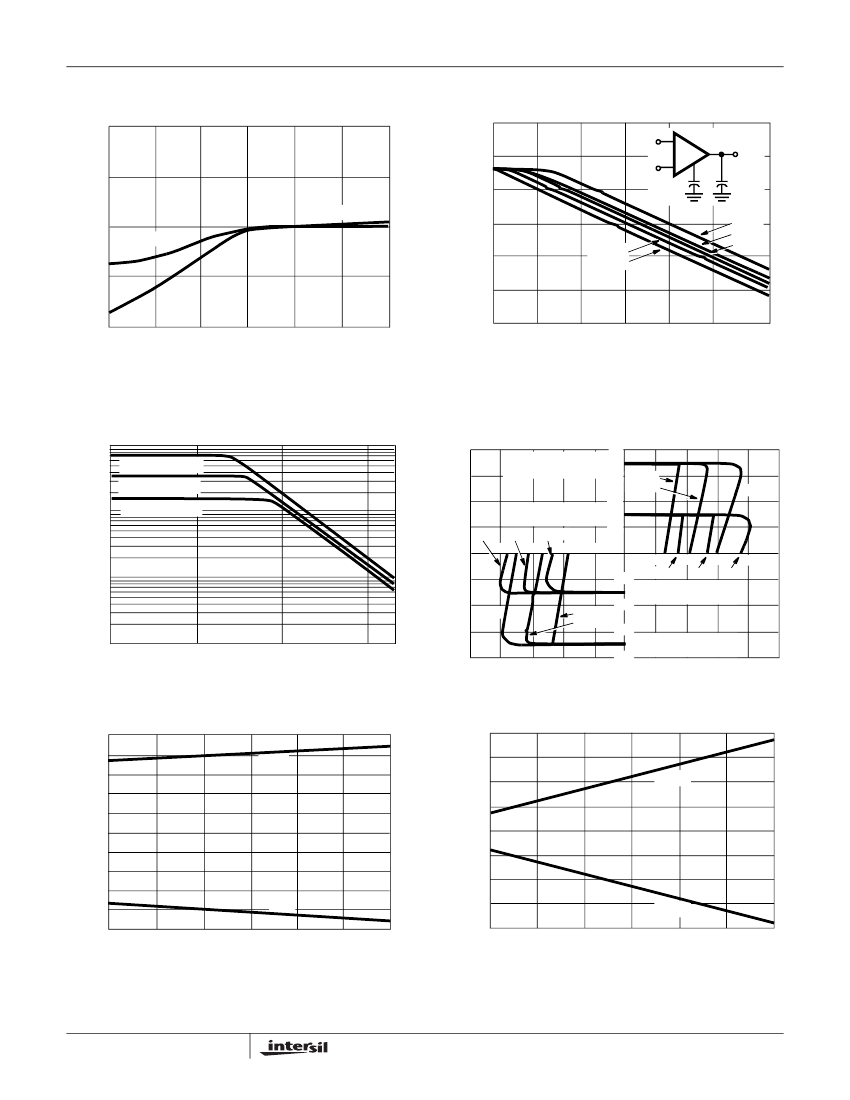

Typical Performance Curves
NORMALIZED VALUE REFERRED TO
±30V
1.2
120
1.1
OPEN LOOP GAIN (dB)
AUT
C
COMP
C
L
=
100pF
V
S
=
±40V,
T
A
= 25
o
C, Unless Otherwise Specified
(Continued)
80
SLEW RATE
1.0
BANDWIDTH
40
300pF
1,000pF
0pF
30pF
100pF
0
0.9
40
0.8
10
20
30
40
10
100
1K
10K
100K
1M
10M
SUPPLY VOLTAGE (±V)
FREQUENCY (Hz)
FIGURE 8. NORMALIZED AC PARAMETERS vs SUPPLY
VOLTAGE AT 25
o
C
FIGURE 9. OPEN LOOP FREQUENCY RESPONSE FOR
VARIOUS VALUES OF CAPACITORS FROM
COMPENSATION PIN TO GROUND
100
OUTPUT VOLTAGE SWING (V
P-P
)
V
SUPPLY
=
±40V
V
SUPPLY
=
±20V
10.0
V
SUPPLY
=
±10V
OUTPUT VOLTAGE (V)
A
V
= 1, V
SUPPLY
=
±20V
V
IN
= +15V
-55
o
C 25
o
C 125
o
C
-20
-15
-10
-5
A
V
= 1, V
SUPPLY
=
±40V
V
IN
= +35V
40
30
20
10
125
o
C
25
o
C
-55
o
C
1.0
-55
o
C
125
o
C
25
o
C
5
10
15
20
125
o
C 25
o
C -55
o
C
-10
A
V
= 1, V
SUPPLY
=
±20V
V
IN
= -15V
-20
-30
-40
0.1
1K
10K
100K
FREQUENCY (Hz)
1M
A
V
= 1, V
SUPPLY
=
±40V
V
IN
= -35V
OUTPUT LOAD CURRENT (mA)
FIGURE 10. OUTPUT VOLTAGE SWING vs FREQUENCY
2.5
OUTPUT VOLTAGE SWING (±V)
2.0
SUPPLY CURRENT (mA)
1.5
1.0
0.5
0
-0.5
-1.0
-1.5
-2.0
-2.5
10
15
20
25
-I
CC
30
35
40
+I
CC
FIGURE 11. OUTPUT CURRENT CHARACTERISTIC
40
30
20
10
0
-10
-20
-30
-40
10
-V
OUT
15
20
25
30
35
40
+V
OUT
SUPPLY VOLTAGE (±V)
SUPPLY VOLTAGE (±V)
FIGURE 12. SUPPLY CURRENT vs SUPPLY VOLTAGE
FIGURE 13. OUTPUT VOLTAGE SWING vs SUPPLY VOLTAGE
5
FN2904.5
京公网安备 11010802033920号
EEWORLD
