XR-083N datasheet, PDF - EEWORLD Datasheet

XR-083N: DescriptionOperational Amplifier, 2 Func, 9000uV Offset-Max, BIPolar, CDIP14, CERAMIC, DIP-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size231KB，4 Pages; ManufacturerExar

Download Datasheet Parametric View All

XR-083N Overview

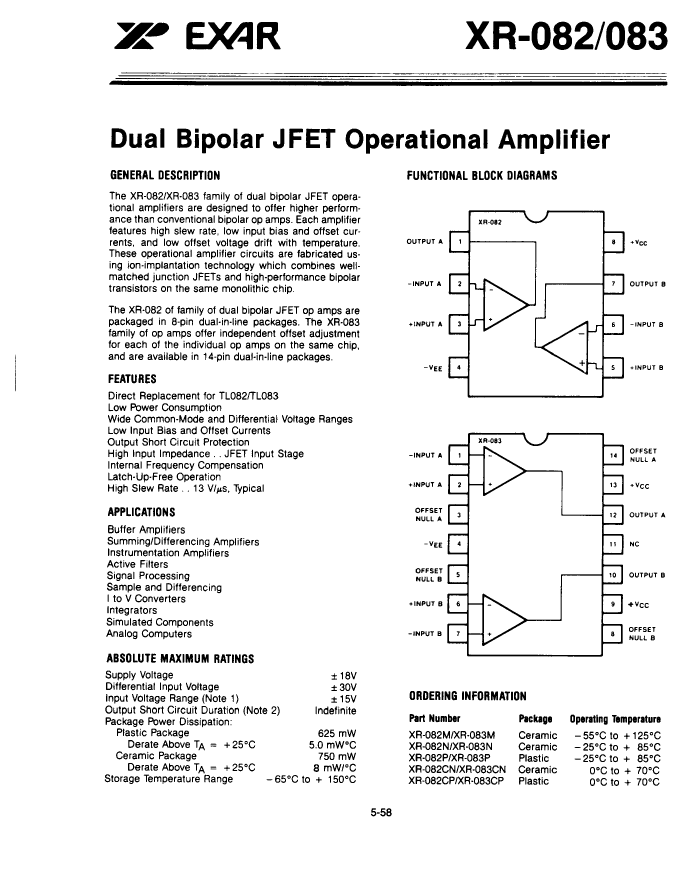

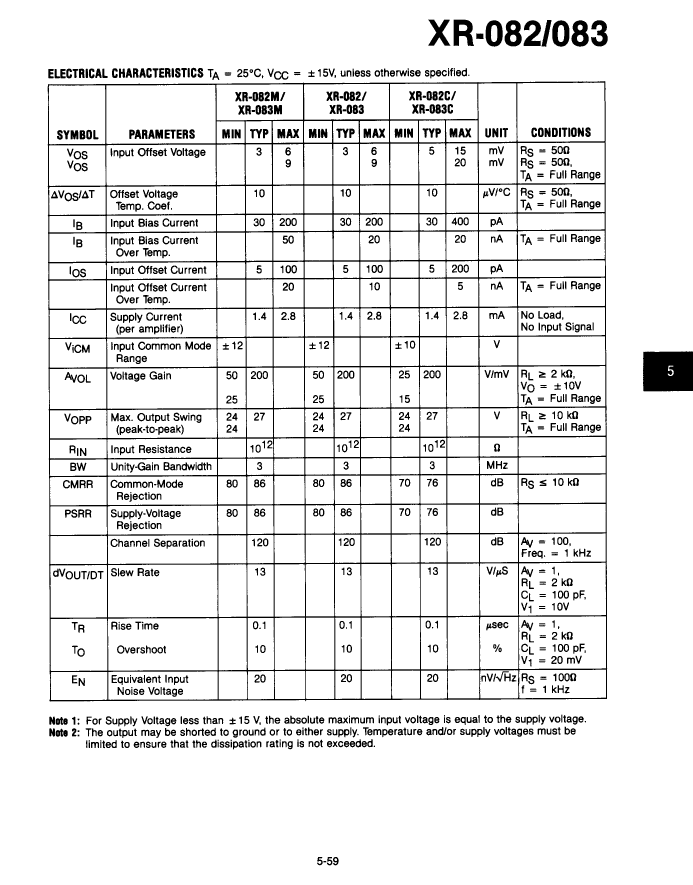

Operational Amplifier, 2 Func, 9000uV Offset-Max, BIPolar, CDIP14, CERAMIC, DIP-14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Exar
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.02 µA
Maximum bias current (IIB) at 25C	0.0002 µA
Nominal Common Mode Rejection Ratio	86 dB
frequency compensation	YES
Maximum input offset voltage	9000 µV
JESD-30 code	R-CDIP-T14
JESD-609 code	e0
low-bias	YES
low-dissonance	NO
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Nominal slew rate	13 V/us
Maximum slew rate	5.6 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	3000 kHz
Minimum voltage gain	25000
