IDT74LVC05APG

Description
Inverter, LVC/LCX/Z Series, 6-Func, 1-Input, CMOS, PDSO14, 0.65 MM PITCH, TSSOP-14
Categorylogic    logic
File Size87KB，5 Pages
ManufacturerIDT (Integrated Device Technology)
Download Datasheet Parametric Compare View All

IDT74LVC05APG Overview

Inverter, LVC/LCX/Z Series, 6-Func, 1-Input, CMOS, PDSO14, 0.65 MM PITCH, TSSOP-14

IDT74LVC05APG Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerIDT (Integrated Device Technology)
Parts packaging codeTSSOP
package instructionTSSOP, TSSOP14,.25
Contacts14
Reach Compliance Codenot_compliant
seriesLVC/LCX/Z
JESD-30 codeR-PDSO-G14
JESD-609 codee0
length5 mm
Load capacitance (CL)50 pF
Logic integrated circuit typeINVERTER
MaximumI(ol)0.024 A
Humidity sensitivity level1
Number of functions6
Number of entries1
Number of terminals14
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output characteristicsOPEN-DRAIN
Package body materialPLASTIC/EPOXY
encapsulated codeTSSOP
Encapsulate equivalent codeTSSOP14,.25
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply3.3 V
Certification statusNot Qualified
Schmitt triggerNO
Maximum seat height1.2 mm
Maximum supply voltage (Vsup)3.6 V
Minimum supply voltage (Vsup)2.3 V
Nominal supply voltage (Vsup)3.3 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceTin/Lead (Sn85Pb15)
Terminal formGULL WING
Terminal pitch0.65 mm
Terminal locationDUAL
width4.4 mm

IDT74LVC05APG Preview

IDT74LVC05A
3.3V CMOS HEX INVERTER WITH OPEN-DRAIN OUTPUTS
EXTENDED COMMERCIAL TEMPERATURE RANGE
3.3V CMOS HEX INVERTER
WITH OPEN-DRAIN OUT-
PUTS, 5 VOLT TOLERANT I/O
FEATURES:
–
–
–
–
–
–
–
–
–
–
0.5 MICRON CMOS Technology
ESD > 2000V per MIL-STD-883, Method 3015;
> 200V using machine model (C = 200pF, R = 0)
1.27mm pitch SOIC, 0.65mm pitch SSOP and
0.65mm pitch TSSOP packages
Extended commercial range of – 40°C to +85°C
V
CC
= 3.3V ±0.3V, Normal Range
V
CC
= 2.3V to 3.6V, Extended Range
CMOS power levels (0.4µ W typ. static)
Rail-to-Rail output swing for increased noise margin
All inputs, outputs and I/O are 5 Volt tolerant
Supports hot insertion
IDT74LVC05A
ADVANCE
INFORMATION
DESCRIPTION:
This hex inverter is built using advanced dual metal CMOS technology.
The outputs of the LVC05A device are open-drain and can be connected
to other open-drain outputs to implement active-low wired-OR or active-
high wired-AND functions. The maximum sink current is 24mA.
The LVC05A has been designed with a +24mA output driver. This driver
is capable of driving a moderate to heavy load while maintaining speed
performance.
Inputs can be driven from either 3.3V or 5V devices. This feature allows
the use of this device as a translator in a mixed 3.3V/5V system environ-
ment.
Drive Features for LVC05A:
– High Output Drivers: +24mA
– Reduced system switching noise
APPLICATIONS:
• 5V and 3.3V mixed voltage systems
• Data communication and telecommunication systems
Functional Block Diagram
PIN CONFIGURATION
A
0
O
0
1
2
3
4
5
6
7
14
13
12
(SO14-1)
11
(SO14-2)
(SO14-3)
V
CC
A
3
O
3
A
4
O
4
A
5
O
5
Ax
Ox
A
1
O
1
A
2
O
2
GND
10
9
8
SOIC/ SSOP/ TSSOP
TOP VIEW
FUNCTION TABLE
(each inverter)
(1)
Inputs
Ax
L
H
NOTE:
1. H = HIGH Voltage Level
L = LOW Voltage Level
Outputs (with pull-up)
Ox
H
L
PIN DESCRIPTION
Pin Names
Ax
Ox
Description
Data Inputs
Data Outputs
EXTENDED COMMERCIAL TEMPERATURE RANGE
1
c
1999 Integrated Device Technology, Inc.
FEBRUARY 1999
DSC-5164/-
IDT74LVC05A
3.3V CMOS HEX INVERTER WITH OPEN-DRAIN OUTPUTS
EXTENDED COMMERCIAL TEMPERATURE RANGE
ABSOLUTE MAXIMUM RATINGS
(1)
Symbol
V
TERM(2)
V
TERM(3)
T
STG
I
OUT
I
IK
I
OK
I
CC
I
SS
Description
Terminal Voltage with Respect to GND
Terminal Voltage with Respect to GND
Storage Temperature
DC Output Current
Continuous Clamp Current,
V
I
< 0 or V
O
< 0
Continuous Current through
each V
CC
or GND
LVC QUAD Link
CAPACITANCE
(T
A
= +25°C, f = 1.0MH
Z
)
Unit
V
V
°C
mA
mA
mA
Symbol
C
IN
C
OUT
C
I/O
Parameter
(1)
Input Capacitance
Output
Capacitance
I/O Port
Capacitance
LVC QUAD Link
Max.
– 0.5 to +6.5
– 0.5 to +6.5
– 65 to +150
– 50 to +50
– 50
±100
Conditions
V
IN
= 0V
V
OUT
= 0V
V
IN
= 0V
Typ.
4.5
5.5
6.5
Max.
6
8
8
Unit
pF
pF
pF
NOTE:
1. As applicable to the device type.
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM
RATINGS may cause permanent damage to the device. This is a
stress rating only and functional operation of the device at these or
any other conditions above those indicated in the operational sections
of this specification is not implied. Exposure to absolute maximum
rating conditions for extended periods may affect reliability.
2. V
CC
terminals.
3. All terminals except V
CC
.
DC ELECTRICAL CHARACTERISTICS OVER OPERATING RANGE
Following Conditions Apply Unless Otherwise Specified:
Operating Condition: T
A
= – 40°c to +85°c
Symbol
V
IH
V
IL
I
IH
I
IL
I
OZH
I
OZL
I
OFF
V
IK
V
H
I
CCL
I
CCH
I
CCZ
∆I
CC
Parameter
Input HIGH Voltage Level
Input LOW Voltage Level
Input Leakage Current
High Impedance Output Current
(3-State Output pins)
Input/Output Power Off Leakage
Clamp Diode Voltage
Input Hysteresis
Quiescent Power Supply Current
V
CC
= 0V, V
IN
or V
O
≤5.5V
V
CC
= 2.3V, I
IN
= – 18mA
V
CC
= 3.3V
V
CC
= 3.6V
V
IN
= GND or V
CC
—
—
—
—
—
– 0.7
100
—
±50
– 1.2
—
10
µA
V
mV
µA
Test Conditions
V
CC
= 2.3V to 2.7V
V
CC
= 2.7V to 3.6V
V
CC
= 2.3V to 2.7V
V
CC
= 2.7V to 3.6V
V
CC
= 3.6V
V
CC
= 3.6V
V
I
= 0 to 5.5V
V
O
= 0 to 5.5V
Min.
1.7
2
—
—
—
—
Typ.
(1)
—
—
—
—
—
—
Max.
—
—
0.7
0.8
±5
±10
µA
µA
V
Unit
V
Quiescent Power Supply
Current Variation
One input at V
CC
– 0.6V
other inputs at V
CC
or GND
—
—
500
µA
LVC QUAD Link
NOTE:
1. Typical values are at V
CC
= 3.3V, +25°C ambient.
c
1998 Integrated Device Technology, Inc.
2
DSC-123456
IDT74LVC05A
3.3V CMOS HEX INVERTER WITH OPEN-DRAIN OUTPUTS
EXTENDED COMMERCIAL TEMPERATURE RANGE
OUTPUT DRIVE CHARACTERISTICS
Symbol
V
OL
Parameter
Output LOW Voltage
V
CC
Test Conditions
(1)
= 2.3V to 3.6V
I
OL
= 0.1mA
I
OL
= 6mA
I
OL
= 12mA
V
CC
= 2.7V
V
CC
= 3.0V
I
OL
= 12mA
I
OL
= 24mA
Min.
—
—
—
—
—
Max.
0.2
0.4
0.7
0.4
0.55
Unit
V
V
CC
= 2.3V
NOTE:
1. V
IH
and V
IL
must be within the min. or max. range shown in the DC ELECTRICAL CHARACTERISTICS OVER OPERATING RANGE table for the
appropriate V
CC
range. T
A
= – 40°C to +85°C.
OPERATING CHARACTERISTICS, TA = 25°C
V
CC
= 2.5V±0.2V
Symbol
C
PD
Parameter
Power dissipation capacitance per buffer/driver
Test Conditions
C
L
= 0pF, f = 10Mhz
Typical
V
CC
= 3.3V±0.3V
Typical
Unit
pF
SWITCHING CHARACTERISTICS
(1)
V
CC
= 2.5V±0.2V
Symbol
Parameter
t
PHL
Propagation Delay
xA to xY
t
SK
(o) Output Skew
(2)
Min.
Max.
Min.
V
CC
= 2.7V
Max.
V
CC
= 3.3V±0.3V
Min.
Max.
Unit
ns
ps
NOTES:
1. See test circuits and waveforms. T
A
= – 40°C to + 85°C.
2. Skew between any two outputs of the same package and switching in the same direction.
3
IDT74LVC05A
3.3V CMOS HEX INVERTER WITH OPEN-DRAIN OUTPUTS
EXTENDED COMMERCIAL TEMPERATURE RANGE
TEST CONDITIONS
Symbol
V
LOAD
V
IH
V
T
V
LZ
V
HZ
C
L
V
CC
(1)
= 2.5V ±0.2V
2 x Vcc
Vcc
V
CC
/ 2
150
150
30

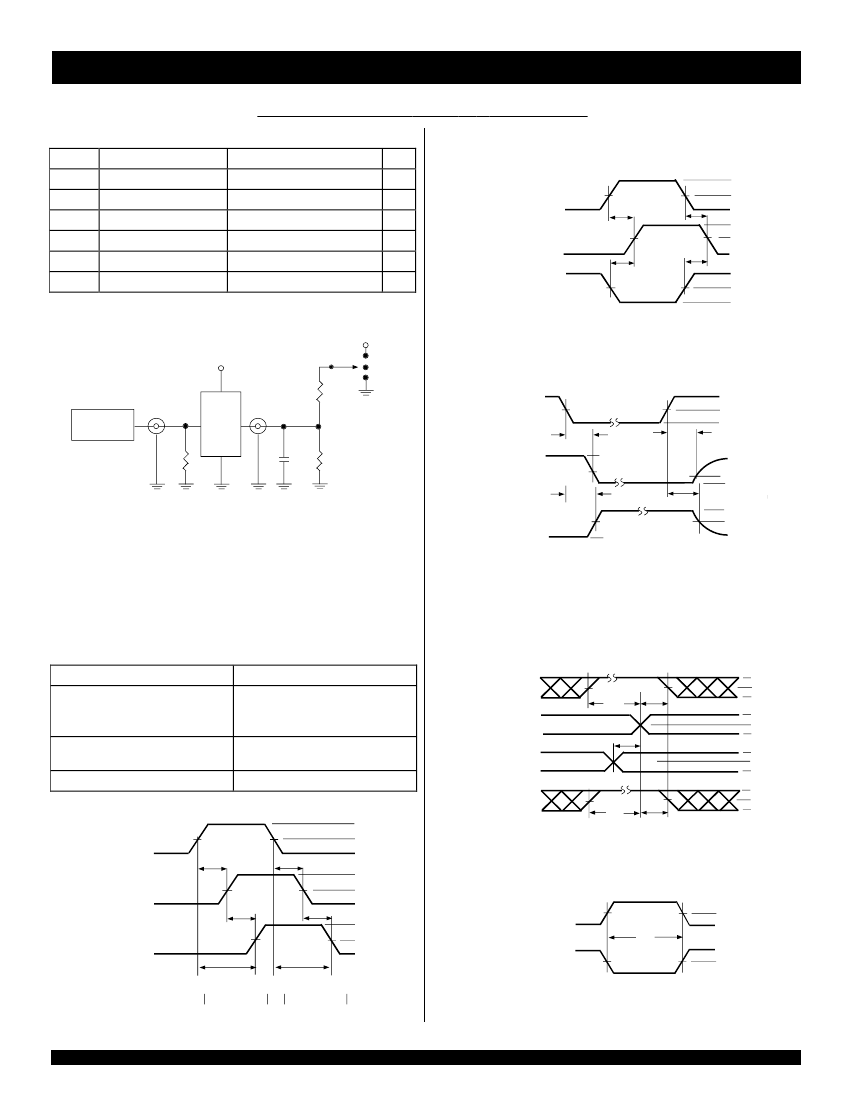

TEST CIRCUITS AND WAVEFORMS
PROPAGATION DELAY
V
CC
(2)
= 3.3V ±0.3V & 2.7V
6
2.7
1.5
300
300
50
Unit
V
V
V
mV
mV
pF
LVC QUAD Link
SA M E PH AS E
IN PU T TR AN S ITIO N
t
PLH
O U TPU T
t
PLH
O PPO SITE P H AS E
IN PU T TR AN S ITIO N
t
PH L
t
PH L
V
IH
V
T
0V
V
OH
V
T
V
OL
V
IH
V
T
0V
LV C Q U A D L in k
TEST CIRCUITS FOR ALL OUTPUTS
V
CC
500
Ω
Pulse
G enerator
(1, 2)
V
LOAD
O pen
GND
ENABLE AND DISABLE TIMES
EN ABLE
C O N TR O L
IN PU T
t
PZL
t
PLZ
V
LOAD/2
V
T
t
PH Z
V
T
0V
D ISAB LE
V
IH
V
T
0V
V
LOAD/2
V
LZ
V
OL
V
OH
V
HZ
0V
LV C Q U A D L in k
V
IN
D.U.T.
V
OUT
R
T
500
Ω
C
L
L V C Q U A D L in k
DEFINITIONS:
C
L
= Load capacitance: includes jig and probe capacitance.
R
T
=
Termination resistance: should be equal to Z
OUT
of the Pulse
Generator.
NOTES:
1. Pulse Generator for All Pulses: Rate
≤
10MHz; t
F
≤
2ns; t
R
≤
2ns.
2. Pulse Generator for All Pulses: Rate
≤
10MHz; t
F
≤
2.5ns; t
R
≤
2.5ns.
O U TPU T
SW ITCH
N O R M ALLY
CLO SED
LO W
t
PZH
O U TPU T
SW ITCH
N O R M ALLY
OP EN
H IGH
NOTE:
1. Diagram shown for input Control Enable-LOW and input Control
Disable-HIGH.
SWITCH POSITION
Test
Open Drain
Disable Low
Enable Low
Disable High
Enable High
All Other tests
Switch
V
LOAD
SET-UP, HOLD, AND RELEASE TIMES
D A TA
IN PU T
TIM IN G
IN PU T
t
SU
t
H
V
IH
V
T
0V
V
IH
V
T
0V
V
IH
V
T
0V
V
IH
V
T
0V
L V C Q U A D L in k
GND
Open
LVC QUAD Link
SY N C H RO N O U S
C O N TR O L
t
REM
OUTPUT SKEW - tsk (x)
IN PU T
t
PLH1
t
PH L1
V
IH
V
T
0V
V
OH
AS YN C H RO N O U S
C O N TR O L
t
SU
t
H
PULSE WIDTH
LO W -H IG H -LO W
PU LSE
t
W
H IGH -LO W -H IG H
PU LSE
V
T
LV C Q U A D L in k
O U TP U T 1
t
SK
(x)
t
SK
(x)
V
T
V
OL
V
OH
V
T
O U TP U T 2
t
PLH2
t
PH L2
V
T
V
OL
t
SK
(x)
= t
PL H2
-
t
PLH1
or
t
PH L2
-
t
PHL1
LV C Q U A D L in k
NOTES:
1. For t
SK
(o) OUTPUT1 and OUTPUT2 are any two outputs.
2. For t
SK
(b) OUTPUT1 and OUTPUT2 are in the same bank.
4
IDT74LVC05A
3.3V CMOS HEX INVERTER WITH OPEN-DRAIN OUTPUTS
EXTENDED COMMERCIAL TEMPERATURE RANGE
ORDERING INFORMATION
XXX
XX
LVC
IDT
Temp. R ange
Device Type
XX
Package
DC
PY
PG
05A
Sm all Outline IC (SO 14-1)
Shrink Sm all Outline Package (SO14-2)
Thin Shrink Small Outline Package (SO14-3)
Hex Inverter with Open Drain Outputs, +24m A
– 40°C to +85°C
74
CORPORATE HEADQUARTERS
2975 Stender Way
Santa Clara, CA 95054
for SALES:
800-345-7015 or 408-727-6116
fax: 408-492-8674
www.idt.com*
*To search for sales office near you, please click the sales button found on our home page or dial the 800# above and press 2.
The IDT logo is a registered trademark of Integrated Device Technology, Inc.
5
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

IDT74LVC05APG Related Products

IDT74LVC05APG IDT74LVC05ADC IDT74LVC05APY
Description Inverter, LVC/LCX/Z Series, 6-Func, 1-Input, CMOS, PDSO14, 0.65 MM PITCH, TSSOP-14 Inverter, LVC/LCX/Z Series, 6-Func, 1-Input, CMOS, PDSO14, 1.27 MM PITCH, SOIC-14 Inverter, LVC/LCX/Z Series, 6-Func, 1-Input, CMOS, PDSO14, 0.65 MM PITCH, SSOP-14
Is it Rohs certified? incompatible incompatible incompatible
Maker IDT (Integrated Device Technology) IDT (Integrated Device Technology) IDT (Integrated Device Technology)
Parts packaging code TSSOP SOIC SSOP
package instruction TSSOP, TSSOP14,.25 SOP, SOP14,.25 SSOP, SSOP14,.3
Contacts 14 14 14
Reach Compliance Code not_compliant not_compliant _compli
series LVC/LCX/Z LVC/LCX/Z LVC/LCX/Z
JESD-30 code R-PDSO-G14 R-PDSO-G14 R-PDSO-G14
JESD-609 code e0 e0 e0
length 5 mm 8.65 mm 6.2 mm
Load capacitance (CL) 50 pF 50 pF 50 pF
Logic integrated circuit type INVERTER INVERTER INVERTER
MaximumI(ol) 0.024 A 0.024 A 0.024 A
Number of functions 6 6 6
Number of entries 1 1 1
Number of terminals 14 14 14
Maximum operating temperature 85 °C 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C -40 °C
Output characteristics OPEN-DRAIN OPEN-DRAIN OPEN-DRAIN
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code TSSOP SOP SSOP
Encapsulate equivalent code TSSOP14,.25 SOP14,.25 SSOP14,.3
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE, THIN PROFILE, SHRINK PITCH SMALL OUTLINE SMALL OUTLINE, SHRINK PITCH
power supply 3.3 V 3.3 V 3.3 V
Certification status Not Qualified Not Qualified Not Qualified
Schmitt trigger NO NO NO
Maximum seat height 1.2 mm 1.75 mm 2 mm
Maximum supply voltage (Vsup) 3.6 V 3.6 V 3.6 V
Minimum supply voltage (Vsup) 2.3 V 2.3 V 2.3 V
Nominal supply voltage (Vsup) 3.3 V 3.3 V 3.3 V
surface mount YES YES YES
technology CMOS CMOS CMOS
Temperature level INDUSTRIAL INDUSTRIAL INDUSTRIAL
Terminal surface Tin/Lead (Sn85Pb15) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form GULL WING GULL WING GULL WING
Terminal pitch 0.65 mm 1.27 mm 0.65 mm
Terminal location DUAL DUAL DUAL
width 4.4 mm 3.9 mm 5.3 mm

Recommended Resources

voltage amplifier circuit

Amplifiers with floating power supply

Yale brand FB-12A heating and cooling fan circuit diagram

Anbaolo MA-2318 mechanical microwave oven circuit diagram

STK0039 power amplifier circuit

Dawn and dusk light control switch circuit

EEWORLD University ---- Introduction to MSP430FR2311
MSP430FR2311 Introduction : https://training.eeworld.com.cn/course/3864...
hi5 Microcontroller MCU
EDA Software Information
[i=s] This post was last edited by paulhyde on 2014-9-15 09:09 [/i] EDA software information...
renchunyan Electronics Design Contest
Help: 430 and temperature and humidity sensor SHT10
Hello brothers, I recently used 430F149 to connect the temperature and humidity sensor SHT10 to measure temperature and humidity, but I can't read the data. Please help me look at the program. DATA: P...
lovablehua Microcontroller MCU
Detailed explanation of AVR microcontroller ATMEGA88PA-MU
The main features of ATmega88PA-MU are as follows:High performance, low power 8-bit AVR microprocessor Advanced RISC architecture131 instructions – most instructions execute in a single clock cycle 32...
estgdan Microchip MCU
【R7F0C809】Smart alarm clock
[i=s]This post was last edited by tianyingkeji on 2015-11-22 23:48[/i] Communication protocol:Source code:Introduction video: [media=x,500,375]http://v.youku.com/v_show/id_XMTM5MzQ5MDc1Ng==.html[/medi...
tianyingkeji Renesas Electronics MCUs
Please help me, the problem cannot be solved!
Problem description: 1. At the high level of the 4-channel control signal, disconnect S1 and S2, close S3, and charge capacitor C2. 2. At the high level of the 2-channel control signal, disconnect S3 ...
panchhunhui Analog electronics
Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. LA7470V
  2. 2200CAF600223EA
  3. 2200RGH200223SB
  4. JANTXV1N371CUR
  5. D47J-Q1YD
  6. 230627313248
  7. C410C105J1R5HA7200
  8. 1812N822G501SX100HM
  9. C4201HF-4P
  10. A2501WR-5P-OR
  11. A2541HWR-14P-T
  12. 0805W8D3300T5E

Popular Articles

  1. Velodyne to Demonstrate Advanced LiDAR Technology at IAA Mobility
  2. There are problems with the casing of domestically produced level measuring instruments
  3. The national standard for charging and swapping has been implemented. What opportunities for explosive growth will it bring?
  4. NXP and Horizon Robotics reach strategic cooperation
  5. OmniVision's first 5-megapixel global shutter sensor for in-vehicle monitoring systems
  6. Samsung lags behind Apple in AR and VR due to its obsession with foldable smartphones
  7. Key points of 89C51 microcontroller interrupt knowledge
  8. MCS-51 microcontroller storage address space division
  9. CEVA Acquires VisiSonics Spatial Audio Business
  10. Wiring methods for different output modes of material level switch

Technical ResourceMore

  1. Inductor boost circuit principle
  2. Personal 3D connector library: XH2.54-5
  3. Practical Software Testing Methods and Applications (Integration Testing)
  4. TI Battery Fuel Monitoring Basics Training
  5. This is the source code for the MSP430F449 microcontroller using the clock crystal to obtain the real-time clock and on-chip ad conversion control
  6. CPCI Board PCB Design Considerations
  7. Two-color illustrated explanation of capacitors and their application circuits
  8. stm32f407 example
  9. Atmel component library (component library, package library, 3D library)
  10. Complete AD package library Altium official download-1

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1528  1869  1864  2919  2033  31  38  59  41  1
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
