SY100EPT22VKZ-TR datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> SY100EPT22VKZ-TR

SY100EPT22VKZ-TR: DescriptionDUAL TTL/CMOS TO PECL TRANSLATOR, COMPLEMENTARY OUTPUT, PDSO8; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size70KB，5 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SY100EPT22VKZ-TR Overview

DUAL TTL/CMOS TO PECL TRANSLATOR, COMPLEMENTARY OUTPUT, PDSO8

SY100EPT22VKZ-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Microchip
package instruction	LEAD FREE, MSOP-8
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	CAN ALSO OPERATE WITH 5V SUPPLY
maximum delay	0.6 ns
Interface integrated circuit type	TTL/CMOS TO PECL TRANSLATOR
JESD-30 code	S-PDSO-G8
JESD-609 code	e4
length	3 mm
Humidity sensitivity level	1
Number of digits	1
Number of functions	2
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature
Output latch or register	NONE
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	SQUARE
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
Temperature level	OTHER
Terminal surface	NICKEL PALLADIUM GOLD
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	3 mm

Preview

Download Datasheet

View All

Micrel

3.3V/5V DUAL

LVTTL/LVCMOS-to-DIFFERENTIAL

LVPECL TRANSLATOR

ECL Pro™

SY100EPT22V

ECL Pro™

SY100EPT22V

FEATURES

3.3V and 5V power supply option

300ps typical propagation delay

Differential LVPECL outputs

Max 25mA

PNP LVTTL inputs for minimal loading

ECL Pro™

DESCRIPTION

The SY100EPT22V is a dual TTL/CMOS to differential

PECL translator. Capable of running from a 3.3 or 5V

supply, the part can be used in either LVTTL/LVCMOS/

LVPECL or TTL/CMOS/PECL systems.

The device only requires a single positive supply of

3.3V or 5V - no negative supply is required.

The tiny 8-pin MSOP package and the low skew, dual

gate design of the EPT22V makes it ideal for those

applications where space, performance, and low power

are at a premium.

Flow-through pinouts

Q outputs will default HIGH with inputs open

Max. frequency range 800MHz

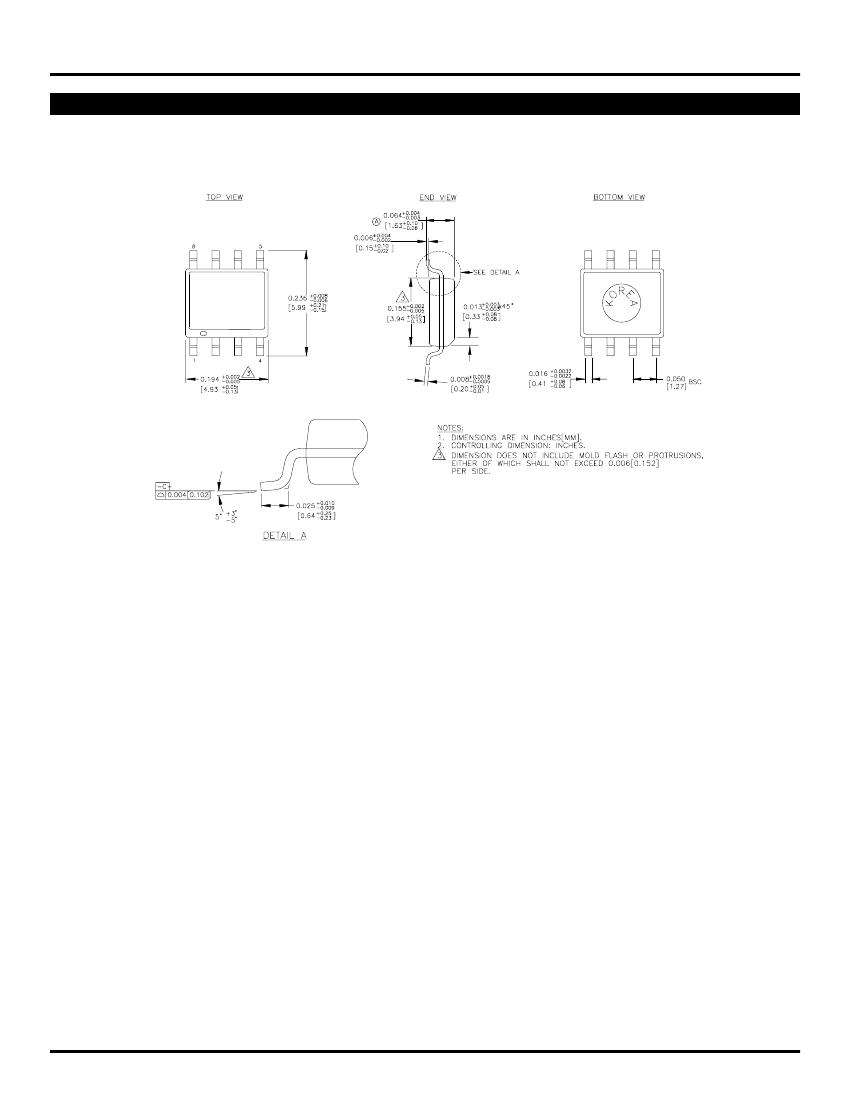

Available in 8-pin MSOP and SOIC package

PIN CONFIGURATION/BLOCK DIAGRAM

Q0 1

/Q0 2

LVPECL

LVTTL

8 V

7 D0

6 D1

5 GND

PIN NAMES

, /Q

, Q

, /Q

, D

GND

Function

Differential LVPECL Outputs

LVTTL Inputs

Positive Supply

Ground

Q1 3

/Q1 4

(Available in 8-pin SOIC and 8-pin MSOP)

ECL Pro is a trademark of Micrel, Inc.

M9999-090704

hbwhelp@micrel.com or (408) 955-1690

Rev.: D

Amendment: /0

Issue Date: September 2004

SY100EPT22VKZ-TR Related Products

	SY100EPT22VKZ-TR	SY100EPT22VKYTR	SY100EPT22VKZTR	SY100EPT22VZZTR	SY100EPT22VZYTR
Description	DUAL TTL/CMOS TO PECL TRANSLATOR, COMPLEMENTARY OUTPUT, PDSO8	DUAL TTL/CMOS TO PECL TRANSLATOR, COMPLEMENTARY OUTPUT, PDSO8, LEAD FREE, MSOP-8	DUAL TTL/CMOS TO PECL TRANSLATOR, COMPLEMENTARY OUTPUT, PDSO8, LEAD FREE, MSOP-8	DUAL TTL/CMOS TO PECL TRANSLATOR, COMPLEMENTARY OUTPUT, PDSO8, LEAD FREE, PLASTIC, SOIC-8	DUAL TTL/CMOS TO PECL TRANSLATOR, COMPLEMENTARY OUTPUT, PDSO8, LEAD FREE, PLASTIC, SOIC-8
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Microchip	Microchip	Microchip	Microchip	Microchip
package instruction	LEAD FREE, MSOP-8	TSSOP,	TSSOP,	SOP,	SOP,
Reach Compliance Code	compliant	compli	compli	compli	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	CAN ALSO OPERATE WITH 5V SUPPLY	CAN ALSO OPERATE WITH 5V SUPPLY	CAN ALSO OPERATE WITH 5V SUPPLY	CAN ALSO OPERATE WITH 5V SUPPLY	CAN ALSO OPERATE WITH 5V SUPPLY
maximum delay	0.6 ns	0.6 ns	0.6 ns	0.6 ns	0.6 ns
Interface integrated circuit type	TTL/CMOS TO PECL TRANSLATOR	TTL/CMOS TO PECL TRANSLATOR	TTL/CMOS TO PECL TRANSLATOR	TTL/CMOS TO PECL TRANSLATOR	TTL/CMOS TO PECL TRANSLATOR
JESD-30 code	S-PDSO-G8	S-PDSO-G8	S-PDSO-G8	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e4	e4	e4	e3	e3
length	3 mm	3 mm	3 mm	4.93 mm	4.93 mm
Humidity sensitivity level	1	1	1	1	1
Number of digits	1	1	1	1	1
Number of functions	2	2	2	2	2
Number of terminals	8	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Output latch or register	NONE	NONE	NONE	NONE	NONE
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP	TSSOP	SOP	SOP
Package shape	SQUARE	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.1 mm	1.1 mm	1.1 mm	1.73 mm	1.73 mm
Maximum supply voltage	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V
Minimum supply voltage	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES
Temperature level	OTHER	INDUSTRIAL	OTHER	OTHER	INDUSTRIAL
Terminal surface	NICKEL PALLADIUM GOLD	NICKEL PALLADIUM GOLD	NICKEL PALLADIUM GOLD	MATTE TIN	MATTE TIN
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	40	40	40	40
width	3 mm	3 mm	3 mm	3.94 mm	3.94 mm
Is it lead-free?	-	Lead free	Lead free	Lead free	Lead free
Parts packaging code	-	MSOP	MSOP	SOIC	SOIC
Contacts	-	8	8	8	8
