DR-11800D4-824W datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> converter> DR-11800D4-824W

DR-11800D4-824W: DescriptionDigital to Synchro or Resolver, Hybrid, CQIP28, 1 X 1 INCH, 0.210 INCH HEIGHT, HERMETIC SEALED PACKAGE-28; CategoryAnalog mixed-signal IC converter; File Size351KB，8 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric View All

DR-11800D4-824W Overview

Digital to Synchro or Resolver, Hybrid, CQIP28, 1 X 1 INCH, 0.210 INCH HEIGHT, HERMETIC SEALED PACKAGE-28

DR-11800D4-824W Parametric

Parameter Name	Attribute value
Maker	Data Device Corporation
Parts packaging code	QFP
package instruction	1 X 1 INCH, 0.210 INCH HEIGHT, HERMETIC SEALED PACKAGE-28
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum angular accuracy	2 arc min
Converter type	DIGITAL TO SYNCHRO OR RESOLVER
JESD-30 code	S-CQIP-P28
length	25.2 mm
Maximum negative supply voltage	-16.5 V
Minimum negative supply voltage	-13.5 V
Nominal negative supply voltage	-15 V
Number of digits	16
Number of functions	1
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QIP
Package shape	SQUARE
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.08 mm
Signal/output frequency	1000 Hz
Maximum supply voltage	16.5 V
Minimum supply voltage	13.5 V
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	QUAD
width	20.32 mm

Preview

Download Datasheet

View All

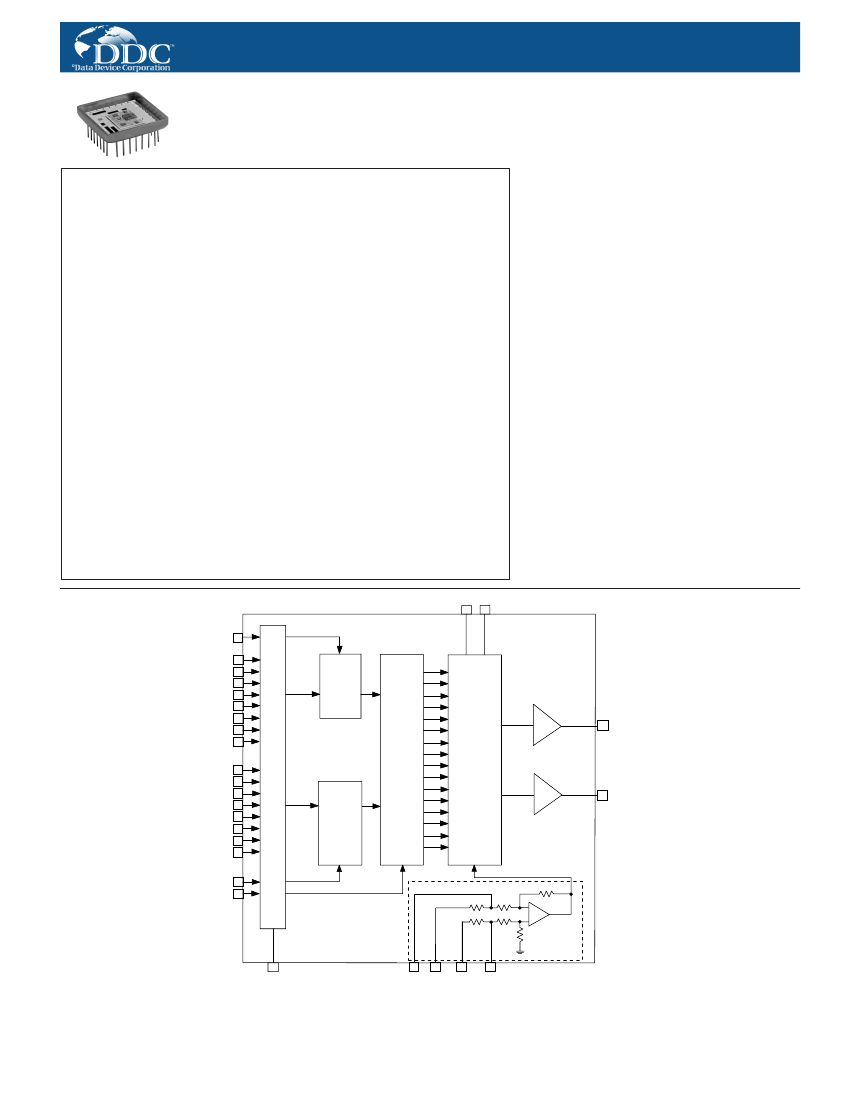

DR-11800

16-BIT DIGITAL-TO-RESOLVER CONVERTER

DESCRIPTION

The DR-11800 is a small size, high

accuracy, 16-bit digital-to-sine/cosine

converter. Available in accuracies up

to 1 arc minute, the DR-11800 is con-

tained in a 28-pin, one-square-inch

hermetically sealed package and

requires +15 Vdc and -15 Vdc power

supplies. The reference conditioner

allows for either 115 Vrms or 26 Vrms

reference input for a 6.8 Vrms sin/cos

output. Two registers for the input of

the 16-bit (CMOS/TTL) natural binary

angle data allow for compatibility with

an 8-bit or 16-bit data bus.

Internally, the DR-11800 has a multi-

plying digital-to-sin/cos converter

made of two function generators and

a quadrant select network. Quadrant

information is available from the two

most significant bits. The two function

generators use the remaining angular

data along with the buffered reference

voltage. Similar to a multiplying DAC

(digital-to-analog converter), the DR-

11800 uses high accuracy resistive

ladder networks and solid state

switching to control the attenuation of

the reference voltage. The output

buffer amplifiers allow for up to 2 mA

output drive.

FEATURES

•

28-Pin Square Package

•

1 Arc Minute Accuracy

•

0.03% Radius Accuracy

•

Microprocessor Compatible -

8- and 16-Bit

APPLICATIONS

High accuracy, high reliability, small

size, low power consumption and

MIL-PRF-38534 processing avail-

ability, make the DR-11800 suitable

for industrial and military ground or

avionics applications. Possible appli-

cations include digital remote posi-

tioning, resolver angle simulators,

flight trainer, flight instrumentation,

radar and navigational systems, and

PPI displays including moving target

indicators. Other applications are syn-

chro/resolver system development

and test, and wraparound test of syn-

chro/resolver-to-digital converters.

•

Double-Buffered Inputs

•

Pin-Programmable Reference

Input (for 26 and 115 Vrms)

•

DC-Coupled Reference and

Outputs

•

Requires Only ±15 V Power

Supplies

•

TTL and CMOS Compatible

•

Pin-for-Pin Replacement for

Natel’s HDR2406

–V

HBE 9

(MSB) B1 1

B2 2

B3 3

B4 4

B5 5

B6 6

INPUT BUFFERS

B7 7

B8 8

16-BIT

HOLDING

16-BIT

HIGH

ACCURACY

MULTIPLYING

DIGITAL

TO SIN / COS

CONVERTER

8-BIT

INPUT

(MSB

BIT 1)

28 SINθ

B9 11

B10 12

B11 13

B12 14

B13 15

B14 16

B15 17

(LSB) B16 18

BUFFER

AMPLIFIERS

20 COSθ

8-BIT

INPUT

Q16

CK PE

BIT 16

(LSB)

LBE 10

LDC 19

REFERENCE

CONDITIONER

GND

RL26 RH115 RL115

RH26

FIGURE 1. DR-11800 BLOCK DIAGRAM

1996, 1999 Data Device Corporation
