RS2A - RS2M

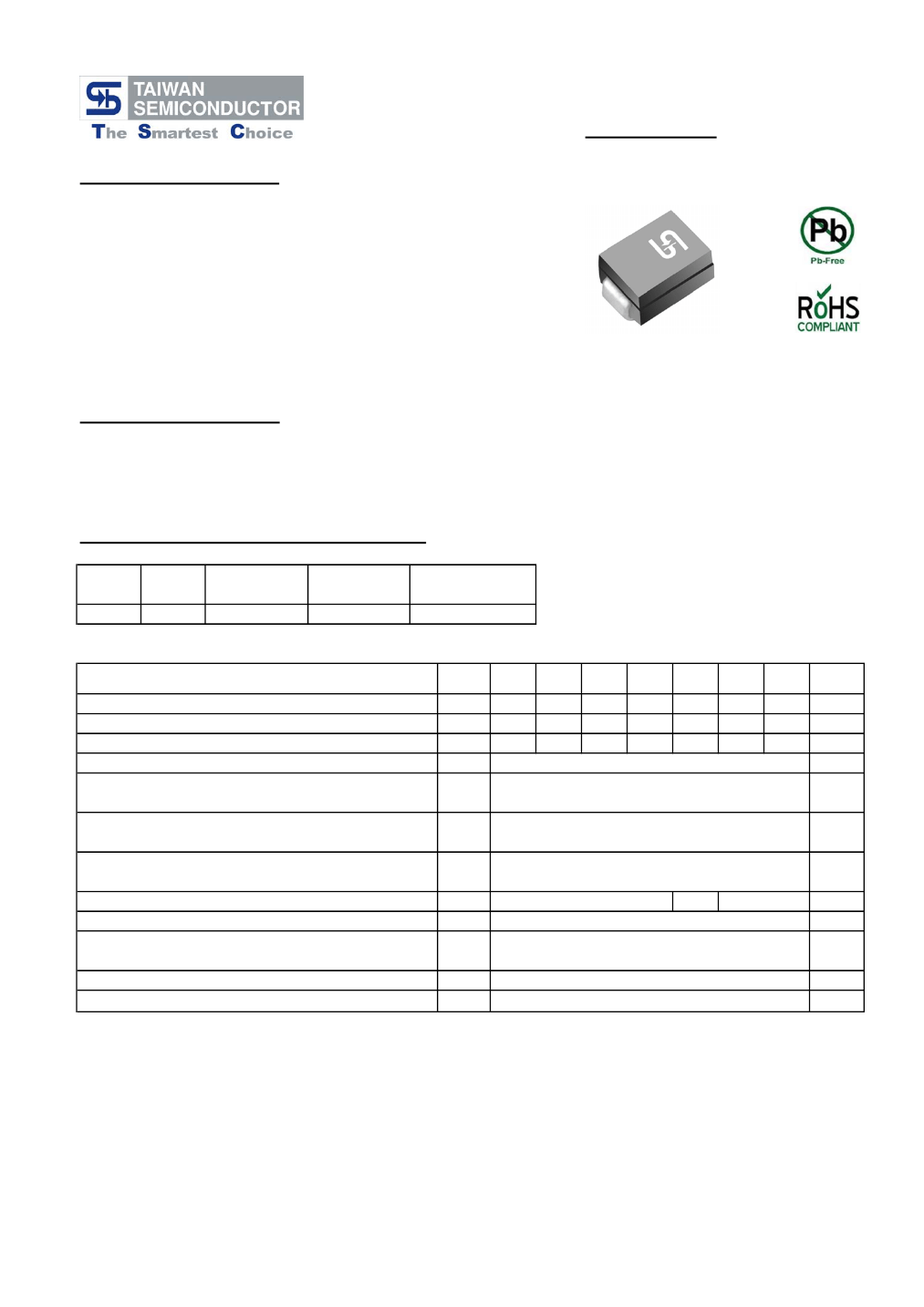

2.0 AMP. Surface Mount Fast Recovery Rectifiers

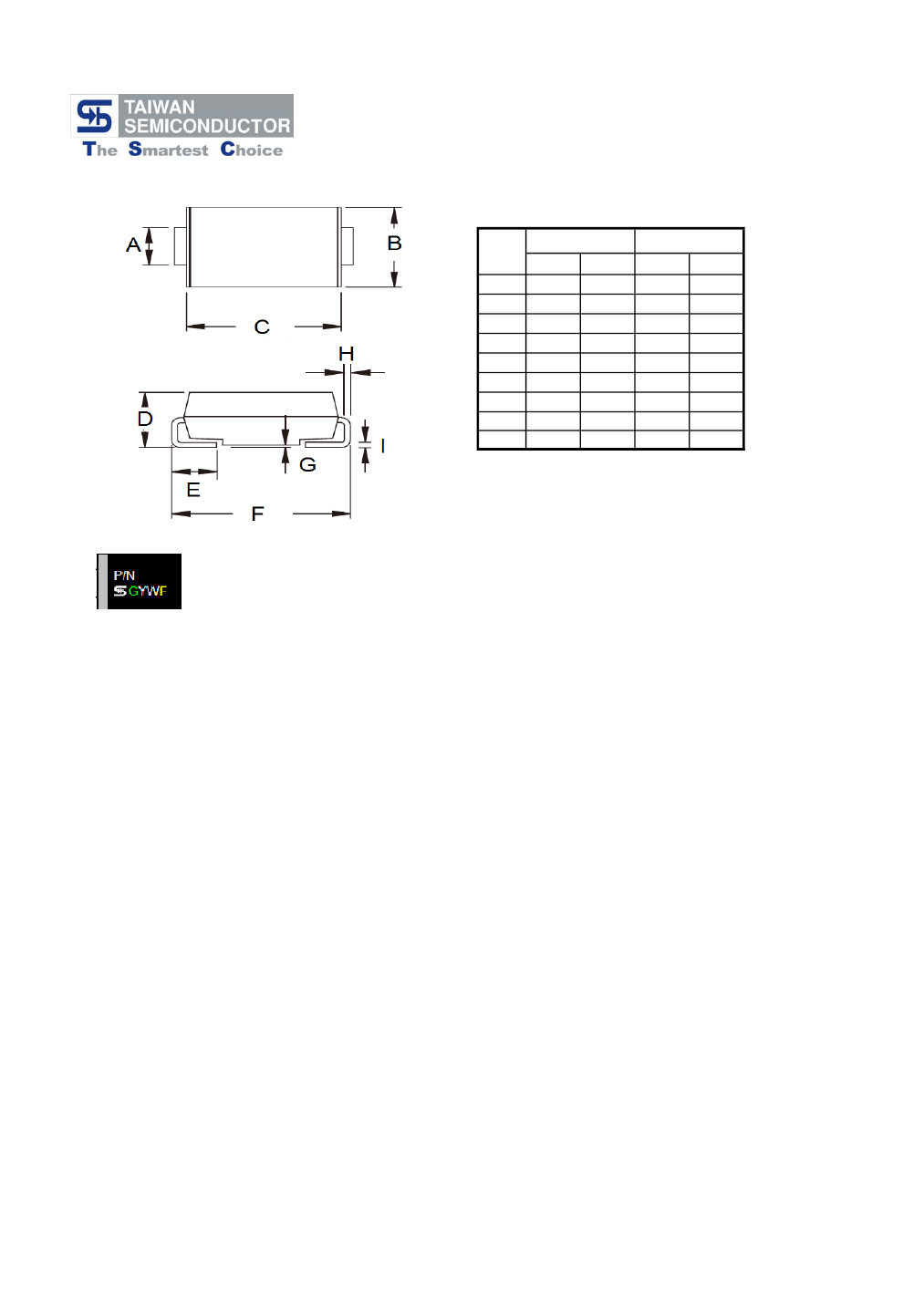

SMB/DO-214AA
Features
For surface mounted application
Glass passivated junction chip
Built-in strain relief, ideal for automated
placement
Plastic material used carries Underwriters
Laboratory Classification 94V-0
Fast switching for high efficiency
High temperature soldering:
260℃ / 10 seconds at terminals
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data
Case: Molded plastic
Terminals: Pure tin plated, Lead free
Polarity: Indicated by cathode band

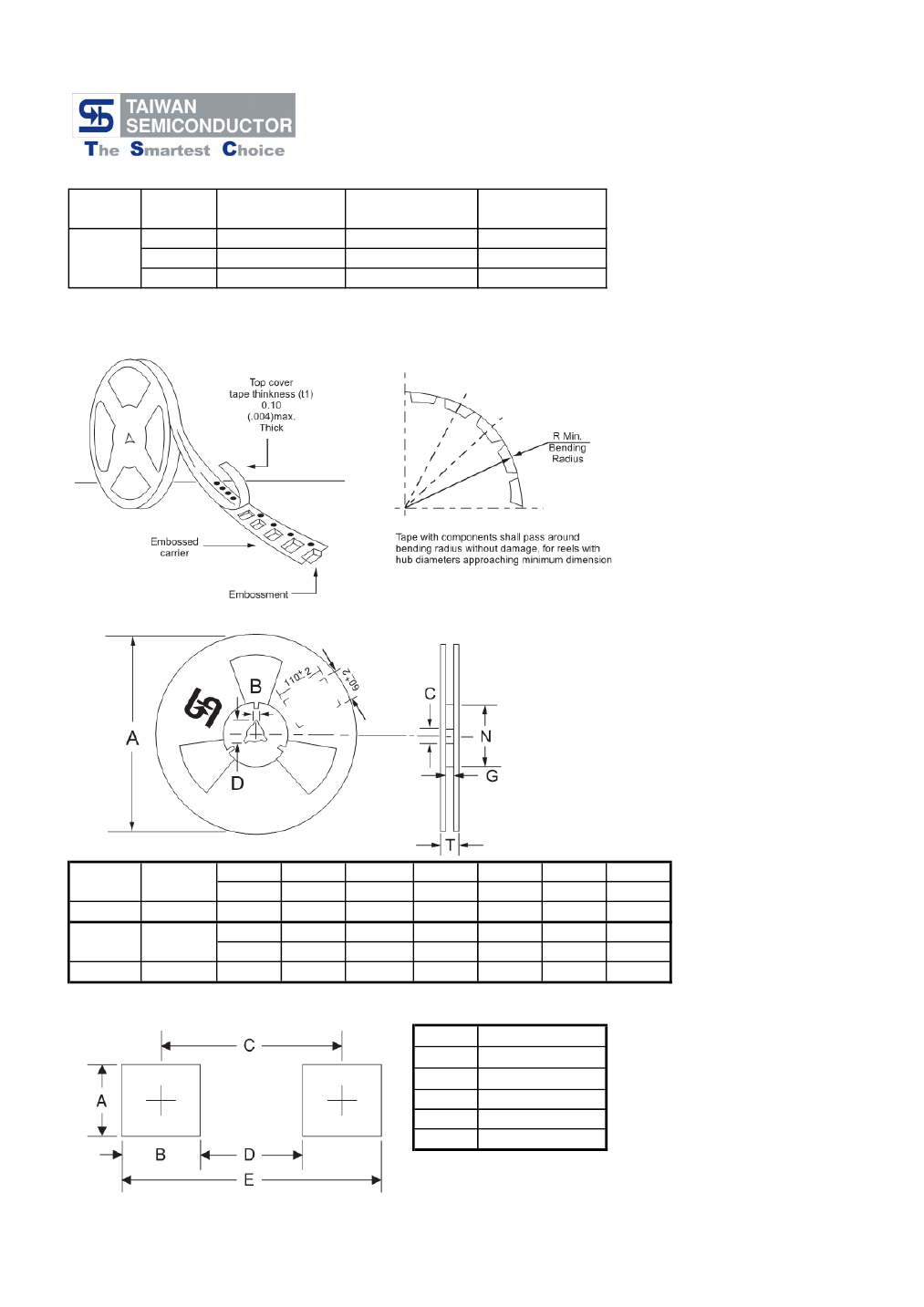

Packing: 12mm tape per EIA STD RS-481
Weight: 0.093 grams
Ordering Information (example)
Part No.
RS2A
Package
SMB
Packing
850 / 7" REEL
Packing code
R5
Packing code
(Green)
R5G
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Parameter
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@2A
Maximum Reverse Current @ Rated VR
T
A
=25
℃
T
A
=125
℃
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θjA
R
θjL
T
J
T
STG
RS
2A
50
35
50
RS
2B
100
70
100
RS
2D
200
140
200
RS
2G
400
280
400
2
50
1.3
5
50
RS
2J
600
420
600
RS
2K
800
560
800
RS
2M
1000
700
1000
Unit
V
V
V
A
A
V
uA
Maximum Reverse Recovery Time (Note 2)
Typical Junction Capacitance (Note 3)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle
150
50
55
18
250
500
nS
pF
O
C/W
O
O
- 55 to + 150
- 55 to + 150
C
C
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Version:E13

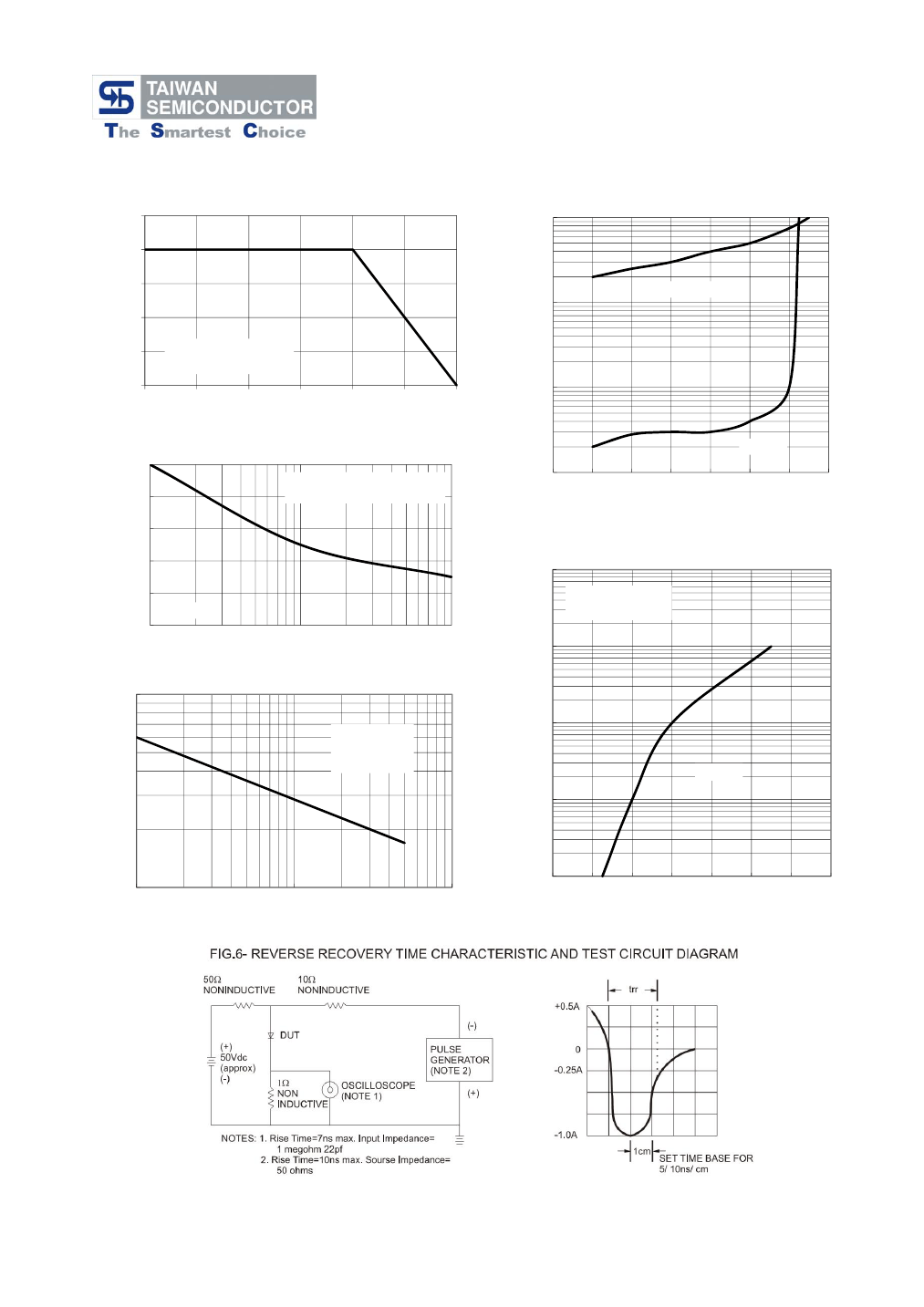

RATINGS AND CHARACTERISTIC CURVES (RS2A THRU RS2M)
FIG.1 FORWARD CURRENT DERATING CURVE
100
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
2.5
AVERAGE FORWARD CURRENT
(A)
2
INSTANTANEOUS REVERSE CURRENT (uA)
1.5
1
RESISTIVE OR
INDUCTIVE LOAD
10
TA=125℃
0.5
0
0
25
50
75
100
LEAD TEMPERATURE (
o
C)
125
150
1
50
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
8.3mS Single Half Sine Wave
JEDEC Method
TA=25℃
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
PEAK FORWARD SURGE
CURRENT (A)
40
30
FIG. 5 TYPICAL FORWARD CHARACTERISTICS
20
10
TA=25℃
0
INSTANTANEOUS FORWARD CURRENT (A)
1
10
NUMBER OF CYCLES AT 60 Hz
100
10
100
Pulse Width=300us
1% Duty Cycle
FIG. 4 TYPICAL JUNCTION CAPACITANCE
100
CAPACITANCE (pF)
TA=25℃
f=1.0MHz
Vsig=50mVp-p
1
TA=25℃
0.1
10
1
10
REVERSE VOLTAGE (V)
100
0.01
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
FORWARD VOLTAGE (V)
Version:E13
