M5N358P datasheet, PDF - EEWORLD Datasheet

M5N358P: DescriptionOperational Amplifier, 2 Func, 7000uV Offset-Max, BIPolar, PDIP8, 0.300 INCH, PLASTIC, DIP-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size185KB，5 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric View All

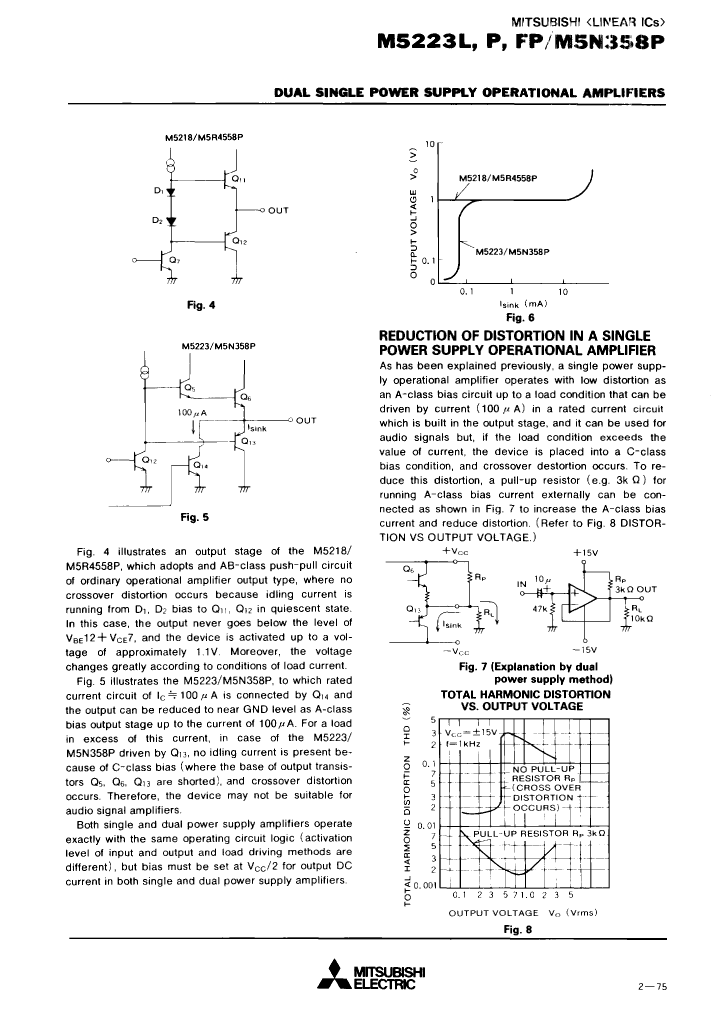

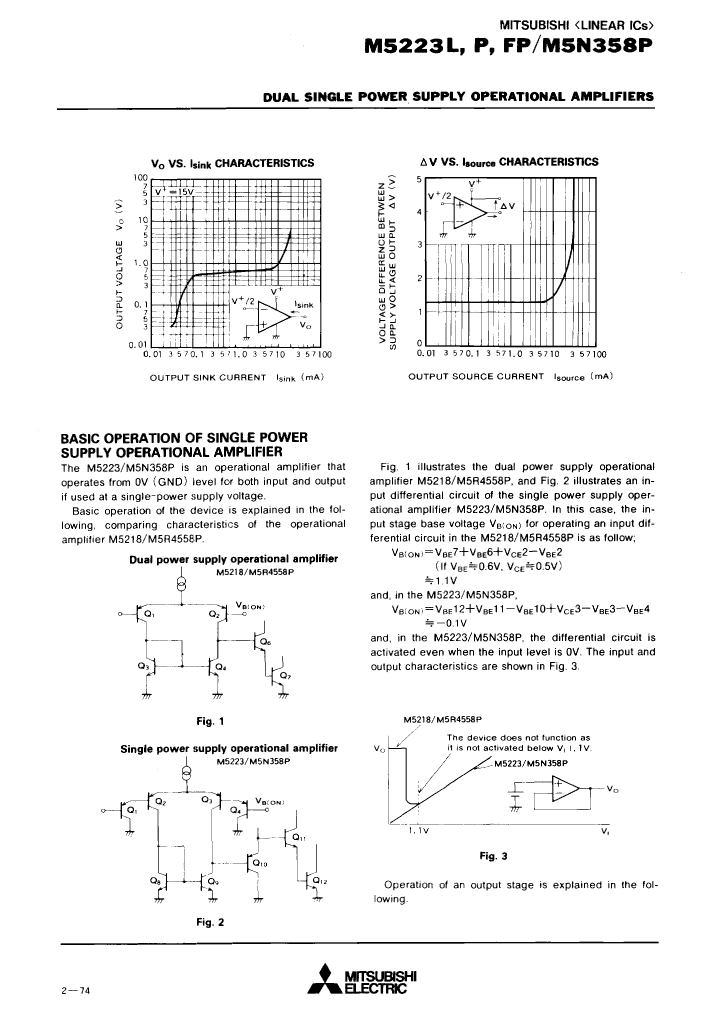

M5N358P Overview

Operational Amplifier, 2 Func, 7000uV Offset-Max, BIPolar, PDIP8, 0.300 INCH, PLASTIC, DIP-8

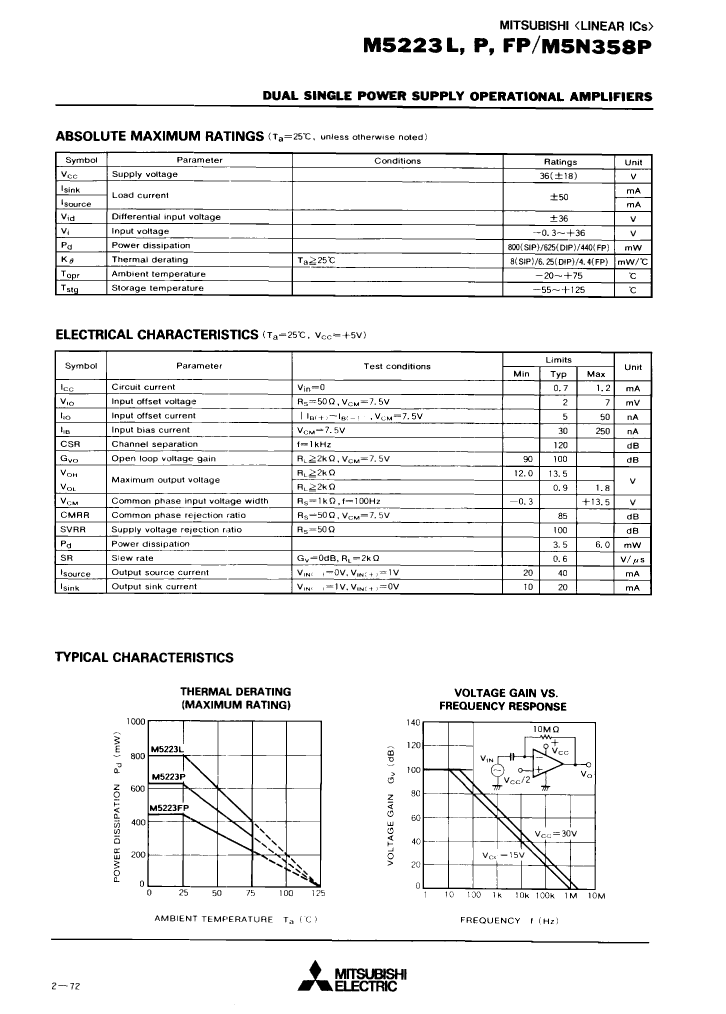

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mitsubishi
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.25 µA
Maximum bias current (IIB) at 25C	0.25 µA
Nominal Common Mode Rejection Ratio	85 dB
frequency compensation	YES
Maximum input offset voltage	7000 µV
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
low-dissonance	NO
Negative supply voltage upper limit	-18 V
Number of functions	2
Number of terminals	8
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-1.5/+-15/3/30 V
Certification status	Not Qualified
Nominal slew rate	0.6 V/us
Maximum slew rate	1.2 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Minimum voltage gain	32000
