EMVH161APB100MKE0S

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 160V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 5151
CategoryPassive components    capacitor
File Size55KB，2 Pages
ManufacturerNIPPON CHEMI-CON
Websitehttp://www.chemi-con.co.jp
Environmental Compliance
Download Datasheet Parametric View All

EMVH161APB100MKE0S Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 160V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 5151

EMVH161APB100MKE0S Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerNIPPON CHEMI-CON
package instruction, 5151
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance10 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (WET)
JESD-609 codee3
Manufacturer's serial numberMVH
Installation featuresSURFACE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package shapeCYLINDRICAL PACKAGE
method of packingTR, PLASTIC, 13 INCH
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)160 V
ripple current100 mA
size code5151
surface mountYES
Delta tangent0.2
Terminal surfaceMatte Tin (Sn)
Terminal shapeFLAT

Preview

Download Datasheet

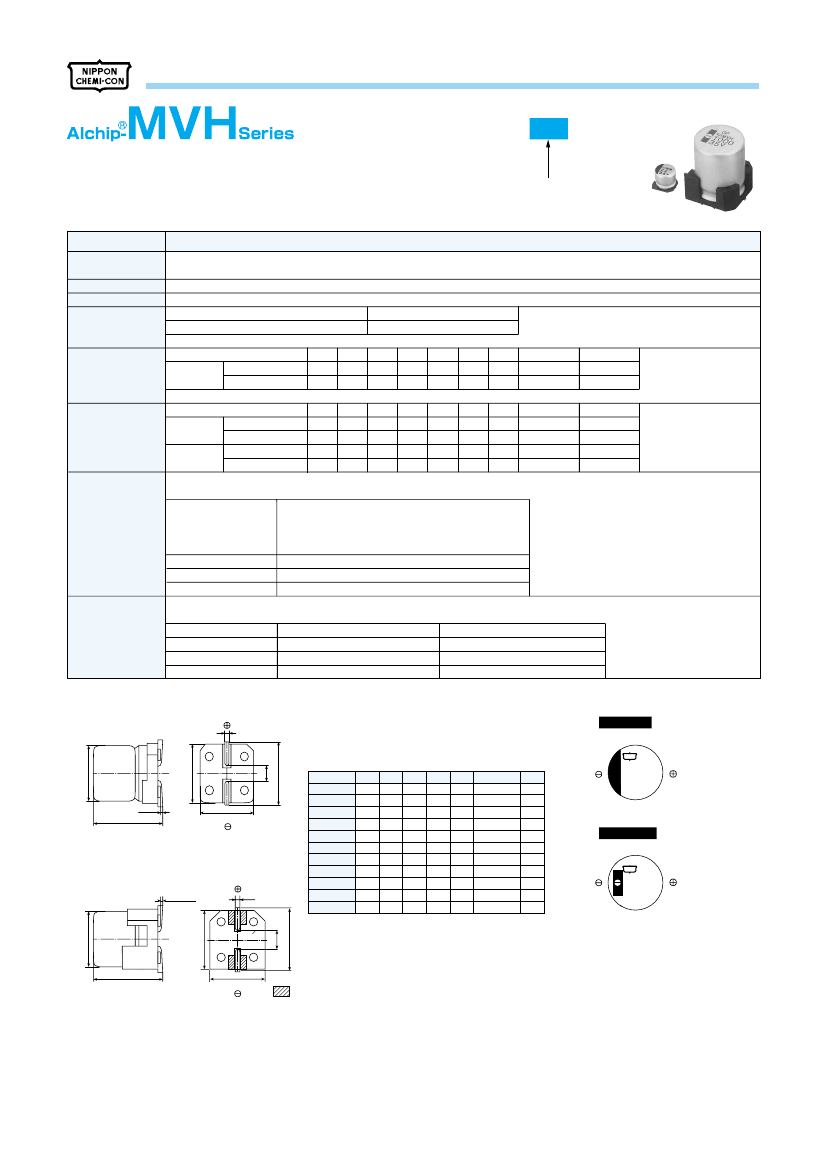

SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS
MVH
@Endurance
: 125C 1000 to 5000 hours
@Suitable
to fit for automotive equipment
@Solvent-proof
type (10 to 50V) (see PRECAUTIONS AND GUIDELINES)
@Pb-free
design
High heat resistance, 125C
125C
size extended
MVK
?SPECIFICATIONS
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
-40 to +125C
10 to 450V
dc
P20%
(M)
(at 20C, 120Hz)
10 to 100V
dc
160 to 450V
dc
I=0.03CV or 4MA, whichever is greater.
I=0.04CV+100max
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)
(at 20C after 2 minutes)
Rated voltage (V
dc
)
10V 16V 25V 35V 50V 63V 100V 160 to 250V 400 & 450V
0.24 0.20 0.16 0.14 0.14 0.18 0.18
-
-
F60 to JA0
tanE (Max.)
0.22 0.18 0.16 0.14 0.12 0.14 0.10
0.20
0.24
KE0 to MN0
When nominal capacitance exceeds 1000MF, add 0.02 to the value above for each 1000MF increase.
(at 20C, 120Hz)
Rated voltage (V
dc
)
10V 16V 25V 35V 50V 63V 100V 160 to 250V 400 & 450V
Z(-25C)/Z(+20C) 4
-
-
3
2
2
2
2
2
F60 to JA0
Z(-40C)/Z(+20C) 10
-
-
8
6
4
4
4
4
Z(-25C)/Z(+20C) 4
3
6
3
2
2
2
2
2
KE0 to MN0
Z(-40C)/Z(+20C) 8
(at 120Hz)
6
10
6
4
3
3
3
3
The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for the specified
time at 125C.
F60 to H63 (10 to 100V
dc
) : 1000hours
HA0 to JA0 (10 to 100V
dc
) : 2000hours
Time
KE0 to MN0 (10 to 100V
dc
) : 5000hours
KE0 to MN0 (160 to 450V
dc
) : 2000hours
Capacitance change
[P30%
of the initial value
D.F. (tanE)
[300%
of the initial specified value
Leakage current
[The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1000 hours (500 hours
for 350 to 450WV) at 125C without voltage applied.
Rated voltage(V
dc
)
10 to 50V
dc
63 to 450V
dc
Capacitance change
[P30%
of the initial value
[P30%
of the initial value
D.F. (tanE)
[300%
of the initial specified value
[300%
of the initial specified value
Leakage current
[The
initial specified value
[500%
of the initial specified value
Characteristics
Dissipation Factor
(tane)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
Shelf Life
?DIMENSIONS
[mm]
@Terminal
Code : A
@Size
code : F60 to KG5
FDP0.5
BP0.2
W
P
CP0.2
?MARKING
F60 to JA0
EX) 35V47MF
74H
0.3max.
LP0.5 (Note)
Note : LP0.3 for F60 and F80
AP0.2
@Terminal
Code : G
@Size
code : LH0 to MN0
0.3max.
W
C
B
A
L
Size code D
6.3 5.7 6.6 6.6 7.2
F60
6.3 7.7 6.6 6.6 7.2
F80
6.3 8.3 8.3 9.0
8
H63
8 10.0 8.3 8.3 9.0
HA0
10 10.0 10.3 10.3 11.0
JA0
12.5 13.5 13.0 13.0 13.7
KE0
12.5 16.0 13.0 13.0 13.7
KG5
16 16.5 17.0 17.0 18.0
LH0
16 21.5 17.0 17.0 18.0
LN0
18 16.5 19.0 19.0 20.0
MH0
18 21.5 19.0 19.0 20.0
MN0
W
0.5 to 0.8
0.5 to 0.8
0.5 to 0.8
0.7 to 1.1
0.7 to 1.1
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
P
1.9
1.9
2.3
3.1
4.5
4.2
4.2
6.5
6.5
6.5
6.5
47
35V
KE0 to MN0
EX) 16V1000MF
0V
MVH
1000
16V
FDP0.5
BP0.2
LP0.5
AP0.2
P
CP0.2
: Dummy terminals
(1/2)
CAT. No. E1001E
