GD54S243J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> GD54S243J

GD54S243J: DescriptionBus Transceiver, S Series, 1-Func, 4-Bit, True Output, TTL, CDIP14,; Categorylogic logic; File Size70KB，3 Pages; ManufacturerGoldstar Electron Co., Ltd.

Download Datasheet Parametric Compare View All

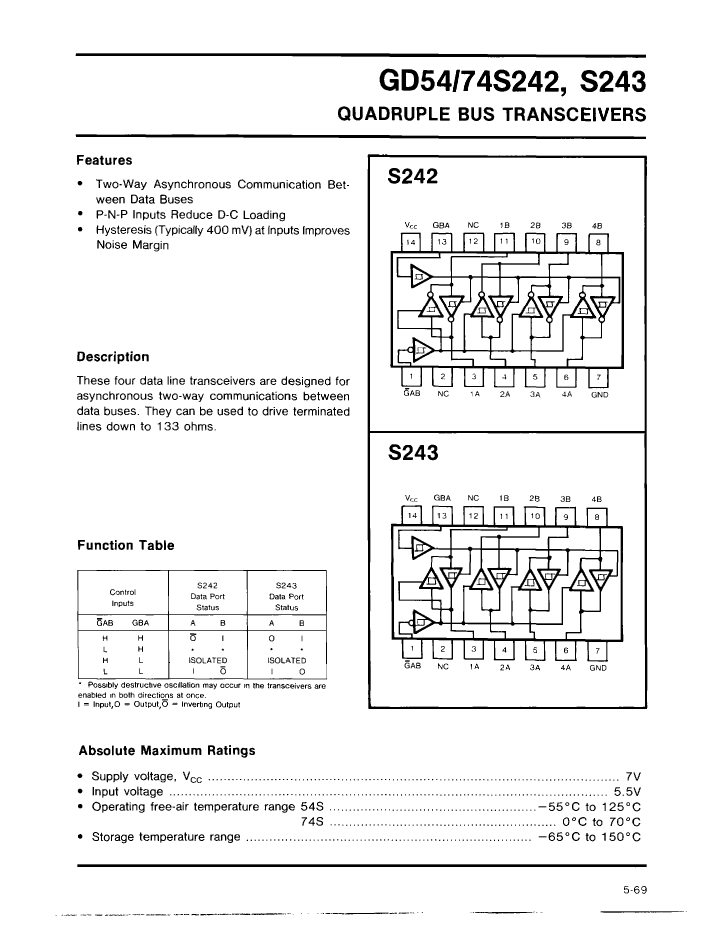

GD54S243J Overview

Bus Transceiver, S Series, 1-Func, 4-Bit, True Output, TTL, CDIP14,

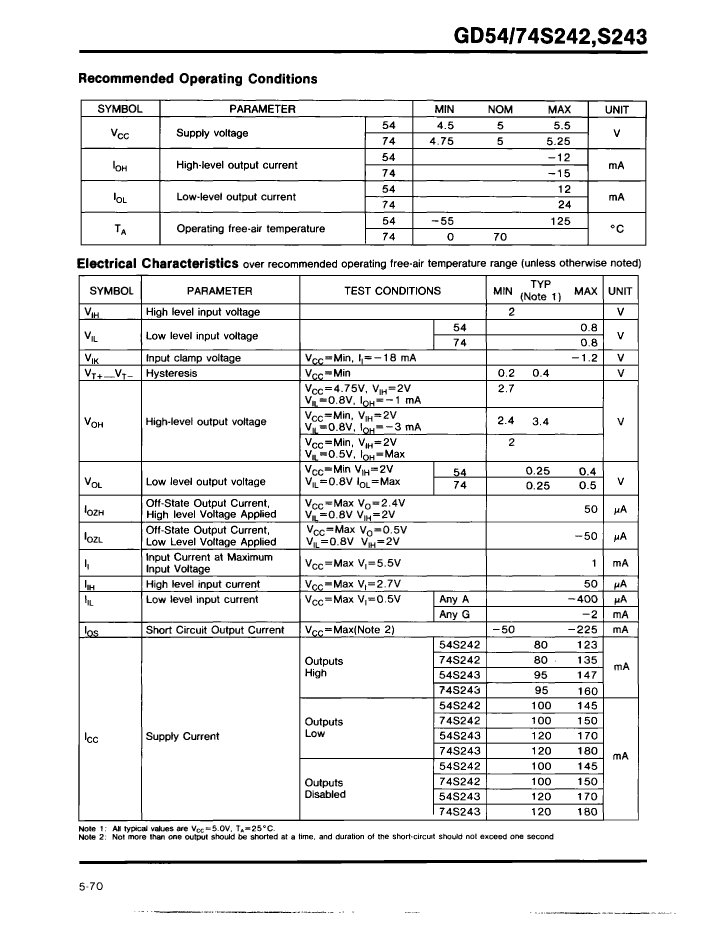

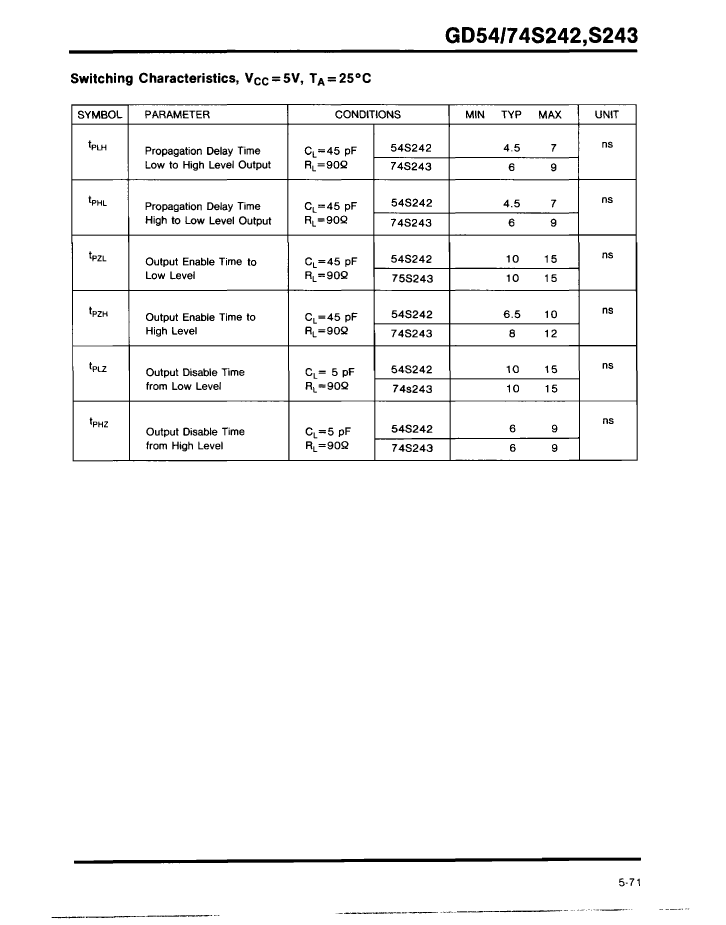

GD54S243J Parametric

Parameter Name	Attribute value
Maker	Goldstar Electron Co., Ltd.
Reach Compliance Code	unknown
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	S
JESD-30 code	R-CDIP-T14
Load capacitance (CL)	45 pF
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	4
Number of functions	1
Number of ports	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	170 mA
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL

Preview

Download Datasheet

View All

GD54S243J Related Products

	GD54S243J	GD74S243J	GD54S242J	GD54S242	GD74S242	GD74S242J	GD54S243	GD74S243
Description	Bus Transceiver, S Series, 1-Func, 4-Bit, True Output, TTL, CDIP14,	Bus Transceiver, S Series, 1-Func, 4-Bit, True Output, TTL, CDIP14,	Bus Transceiver, S Series, 1-Func, 4-Bit, Inverted Output, TTL, CDIP14,	Bus Transceiver, S Series, 1-Func, 4-Bit, Inverted Output, TTL, PDIP14,	Bus Transceiver, S Series, 1-Func, 4-Bit, Inverted Output, TTL, PDIP14,	Bus Transceiver, S Series, 1-Func, 4-Bit, Inverted Output, TTL, CDIP14,	Bus Transceiver, S Series, 1-Func, 4-Bit, True Output, TTL, PDIP14,	Bus Transceiver, S Series, 1-Func, 4-Bit, True Output, TTL, PDIP14,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	S	S	S	S	S	S	S	S
JESD-30 code	R-CDIP-T14	R-CDIP-T14	R-CDIP-T14	R-PDIP-T14	R-PDIP-T14	R-CDIP-T14	R-PDIP-T14	R-PDIP-T14
Load capacitance (CL)	45 pF	45 pF	45 pF	45 pF	45 pF	45 pF	45 pF	45 pF
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER
Number of digits	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2	2	2
Number of terminals	14	14	14	14	14	14	14	14
Maximum operating temperature	125 °C	70 °C	125 °C	125 °C	70 °C	70 °C	125 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	INVERTED	INVERTED	INVERTED	INVERTED	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Maximum supply current (ICC)	170 mA	180 mA	145 mA	145 mA	150 mA	150 mA	170 mA	180 mA
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.25 V	5.5 V	5.5 V	5.25 V	5.25 V	5.5 V	5.25 V
Minimum supply voltage (Vsup)	4.5 V	4.75 V	4.5 V	4.5 V	4.75 V	4.75 V	4.5 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
