ASVTC-H08-C-16.000MHZ-E25-T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASVTC-H08-C-16.000MHZ-E25-T

ASVTC-H08-C-16.000MHZ-E25-T: DescriptionCMOS Output Clock Oscillator, 16MHz Nom; CategoryPassive components oscillator; File Size224KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASVTC-H08-C-16.000MHZ-E25-T Overview

CMOS Output Clock Oscillator, 16MHz Nom

ASVTC-H08-C-16.000MHZ-E25-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Maximum control voltage	2.5 V
Minimum control voltage	0.5 V
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	12 ppm
frequency stability	2.5%
linearity	10%
Manufacturer's serial number	ASVTC-H08
Installation features	SURFACE MOUNT
Nominal operating frequency	16 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
Output load	15 pF
physical size	7.0mm x 5.0mm x 2.5mm
longest rise time	10 ns
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

VOLTAGE CONTROLLED CRYSTAL OSCILLATOR

ASVTX-H08

FEATURES:

• Compact and low in height.

• 0.01uF decoupling capacitor built-in

• Wide frequency range; frequency stability

APPLICATIONS:

• Test Equipment

• Cellular Base Station & GPS Navigation System

• Mobile communication equipment.

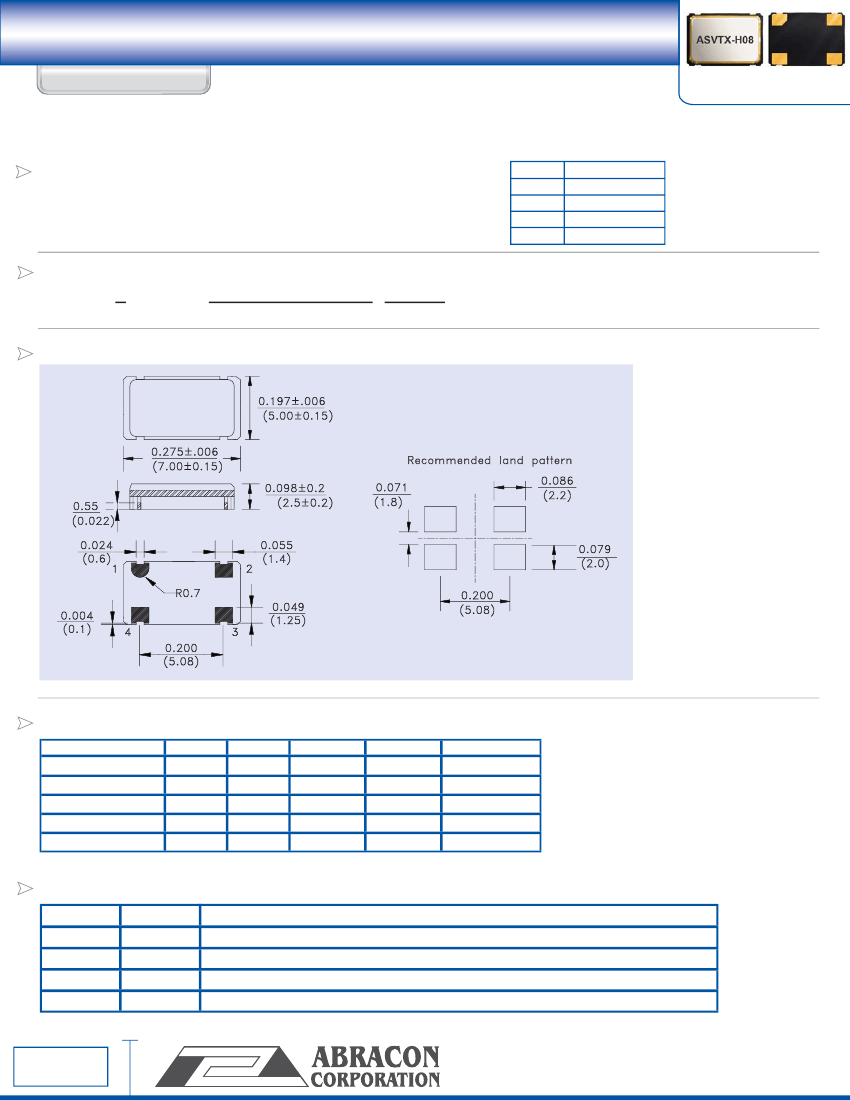

7.0 x 5.0 x 2.5mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

Frequency Range

Standard Frequencies

Operating Temperature

Storage Temperature

Frequency Tolerance @ 25°C

Frequency Stability vs. Temp.

Frequency Stability vs. Aging

Frequency Stability vs. Supply Voltage

Frequency Stability vs. Load ±10%

Frequency Stability vs. Reflow

Voltage Control Range

Supply Voltage

Pullability

Output Type

Output Voltage

Output Load

Linearity

Transfer Function

Phase Noise @ 25°C

2.5MHz ~ 170.0MHz

10.0MHz, 12.8MHz, 13.0MHz, 14.4MHz, 16.0MHz, 16.384MHz, 19.2MHz,

19.440MHz, 19.680MHz, 20.0MHz, 38.880MHz, 77.760MHz, 155.520MHz

- 30° C to + 75° C

- 50° C to + 100° C

± 2.0 ppm

± 2.5 ppm standard (See Table 1 for options)

± 1 ppm / 1st year

± 0.3 ppm (±5 change)

± 0.3 ppm (±10 change)

± 1 ppm max. 1 reflow and measured 24 hours afterwards

± 1.5V ± 1.0V ppm

3.0V Standard (See Table 2 for options)

± 5ppm ~ 12ppm (Note 2)

Square Wave

“Logic 1” 2.4V min, “Logic 0” 0.4 min.

15pF

10% max

Positive

-72dBc/Hz @ 10Hz offset.

-110dBc/Hz @ 100Hz offset

-125dBc/Hz @ 1KHz offset

-132dBc/Hz @ 10KHz offset

-125dBc/Hz @ 100kHz offset

20%<-> 80%: 10nS max.

@ 50%V

: 50%±10%

10mS max.

AC Block, DC Coupled

Rise and Fall Time

Duty Cycle (Symmetry)

Start-up Time

Output Format

NOTE 2:

Wider tuning range (up to ±25ppm) available. Contact factory.

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

rev1.1-4/06

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com
