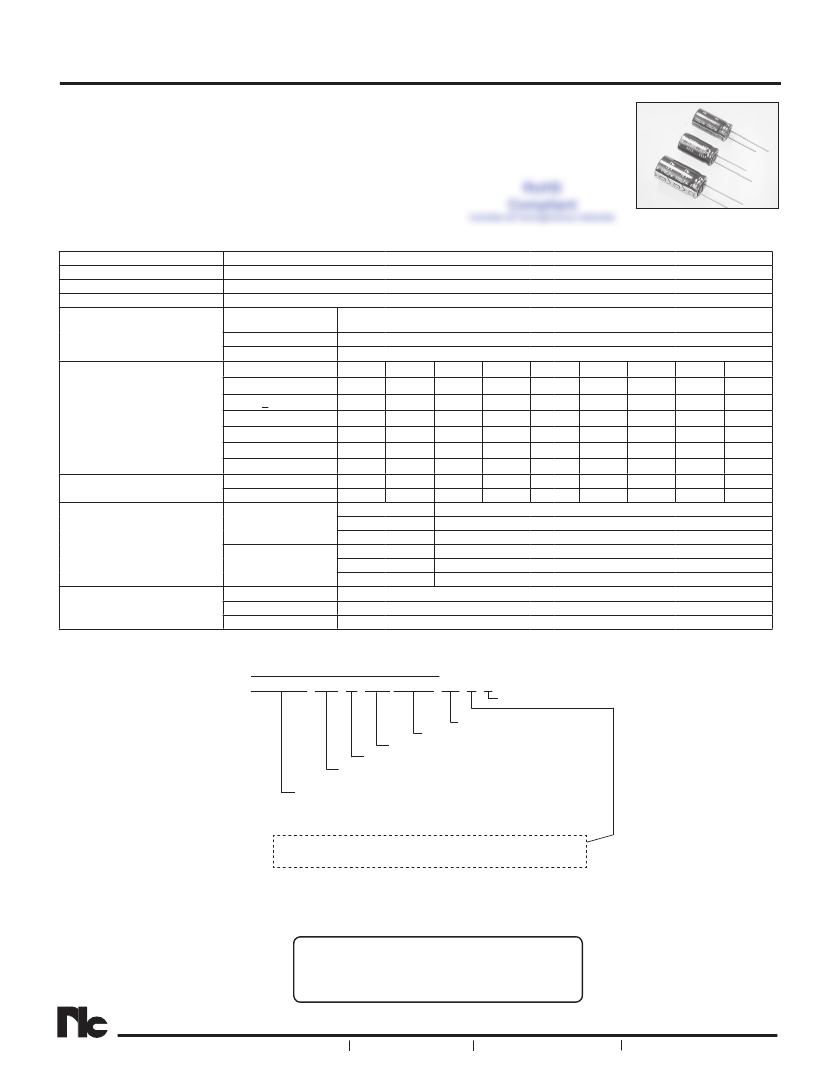

NRE-WY101M35V8X115F: DescriptionMiniature Aluminum Electrolytic Capacitors; File Size128KB，4 Pages; ManufacturerNIC; Websitehttps://www.niccomp.com

Download Datasheet View All

NRE-WY101M35V8X115F Overview

Miniature Aluminum Electrolytic Capacitors

Preview

Download Datasheet

View All

Miniature Aluminum Electrolytic Capacitors

+130

C WIDE TEMPERATURE RANGE, RADIAL LEADS, POLARIZED

• -40

C** ~ +130

C EXTENDED OPERATING TEMPERATURE RANGE

• LONG LIFE (1,000 ~ 4,000 Hours @ 130C)

RoHS

• MEETS THE REQUIREMENTS OF AEC-Q200*

Compliant

*Contact NIC for supporting test data

includes all homogeneous materials

**200V and up -25°C ~ +130°C

NRE-WY Series

FEATURES

CHARACTERISTICS

Rated Voltage Range

Capacitance Range

Operating Temperature Range

Capacitance Tolerance

After 2 minutes

Max. Leakage Current

After 1 minute

After 5 minutes

W.V. (Vdc)

S.V. (Vdc)

C < 1000µF

C = 1,500µF

C = 2,200µF

C = 3,300µF

C = 4,700µF

Z-25°C/Z+20°C

Z-40°C/Z+20°C

10V ~ 100V

*See Part Number System for Details

10 ~ 400Vdc

1.0 ~ 4,700µF

-40 ~ +130°C (10 to 100Vdc), -25°C ~ +130°C (200 to 400Vdc)

±20% (M)

10 ~ 100Vdc: 0.01CV or 3µA whichever is greater

200Vdc, 400Vdc: 0.1CV+40µA

200Vdc, 400Vdc: 0.03CV+15µA

100

125

0.14

0.16

0.18

200

250

400

450

0.20

Max. Tan

@ 120Hz/20°C

Low Temperature Stability

Impedance Ratio @ 120Hz

Load Life Test at Rated W.V.

1000 ~ 4000Hrs @ 130°C

(See part number table

for hours)

Shelf Life Test

+130°C 1000Hrs

200V ~ 400V

Capacitance Change

Tan

Leakage Current

0.20

0.16

0.22

0.18

0.24

0.20

0.26

0.22

Cap. Change

Tan

Leakage Current

Cap. Change

Tan

Leakage Current

0.12

0.10

0.09

0.08

0.15

0.09

0.14

0.12

0.16

Within ±30% of intial measured value

Less than 300% of specified max. value

Less than specified maximum vlaue

Within ±20% of intial measured value

Less than 200% of specified max. value

Less than specified maximum vlaue

Within ±30% of intial measured value

Less than 300% of specified max. value

Not more than 500% of specified max. value

PART NUMBERING SYSTEM

NRE-WY 331 M 35V 10X16 TB Y F

RoHS Compliant

Series

TB = Tape & Box*

Case Size (DφxL)

Working Voltage (Vdc)

Tolerance Code (M=20%)

Capacitance Code: First 2 characters

significant, third character is multiplier

*see tape specification for details

Optional: For automotive equipment, sourced to special

production and inspection at TS-16949 certified production site

Please review the notes on correct use, safety and precautions found on

pages T10

T11

of NIC’s

Electrolytic Capacitor catalog.

Also found at

www.niccomp.com/precautions

If in doubt or uncertainty, please review your specific application - process

details with NIC’s technical support personnel:

tpmg@niccomp.com

PRECAUTIONS

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

SPECIFICATIONS ARE SUBJECT TO CHANGE
