893D157X9010E2W

Description
Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 10% +Tol, 10% -Tol, 150uF, Surface Mount, 2917, CHIP
CategoryPassive components    capacitor
File Size86KB，4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

893D157X9010E2W Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 10% +Tol, 10% -Tol, 150uF, Surface Mount, 2917, CHIP

893D157X9010E2W Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerVishay
package instruction, 2917
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance150 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
JESD-609 codee0
leakage current0.015 mA
Installation featuresSURFACE MOUNT
negative tolerance10%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
method of packingTR, 13 INCH
polarityPOLARIZED
positive tolerance10%
Rated (DC) voltage (URdc)10 V
ripple current570 mA
size code2917
surface mountYES
Delta tangent0.08
Terminal surfaceTin/Lead (Sn/Pb)
Terminal shapeWRAPAROUND

893D157X9010E2W Preview

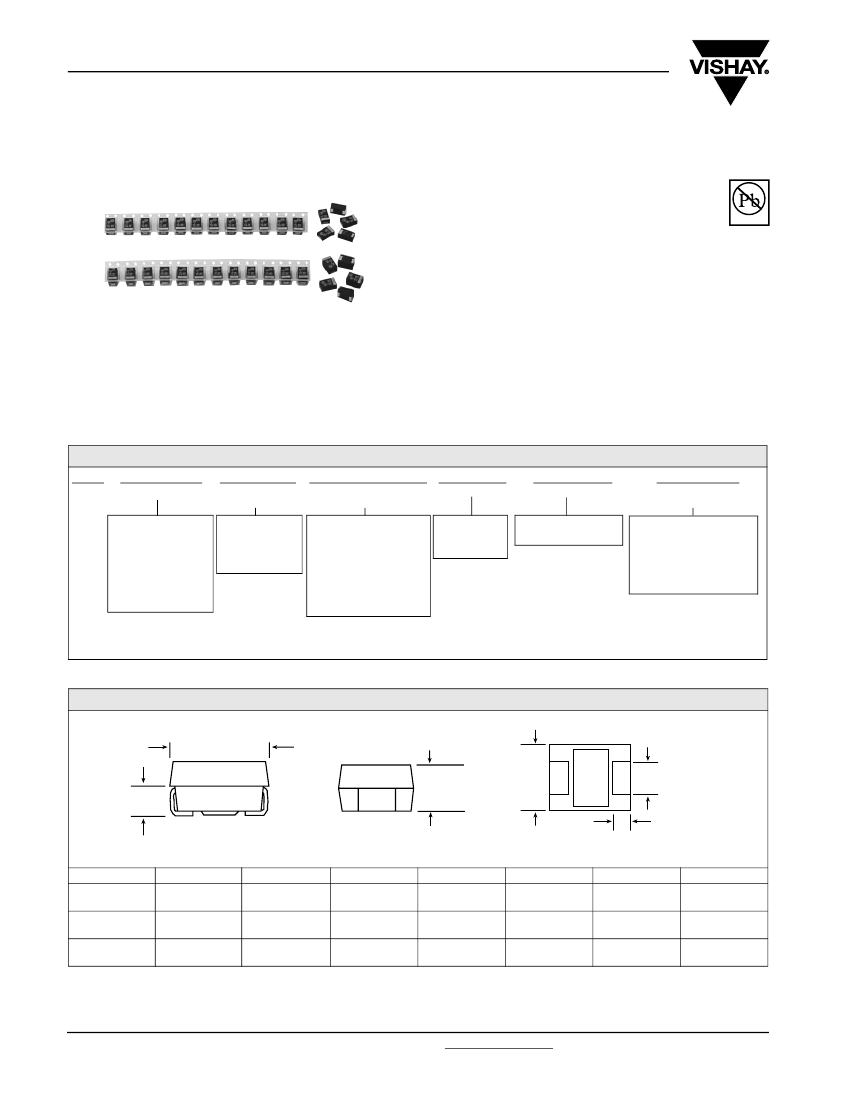

893D
Vishay Sprague
Solid Tantalum Chip Capacitors
T
ANTAMOUNT
®
, Built-In-Fuse Miniature, Molded-Case
FEATURES
•
Molded case available in three case codes
•
Compatible with "High Volume" automatic pick
and place
•
Electrically activated internal fuse
•
Meets EIA 535BAAC and IEC Specification
QC300801/ US0001
Pb-free
Available
RoHS*
COMPLIANT
PERFORMANCE/ELECTRICAL CHARACTERISTICS
Operating Temperature:
- 55 °C to + 85 °C
(To + 125 °C with voltage derating)
Note:
Refer to doc. 40088
Capacitance Range:
1.0 µF to 220 µF
Capacitance Tolerance:
± 20 %, ± 10 % standard
Compliant Terminations
100 % Surge Current Tested
(D & E Case Codes)
Voltage Rating:
6.3 WVDC to 50 WVDC
ORDERING INFORMATION
893D
TYPE
107
CAPACITANCE
This is expressed in
picofarads. The first
two digits are the
significant figures.
The third is the
number of zeros to
follow.
X9
010
CAPACITANCE DC VOLTAGE RATING
TOLERANCE
AT + 85 °C
X0 =
±
20 %
X9 =
±
10 %
X5 =
±
5 %
(Special Order)
This is expressed in
volts. To complete the
three-digit block, zeros
precede the voltage
rating. A decimal point
is indicated by an "R"
(6R3 = 6.3 volts).
D
CASE CODE
See Ratings
and Case
Codes Table
2
TERMINATION
2 = Solderable
coating
W
REEL SIZE AND
PACKAGING
T = Tape and Reel 7"
[178 mm] Reel*
W = 13" [330 mm] reel*
*cathode nearest
sprocket hole.
Note:
Preferred Tolerance and reel sizes are in bold.
We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.
Voltage substitutions will be marked with the higher voltage rating.
DIMENSIONS
in inches [millimeters]
L
TW
H
TH MIN.
W
P
CASE CODE
C
D
E
EIA SIZE
6032
7343
7343H
L
0.236 ± 0.012
[6.0 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
W
0.126 ± 0.012
[3.2 ± 0.30]
0.170 ± 0.012
[4.3 ± 0.30]
0.170 ± 0.012
[4.3 ± 0.30]
H
0.098 ± 0.012
[2.5 ± 0.30]
0.110 ± 0.012
[2.8 ± 0.30]
0.158 ± 0.012
[4.0 ± 0.30]
P
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
T
W
0.087 ± 0.004
[2.2 ± 0.10]
0.095 ± 0.004
[2.4 ± 0.10]
0.095 ± 0.004
[2.4 ± 0.10]
T
H
(MIN.)
0.039
[1.0]
0.039
[1.0]
0.039
[1.0]
* Pb containing terminations are not RoHS compliant, exemptions may apply
www.vishay.com
60
For technical questions, contact: tantalum@vishay.com
Document Number: 40008
Revision: 16-May-06
893D
Solid Tantalum Chip Capacitors
T
ANTAMOUNT
®
, Built-In-Fuse Miniature, Molded-case
Vishay Sprague
RATINGS AND CASE CODES
µF
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
C
C
C/D
C/D
D
D
E
C
C
D/C
D/C
D
D
E
C
C
C
C/D
C/D
D
D
E
C
C
C
C
D
D
E
E
C
C
C/D
D
D
E
D
C
C/D
D
D
E
E
6.3 V
10 V
16 V
20 V
25 V
35 V
50 V
C
C
C
C/D
D
D/E
MARKING
Capacitance
Voltage
Polarity
Band
22 F 10
2
XX
Date Code
Vishay Sprague
Logo
Marking:
Capacitors shall be marked with an anode polarity band, capacitance (in microfarads) and the rated DC working voltage 85
°C.
The
capacitance voltage will be separated by the letter "F" indicating a fused capacitor. Units rated at 6.3 V shall be marked as 6 V.
STANDARD/EXTENDED RATINGS
CAPACITANCE
(µF)
CASE CODE
PART NUMBER*
MAX. DC
LEAKAGE
AT + 25 °C
(µA)
1.1
1.6
2.3
2.3
3.3
3.3
4.8
9.0
13.2
MAX. DF
AT + 25 °C
120 Hz
(%)
6
6
6
6
6
6
8
8
8
MAX. ESR
AT+ 25 °C
100 kHz
(Ohms)
1.8
1.4
1.3
0.9
0.8
0.7
0.7
0.6
0.5
MAX. RIPPLE
100 kHz
Irms
(Amps)
0.25
0.28
0.29
0.41
0.37
0.46
0.46
0.50
0.57
6.3 WVDC AT + 85 °C, SURGE = 8 V . . . 4 WVDC AT + 125 °C, SURGE = 5 V
22
33
47
47
68
68
100
150
220
C
C
C
D
C
D
D
D
E
893D226X_6R3C_ _
893D336X_6R3C_ _
893D476X_6R3C_ _
893D476X_6R3D_ _
893D686X_6R3C_ _
893D686X_6R3D_ _
893D107X_6R3D_ _
893D157X_6R3D_ _
893D227X_6R3E_ _
*Preliminary values, contact factory for availability. For 10 % tolerance, specify "9"; for 20 % tolerance, change to "0".
Document Number: 40008
Revision: 16-May-06
For technical questions, contact: tantalum@vishay.com
www.vishay.com
61
893D
Vishay Sprague
Solid Tantalum Chip Capacitors
T
ANTAMOUNT
®
, Built-In-Fuse Miniature, Molded-case
MAX. DC
LEAKAGE
AT + 25 °C
(µA)
MAX. DF
AT + 25 °C
120 Hz
(%)
MAX. ESR
AT+ 25 °C
100 kHz
(Ohms)
MAX. RIPPLE
100 kHz
Irms
(Amps)
0.25
0.28
0.29
0.41
0.33
0.46
0.46
0.50
0.57
0.23
0.25
0.28
0.29
0.41
0.33
0.46
0.46
0.50
0.52
0.22
0.24
0.26
0.28
0.46
0.46
0.52
0.52
0.21
0.24
0.26
0.28
0.39
0.43
0.46
0.52
0.23
0.25
0.35
0.38
0.43
0.49
0.52
1.60
0.90
0.20
0.21
0.31
0.37
0.41
0.43
STANDARD/EXTENDED RATINGS
CAPACITANCE
(µF)
CASE CODE
PART NUMBER*
10 WVDC AT + 85 °C, SURGE = 13 V . . . 7 WVDC AT + 125 °C, SURGE = 8 V
15
C
893D156X_010C_ _
1.5
6
1.8
22
C
893D226X_010C_ _
2.2
6
1.4
33
C
893D336X_010C_ _
3.3
6
1.3
33
D
893D336X_010D_ _
3.3
6
0.9
47
C
893D476X_010C_ _
4.7
6
1.0
47
D
893D476X_010D_ _
4.7
6
0.7
68
D
893D686X_010D_ _
6.8
6
0.7
100
D
893D107X_010D_ _
10
8
0.6
150
E
893D157X_010E_ _
15.0
8
0.5
16 WVDC AT + 85 °C, SURGE = 20 V . . . 10 WVDC AT + 125 °C, SURGE = 12 V
6.8
C
893D685X_016C_ _
1.1
6
2.0
10
C
893D106X_016C_ _
1.6
6
1.8
15
C
893D156X_016C_ _
2.4
6
1.4
22
C
893D226X_016C_ _
2 3.5.8
6
1.3
22
D
893D226X_016D_ _
3.5
6
0.9
33
C
893D336X_016C_ _
5.3
6
1.0
33
D
893D336X_016D_ _
5.3
6
0.7
47
D
893D476X_016D_ _
7.5
6
0.7
68
D
893D686X_016D_ _
10.9
6
0.6
100
E
893D107X_016E_ _
16
8
0.6
20 WVDC AT + 85 °C, SURGE = 26 V . . . 13 WVDC AT + 125 °C, SURGE = 16 V
4.7
C
893D475X_020C_ _
0.9
6
2.2
6.8
C
893D685X_020C_ _
1.4
6
1.9
10
C
893D106X_020C_ _
2.0
6
1.6
15
C
893D156X_020C_ _
3.0
6
1.4
22
D
893D226X_020D_ _
4.4
6
0.7
33
D
893D336X_020D_ _
6.6
6
0.7
47
E
893D476X_020E_ _
9.4
6
0.6
68
E
893D686X_020E_ _
13.6
6
0.6
25 WVDC AT + 85 °C, SURGE = 32 V . . . 17 WVDC AT + 125 °C, SURGE = 20 V
2.2
C
893D225X_025C_ _
0.9
6
1.8
4.7
C
893D475X_025C_ _
1.2
6
1.9
6.8
C
893D685X_025C_ _
1.7
6
1.6
10
C
893D106X_025C_ _
2.5
6
1.4
10
D
893D106X_025D_ _
2.5
6
1.0
15
D
893D156X_025D_ _
3.8
6
0.8
22
D
893D226X_025D_ _
5.5
6
0.7
33
E
893D336X_025E_ _
8.3
6
0.6
35 WVDC AT + 85 °C, SURGE = 46 V . . . 23 WVDC AT + 125 °C, SURGE = 28 V
3.3
C
893D335X_035C_ _
1.2
4
2.0
4.7
C
893D475X_035C_ _
1.6
6
1.8
4.7
D
893D475X_035D_ _
1.6
6
1.2
6.8
D
893D685X_035D_ _
2.4
6
1.0
10
D
893D106X_035D_ _
3.5
6
0.8
15
E
893D156X_035E_ _
5.3
6
0.7
22
E
893D226X_035E_ _
7.7
6
0.6
50 WVDC AT + 85 °C, SURGE = 65 V . . . 33 WVDC AT + 125 °C, SURGE = 40 V
1.0
C
893D105X_050C_ _
0.5
4
4.4
1.5
C
893D155X_050C_ _
0.8
6
3.2
2.2
C
893D225X_050C_ _
1.1
6
2.8
3.3
C
893D335X_050C_ _
1.7
6
2.4
3.3
D
893D335X_050D_ _
1.7
6
1.6
4.7
D
893D475X_050D_ _
2.4
6
1.1
6.8
D
893D685X_050D_ _
3.4
6
0.9
6.8
E
893D685X_050E_ _
3.4
6
0.9
*Preliminary values, contact factory for availability. For 10 % tolerance, specify "9"; for 20 % tolerance, change to "0".
www.vishay.com
62
For technical questions, contact: tantalum@vishay.com
Document Number: 40008
Revision: 16-May-06
Legal Disclaimer Notice
Vishay
Notice
Specifications of the products displayed herein are subject to change without notice. Vishay Intertechnology, Inc.,
or anyone on its behalf, assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, by
estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in Vishay's
terms and conditions of sale for such products, Vishay assumes no liability whatsoever, and disclaims any express
or implied warranty, relating to sale and/or use of Vishay products including liability or warranties relating to fitness
for a particular purpose, merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify Vishay for any damages resulting from such improper use or sale.
Document Number: 91000
Revision: 08-Apr-05
www.vishay.com
1
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

High-performance 10V regulated power supply circuit

Bridge Excitation Strain Gauge Signal Conditioning Circuit

Electronic ballast circuit diagram for driving dual 40W lamps

555 sensitive earthquake sound and light alarm circuit

Triac AC voltage regulator circuit

Universal active filter circuit

Driving WS2812 with only 2 wires
Only DIN and GND are used to drive WS2812. You need to make some changes to the light strip, connect a Schottky diode between DIN and VCC, and then connect a 10uF capacitor in parallel.From: https://g...
dcexpert MicroPython Open Source section
The 8019 network chip receives a data packet but does not generate an interrupt signal. What is the reason? I would like to ask the experts for help. Thank you.
The receiving LED indicator of 8019 flashes, indicating that the data packet has been received. However, I used an oscilloscope to check that 8019 did not generate an interrupt signal. I guess it is a...
ywjang Embedded System
Talk about the selection method of MOS tube in switching power supply
The most common application of MOS tubes may be the switching element in the power supply, and they are also very beneficial to the power supply output. Applications such as servers and communication ...
qwqwqw2088 Power technology
If you want to go to Intel, you can contact me.
If you want to go to Intel, you can contact me at manjianmei@live.cn...
zhangjingrui Embedded System
Newcomers' apprenticeship
I just came into contact with DSP. I am learning about the 5402 Chinese original development board. I don't know if there is anyone in the forum who knows about it and is willing to learn from me. Add...
zhaohongpeng DSP and ARM Processors
I'm new here; please give me some advice.
The blank space on the left hand side of the picture below used to be the directory of each original drawing; now it is completely blank because of me; please tell me how to restore it...
NJMKL PCB Design
Shortcut:   L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components

  1. AJ3SX12Y12NANPW1C2S1J5
  2. DL66R10-06SN-6106
  3. RLR07C2001GPRSL
  4. JT02RP-20-41SB(011LC)
  5. VG95234U228-21SX
  6. AD1835AASZ
  7. C4550D208SV120RFHA3100MHZ
  8. SLRC210500BFDBFS
  9. BZM5245B_R1_10001
  10. P6KE150CA_B0_00001
  11. MMBZ5240AWT/R13
  12. P4SMAJ51CT/R13

Popular Articles

  1. Design of intelligent wiper based on 51 single chip microcomputer
  2. ANCA Academy is now available on Bilibili. Welcome to follow us
  3. How to use mechanical pointer multimeter
  4. 10. Matrix buttons
  5. Data logger selection and working principle
  6. Design of multifunctional electronic password lock system based on single chip microcomputer
  7. Semiconductor Characteristics Analyzer_4200-SCS Semiconductor Characteristics Analysis System
  8. Introducing the method of using a multimeter to identify the transistor/E pole
  9. Device Tree (2): Basic concepts
  10. Four common audio output modes of voice chips

Technical ResourceMore

  1. ZTE Circuit Basic Training
  2. xlinx xpe calculation tool
  3. SMPSDesignToolkit1_6 design software and its application
  4. Principle and Application of Supercapacitor
  5. 3D-LAYOUT video
  6. Selection of coordinate transformation coefficients and their impact on motor control algorithms
  7. USB CDC Class Introductory Training
  8. MATLAB Case 16 Data Classification of Single-layer Competitive Neural Networks—Patient Cancer Incidence Prediction.rar
  9. Copper clad aluminum wire_Industry standard_SJ_T_11223-2000.
  10. Detailed explanation of Mitsubishi FX series PLC soft components

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 959  1080  1048  957  168  20  22  4  11  55
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
