VS
HEADER
3.96mm
pitch
Headers

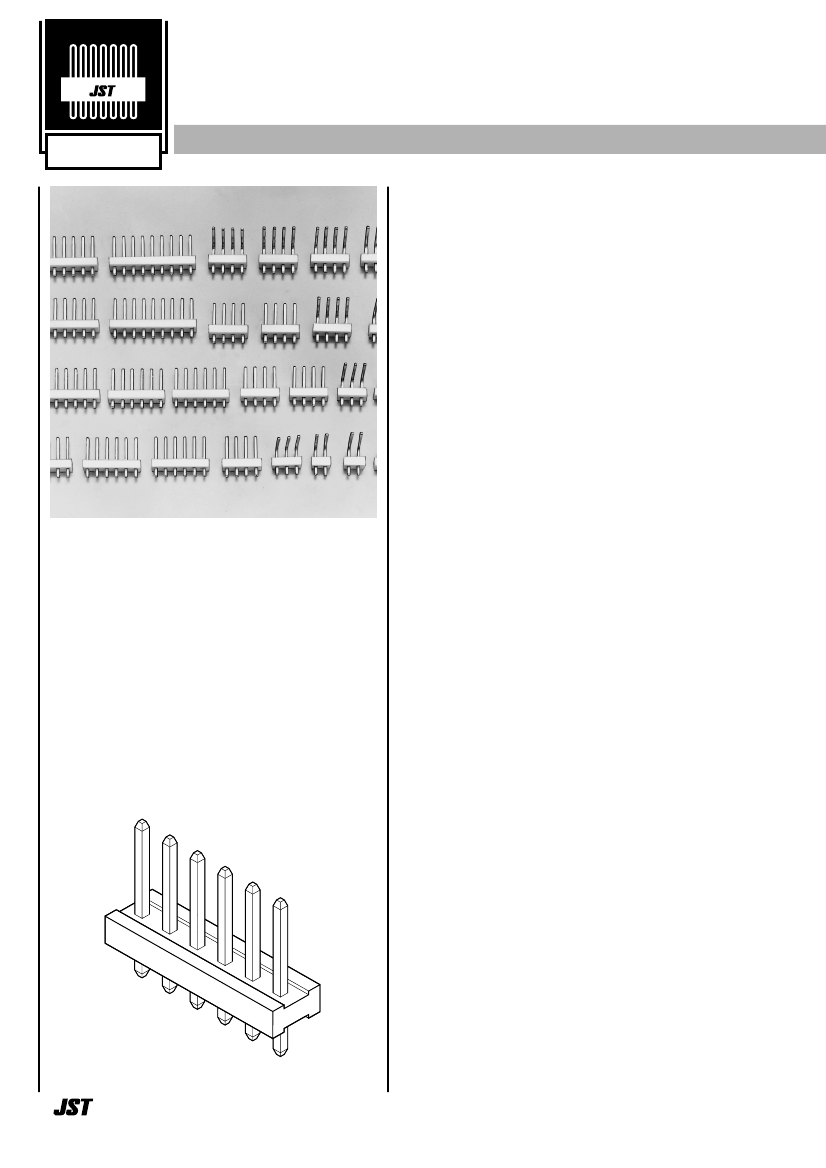

This header can mate with a receptacle or
as a connector for the direct
interconnection of printed circuit boards.
Specifications –––––––––––––––––––
• Post: Brass, copper-undercoated, tin-plated (reflow treatment)
• Wafer: PA 66, UL94V-0 (natural)
• Pitch: 3.96mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
0
1
1
Recognized E60389
Certified LR20812
VS
HEADER
Header ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Top entry type
Cir-
cuits
2
B
A
(1.95)
3.96
6.35
3
4
5
6
(11.43)
7
8
9
3.2
10
11
12
13
14
15
Model No.
Top entry type
B 2P-VS
B 3P-VS
B 4P-VS
B 5P-VS
B 6P-VS
B 7P-VS
B 8P-VS
B 9P-VS
B10P-VS
B11P-VS
B12P-VS
B13P-VS
B14P-VS
B15P-VS
Side entry type
B 2PS-VS
B 3PS-VS
B 4PS-VS
B 5PS-VS
B 6PS-VS
B 7PS-VS
B 8PS-VS
B 9PS-VS
B10PS-VS
B11PS-VS
B12PS-VS
B13PS-VS
B14PS-VS
B15PS-VS
Dimensions (mm)
A
3.96
7.92
11.88
15.84
19.80
23.76
27.72
31.68
35.64
39.60
43.56
47.52
51.48
55.44
B
7.86
11.82
15.78
19.74
23.70
27.66
31.62
35.58
39.54
43.50
47.46
51.42
55.38
59.34
18.23
1.14
3.6
RoHS compliance
This product displays (LF)(SN) on a label.
Side entry type
B
A
(1.95)
3.96
(12.0)
3.6
3.2
1.14
6.35
PC board layout
(viewed from soldering side)
and Assembly layout –––––––––––––––––––
3.96±0.05 2.0min.
3.5min.
(11.43)
18.23
3.6
3.2
φ
1.65
+0.1
0
8.1
6.35
Note:
1. Tolerances are non-cumulative: ±0.05mm for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline.
Contact JST for details.
