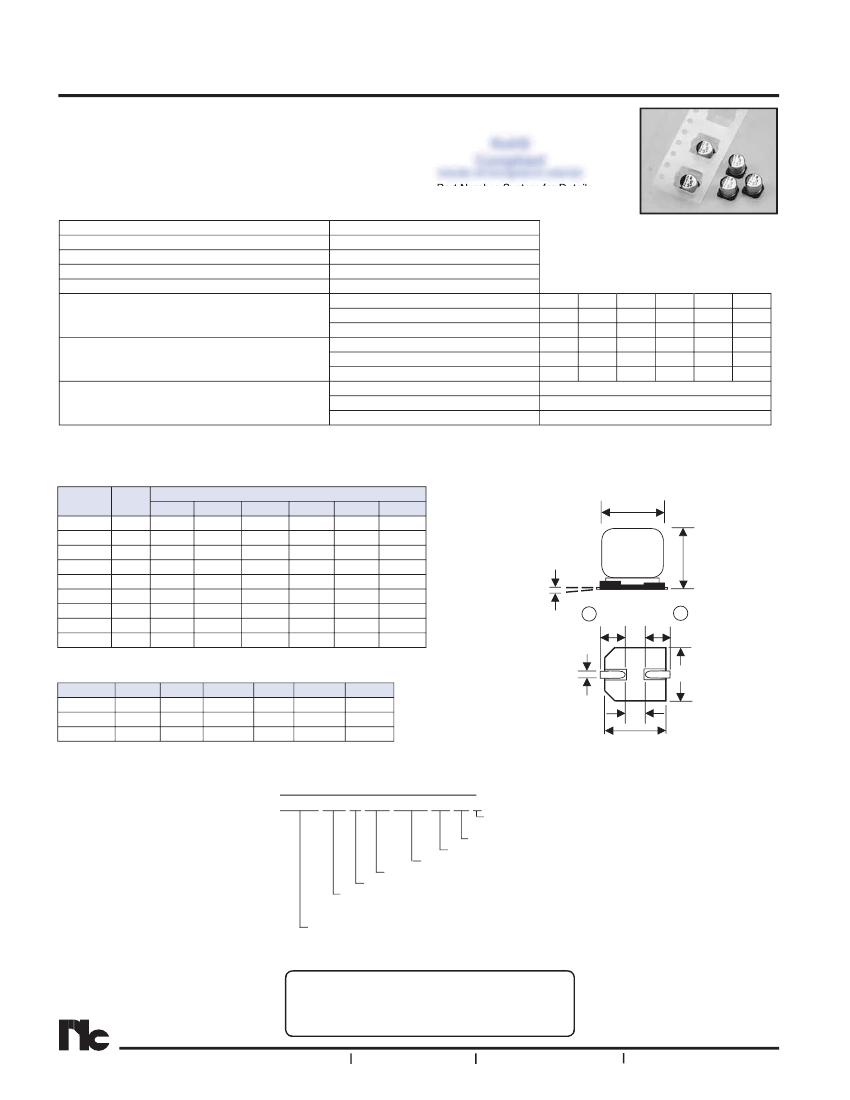

Surface Mount Aluminum Electrolytic Capacitors
FEATURES
• CYLINDRICAL V-CHIP CONSTRUCTION
• LOW PROFILE, 5.5mm MAXIMUM HEIGHT
• SPACE AND COST SAVINGS
• DESIGNED FOR REFLOW SOLDERING
CHARACTERISTICS
Rated Voltage Rating
Rated Capacitance Range
Operating Temperature Range
Capacitance Tolerance
Max. Leakage Current After 2 Minutes at 20°C
Surge Voltage & Max. Tanδ
Low Temperature
Stability
(Impedance Ratio @ 120Hz)
Load Life Test
at Rated W.V.
85°C 2,000 Hours
** For higher voltages, 200V and 400V, see NACV series.
NACS Series
RoHS
Compliant
includes all homogeneous materials
*See Part Number System for Details
6.3 ~ 50Vdc**
4.7 ~ 220μF
-40° ~ +85°C
±20%(M)
0.01CV or 3μA, whichever is greater
W.V. (Vdc)
S.V. (Vdc)
Tanδ @ 120Hz/20°C
W.V. (Vdc)
Z-20°C/Z +20°C
Z-40°C/Z +20°C
Capacitance Change
Tanδ
Leakage Current
6.3
10
16
25
35
50
8.0
13
20
32
44
63
0.28
0.24
0.20
0.16
0.14
0.12
6.3
10
16
25
35
50
4
3
2
2
2
2
10
8
6
4
4
4
Within ±25% of initial measured value
Less than 200% of specified value
Less than specified value
STANDARD PRODUCT AND CASE SIZE Dφ xL (mm)
Cap. (μF) Code
4.7
10
22
33
47
56
100
150
220
4R7
100
220
330
470
560
101
151
221
Working Voltage (Vdc)
6.3
10
16
25
35
50
-
-
-
-
-
4x5.5
-
-
-
4x5.5
4x5.5
5x5.5
-
4x5.5
4x5.5
5x5.5
5x5.5 6.3x5.5
4x5.5
4x5.5
5x5.5
5x5.5 6.3x5.5
-
4x5.5
5x5.5
5x5.5 6.3x5.5
-
-
5x5.5
5x5.5
5x5.5 6.3x5.5
-
-
5x5.5
5x5.5
-
-
-
-
6.3x5.5 6.3x5.5
-
-
-
-
6.3x5.5
-
-
-
-
-
Dφ
0.3mm max.
L
+
W
I
I
-
DIMENSIONS (mm)
Case Size Dφ±0.5 L max. A/B±0.2 I ± 0.2
W
4x5.5
4.0
5.5
4.3
1.8 0.5 ~ 0.8
5x5.5
5.0
5.5
5.3
2.1 0.5 ~ 0.8
6.3x5.5
6.3
5.5
6.6
2.5 0.5 ~ 0.8
P±0.2
1.0
1.4
2.2
P
B
A
PART NUMBER SYSTEM
NACS 100 M 35V 4x5.5 TR 13 F
RoHS Compliant
97% Sn (min.), 3% Bi (max.)
330mm (13”) Reel
Tape & Reel
Size in mm
Working Voltage
Tolerance Code M=20%
Capacitance Code in
μF,
first 2 digits are significant
Third digit is no. of zeros, “R” indicates decimal for
values under 10μF
Series
Please review the notes on correct use, safety and precautions found on
pages T10
&
T11
of NIC’s
Electrolytic Capacitor catalog.
Also found at
www.niccomp.com/precautions
If in doubt or uncertainty, please review your specific application - process details with
NIC’s technical support personnel:
tpmg@niccomp.com
PRECAUTIONS
8
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Surface Mount Aluminum Electrolytic Capacitors
STANDARD VALUES, CASE SIZES AND SPECIFICATIONS
NIC Part Number
NACS330M6.3V4X5.5TR13F
NACS470M6.3V4X5.5TR13F
NACS560M6.3V5X5.5TR13F
NACS101M6.3V5X5.5TR13F
NACS151M6.3V6.3X5.5TR13F
NACS221M6.3V6.3X5.5TR13F
NACS220M10V4X5.5TR13F
NACS330M10V4X5.5TR13F
NACS470M10V5X5.5TR13F
NACS560M10V5X5.5TR13F
NACS101M10V5X5.5TR13F
NACS151M10V6.3X5.5TR13F
NACS220M16V4X5.5TR13F
NACS330M16V5X5.5TR13F
NACS470M16V5X5.5TR13F
NACS560M16V5X5.5TR13F
NACS100M25V4X5.5TR13F
NACS220M25V5X5.5TR13F
NACS330M25V5X5.5TR13F
NACS470M25V6.3X5.5TR13F
NACS560M25V6.3X5.5TR13F
NACS100M35V4X5.5TR13F
NACS220M35V5X5.5TR13F
NACS330M35V6.3X5.5TR13F
NACS4R7M50V4X5.5TR13F
NACS100M50V5X5.5TR13F
NACS220M50V6.3X5.5TR13F
Cap.
(μF)
33
47
56
100
150
220
22
33
47
56
100
150
22
33
47
56
10
22
33
47
56
10
22
33
4.7
10
22
W.V.
(Vdc)
Dissipaton Factor
(Tan
δ)
0.28
0.28
0.28
0.28
0.28
0.28
0.24
0.24
0.24
0.24
0.24
0.24
0.20
0.20
0.20
0.20
0.16
0.16
0.16
0.16
0.16
0.14
0.14
0.14
0.12
0.12
0.12
Max. Ripple Current (mA)
+85°C/120Hz
31
36
46
47
71
74
28
32
43
46
50
76
28
40
44
48
20
35
42
65
68
20
36
65
18
27
40
Max. ESR (Ω)
+20°C/120Hz
14.1
9.88
8.29
4.64
3.10
2.11
18.1
12.6
8.47
7.11
3.98
2.66
15.1
10.1
7.06
5.92
26.5
12.1
8.04
5.65
4.74
23.2
10.6
7.04
42.3
19.9
9.05
NACS Series
Load Life Hours
@ +85°C
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
6.3
10
16
25
35
50
RIPPLE CURRENT FREQUENCY CORRECTION FACTOR
Frequency Hz 50 < f<100 100 < f<1K 1K < f<10K f > 10K
Correcton
0.8
1.0
1.3
1.5
Factor
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
9
Surface Mount Aluminum Electrolytic Capacitors
CARRIER TAPE
Case Size
4 x 5.5
5 x 5.5
6.3 x 5.5
A ±0.5 B ±0.2 C ±0.3 D ±0.1 P ±0.1 T ±0.2
4.7
4.7
12.0
5.5
8.0
5.8
5.7
5.7
12.0
5.5
12.0
5.8
7.0
7.0
16.0
7.5
12.0
5.8
NACS Series
TR13 330mm (13") REEL
TR15 380mm (15") REEL
Case Size
4 x 5.5
5 x 5.5
6.3 x 5.5
W ±1.0
14.0
14.0
18.0
Quantity Per Reel
13" Reel
15" Reel
1,500 pcs
2,000 pcs
1,000 pcs
1,000 pcs
1,000 pcs
1,000 pcs
TAPING SPECIFICATIONS (mm)
1. Both Leader and Trailer tape: Minimum 40mm (1.57") empty carrier tape pockets.
2. Leader tape: Approximately 20cm of cover tape at leader.
3. Connection: Maximum 3 connections (slices) per reel.
CARRIER
4 + 0.1
1.5∅ +0.1/-
1.5φ+0.1/-0
-
1.75
±
1.75 + 0.15
0.4 + 0.2
C
B
+
A
P
Feeding
T
REEL
3.0
±
0.5
D
13∅
±0.5
2.
0±
0.
5
W
34
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
50∅ Min.
2
±0 1
.8
330 or 380mm
www.SMTmagnetics.com
