53324-1310: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Detent, Receptacle; CategoryThe connector The connector; File Size55KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

53324-1310 Overview

Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Detent, Receptacle

53324-1310 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED
Board mount options	POSITIONING PIN
body width	0.179 inch
subject depth	0.236 inch
body length	1.153 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	53324
Plug contact pitch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	DETENT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	13
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 2 to 15 circuits

Outer pins are kinked

Polarization peg ensures proper PCB placement

Electrical

Voltage: 125V

Current:

AWG

Amperes

2.0

1.5

1.0

0.5

2.00mm (.079") Pitch

System

Wire-to-Board

Header

53324

Single Row

Vertical

2.00 to 2.50mm (.079 to .098") Pitch

Reference Information

Packaging: Tray

UL File No.: E29179

CSA File No.: LR19980

Mates With:

51090

and

52484

Designed In: Millimeters

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 500V

Insulation Resistance: 1000 M

Ω

min.

Physical

Housing: Glass-ﬁlled PBT, UL 94V-0

Contact: Brass

Plating: Tin

Operating Temperature: -40 to +105˚C

Mating Dimensions

1. 53324 • 51090 • 50212

H=7.3mm W=4.55mm

2. 53324 • 52484

H=8.2mm W=4.55mm

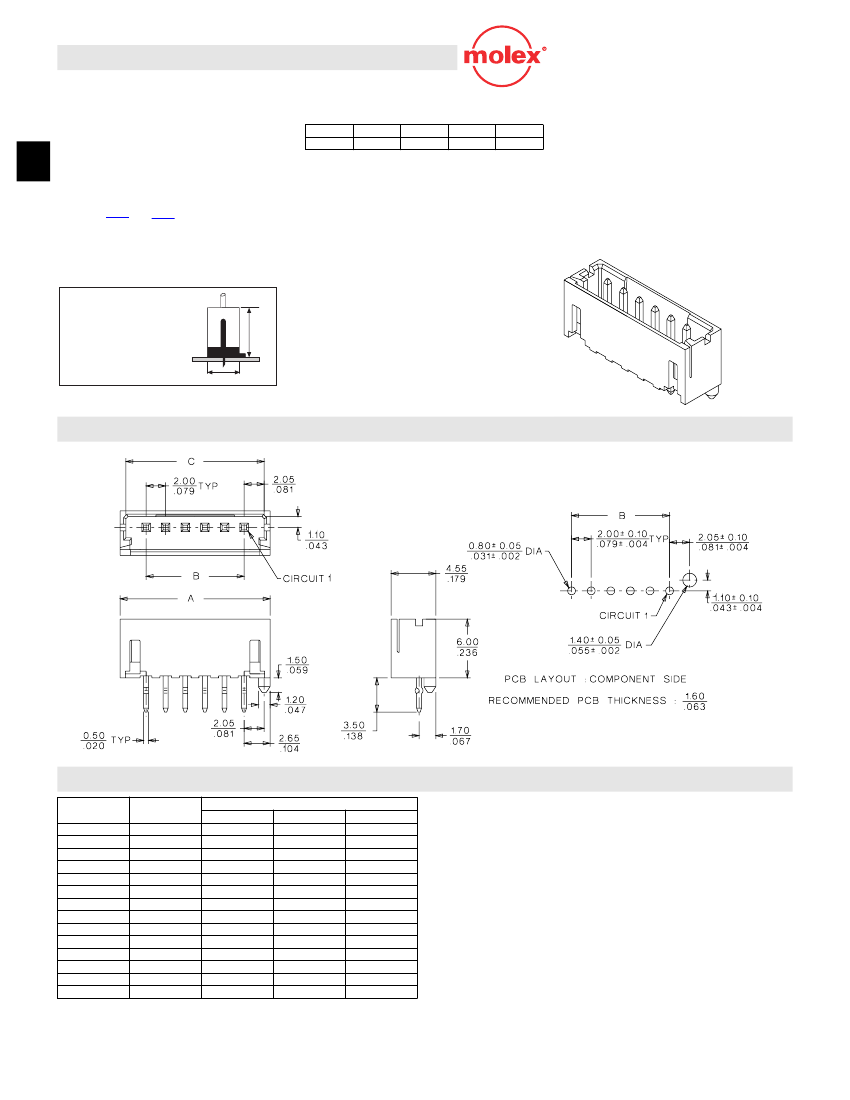

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order No.

53324-0210

53324-0310

53324-0410

53324-0510

53324-0610

53324-0710

53324-0810

53324-0910

53324-1010

53324-1110

53324-1210

53324-1310

53324-1410

53324-1510

7.30

9.30

11.30

13.30

15.30

17.30

19.30

21.30

23.30

25.30

27.30

29.30

31.30

33.30

(.287)

(.366)

(.445)

(.524)

(.602)

(.681)

(.760)

(.839)

(.917)

(.996)

(1.075)

(1.154)

(1.232)

(1.311)

Dimension

2.00 (.079)

4.00 (.157)

6.00 (.236)

8.00 (.315)

10.00 (.394)

12.00 (.472)

14.00 (.551)

16.00 (.630)

18.00 (.709)

20.00 (.787)

22.00 (.866)

24.00 (.940)

26.00 (1.024)

28.00 (1.102)

(.240)

(.319)

(.398)

(.476)

(.555)

(.634)

(.713)

(.791)

(.870)

(.949)

(1.028)

(1.106)

(1.185)

(1.264)

6.10

8.10

10.10

12.10

14.10

16.10

18.10

20.10

22.10

24.10

26.10

28.10

30.10

32.10

B-34
