PIC16C54AT-04/JW datasheet, PDF

PIC16C54AT-04/JW: Description8-BIT, UVPROM, 4 MHz, RISC MICROCONTROLLER, CDIP18, 0.300 INCH, WINDOWED, CERDIP-18; CategoryThe embedded processor and controller Microcontrollers and processors; File Size359KB，10 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance

Download Datasheet Parametric View All

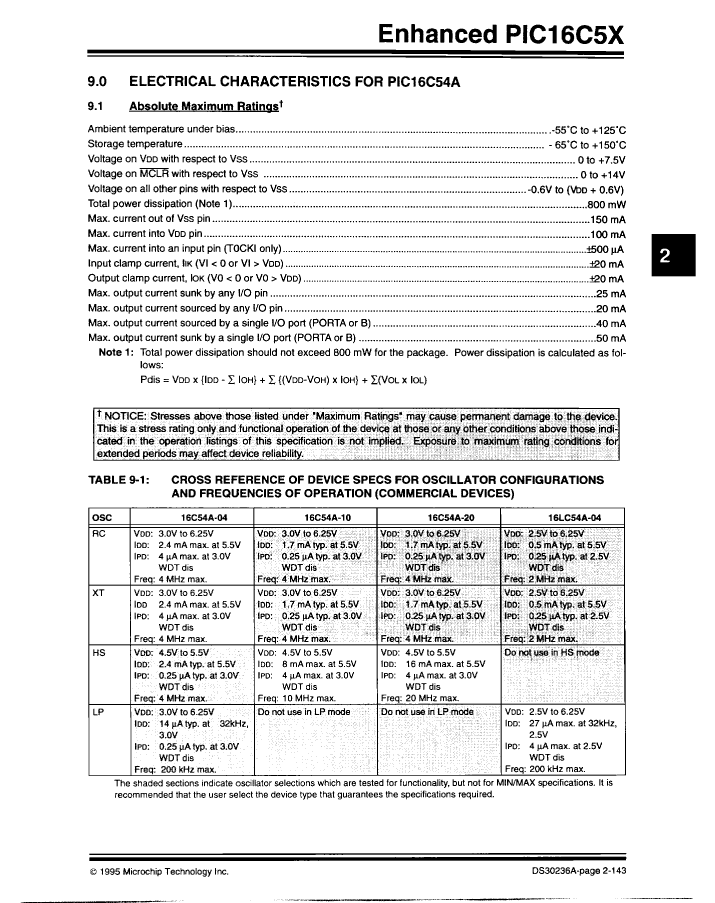

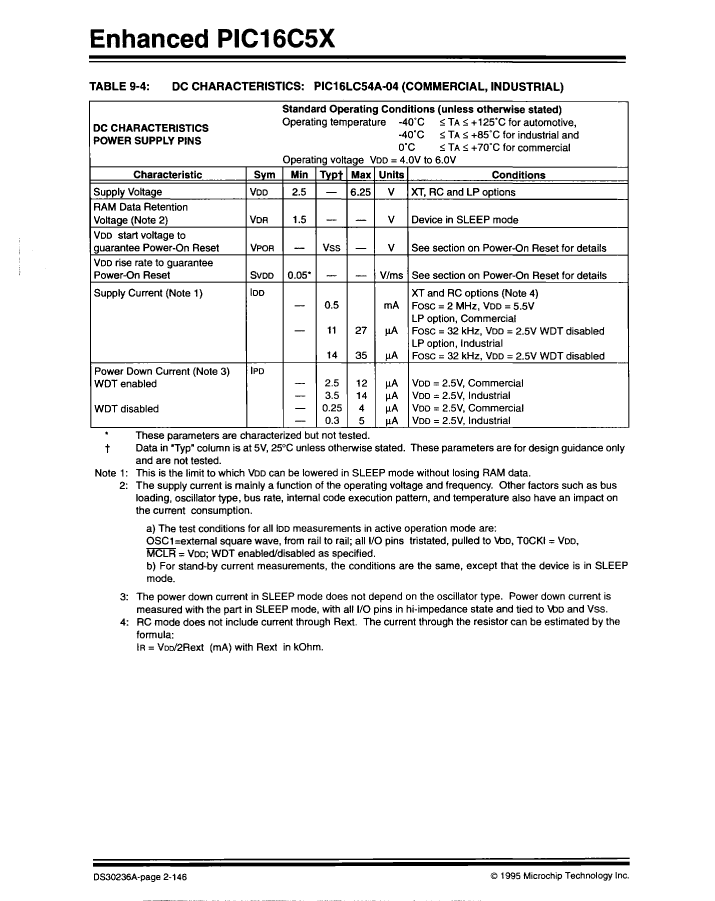

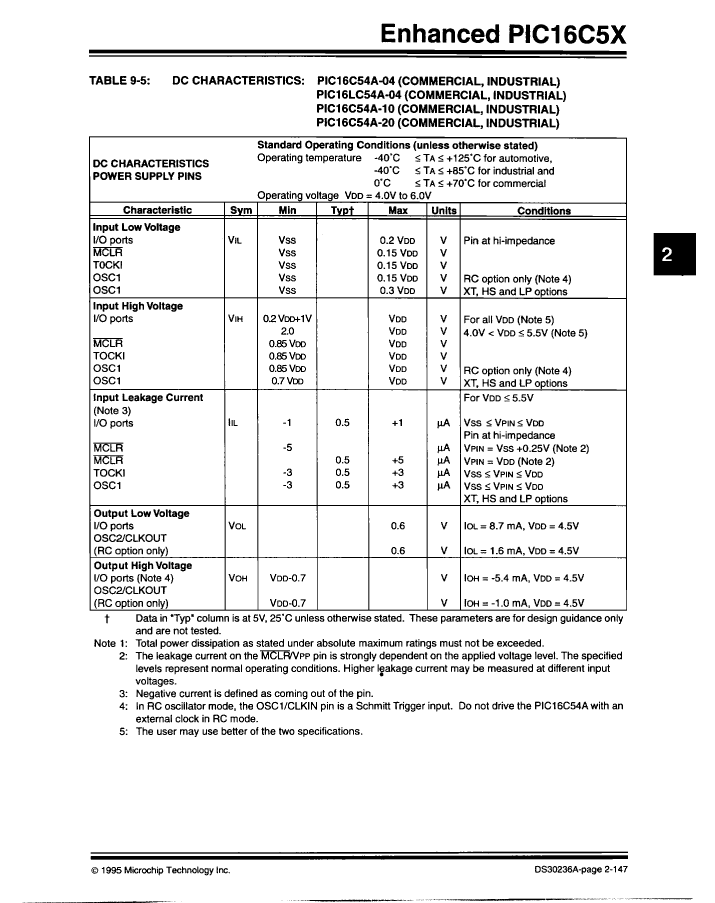

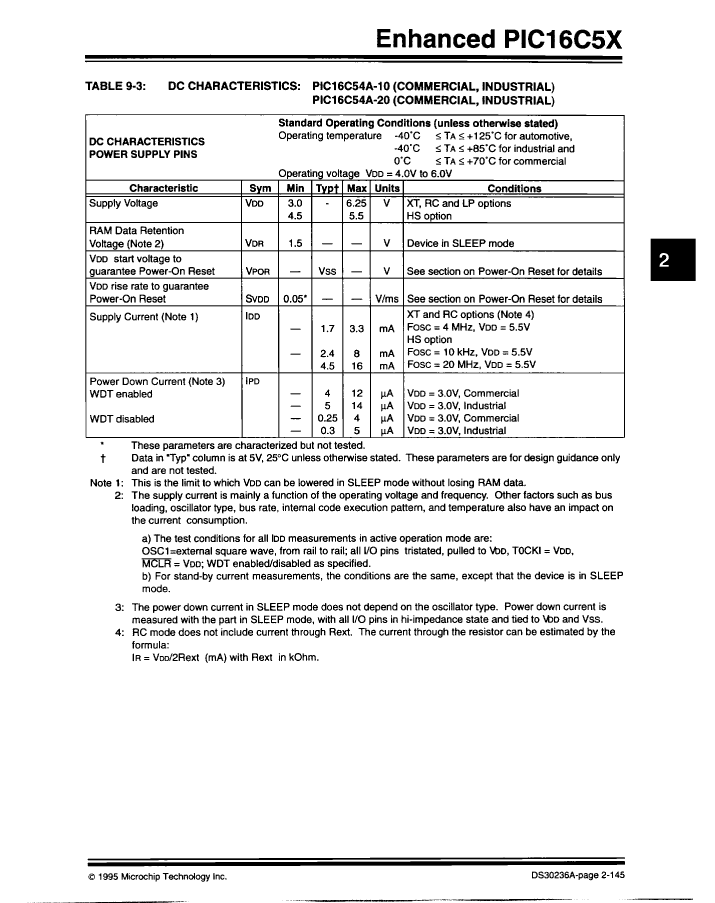

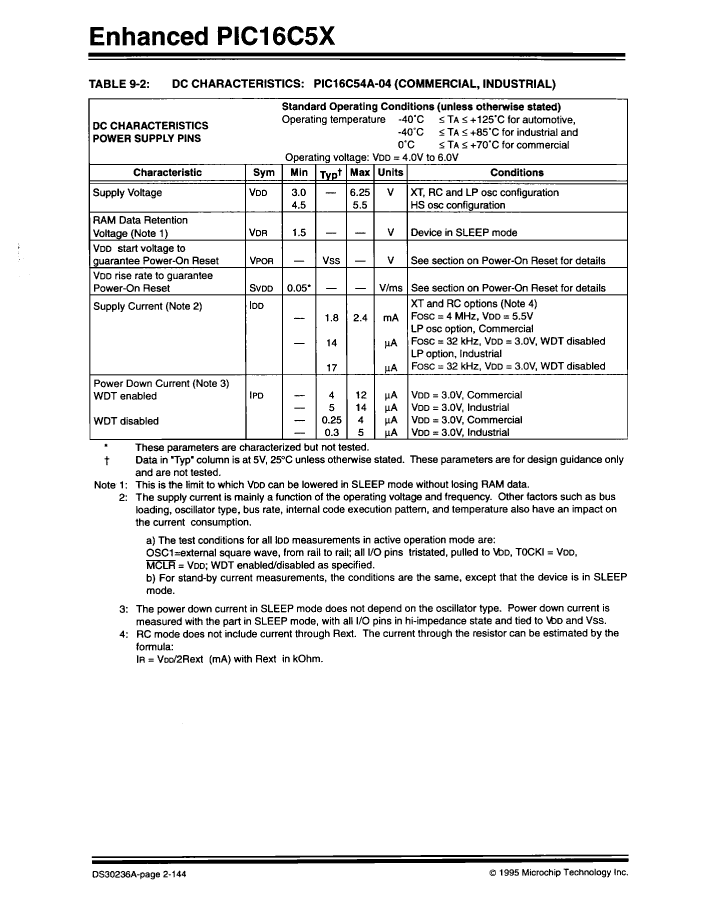

PIC16C54AT-04/JW Overview

8-BIT, UVPROM, 4 MHz, RISC MICROCONTROLLER, CDIP18, 0.300 INCH, WINDOWED, CERDIP-18

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Microchip
Parts packaging code	DIP
package instruction	DIP,
Contacts	18
Reach Compliance Code	compliant
Has ADC	NO
Address bus width
bit size	8
maximum clock frequency	4 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-GDIP-T18
JESD-609 code	e3
Number of I/O lines	12
Number of terminals	18
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
ROM programmability	UVPROM
speed	4 MHz
Maximum slew rate	2.4 mA
Maximum supply voltage	6.25 V
Minimum supply voltage	3 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal surface	MATTE TIN
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC
