PI6C468P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> PI6C468P

PI6C468P: DescriptionProcessor Specific Clock Generator, 80MHz, CMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size138KB，5 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/

Download Datasheet Parametric Compare View All

PI6C468P Overview

Processor Specific Clock Generator, 80MHz, CMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28

PI6C468P Parametric

Parameter Name	Attribute value
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	DIP
package instruction	DIP,
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	8 BUFFER OUTPUT
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
length	35.15 mm
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output clock frequency	80 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Master clock/crystal nominal frequency	14.318 MHz
Certification status	Not Qualified
Maximum seat height	3.94 mm
Maximum slew rate	35 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, PROCESSOR SPECIFIC

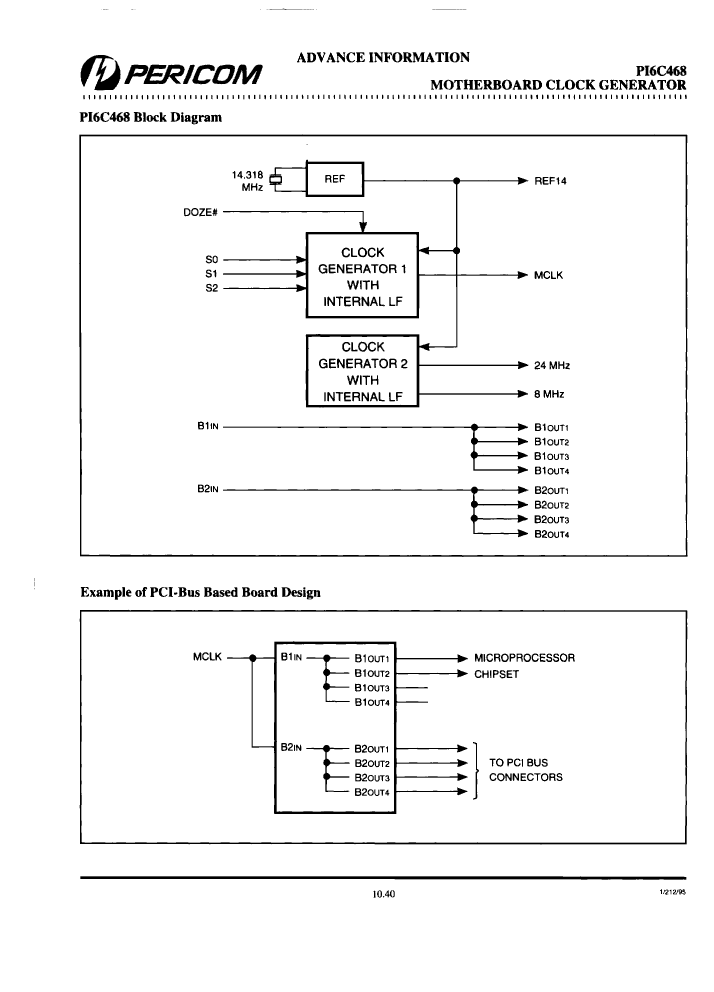

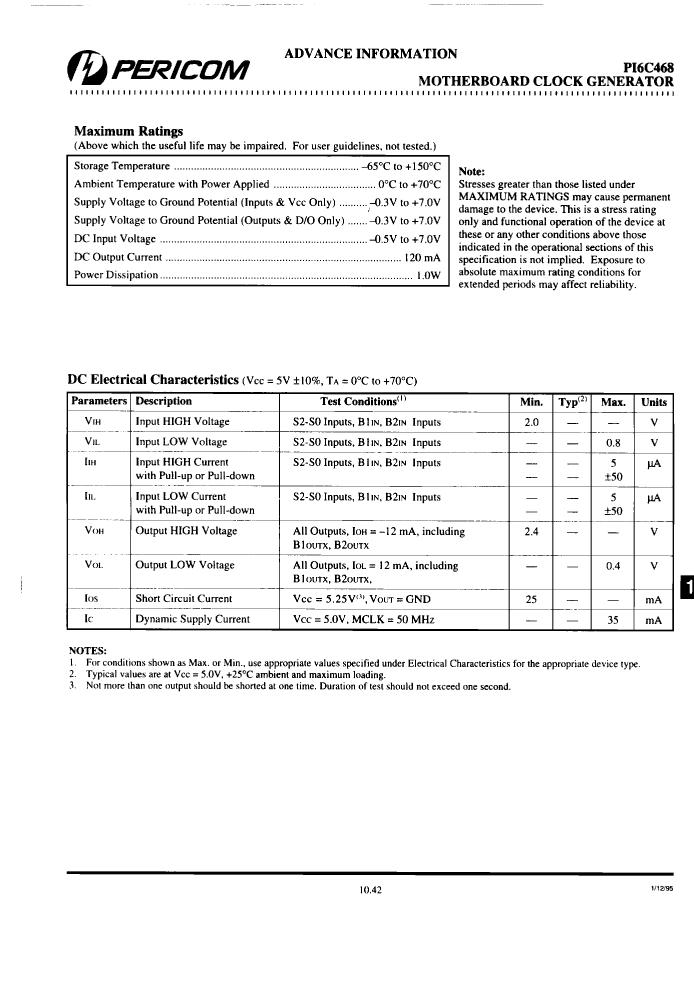

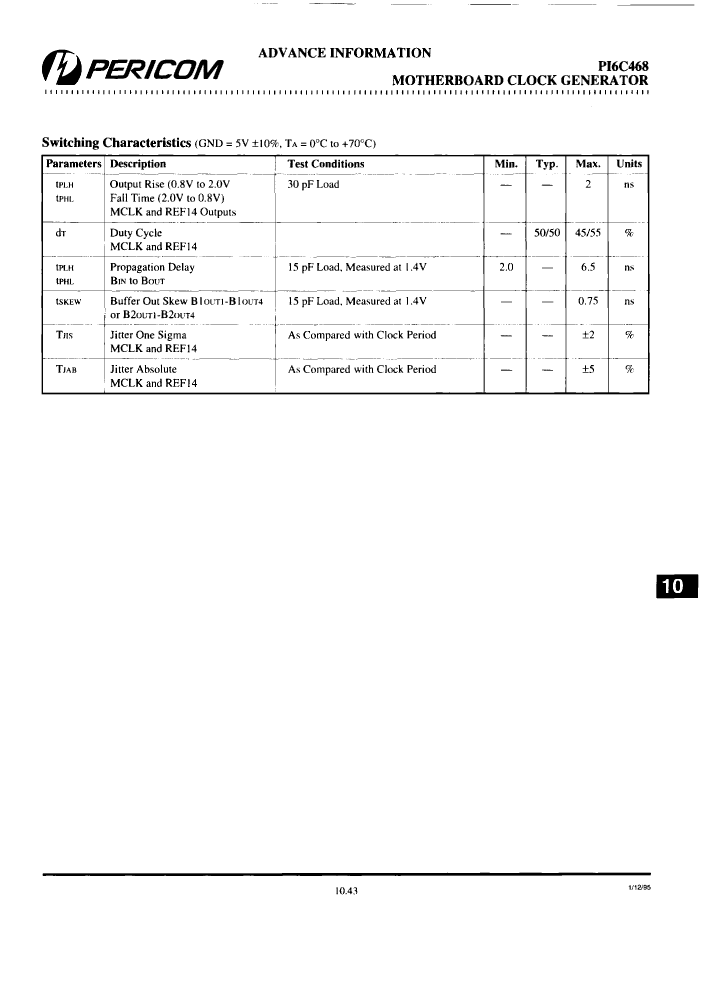

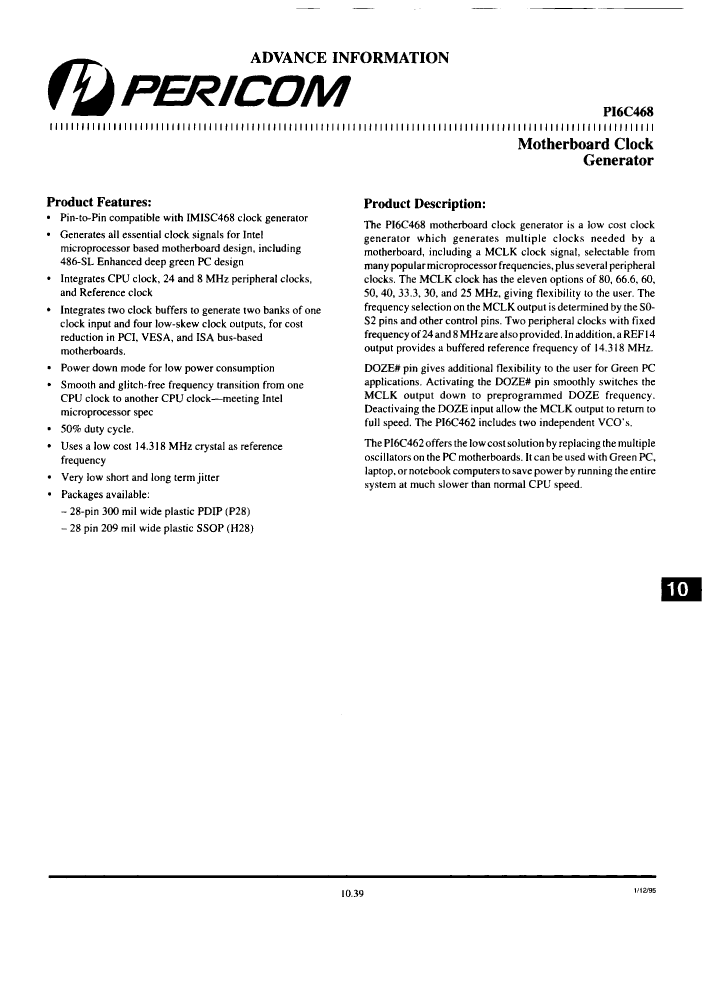

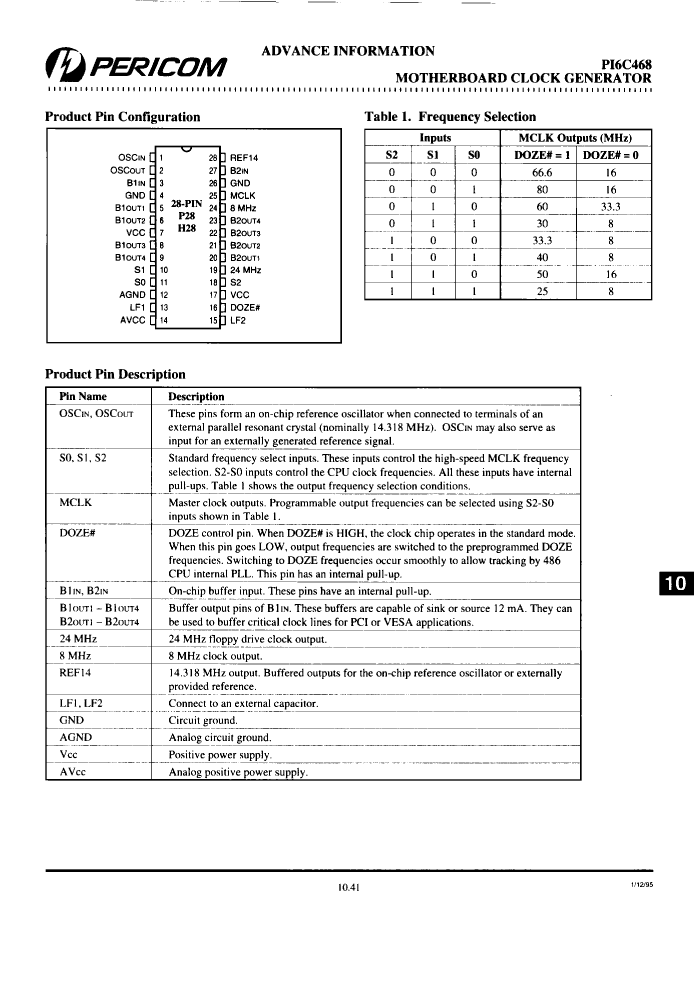

PI6C468P Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

PI6C468P Related Products

	PI6C468P	PI6C468HX	PI6C468H
Description	Processor Specific Clock Generator, 80MHz, CMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28	Processor Specific Clock Generator, 80MHz, CMOS, PDSO28, 0.209 INCH, PLASTIC, SSOP-28	Processor Specific Clock Generator, 80MHz, CMOS, PDSO28, 0.209 INCH, PLASTIC, SSOP-28
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	DIP	SSOP	SSOP
package instruction	DIP,	SSOP,	SSOP,
Contacts	28	28	28
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	8 BUFFER OUTPUT	8 BUFFER OUTPUT	8 BUFFER OUTPUT
JESD-30 code	R-PDIP-T28	R-PDSO-G28	R-PDSO-G28
JESD-609 code	e0	e0	e0
length	35.15 mm	10.2 mm	10.2 mm
Number of terminals	28	28	28
Maximum operating temperature	70 °C	70 °C	70 °C
Maximum output clock frequency	80 MHz	80 MHz	80 MHz
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Master clock/crystal nominal frequency	14.318 MHz	14.318 MHz	14.318 MHz
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.94 mm	1.99 mm	1.99 mm
Maximum slew rate	35 mA	35 mA	35 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	2.54 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL
width	7.62 mm	5.29 mm	5.29 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, PROCESSOR SPECIFIC	CLOCK GENERATOR, PROCESSOR SPECIFIC	CLOCK GENERATOR, PROCESSOR SPECIFIC
