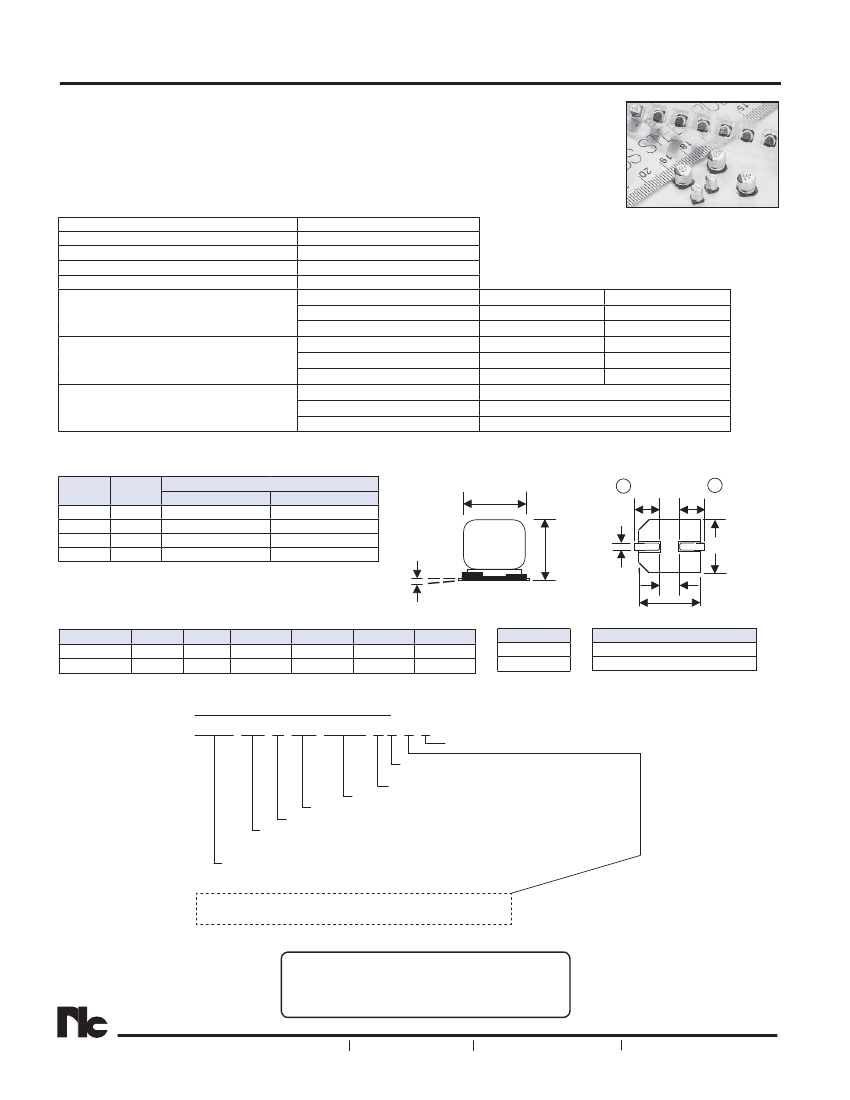

Surface Mount Aluminum Electrolytic Capacitors
FEATURES
•
EXTENDED TEMPERATURE +125
O
C & LONG LIFE (4,000 HOURS)
• CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING
• DESIGNED FOR AUTOMATIC MOUNTING AND REFLOW SOLDERING
NATU Series
• MEETS THE REQUIREMENTS OF AEC-Q200*
*Contact NIC for supporting test data
CHARACTERISTICS
Rated Voltage Range
Rated Capacitance Range
Operating Temp. Range
Capacitance Tolerance
Max. Leakage Current After 2 Minutes @ 20°C
Tan
δ
@ 120Hz/20°C
25 ~ 35VDC
100 ~ 330μF
-40 ~ +125°C
±20% (M)
0.01CV
W.V. (Vdc)
S.V. (Vdc)
Tan
δ
@ 120Hz/20°C
W.V. (Vdc)
Z -25°C/Z +20°C
Z -40°C/Z +20°C
Capacitance Change
Tan
δ
Leakage Current
Low Temperature Stability
Impedance Ratio @ 120Hz
Load Life Test at W.V. @ 125°C
All Case Sizes: 4,000 Hours
25
35
32
44
0.16
0.14
25
35
2
2
3
3
Within ±30% of initial measured value
Less than 300% of specified max. value
Less than specified max. value
STANDARD PRODUCT AND CASE SIZE Dφ xL (mm)
Cap.(μF)
100
150
220
330
Code
101
151
221
331
Working Voltage (Vdc)
25
35
-
8X10.8
8X10.8
-
-
10X10.8
-
10X10.8
Dφ
W
0.3mm max.
+
I
I
-
L
P
A
DIMENSIONS (mm)
Case Size
8 x 10.8
10 x 10.8
Dφ ±0.5
8.0
10.0
L max.
10.8
10.8
A, B ±0.2
8.3
10.3
I ±0.3
2.9
3.2
P ±0.3
3.2
4.6
W
0.7 ~ 1.0
1.0 ~ 1.4
Reflow Code
L = +250°C
N = +260°C
B
Termination / Packaging Code
B = Sn-Bi / 13" reel
LB = Sn-Bi / 15" reel
PART NUMBER SYSTEM
NATU 101 M 35V 8x10.8 N B Y F
RoHS Compliant
Termination/Packaging Code: B = Sn-Bi, 13" Reel
LB = Sn-Bi, 15" Reel
Reflow Temperature Code
Size in mm
Working Voltage
Tolerance Code M=20%
Capacitance Code in
μF,
fi
rst 2 digits are significant
Third digit is no. of zeros, “R” indicates decimal for
values under 10μF
Series
Suitable for automotive equipment, sourced to special
production and inspection at TS-16949 certified production site
Please review the notes on correct use, safety and precautions found on
pages T10
&
T11
of NIC’s
Electrolytic Capacitor catalog.
Also found at
www.niccomp.com/precautions
If in doubt or uncertainty, please review your specific application - process
details with NIC’s technical support personnel:
tpmg@niccomp.com
PRECAUTIONS
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
1
Surface Mount Aluminum Electrolytic Capacitors
STANDARD VALUES, CASE SIZES & SPECIFICATIONS
Part Number
NATU151M25V8X10.8NBYF
NATU331M25V10X10.8LBYF
NATU101M35V8X10.8NBYF
NATU221M35V10X10.8LBYF
Cap.
(μF)
150
330
100
220
Working
Voltage
25
35
Dissipaton Factpr
@120Hz/20°C
0.16
0.16
0.14
0.14
Max. ESR (Ω)
Max. Ripple Current (mA rms)
AT 100KHz/20°C
AT 100KHz/125°C
0.30
300
0.20
0.30
0.20
500
300
500
NATU Series
Load Life Hours
@ +125°C
4,000
4,000
4,000
4,000
RIPPLE CURRENT FREQUENCY CORRECTION FACTOR
Frequency (Hz)
100μF ~ 330μF
100 < f <1K
0.6
1K < f <10K
0.85
10K < f <100K
0.93
100K < f
1.00
LAND PATTERN DIMENSIONS (mm)
Case Size
8x10.8
10x10.8
a
2.8
4.3
b
4.1
4.4
c
2.1
2.5
c
b
a
PEAK REFLOW TEMPERATURES AND DURATION
Diameter
8mm
φ
10mm
φ
Time above
200°C
80 sec. max.
70 sec. max.
Time above
217°C
70 sec. max.
60 sec. max.
Time above
230°C
40 sec. max.
40 sec. max.
Peak Temperature
5 seconds
260°C
250°C
Capacitors can withstand two reflow passes under the
specified conditions. Capacitors must be allowed to cool
to room temperature before the second reflow pass.
Temperature - Deg. C
230
200
150
100
50
Time (Seconds)
Preheat - 120 seconds max.
(150°C ~ 180°C)
Time Above
217°C
(see table)
Time Above
200°C
(see table)
Peak Temperature
(see table)
Time Above 230°C
(see table)
Review & Compare Reflow Soldering Heat Limits
V-chip SMT Aluminum Electrolytic Capacitors
www.niccomp.com/RSL
2
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
Surface Mount Aluminum Electrolytic Capacitors
CARRIER TAPE
Case Size
8x10.8
10x10.8
A
±0.2
8.7
10.7
B
±0.2
8.7
10.7
C
±0.3
24.0
24.0
D
±0.1
11.5
11.5
P
±0.1
16.0
16.0
T
±0.2
11.1
11.2
t
max.
0.6
0.6
NATU Series
TR13 330mm (13") REEL
TR15 380mm (15") REEL
Case Size
8x10.8
10x10.8
W
±1.0
26
26
Qty per Reel
13" (330mm)
15" (380mm)
300
500
300
500
TAPING SPECIFICATIONS (mm)
1. Both Leader and Trailer tape: Minimum 10 empty carrier tape pockets.
2. Leader tape: Approximately 20cm of cover tape at leader.
3. Connection: Maximum 3 connections (slices) per reel.
CARRIER
4 + 0.1
1.5∅ +0.1/-
1.5φ+0.1/-0
1.75
±
1.75 + 0.15
t
C
D
A
P
Feeding
B
T
REEL
2mm ± 0.5mm
φ21mm
± 0.8mm
3mm
φ330mm
± 2.0mm
or
φ380mm
± 2.0mm
W
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
φ50mm
min.
φ13mm
± 0.5mm
www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
3
