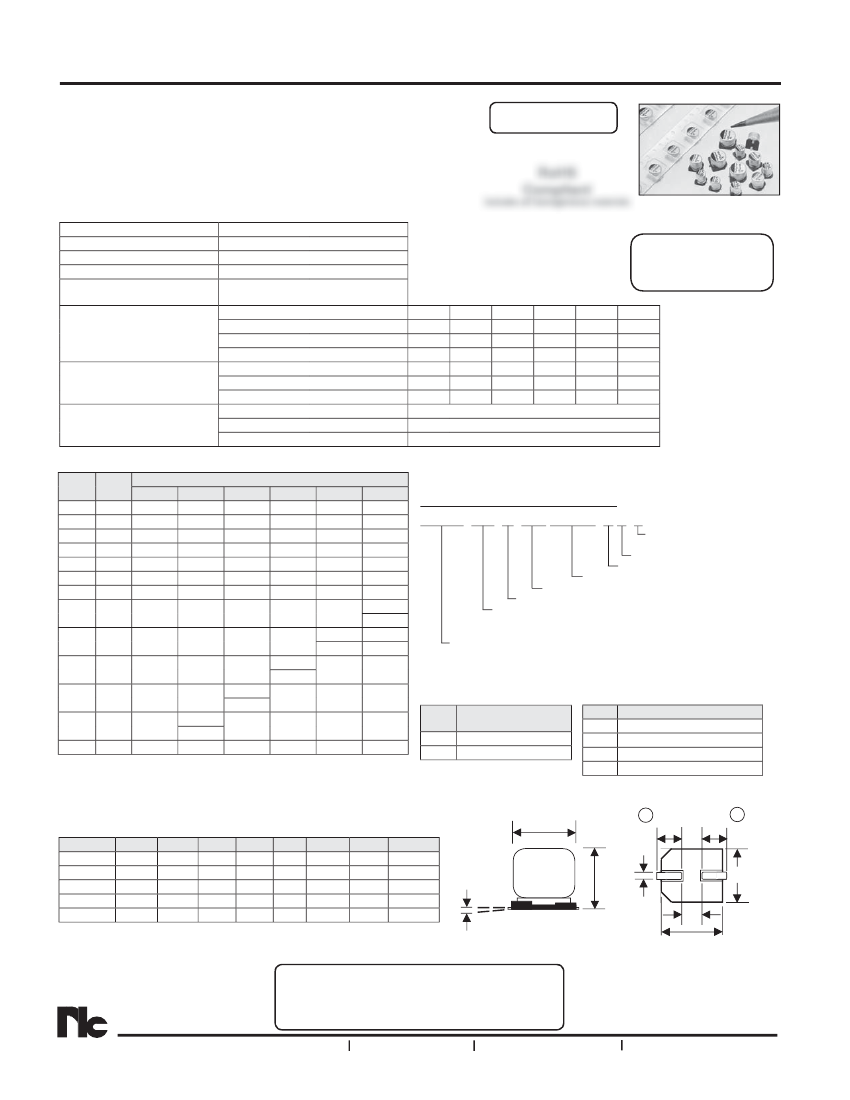

Surface Mount Aluminum Electrolytic Capacitors
FEATURES
•
•
•
•
CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING
SUIT FOR HIGH TEMPERATURE REFLOW SOLDERING (UP TO 260°C)
1,000 HOUR LOAD LIFE @ +105°C
DESIGNED FOR AUTOMATIC MOUNTING AND REFLOW SOLDERING
SAC
Alloy Compatible
230°C ~ 260°C
NAWE Series
includes all homogeneous materials
RoHS
Compliant
CHARACTERISTICS
Rated Voltage Rating
Rated Capacitance Range
Operating Temp. Range
Capacitance Tolerance
Max. Leakage Current
After 2 Miuntes @ 20°C
Tan
δ
@ 120Hz/20°C
Low Temperature
Stability
Impedance Ratio @ 120Hz
Load Life Test @ 105°C
All Case Sizes = 1,000 hours
6.3 ~ 50Vdc
1.0 ~ 1,000μF
-55 ~ +105°C
±20% (M)
0.01CV or 3μA
whichever is greater
W.V. (Vdc)
S.V. (Vdc)
4mm, 5mm diameter & 6.3x6.1mm
6.3x8mm & 8~10mm diameter
W.V. (Vdc)
Z-25°C/Z+20°C
Z-40°C/Z+20°C
Capacitance Change
Tan
δ
Leakage Current
*See Part Number System for Details
P N b S
f D il
LOW ESR COMPONENT
LIQUID ELECTROLYTE
For Performance Data
see www.LowESR.com
10
16
25
35
50
13
20
32
44
63
0.24
0.20
0.16
0.14
0.12
0.26
0.24
0.18
0.14
0.12
10
16
25
35
50
3
2
2
2
2
8
4
4
3
3
Within ±30% of initial measured value
Less than ±300% of the specified maximum value
Less than the specified maximum value
6.3
8.0
0.30
0.35
6.3
4
8
STANDARD VALUES AND CASE SIZES (mm)
Cap.
(μF)
1.0
2.2
3.3
4.7
10
22
33
47
100
220
330
470
1000
Code
1R0
2R2
3R3
4R7
100
220
330
470
101
221
331
471
102
Working Voltage (Vdc)
6.3
10
16
25
35
50
-
-
-
-
-
4x5.5
-
-
-
-
-
4x5.5
-
-
-
-
-
4x5.5
-
-
-
-
4x5.5
5x5.5
-
-
4x5.5
-
5x5.5 6.3x5.5
4x5.5
-
5x5.5
-
6.3x5.5
-
-
5x5.5
-
6.3x5.5
-
8x10.5
8x10.5
5x5.5
-
6.3x5.5
-
-
10x10.5
8x10.5 8x10.5
6.3x5.5
-
6.3x5.5 8x10.5
10x10.5 10x10.5
8x10.5
-
-
8x10.5
10x10.5
-
10x10.5
8x10.5
-
8x10.5
10x10.5
-
-
10x10.5
8x10.5
8x10.5
10x10.5
-
-
-
10x10.5
10x10.5
-
-
-
-
-
PART NUMBER SYSTEM
NAWE 101 M 16V 6.3x5.5 N B F
RoHS Compliant
Termination/Packaging Code
Reflow Temperature Code
Size in mm
Working Voltage
Tolerance Code M=20%
Capacitance Code in
μF,
fi
rst 2 digits are significant
Third digit is no. of zeros, “R” indicates decimal for
values under 10μF
Series
TERMINATION FINISH &
PEAK REFLOW
TEMPERATURE CODES PACKAGING OPTIONS CODES
Code
N
L
Peak Reflow
Temperature
260°C
250°C
Code
Finish & Reel Size
B
Sn-Bi Finish & 13" Reel
LB
Sn-Bi Finish & 15" Reel
S
100% Sn Finish & 13" Reel
LS 100% Sn Finish & 15" Reel
DIMENSIONS (mm) AND REEL QUANTITIES
Case Size
φD±0.5
L max. A±0.2 B±0.2 I±0.3
W
P±0.3 Qty/Reel
4x5.5
4.0
5.5
4.3
4.3
1.8 0.5~0.8 1.0
1,500
5x5.5
5.0
5.5
5.3
5.3
2.2 0.5~0.8 1.4
1000
6.3x5.5
6.3
5.5
6.6
6.6
2.5 0.5~0.8 2.2
1000
8x10.5
8.0
10.5
8.3
8.3
2.9 0.7~1.1 3.2
300
10x10.5
10.0
10.5
10.3 10.3 3.2 0.8~1.4 4.6
300
Dφ
W
0.3mm max.
+
I
I
-
L
P
B
A
Please review the notes on correct use, safety and precautions found on
pages T10
&
T11
of NIC’s
Electrolytic Capacitor catalog.
Also found at
www.niccomp.com/precautions
If in doubt or uncertainty, please review your specific application - process
details with NIC’s technical support personnel:
tpmg@niccomp.com
PRECAUTIONS
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
1
Surface Mount Aluminum Electrolytic Capacitors
Temperature - Deg. C
PEAK REFLOW TEMPERATURE AND DURATION
Diameter
4 ~ 6.3mm
φ
8 ~ 10mm
φ
Time above
217°C
60 sec. max.
60 sec. max.
Peak Temperature
5 seconds
260°C
250°C
NAWE Series
Peak Temperature
(see table)
230
200
150
100
50
Time (Seconds)
Preheat - 120 seconds max.
(150°C ~ 180°C)
Time Above 217°C
(see table)
Capacitors can withstand two times reflow at the above conditions.
Second reflow shall be at least one hour after natural cool to room
temperature.
RECOMMENDED LAND PATTERN DIMENSIONS (mm)
Case Size
4x5.5
5x5.5
6x3x5.5
8x10.5
10x10.5
a
1.0
1.4
1.8
2.8
4.3
b
2.6
3.0
3.6
4.1
4.4
c
1.8
1.8
1.8
2.2
2.5
a
c
b
Review & Compare Reflow Soldering Heat Limits
V-chip SMT Aluminum Electrolytic Capacitors
www.niccomp.com/RSL
CARRIER TAPE DIMENSIONS & REEL QTY
Case Size
4x5.5
5x5.5
6.3x5.5
8x10.5
10x10.5
A ±0.5 B ±0.5 C ±0.3 D ±0.1 P ±0.1 T ±0.2
4.7
4.7
12.0
5.5
8.0
5.8
5.7
5.7
12.0
5.5
12.0
5.8
7.0
7.0
16.0
7.5
12.0
5.8
8.7
8.7
24.0
11.5
16.0
11.1
10.7
10.7
24.0
11.5
16.0
11.2
t ±0.1
0.6
0.6
0.6
0.6
0.6
1.5φ+0.1/-0
1.75 + 0.10
4 + 0.1
t
C
B
A
P
Feeding
D
T
REEL DIMENSIONS & REEL QTY
Case Size
4x5.5
5x5.5
6.3x5.5
8x10.5
10x10.5
W ±1.0
14
14
18
26
26
Quantity
TR13 (330mm)
TR15 (380mm)
1500
2000
1000
-
1000
-
300
500
300
500
3.0
±
0.5
13∅
±0.5
2.0±0.5
21±0.8
W
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
330 or 380 mm
50∅ Min.
SPECIFICATIONS ARE SUBJECT TO CHANGE
3
