DG134AL/883 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> DG134AL/883

DG134AL/883: DescriptionSPST, 2 Func, 1 Channel, FP-14; CategoryAnalog mixed-signal IC The signal circuit; File Size334KB，8 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

DG134AL/883 Overview

SPST, 2 Func, 1 Channel, FP-14

DG134AL/883 Parametric

Parameter Name	Attribute value
Maker	Vishay
package instruction	DFP,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-XDFP-F14
Nominal Negative Supply Voltage (Vsup)	-18 V
Number of channels	1
Number of functions	2
Number of terminals	14
Maximum on-state resistance (Ron)	80 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Filter level	MIL-STD-883
Nominal supply voltage (Vsup)	12 V
surface mount	YES
Maximum disconnect time	1600 ns
Maximum connection time	600 ns
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL

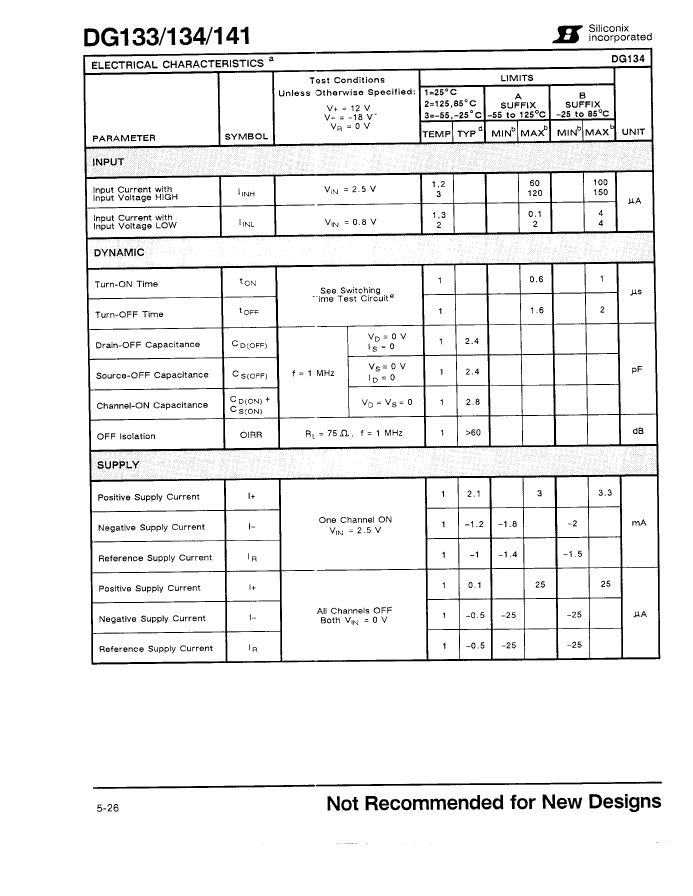

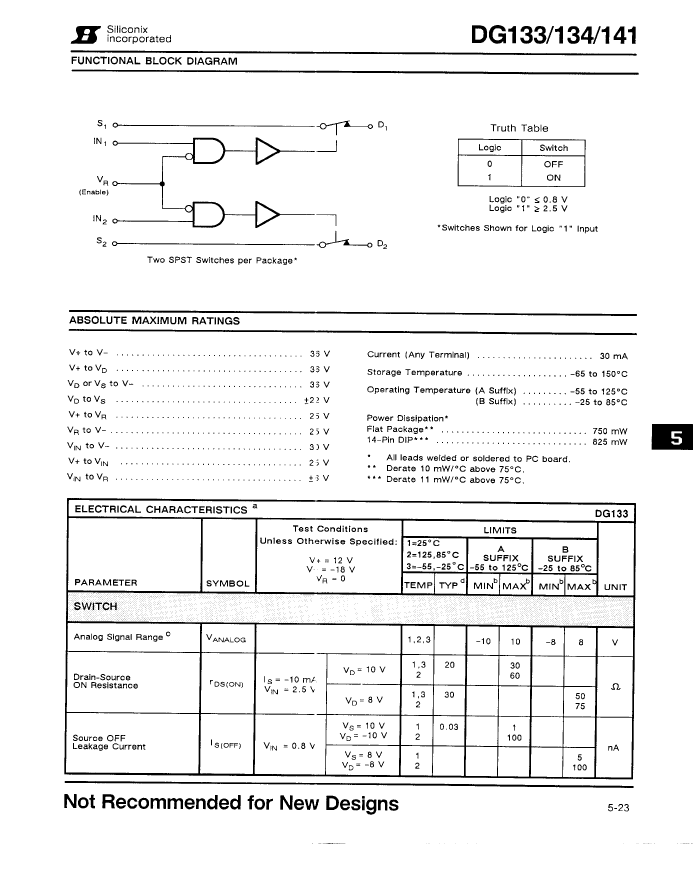

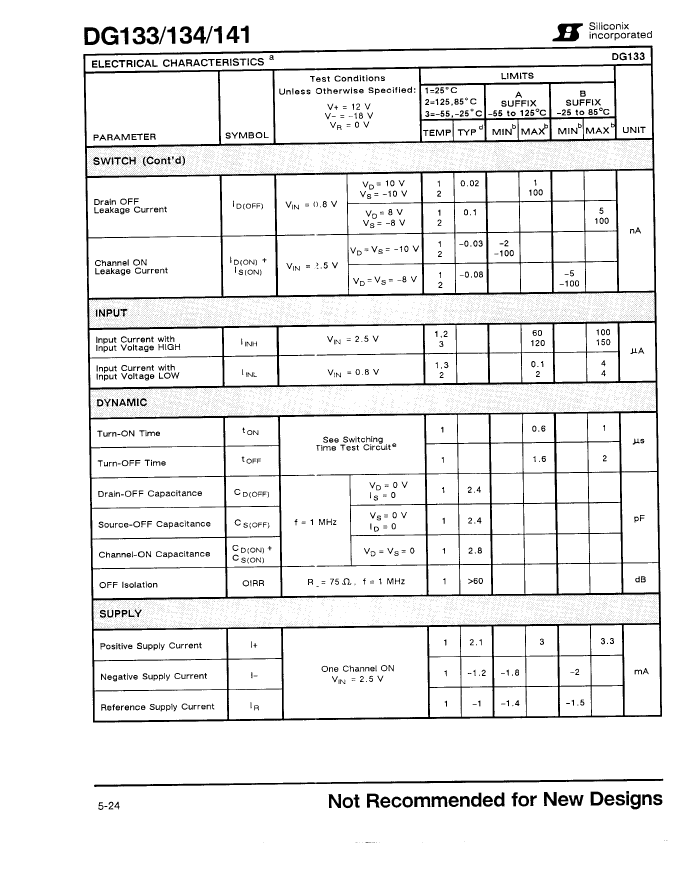

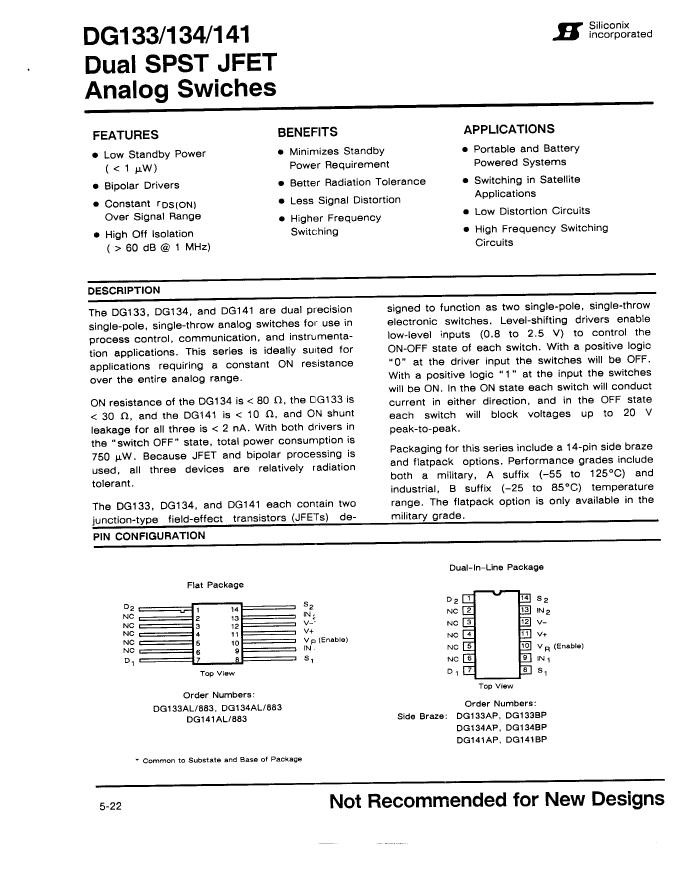

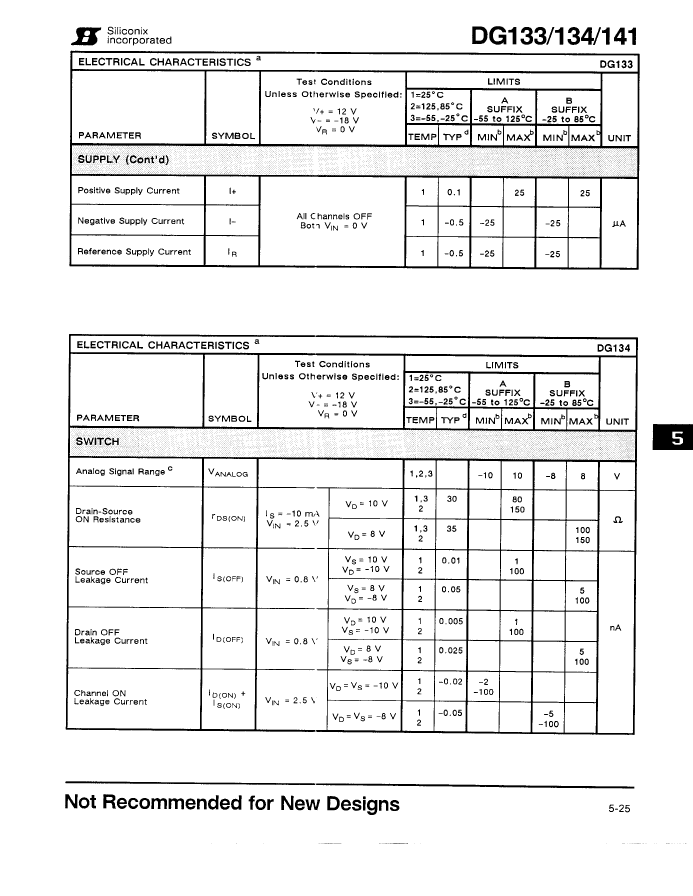

Preview

Download Datasheet

View All

DG134AL/883 Related Products

	DG134AL/883	DG133AP	DG133AL/883	DG141AL/883	DG141AP	DG141AP883	DG133BP	DG134AP	DG134BP	DG141BP
Description	SPST, 2 Func, 1 Channel, FP-14	SPST, 2 Func, 1 Channel, PDIP14, SIDE BRAZE, DIP-14	SPST, 2 Func, 1 Channel, FP-14	SPST, 2 Func, 1 Channel, FP-14	SPST, 2 Func, CDIP14	SPST, 2 Func, 1 Channel, PDIP14, DIP-14	SPST, 2 Func, 1 Channel, PDIP14, SIDE BRAZE, DIP-14	SPST, 2 Func, 1 Channel, PDIP14, SIDE BRAZE, DIP-14	SPST, 2 Func, 1 Channel, PDIP14, SIDE BRAZE, DIP-14	SPST, 2 Func, 1 Channel, PDIP14, SIDE BRAZE, DIP-14
package instruction	DFP,	DIP,	DFP,	DFP,	DIP, DIP14,.3	DIP,	DIP,	DIP,	DIP,	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST
JESD-30 code	R-XDFP-F14	R-PDIP-T14	R-XDFP-F14	R-XDFP-F14	R-XDIP-T14	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14
Number of functions	2	2	2	2	2	2	2	2	2	2
Number of terminals	14	14	14	14	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	85 °C	125 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-25 °C	-55 °C	-25 °C	-25 °C
Package body material	UNSPECIFIED	PLASTIC/EPOXY	UNSPECIFIED	UNSPECIFIED	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DFP	DIP	DFP	DFP	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	FLATPACK	FLATPACK	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
surface mount	YES	NO	YES	YES	NO	NO	NO	NO	NO	NO
Maximum connection time	600 ns	600 ns	600 ns	1000 ns	1000 ns	1000 ns	1000 ns	600 ns	1000 ns	1500 ns
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	OTHER	MILITARY	OTHER	OTHER
Terminal form	FLAT	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Vishay	-	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay
Nominal Negative Supply Voltage (Vsup)	-18 V	-18 V	-18 V	-18 V	-	-18 V	-18 V	-18 V	-18 V	-18 V
Number of channels	1	1	1	1	-	1	1	1	1	1
Maximum on-state resistance (Ron)	80 Ω	30 Ω	30 Ω	10 Ω	-	20 Ω	50 Ω	80 Ω	100 Ω	15 Ω
Nominal supply voltage (Vsup)	12 V	12 V	12 V	12 V	-	12 V	12 V	12 V	12 V	12 V
Maximum disconnect time	1600 ns	1600 ns	1600 ns	2500 ns	-	2500 ns	2000 ns	1600 ns	2000 ns	2500 ns
