DG134BP-4

Description
SPST, 2 Func, CDIP14
CategoryAnalog mixed-signal IC    The signal circuit
File Size425KB,8 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric Compare View All

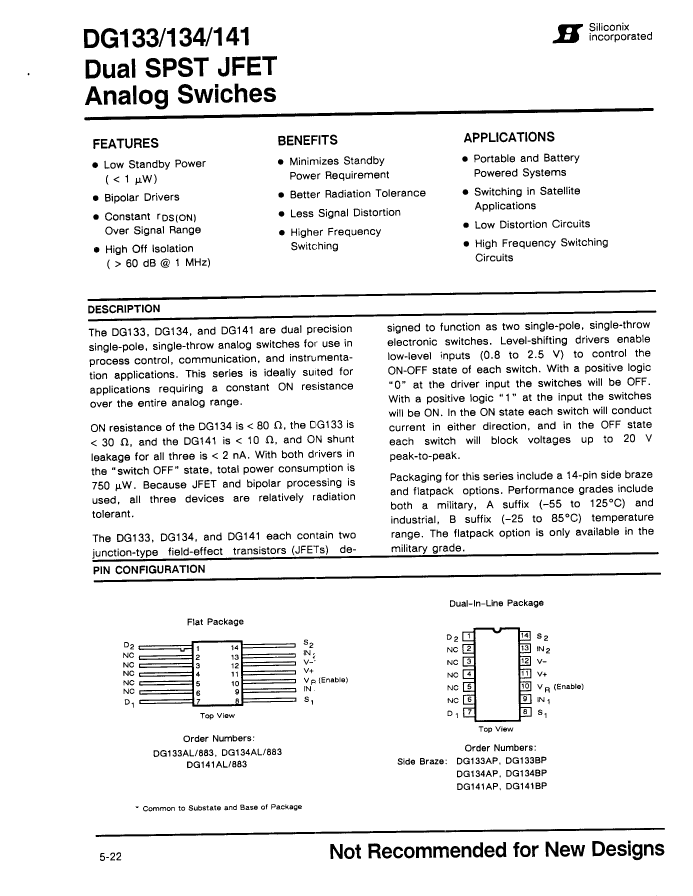

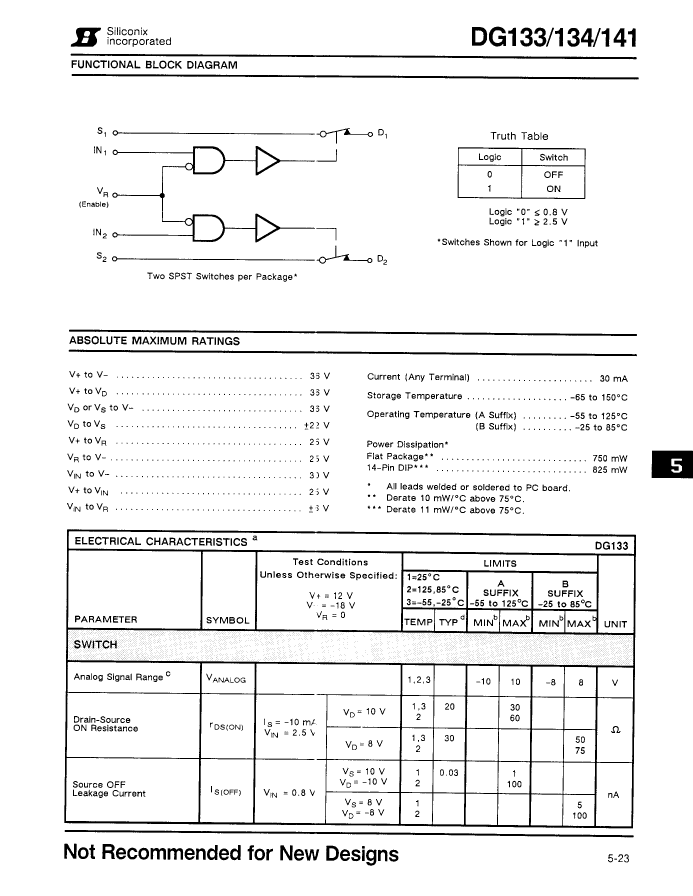

DG134BP-4 Overview

SPST, 2 Func, CDIP14

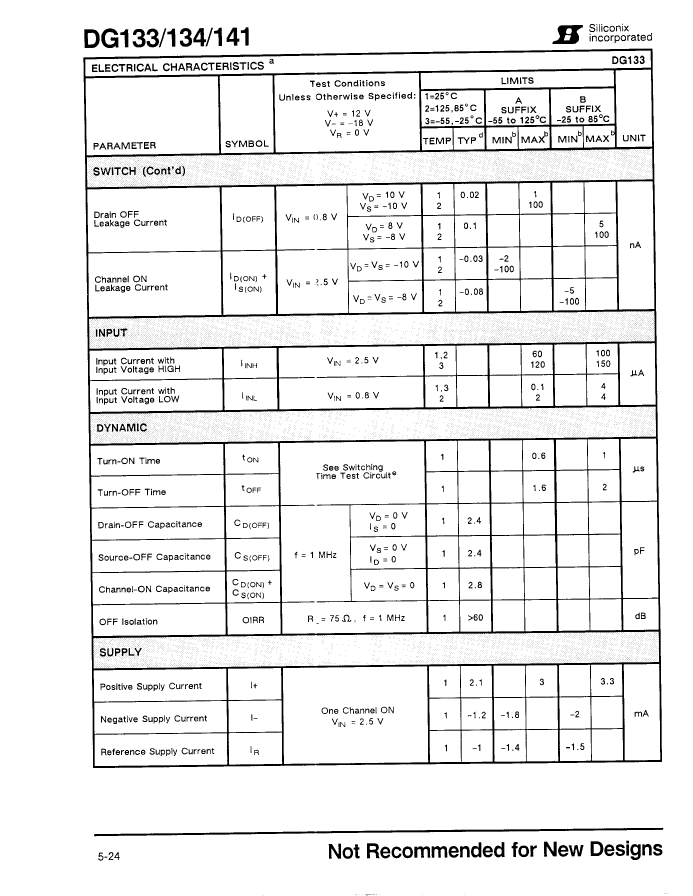

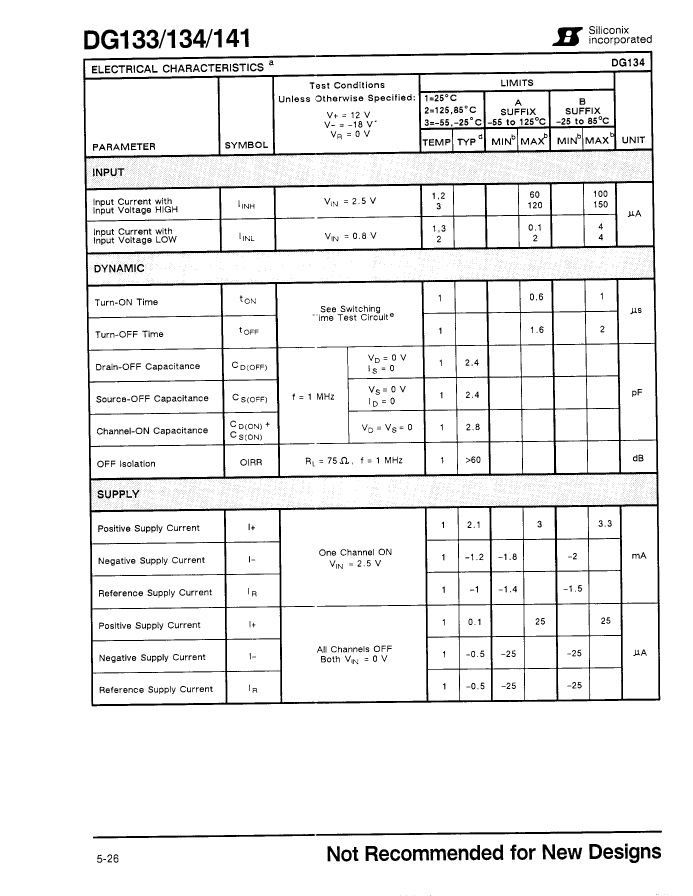

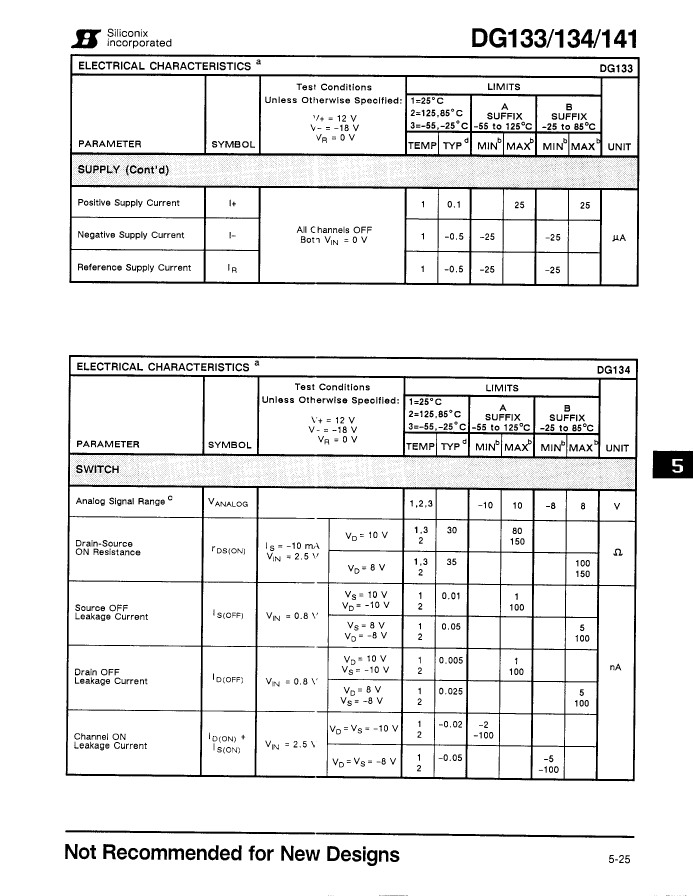

DG134BP-4 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerVishay
package instructionDIP, DIP14,.3
Reach Compliance Codeunknown
Analog Integrated Circuits - Other TypesSPST
JESD-30 codeR-XDIP-T14
JESD-609 codee0
normal positionNO
Number of functions2
Number of terminals14
Maximum operating temperature85 °C
Minimum operating temperature-20 °C
outputSEPARATE OUTPUT
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP14,.3
Package shapeRECTANGULAR
Package formIN-LINE
surface mountNO
Maximum connection time1000 ns
switchMAKE-BEFORE-BREAK
Temperature levelOTHER
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL

DG134BP-4 Related Products

DG134BP-4 DG133AP/883 DG141AL DG133BP-4 DG134AL DG134AP/883 DG141BP-4
Description SPST, 2 Func, CDIP14 SPST, 2 Func, 1 Channel, PDIP14, SIDE BRAZE, DIP-14 SPST, 2 Func, CDFP14 SPST, 2 Func, CDIP14 SPST, 2 Func, CDFP14 Multiplexers/Switches SPST, 2 Func, CDIP14
package instruction DIP, DIP14,.3 DIP, DFP, FL14,.3 DIP, DIP14,.3 DFP, FL14,.3 , DIP, DIP14,.3
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown
Is it Rohs certified? incompatible - incompatible incompatible incompatible - incompatible
Maker Vishay - Vishay Vishay Vishay Vishay Vishay
Analog Integrated Circuits - Other Types SPST SPST SPST SPST SPST - SPST
JESD-30 code R-XDIP-T14 R-PDIP-T14 R-XDFP-F14 R-XDIP-T14 R-XDFP-F14 - R-XDIP-T14
JESD-609 code e0 - e0 e0 e0 - e0
normal position NO - NO NO NO - NO
Number of functions 2 2 2 2 2 - 2
Number of terminals 14 14 14 14 14 - 14
Maximum operating temperature 85 °C 125 °C 125 °C 85 °C 125 °C - 85 °C
Minimum operating temperature -20 °C -55 °C -55 °C -20 °C -55 °C - -20 °C
output SEPARATE OUTPUT - SEPARATE OUTPUT SEPARATE OUTPUT SEPARATE OUTPUT - SEPARATE OUTPUT
Package body material CERAMIC PLASTIC/EPOXY CERAMIC CERAMIC CERAMIC - CERAMIC
encapsulated code DIP DIP DFP DIP DFP - DIP
Encapsulate equivalent code DIP14,.3 - FL14,.3 DIP14,.3 FL14,.3 - DIP14,.3
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR - RECTANGULAR
Package form IN-LINE IN-LINE FLATPACK IN-LINE FLATPACK - IN-LINE
surface mount NO NO YES NO YES - NO
Maximum connection time 1000 ns 600 ns 1000 ns 1000 ns 600 ns - 1500 ns
switch MAKE-BEFORE-BREAK - MAKE-BEFORE-BREAK MAKE-BEFORE-BREAK MAKE-BEFORE-BREAK - MAKE-BEFORE-BREAK
Temperature level OTHER MILITARY MILITARY OTHER MILITARY - OTHER
Terminal surface Tin/Lead (Sn/Pb) - Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) - Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE FLAT THROUGH-HOLE FLAT - THROUGH-HOLE
Terminal pitch 2.54 mm - 1.27 mm 2.54 mm 1.27 mm - 2.54 mm
Terminal location DUAL DUAL DUAL DUAL DUAL - DUAL
