FW30I100491B25

Description
General Purpose Inductor, 490uH, 1 Element, DIP-12, ROHS COMPLIANT
CategoryPassive components    inductor
File Size147KB,4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric Compare View All

FW30I100491B25 Online Shopping

Suppliers Part Number Price MOQ In stock
FW30I100491B25 - - View Buy Now

FW30I100491B25 Overview

General Purpose Inductor, 490uH, 1 Element, DIP-12, ROHS COMPLIANT

FW30I100491B25 Parametric

Parameter NameAttribute value
Objectid1989277435
package instructionDIP-12, ROHS COMPLIANT
Reach Compliance Codeunknown
YTEOL6.7
Nominal inductance(L)490 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee2
Number of functions1
Number of terminals12
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountNO
Terminal surfaceTIN COPPER
Terminal locationDUAL IN-LINE
Terminal shapeFLAT
Test frequency0.1 MHz

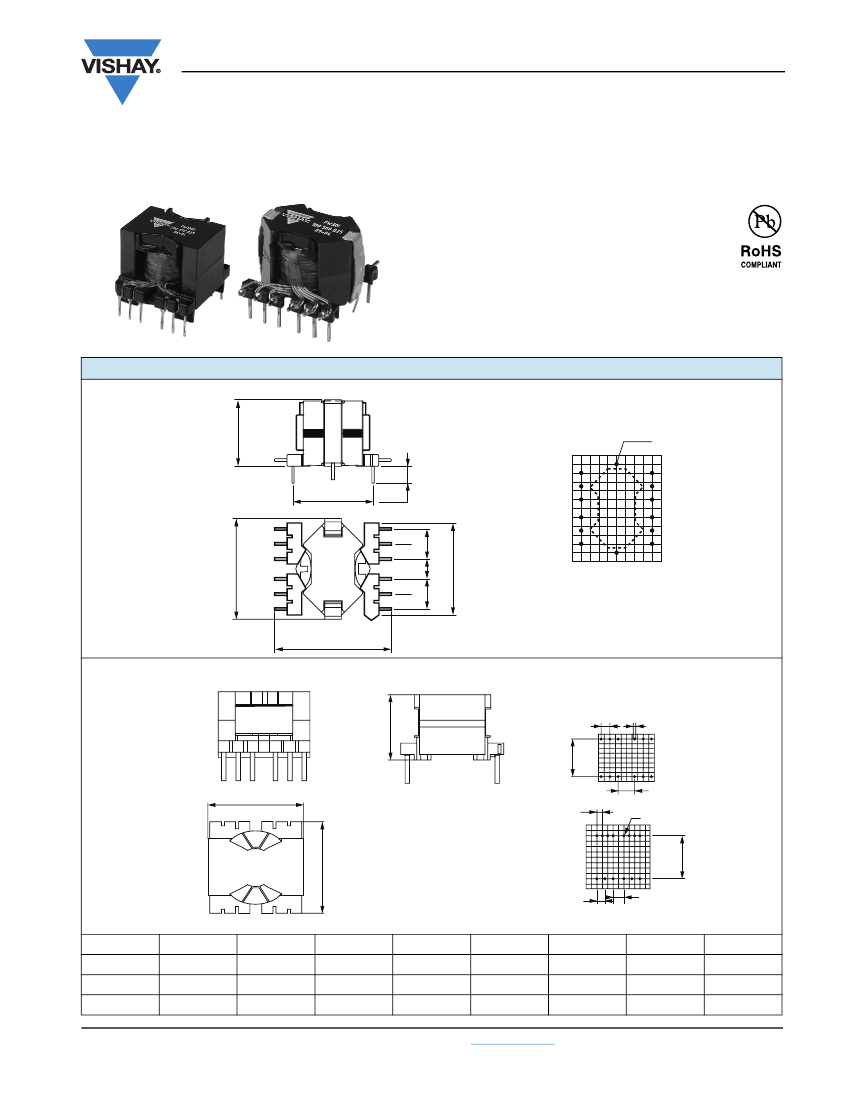

FW30, FW100
Vishay Aztronic
Transformer and Inductor
for Military and Aeronautic Forward Power Supplies
FEATURES
Design for aeronautics and military power supply
applications
Frequency: 100 kHz to 200 kHz
Power: 30 W to 100 W
Efficiency > 95 %
UL94V0 material
Operating temperature: - 55 °C to + 125 °C
DIMENSIONS
in millimeters (± 0.2 mm)
Format: RM8
18 max.
Mass
6
5
7
8
9
10
11
12
20.32 ± 0.2
3 min.
4
3
2x
3.81
27 max.
5.08 23.5
max.
2x
3.81
2
1
Bottom
view
30.9 max.
Format: PQ
C
E
F
D
Format:
3 and 4
G
A
12
7
F
D
Format: 2
E
B
G
H
1
6
FORMAT
PQ 20 X 16
PQ 26 X 20
PQ 26 X 25
A
25 max.
28 max.
28 max.
B
25 max.
30 max.
30 max.
C
21 max.
24 max.
29 max.
D
0.6
0.65
0.65
E
20.3
25.4
25.4
F
2.54
3.8
3.8
G
5
7.6
7.6
H
3.8
-
-
www.vishay.com
1
Document Number: 59055
Revision: 08-Jun-09
For technical questions, contact:
sfer@vishay.com

FW30I100491B25 Related Products

FW30I100491B25 FW30I100500B25 FW100I100151B25 FW100T20015VB25 FW100T10015VB25 FW30T20015VB25 FW30T1003V3B25 FW30T10015VB25 FW30T1005VB25 FW30I200231B25
Description General Purpose Inductor, 490uH, 1 Element, DIP-12, ROHS COMPLIANT General Fixed Inductor, 1 ELEMENT, 50 uH, GENERAL PURPOSE INDUCTOR, DIP-12, ROHS COMPLIANT General Fixed Inductor, 1 ELEMENT, 150 uH, GENERAL PURPOSE INDUCTOR, DIP-12, ROHS COMPLIANT SMPS Transformer, 100 W, SMPS TRANSFORMER, ROHS COMPLIANT SMPS Transformer, 100 W, SMPS TRANSFORMER, ROHS COMPLIANT SMPS Transformer, 30 W, SMPS TRANSFORMER, ROHS COMPLIANT SMPS Transformer, 30W, ROHS COMPLIANT SMPS Transformer, 30 W, SMPS TRANSFORMER, ROHS COMPLIANT SMPS Transformer, 30W, ROHS COMPLIANT General Purpose Inductor, 230uH, 1 Element, DIP-12, ROHS COMPLIANT
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown
JESD-609 code e2 e2 e2 e2 e2 e2 e2 e2 e2 e2
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
surface mount NO NO NO NO NO NO NO NO NO NO
Terminal surface TIN COPPER TIN COPPER TIN COPPER TIN COPPER TIN COPPER TIN COPPER TIN COPPER TIN COPPER TIN COPPER TIN COPPER
Objectid 1989277435 - - 1989241475 - 1989241479 1989241477 1989241476 1989241478 1989277438
YTEOL 6.7 - - 6.97 - 6.47 6.75 6.75 6.75 6.7
ECCN code - EAR99 EAR99 EAR99 EAR99 EAR99 - EAR99 - -
Other features - - - LENGTH DIM INCLUDES TERMINALS ALSO; TURNS RATIO: 1/1.3 LENGTH DIM INCLUDES TERMINALS ALSO; TURNS RATIO: 1/1.4 LENGTH DIM INCLUDES TERMINALS ALSO; TURNS RATIO: 1/2.4 LENGTH DIM INCLUDES TERMINALS ALSO; TURNS RATIO: 1/0.6 LENGTH DIM INCLUDES TERMINALS ALSO; TURNS RATIO: 1/2.3 LENGTH DIM INCLUDES TERMINALS ALSO; TURNS RATIO: 1/0.8 -
high - - - 24 mm 29 mm 21 mm 18 mm 18 mm 18 mm -
Maximum input voltage - - - 72 V 72 V 40 V 40 V 40 V 40 V -
Minimum input voltage - - - 24 V 24 V 14 V 14 V 14 V 14 V -
length - - - 30 mm 30 mm 25 mm 30.9 mm 30.9 mm 30.9 mm -
Installation features - - - THROUGH HOLE MOUNTED THROUGH HOLE MOUNTED THROUGH HOLE MOUNTED THROUGH HOLE MOUNTED THROUGH HOLE MOUNTED THROUGH HOLE MOUNTED -
Number of secondary windings - - - 1 1 1 1 1 1 -
Maximum operating frequency - - - 200 kHz 100 kHz 200 kHz 100 kHz 100 kHz 100 kHz -
Output voltage 1 - - - 15 V 15 V 15 V 3.3 V 15 V 5 V -
method of packing - - - BULK BULK BULK BULK BULK BULK -
rated power - - - 100 W 100 W 30 W 30 W 30 W 30 W -
Primary inductance - - - 220 µH 340 µH 230 µH 380 µH 380 µH 380 µH -
Transformer type - - - SMPS TRANSFORMER SMPS TRANSFORMER SMPS TRANSFORMER SMPS TRANSFORMER SMPS TRANSFORMER SMPS TRANSFORMER -
width - - - 28 mm 28 mm 25 mm 27 mm 27 mm 27 mm -
